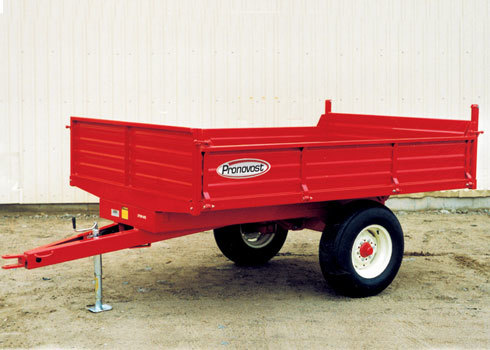

P-509-60

P 509 60
  1. P 516 G

Capacity

4 tons

Interior dimensions

71" x 105"

Dumps Rear
Axle Single
Add to compare
Download the flyer

Options

Hydraulic pump

P 510 Phep

P-511-PHEP

Electric hydraulic pump (12V). Battery and battery holder not included. P-511-PHEP

Battery holder

Battery holder (battery not included) P-500-SB

Tires

Charge for 11L15F1 (D) tires instead of 11L15 tires. F1 tire is made for agricultural and road use. Increases the maximum recommended speed from 30 MPH to 60 MPH. XT2-11L15F1

Central unloading hatch

P 516 G

P-516G

Central unloading hatch P-516G

Other recommended products

Additional Information

Complete specifications

Gross vehicle weight rating 4 tons¹
Interior box dimensions 71" x 105"
Bed thickness 3/16"
Side panels 14" x 12G
Front / back panel 19" x 12G
Removable panels 4
Rear panel opening Automatic
Platform height 35 1/2"
Overall length 147"
Overall width 77"
Overall height 60"
Free height at maximum tilt 14"
Total height at maximum tilt 108"
Tread width c/c 60"
Dumping angle (back) 47°
Grain door Option
Axles Single
Hubs 6 bolts
Hub capacity 5000 lbs
Spindles 2 1/4"
Wheels 2
Wheels dimensions 15" x 8"
Included tires 11L15 (8 ply)
Optional tires 11L15F1 (D)
Hitch : clevis/swivel Inclus
Jack Inclus
Cylinder(s) 1 double acting
Total weight (approx.) 1725 lbs / 782 kg

1 Capacity with 11L15F1 (D) tires at a speed of 25 MPH.

Design and specifications subject to change without notice.
