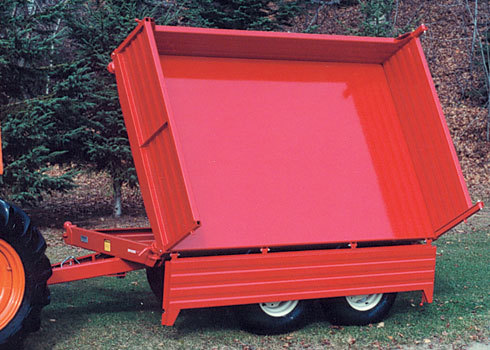

P-510/3S

P 510 3 S
  1. P 516 G

Capacity

5 tons

Interior dimensions

62" x 99"

Dumps On 3 sides
Axle Tandem
Add to compare
Download the flyer

Options

Hydraulic pump

P 510 Phep

P-510-PHEP

Electric hydraulic pump (12V). Battery and battery holder not included. P-510-PHEP

Battery holder

Battery holder (battery not included) P-500-SB

Central unloading hatch

P 516 G

P-516G

Central unloading hatch P-516G

Other recommended products

Additional Information

Complete specifications

Gross vehicle weight rating 5 tons
Interior box dimensions 62" x 99"
Bed thickness 3/16"
Side panels 14" x 12G
Front / back panel 19" x 12G
Removable panels 4
Rear panel opening Automatic
Platform height 35 1/2"
Overall length 143"
Overall width 68"
Overall height 60"
Free height at maximum tilt 20"
Total height at maximum tilt 117"
Tread width c/c 51"
Dumping angle (back) 47°
Dumping angle (2 sides) 47°
Grain door Option
Axles Tandem
Hubs 6 bolts
Hub capacity 4000 lbs
Spindles 2"
Wheels 4
Wheels dimensions 15" x 8"
Included tires 11L15 (8 ply)
Hitch : clevis/swivel Included
Jack Inclus
Oil volume required 5 l
Cylinder(s) 1 single acting
Total weight (approx.) 2100 lbs / 953 kg

Design and specifications subject to change without notice.

Videos

No video for this product

Photo gallery

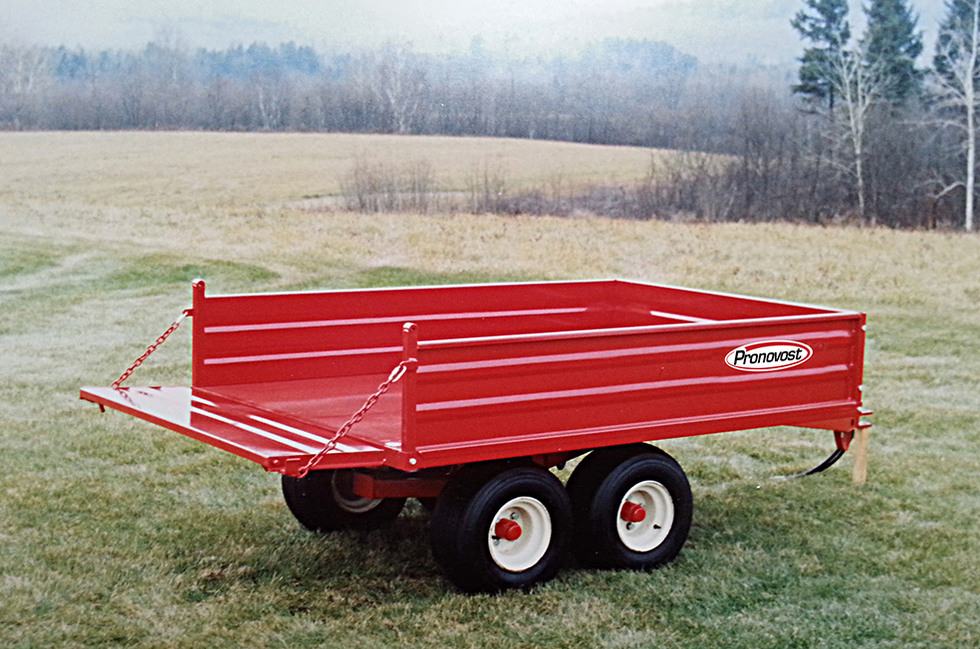

  • P 503 G01

    Model P-503

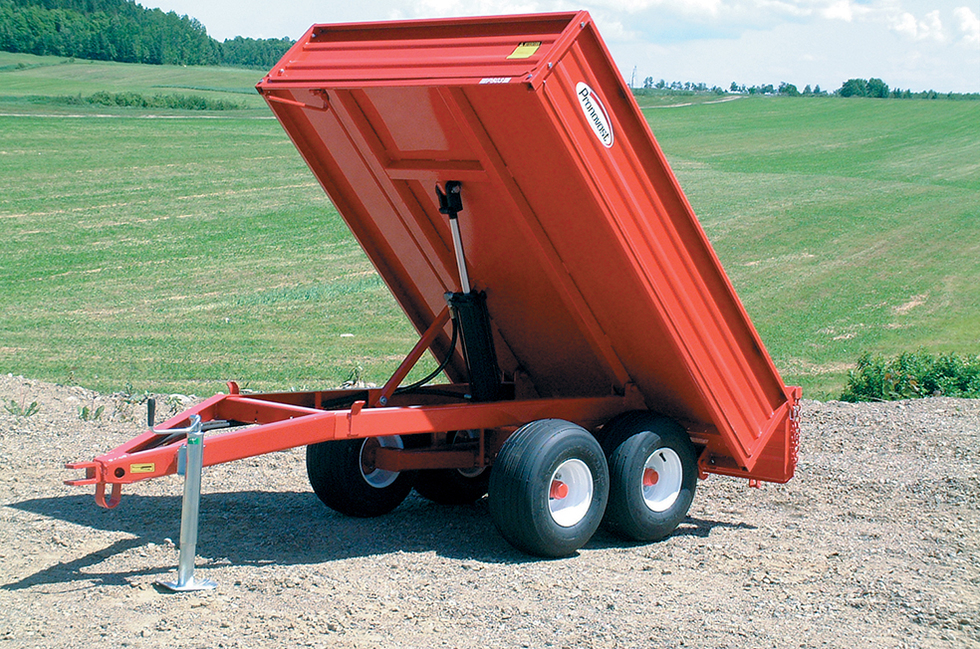

  • P 503 G02

    Model P-503 unloading

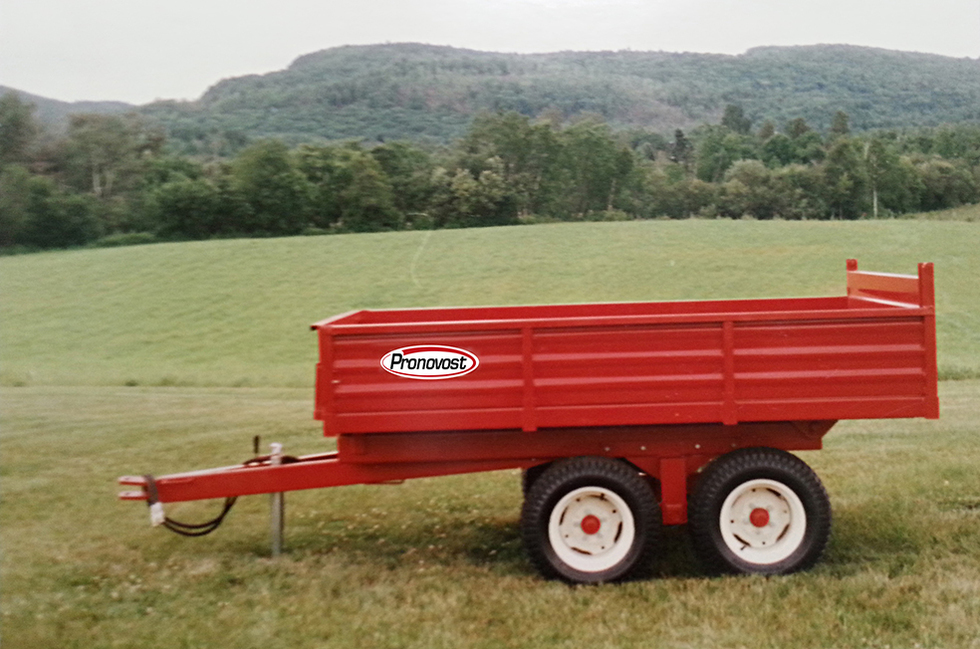

  • P 505 G03

    Model P-505

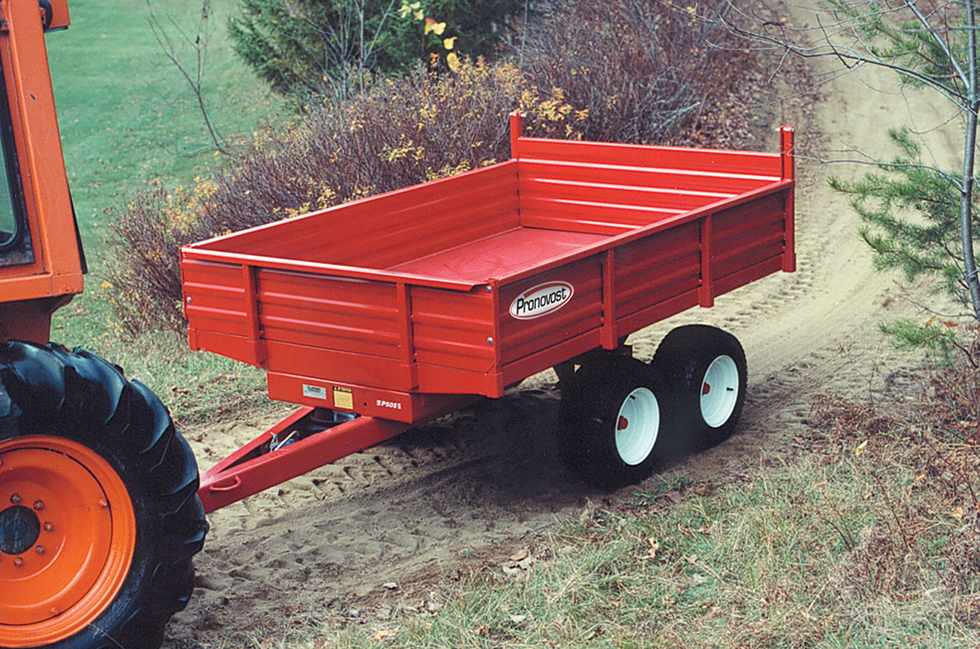

  • P 505 G04

    Model P-505

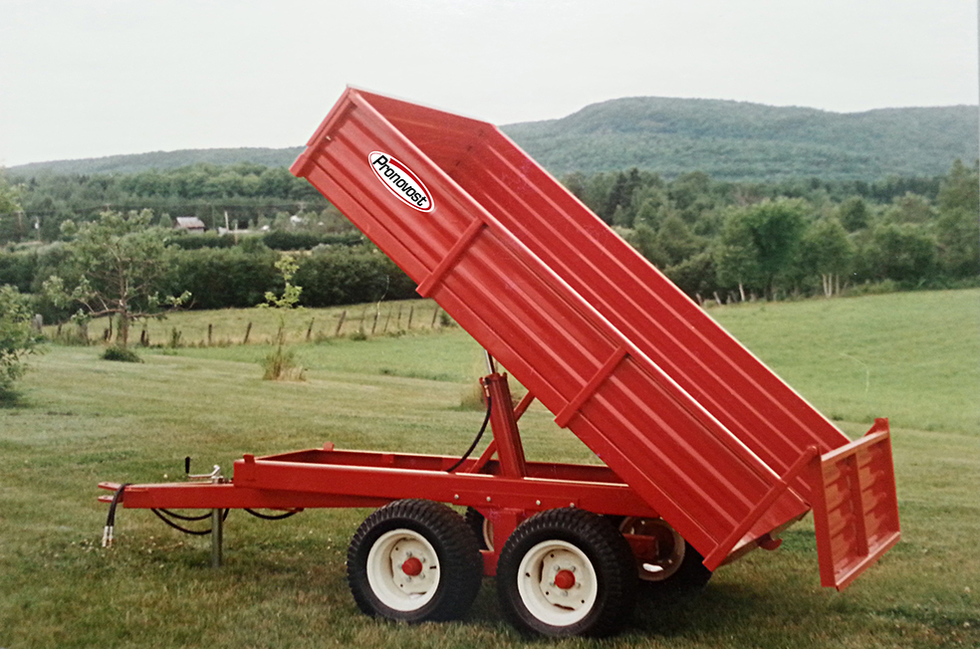

  • P 505 G05

    Model P-505 unloading

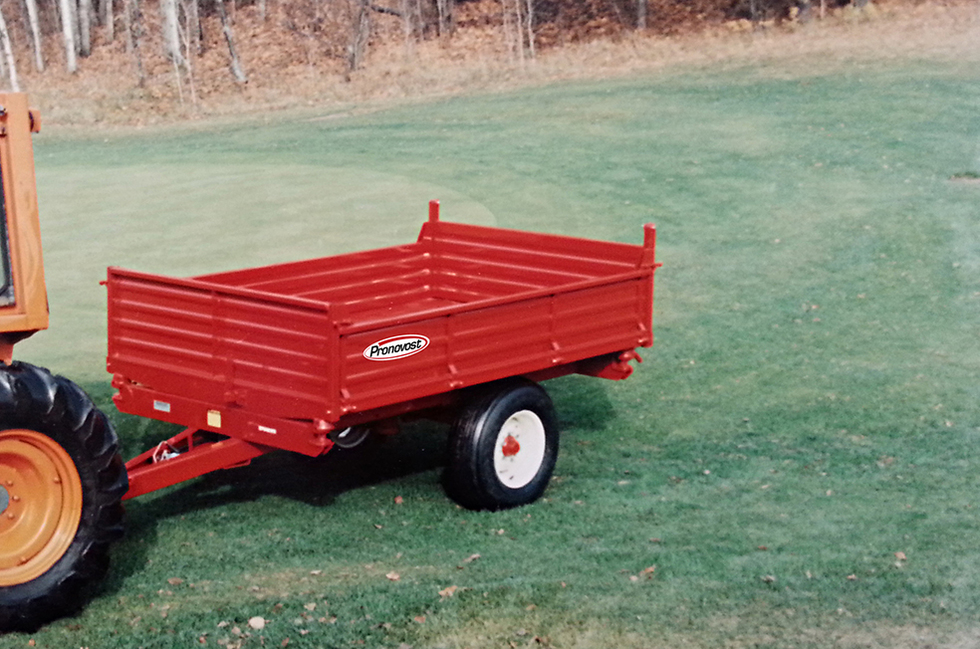

  • P 5083 S G06

    Model P-508/3S

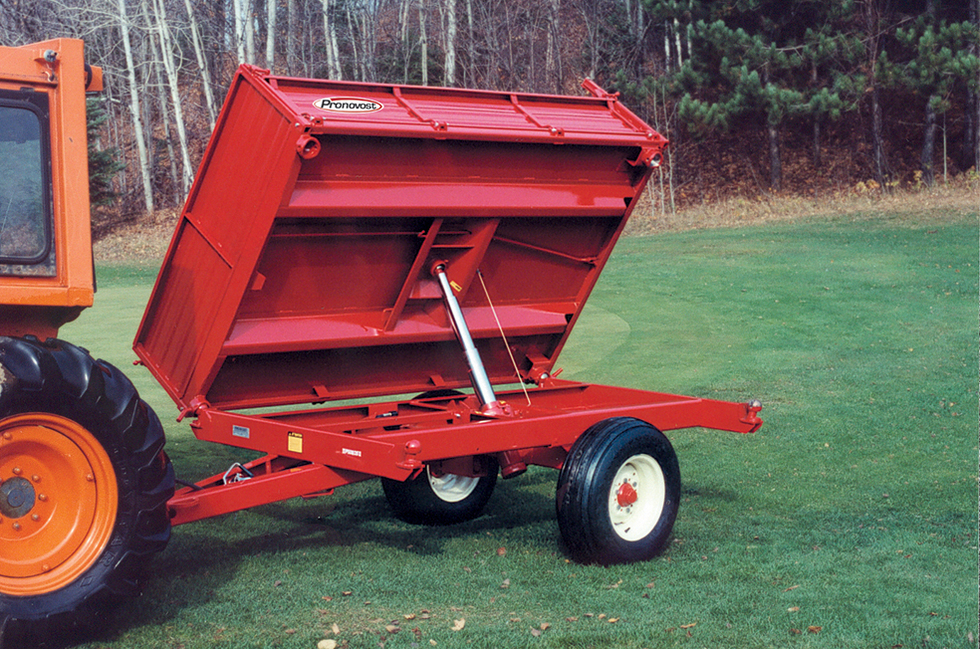

  • P 5083 S G07

    Model P-508/3S unloading

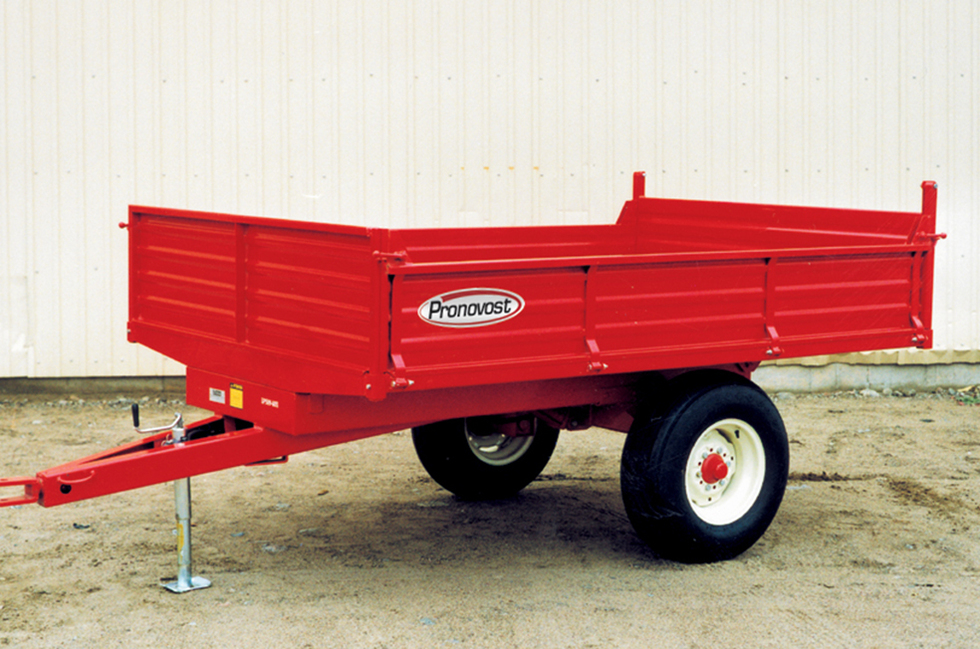

  • P 509 60 G08

    Model P-509-60

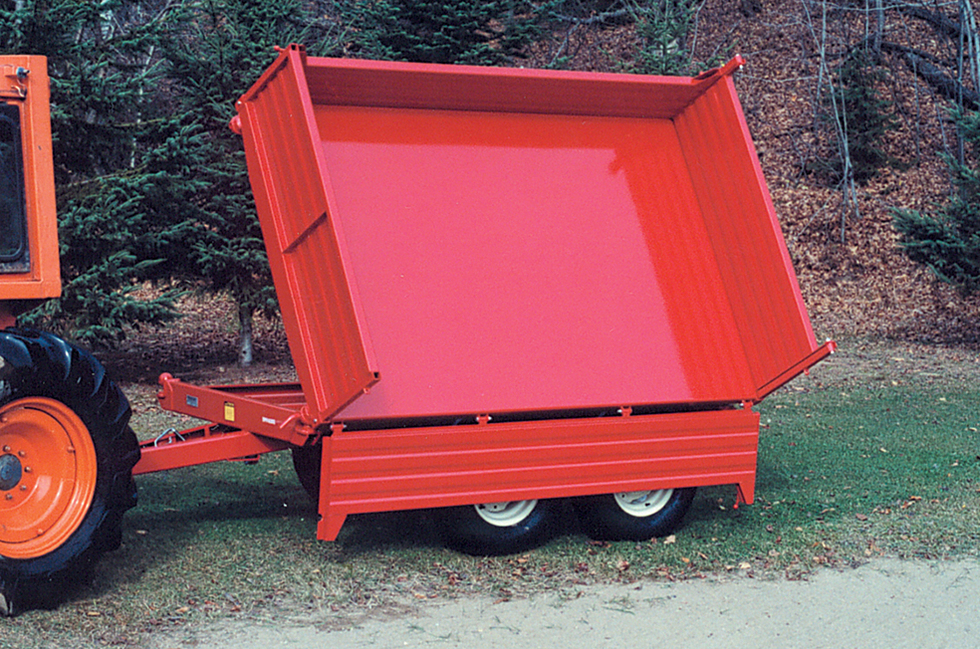

  • P 5103 S G09

    Model P-510/3S unloading

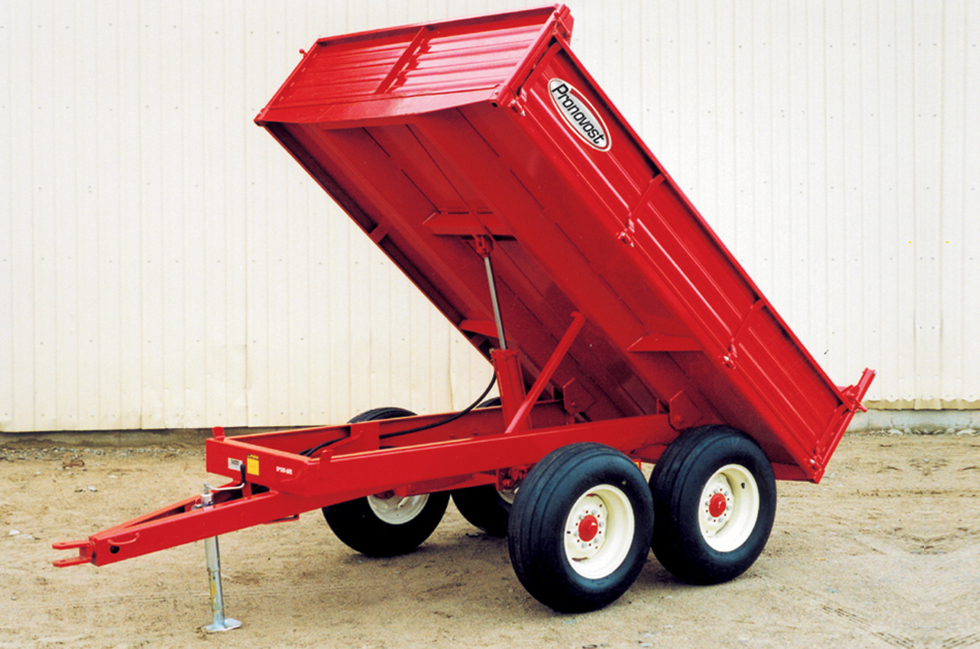

  • P 511 60 G10

    Model P-511-60 unloading

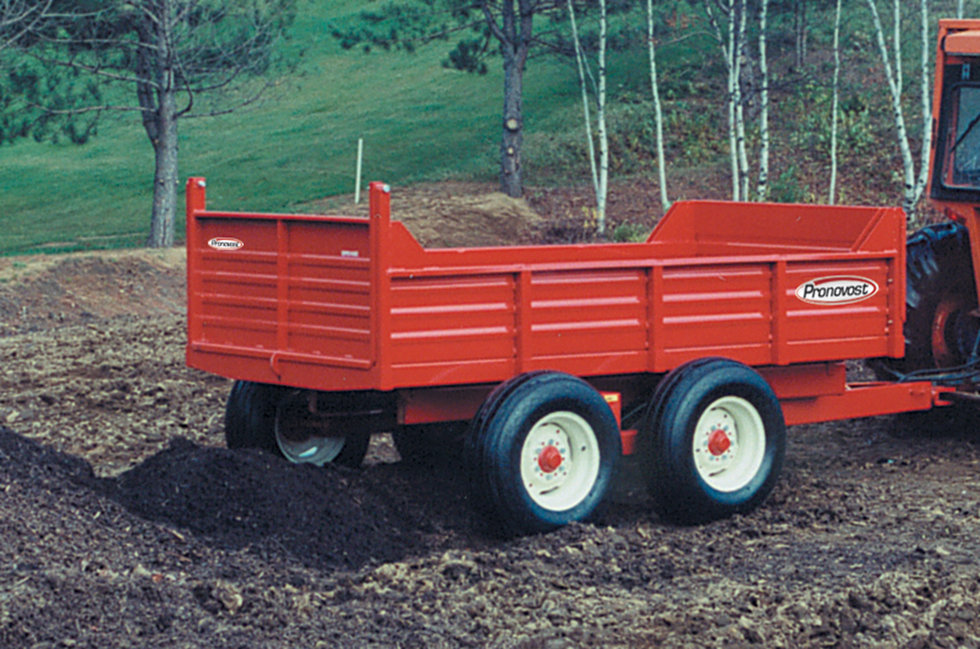

  • P 516 G11

    Model P-516

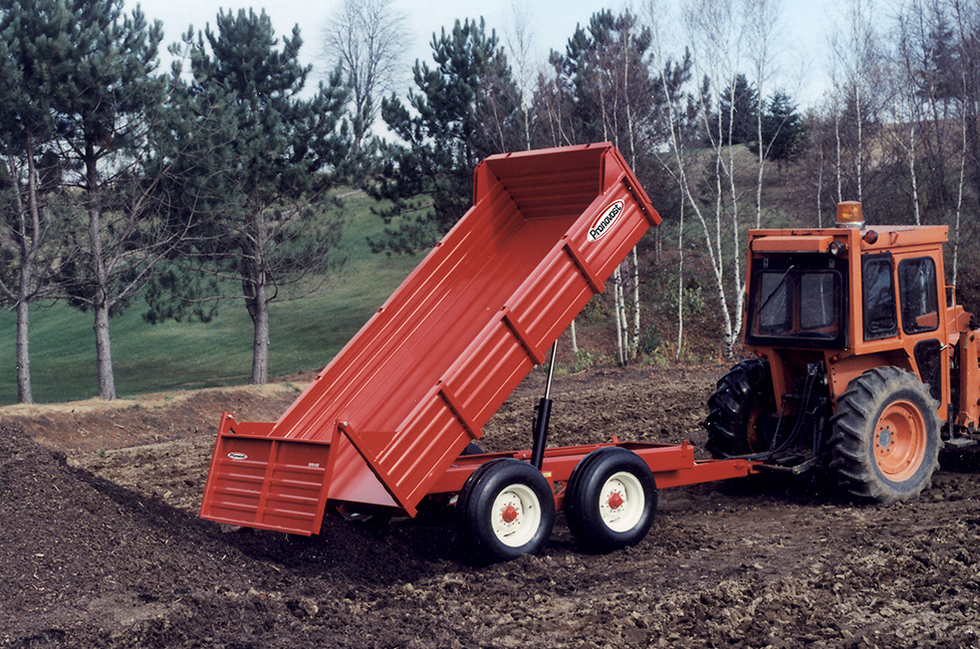

  • P 516 G12

    Model P-516 unloading

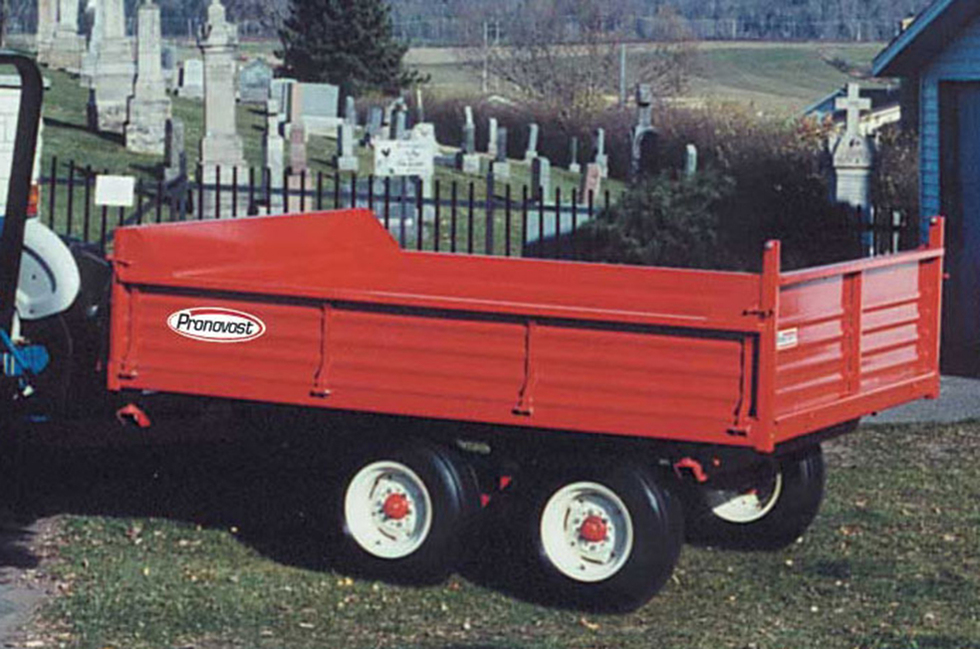

  • P 5163 S G13

    Model P-516/3S

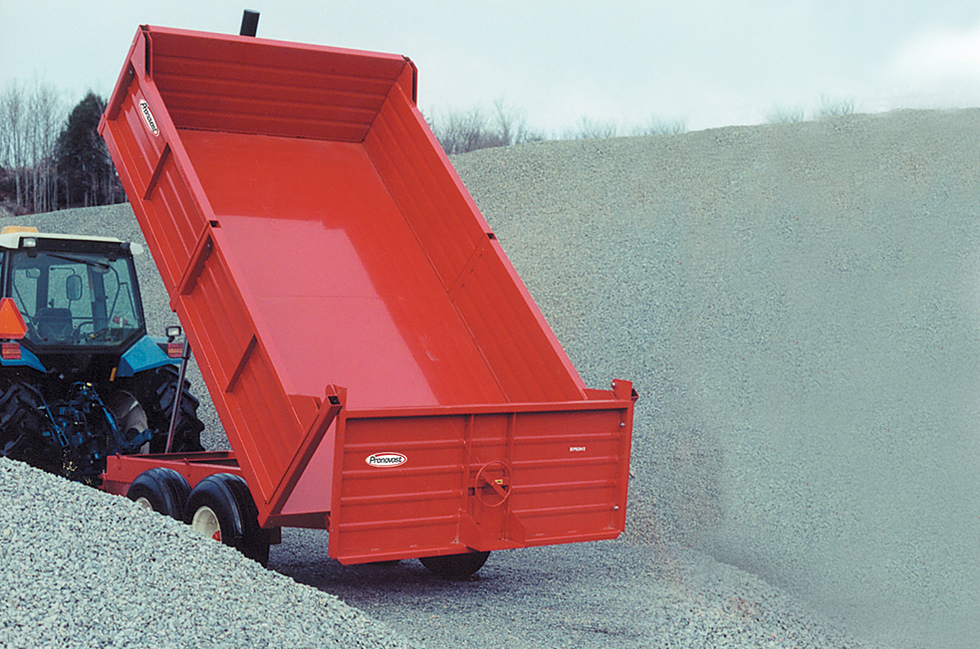

  • P 524 G14

    Model P-524 unloading
