Pronovost

Auto-load bale handlers

  • Gamme Autorondes
  • Gamme Autocarrees

Only one operator needed to pick up and transport dry hay or silage bales. With its simple, robust construction and a patented loading arm designed to turn the bale, loading is quick and safe. All the surfaces are smooth to allow the bales to slide easily, with or without netting. With its extra robust chassis and tandem axles, the auto-load bale handler help reduce manpower, fuel costs, time in the field and minimize soil compaction.

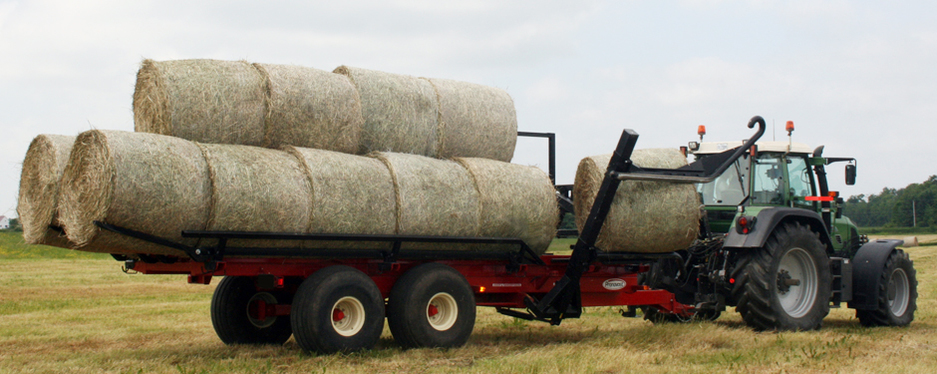

AUTO-LOAD ROUND BALE HANDLERS

Capacity of 10 to 23 bales 80+ HP

  • Loading arm designed to turn the bale.
  • Handles compact and heavy silage bales as well as dry straw bales.
  • Bales from 4' to 5 1/2' in diameter, option to handle 6'.
  • Optional loading arm for third row of bales to increase the number of bales that can be loaded.
  • The bales are picked up in the same direction as the baler for quick loading without stopping.
  • Choice of manual or electric control.
  • Entirely double acting hydraulic system.
  • Multiple tire options, from large to floatation.
  • Optional hydraulic brakes.
  • Road lights included.
Models Number of bales Bale diameter Compare
P-6810 / P-6810M 10 x 4' - 8 x 5' 48" to 66" Add to comparison
Add to comparison
P-6812 / P-6812M 12 X 4' - 10 x 5' 48" to 66" Add to comparison
Add to comparison
P-6816 / P-6816M 16 X 4' - 12 X 5' 48" to 66" Add to comparison
Add to comparison

AUTO-LOAD SQUARE BALE HANDLERS

Capacity of 8 to 36 bales 125+ HP

  • Handles compact and heavy silage bales as well as dry straw bales.
  • Can handle various bales size : 32" x 36", 24" x 48", 36" x 48", 48" x 48".
  • Easily adjustable for bales from 5' to 8' long.
  • The bales are picked up in the same direction as the baler, while moving up to 15 km/h.
  • Unloads horixontally in less than 2 minutes.
  • Sides close in for easy storage or highway trailer transport.
  • Simple and compact control box.
  • Full load indicator.
  • Multiple tire options, from large to floatation.
  • Optional hydraulic brakes.
  • Road light included.
Models Number of bales Bale length Compare
P-7400M 1 layer / 8 to 18 bales 5' to 8' Add to comparison
Add to comparison
P-7800SA 2 layers / 8 to 36 bales 5' to 8' Add to comparison
Add to comparison
