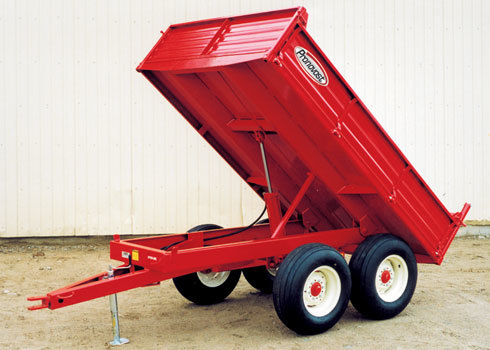

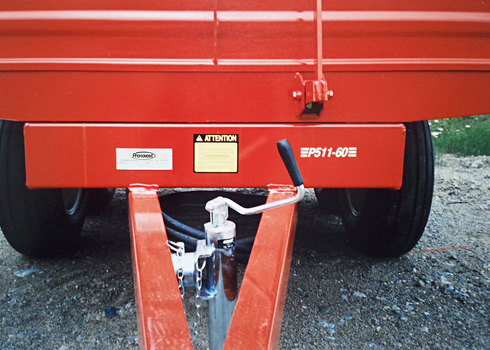

P-511-60
|
Capacity |
5 tons |
|
Interior dimensions |
71" x 105" |
| Dumps | Rear |
| Axle | Tandem |
Options
Hydraulic pump
P-511-PHEP
| Electric hydraulic pump (12V). Battery and battery holder not included. | P-511-PHEP |
Battery holder
| Battery holder (battery not included) | P-500-SB |
Tires
| Charge for 11L15FI (D) tires instead of 11L15 tires. F1 tire is made for agricultural and road use. Increases the maximum recommended speed from 25 MPH to 60 MPH. | XT2-11L15FI |
Central unloading hatch
P-516G
| Central unloading hatch | P-516G |
Additional Information
Complete specifications
| Gross vehicle weight rating | 5 tons |
| Interior box dimensions | 71" x 105" |
| Bed thickness | 3/16" |
| Side panels | 14" x 12G |
| Front / back panel | 19" x 12G |
| Removable panels | 4 |
| Rear panel opening | Automatic |
| Platform height | 35 1/2" |
| Overall length | 147" |
| Overall width | 77" |
| Overall height | 60" |
| Free height at maximum tilt | 14" |
| Total height at maximum tilt | 108" |
| Tread width c/c | 60" |
| Dumping angle (back) | 47° |
| Grain door | Option |
| Axles | Tandem |
| Hubs | 6 bolts |
| Hub capacity | 4000 lbs |
| Spindles | 2" |
| Wheels | 4 |
| Wheels dimensions | 15" x 8" |
| Included tires | 11L15 (8 ply) |
| Hitch : clevis/swivel | Included |
| Jack | Included |
| Cylinder(s) | 1 double acting |
| Total weight (approx.) | 2060 lbs / 934 kg |
Design and specifications subject to change without notice.
