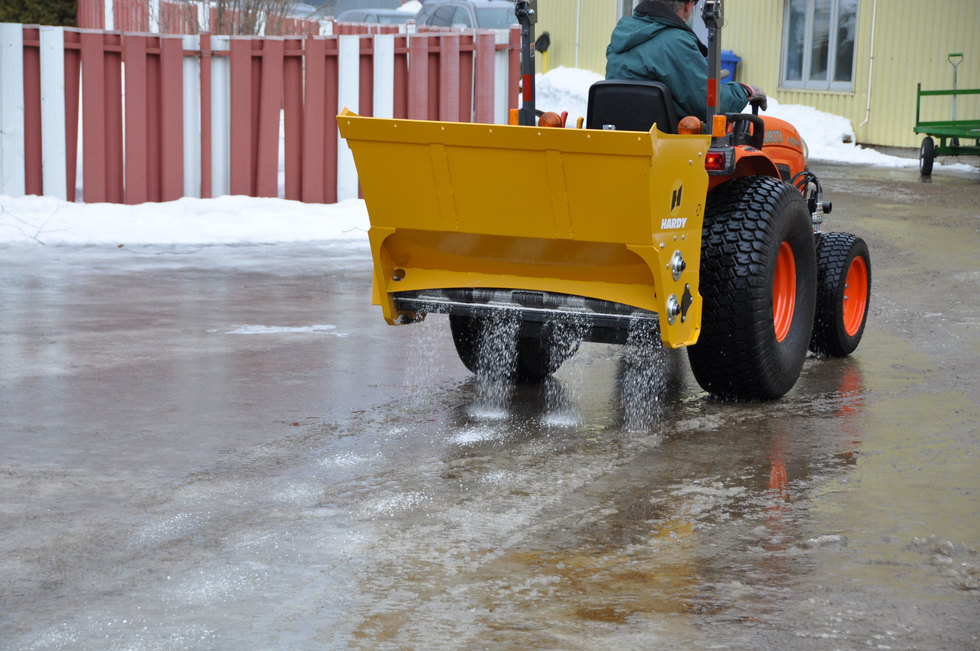

Spreader 54"

Bolt on blade for 54" spreader	1000-3071

Bolt on blade for 54" spreader

1000-3071

Steel lid for 54" spreader	1000-3831

Steel lid for 54" spreader

1000-3831

Hose kit hydraulic 3-point tilt hitch.	PKB-HGQ54

Hose kit hydraulic 3-point tilt hitch.

PKB-HGQ54

1000-3941

1000-3931

1000-3911

1000-3921

1000-4661

1000-3891

Quick attach Hardy for loaders Hardy Serie 5 (25 & 35) and XTREMPRO (40 & 50)	1000-3941
Quick attach Hardy standard (bigger model than 1000-3941)	1000-3931
Quick attach Euro	1000-3911
Quick attach Skid Steer	1000-3921
Stationary 3 point hitch Cat. 1	1000-4661
Hydraulic tilt 3 point hitch Cat. 1 for 54" spreader (including 2 cylinders)	1000-3891

Fewer moving parts
With our new design, only one UHMW dispenser flap is required. This one is reversible.

Bearing protection

Regulable dispenser adjustment system

Flared side
Allows an easier filling and a great load capacity. The flared opening also allows a better protection of the lateral mechanism.

Closed gear box
Our hydraulic motor/binder assembly as well as the gear box cover prevents material from entering the mechanism.

Unique UHMW system

Bearing protection

New automatic adjustment system

Hydraulic 3 point hitch for autonomous loading

Euro hitch

Rigid cover

Spreading width	47 1/2" / 1207 mm
Overall width	52 3/4" / 1340 mm
Overall width with rigid cover	53 3/4" / 1365 mm
Height	35 1/4" / 895 mm
Depth without attachment	33 1/4" / 845 mm
Capacity	0,50 V³ 0,39 m³
Hydraulic motor	Included
Doser opening	Automatic adjustment with spring
