Spreader 86"

Bolt on blade for 86" spreader	1000-3141

Bolt on blade for 86" spreader

1000-3141

Steel lid for 86" spreader	1000-3151

Steel lid for 86" spreader

1000-3151

Hose kit hydraulic 3-point tilt hitch.	PKB-HGQ7486

Hose kit hydraulic 3-point tilt hitch.

PKB-HGQ7486

1000-3941

1000-3931

1000-3911

1000-3921

1000-4671

1000-1561

Quick attach Hardy for loaders Hardy Serie 5 (25 & 35) and XTREMPRO (40 & 50)	1000-3941
Quick attach Hardy standard (bigger model than 1000-3941)	1000-3931
Quick attach Euro	1000-3911
Quick attach Skid Steer	1000-3921
Stationary 3 point hitch Cat. 1 & 2	1000-4671

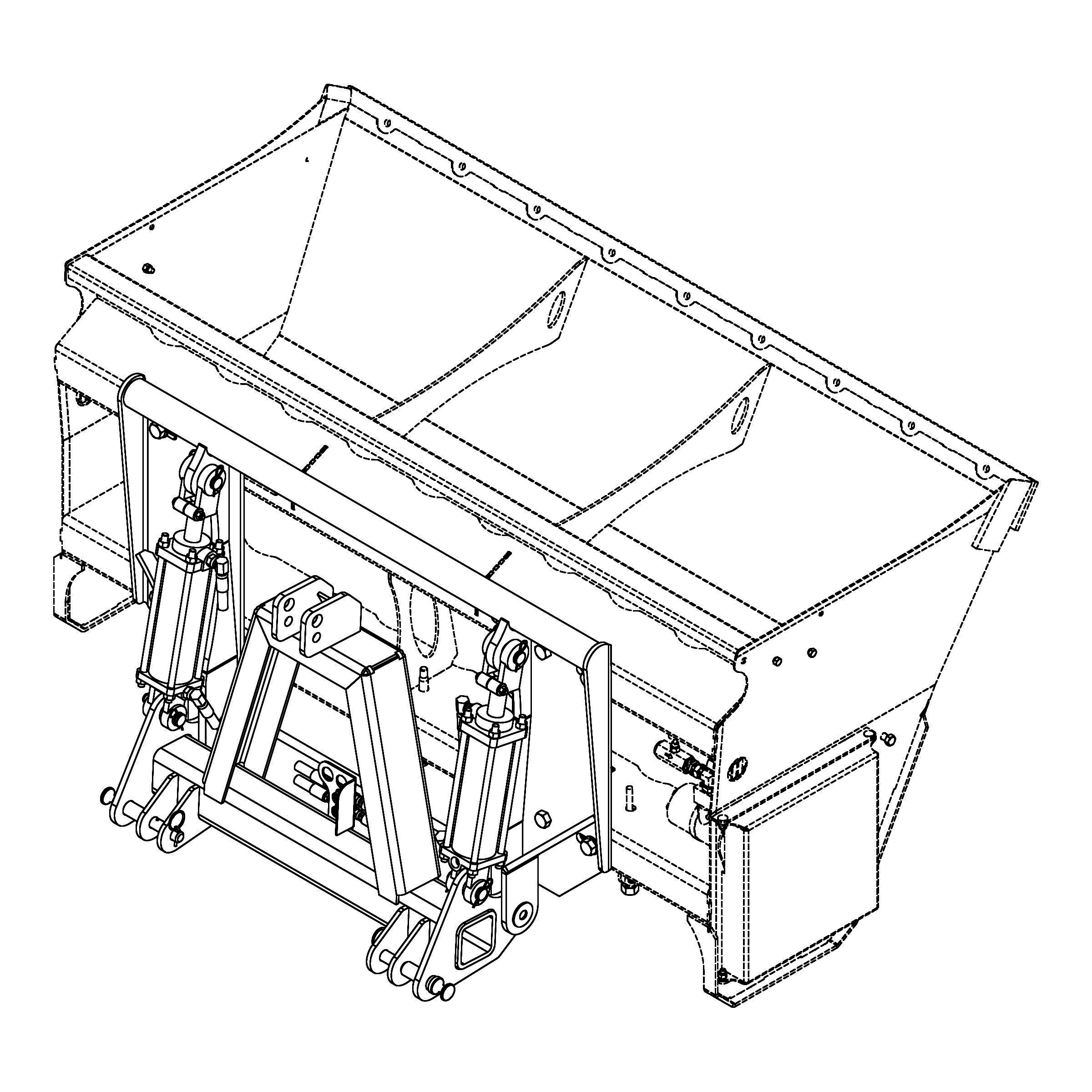

Hydraulic tilt 3 point hitch Cat. 1 & 2 for 74" and 86" spreader (including 2 cylinders)	1000-1561

Fewer moving parts
With our new design, only one UHMW dispenser flap is required. This one is reversible.

Bearing protection

Regulable dispenser adjustment system

Flared side
Allows an easier filling and a great load capacity. The flared opening also allows a better protection of the lateral mechanism.

Closed gear box
Our hydraulic motor/binder assembly as well as the gear box cover prevents material from entering the mechanism.

Unique UHMW system

Bearing protection

New automatic adjustment system

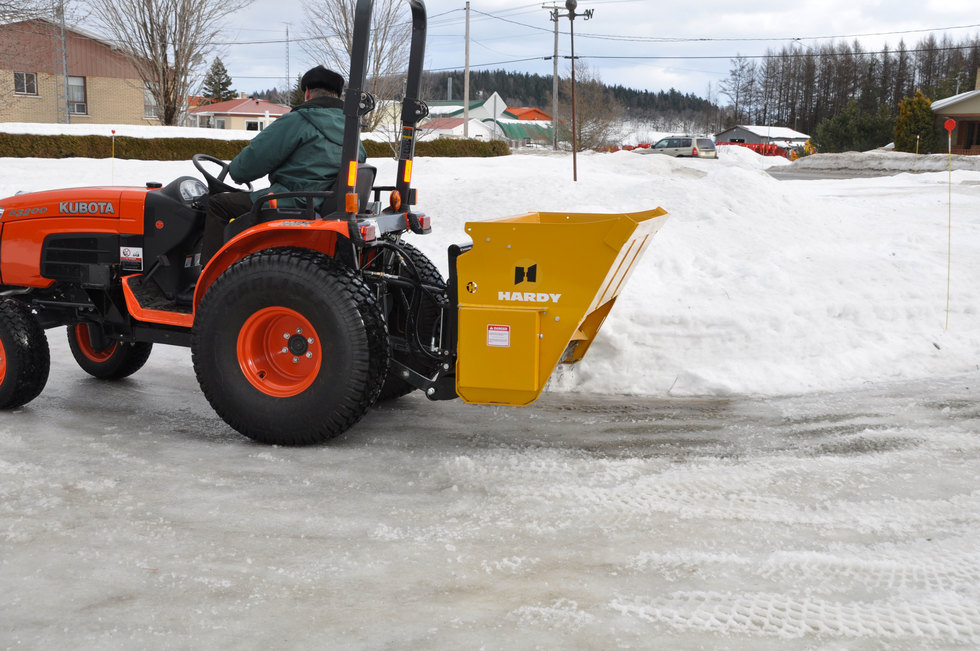

Hydraulic 3 point hitch for autonomous loading

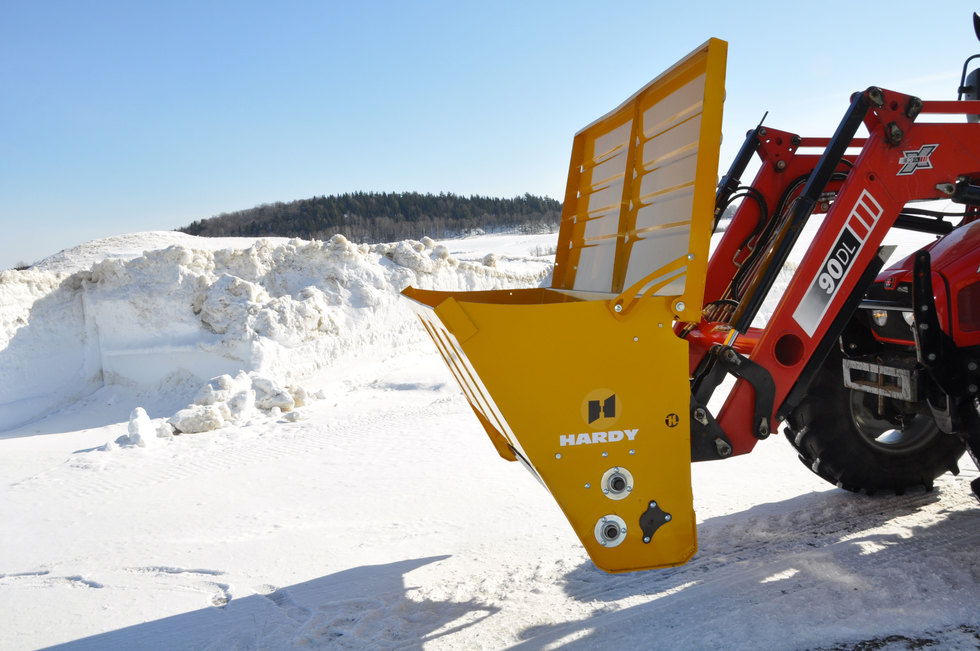

Euro hitch

Rigid cover

Spreading width	80" / 2032 mm
Overall width	86" / 2184 mm
Overall width with rigid cover	87 3/4" / 2229 mm
Height	41 1/4" / 1048 mm
Depth without attachment	36 1/2" / 927 mm
Capacity	1,15 v³ 0,88 m³
Hydraulic motor	Included
Doser opening	Automatic adjustment with spring
