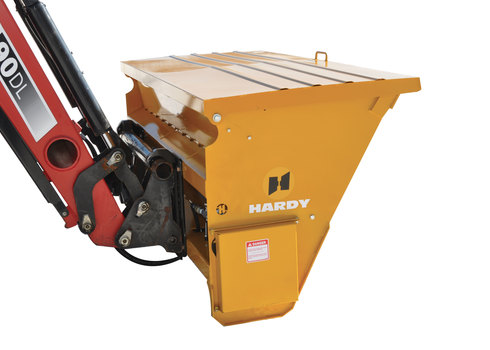

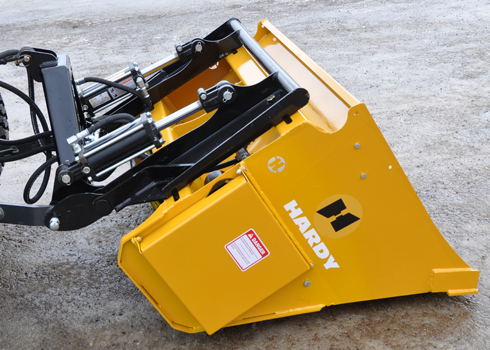

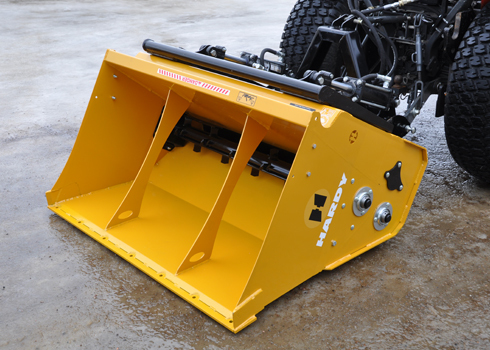

Spreader 54"
Overall width |
54" / 1372 mm |
Hitch available |
Charger, Skid Steer, 3 Points |
| Spreading width | 47 1/2" / 1207 mm |
| Capacity | 0,50 V³ / 0,39 M³ |
| Weight | 488 lbs / 222 kg |
Options
SCRAPER BLADE
| Bolt on blade for 54" spreader | 1000-3071 |
STEEL LID
| Steel lid for 54" spreader | 1000-3831 |
HOSE KITS
| Hose kit hydraulic 3-point tilt hitch. | PKB-HGQ54 |
AVAILABLE ATTACH
1000-3941
1000-3931
1000-3911
1000-3921
1000-4661
1000-3891

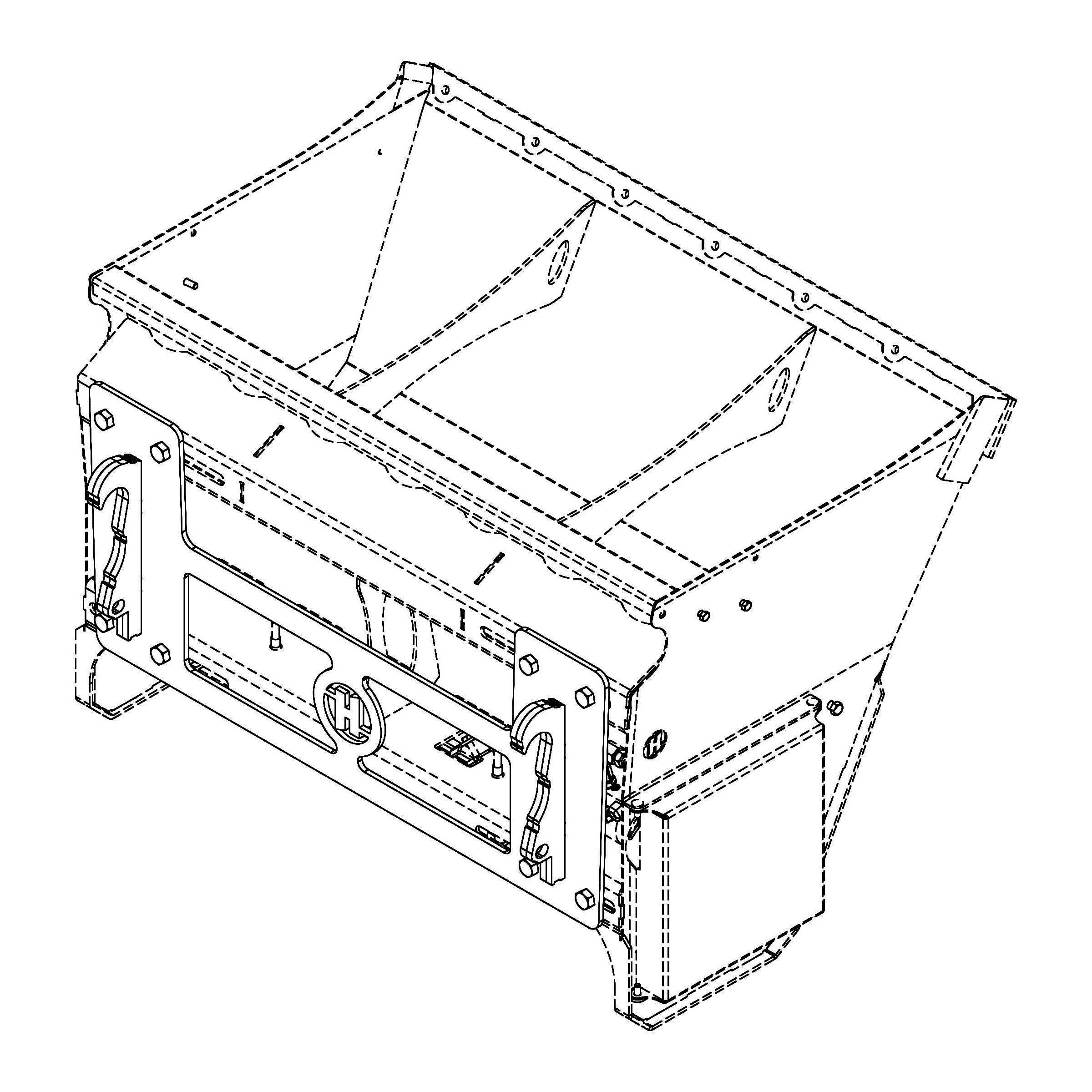

| Quick attach Hardy for loaders Hardy Serie 5 (25 & 35) and XTREMPRO (40 & 50) | 1000-3941 |

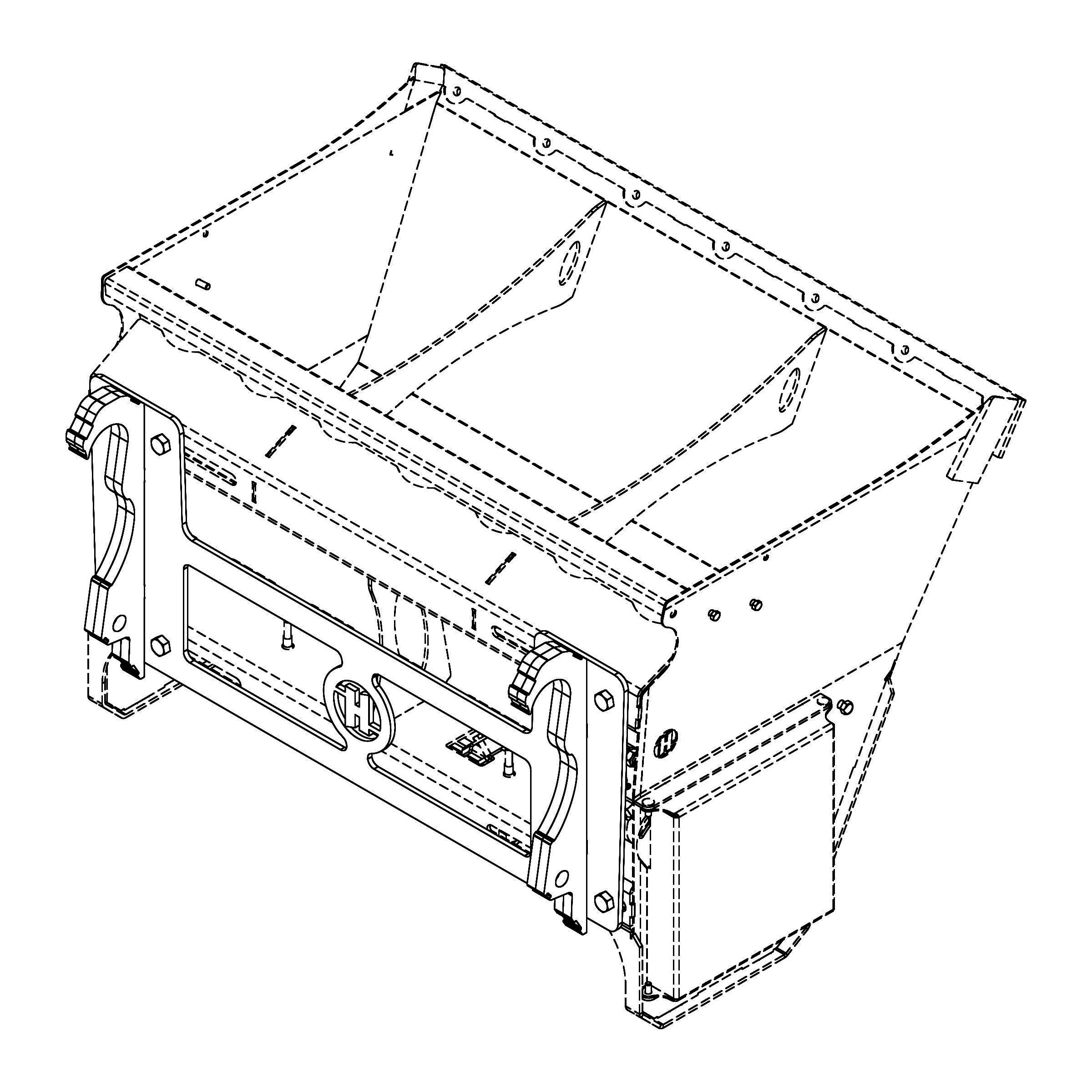

| Quick attach Hardy standard (bigger model than 1000-3941) | 1000-3931 |

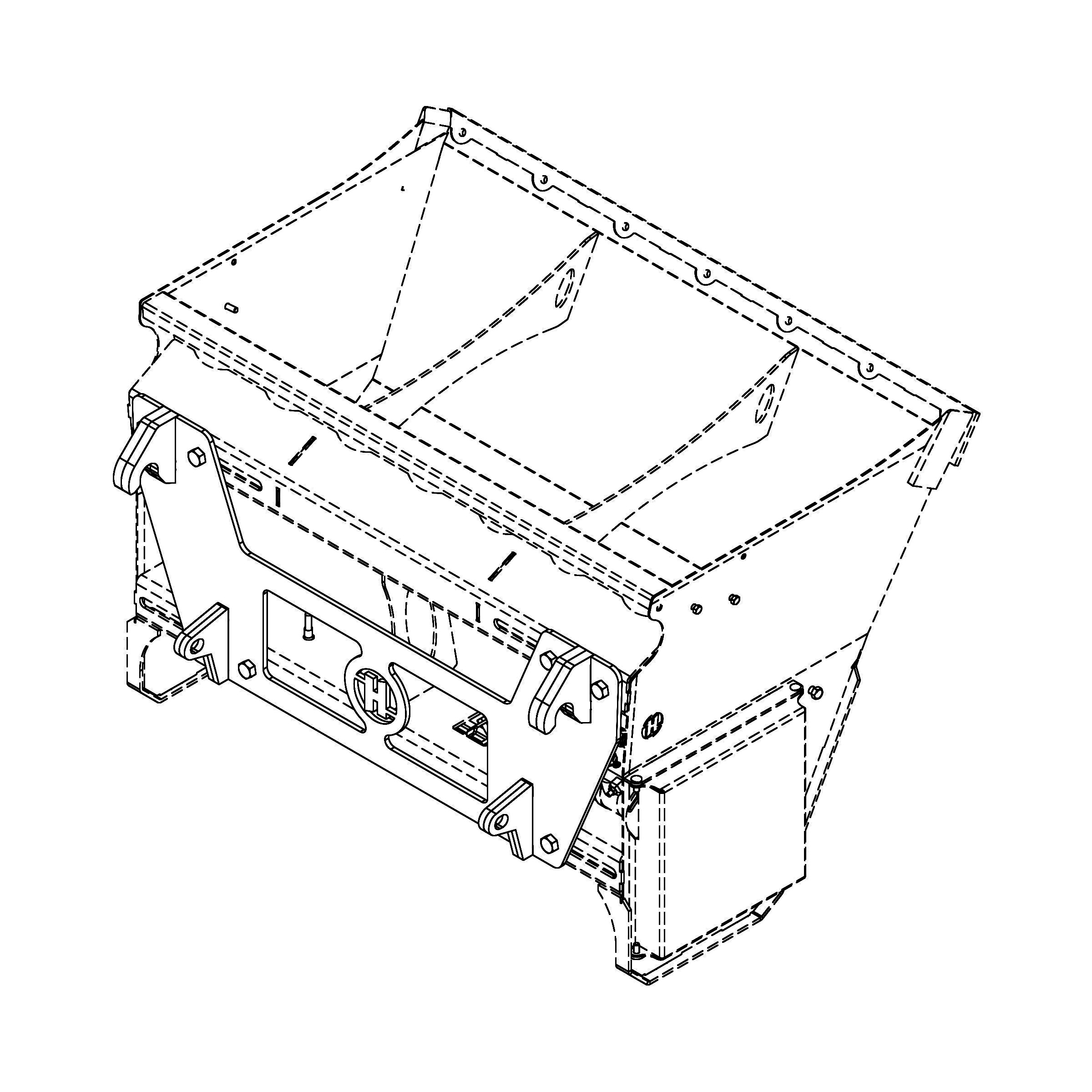

| Quick attach Euro | 1000-3911 |

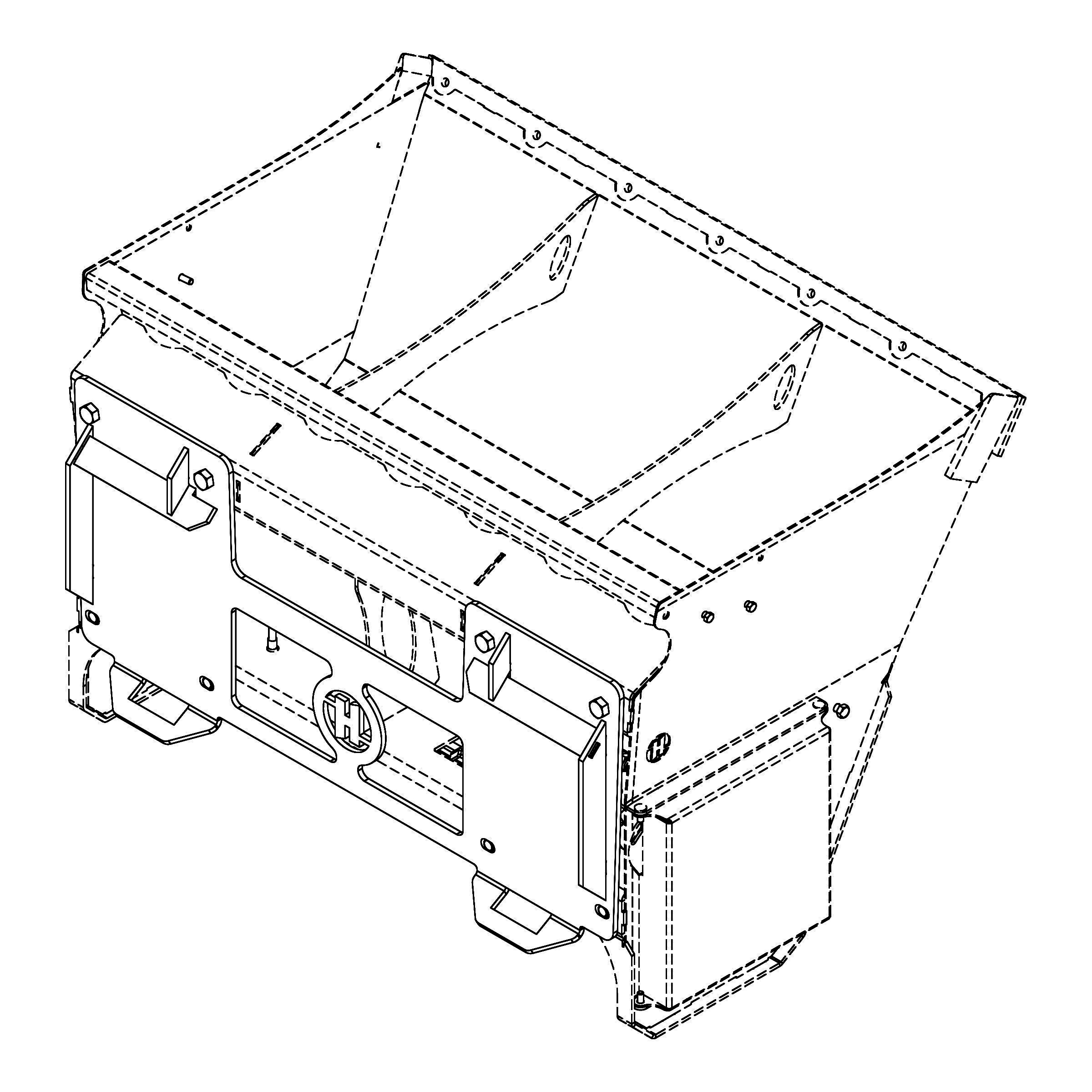

| Quick attach Skid Steer | 1000-3921 |
| Stationary 3 point hitch Cat. 1 | 1000-4661 |

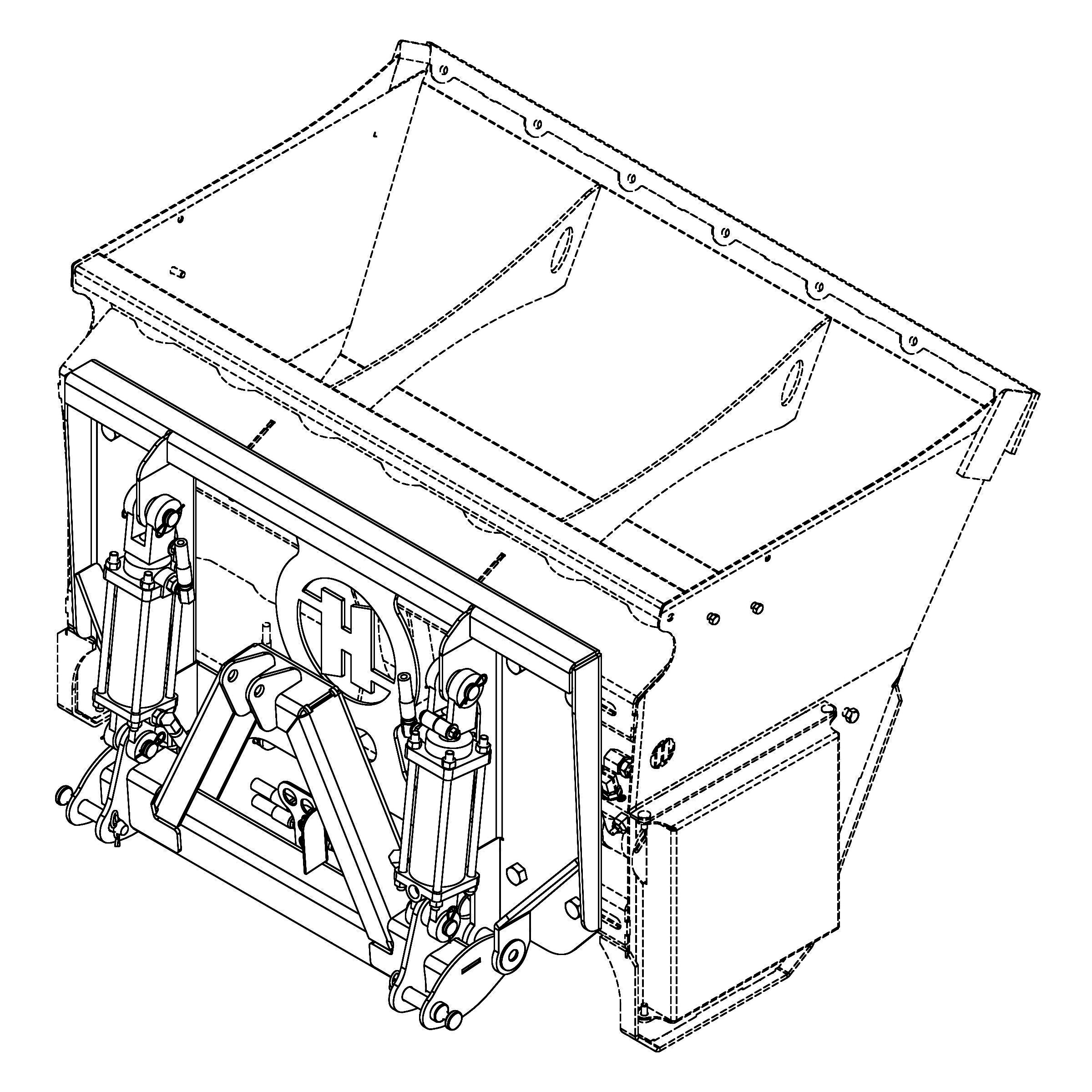

| Hydraulic tilt 3 point hitch Cat. 1 for 54" spreader (including 2 cylinders) | 1000-3891 |
Additional Information
PRONOVOST INGENUITY
Innovation
Fewer moving parts
With our new design, only one UHMW dispenser flap is required. This one is reversible.
Bearing protection
Regulable dispenser adjustment system
Flared side
Allows an easier filling and a great load capacity. The flared opening also allows a better protection of the lateral mechanism.
Closed gear box
Our hydraulic motor/binder assembly as well as the gear box cover prevents material from entering the mechanism.
Unique UHMW system
Bearing protection
New automatic adjustment system
Hydraulic 3 point hitch for autonomous loading
Euro hitch
Rigid cover
Complete specifications
| Spreading width | 47 1/2" / 1207 mm |
| Overall width | 52 3/4" / 1340 mm |
| Overall width with rigid cover | 53 3/4" / 1365 mm |
| Height | 35 1/4" / 895 mm |
| Depth without attachment | 33 1/4" / 845 mm |
| Capacity | 0,50 V³ 0,39 m³ |
| Hydraulic motor | Included |
| Doser opening | Automatic adjustment with spring |
Approximative weight filled with sand : 1742 lbs / 790 kg
Design and specifications subject to change without notice.
