PUMA-80-IV
Working width |
80" / 2032 mm |
HP recommended |
35 to 60 HP PTO |
| Cutting height | 31" / 787 mm |
| Drum diameter | 26" / 660 mm |
| Weight | 724 lbs / 328 kg |
Options
CHOICE OF ADJUSTMENT FOR CHUTE DEFLECTOR
Incluse
25TR04
| Manual deflector | Incluse |
| Hydraulic cylinder | 25TR04 |
HOSE KITS
| Hose kit for hydraulic motor rotation. * Installation not included. | PKB-PU7480-IVRM |
| Hose kit for both motor rotation and deflector cylinder. * Installation not included. | PKB-PU7480-IV |
CHOICE OF COLORS
| Red PRONOVOST | |
| Blue | PG2-02 |
| Orange | PG2-04 |
| Yellow INDUSTRIAL | PG2-06 |
| Green | PG2-07 |
| Black | PG2-10 |
Additional Information
Complete specifications
| HP recommended (min. - max.) | 35 à 60 HP PTO |
| Working width | 80" / 2032 mm |
| Cutting height | 31" / 787 mm |
| Hitch category | 1 |
| Impeller diameter | 26" / 660 mm |
| Depth of drum | 9" / 228 mm |
| Impeller housing contour : High quality steel | Included |
| Number of impeller blades | 4 |
| Impeller shaft diameter | 1 9/16" / 40 mm |
| Height of impeller center | 16" / 406 mm |
| Rotor RPM | 540 RPM |
| Required RPM for the tractor PTO | 540 RPM |
| Number of augers | 1 |
| Main auger diameter | 16" / 406 mm |
| Bearing / ductile iron housing | 1 1/2" / 38 mm |
| Drive chain - Main auger | 60 |
| Number of shear bolts | 1 for impeller + 1 for auger |
| Drive shaft included (optional) | T50 |
| Chute - Regular | Included |
| Chute rotation system - Hydraulic motor kit (motor not included) | Opt. |
| Chute rotation maximum angle - Hydraulic motor rotation | 270° |
| Antifriction for chute | Included : ring |
| Deflector - Hydraulic cylinder | Included |
| Color | Included : Red Pronovost Opt.: Choice of 5 colors |
| Weight including chute | 724 lbs / 328 kg |
Design and specifications can be modified without notice.
Videos
No video for this product
Photo gallery
-

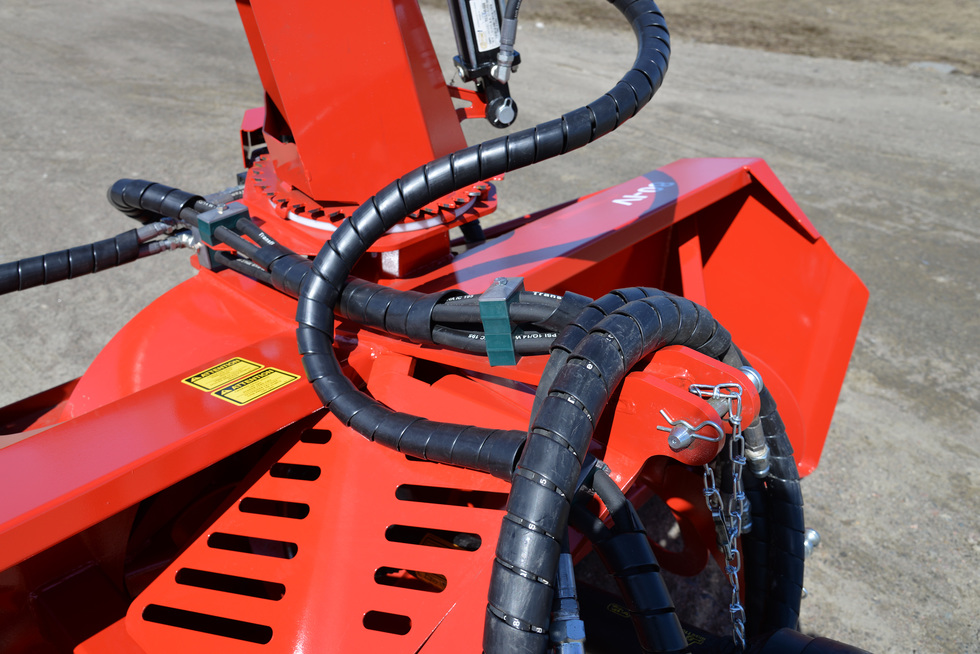

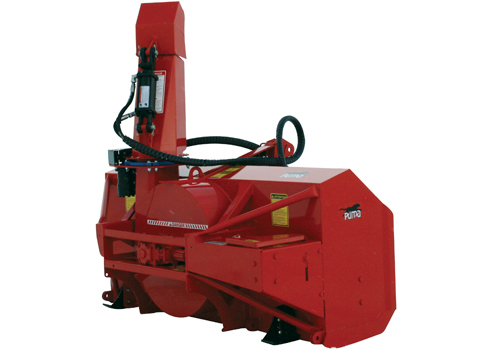

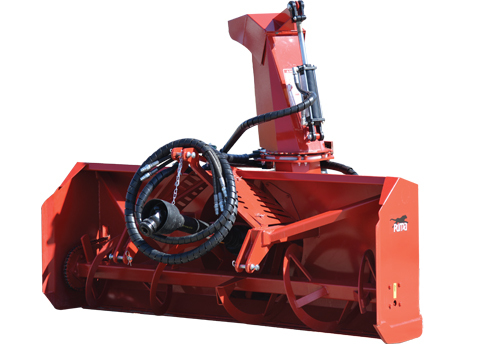

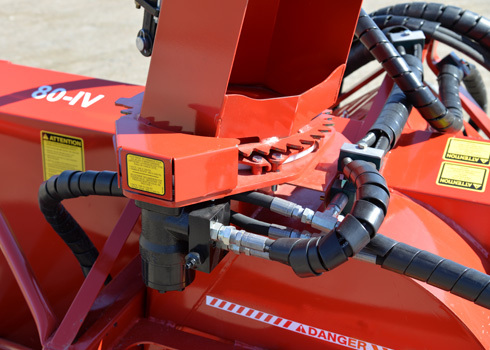

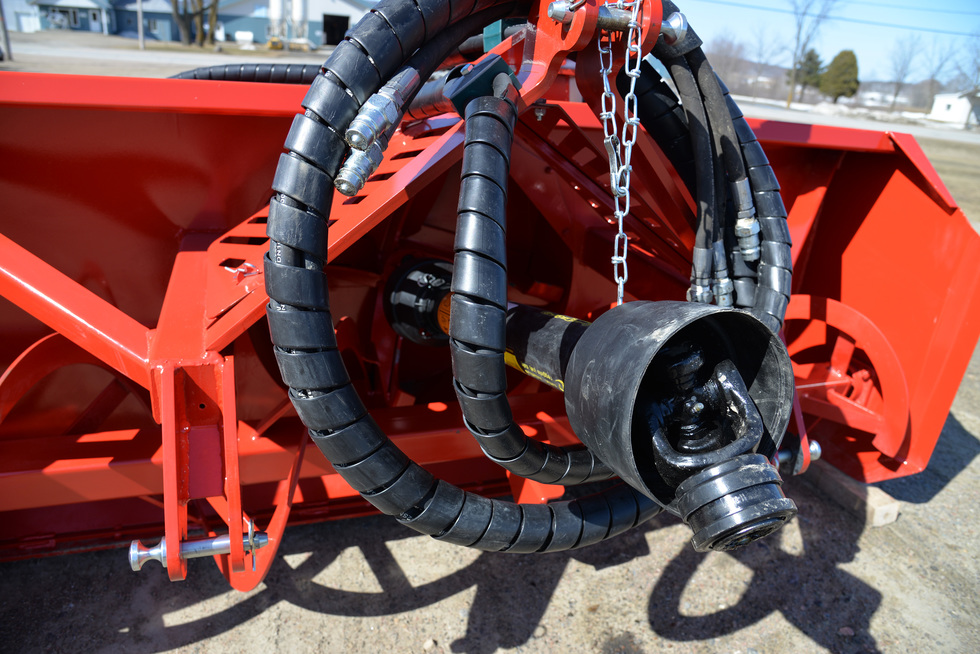

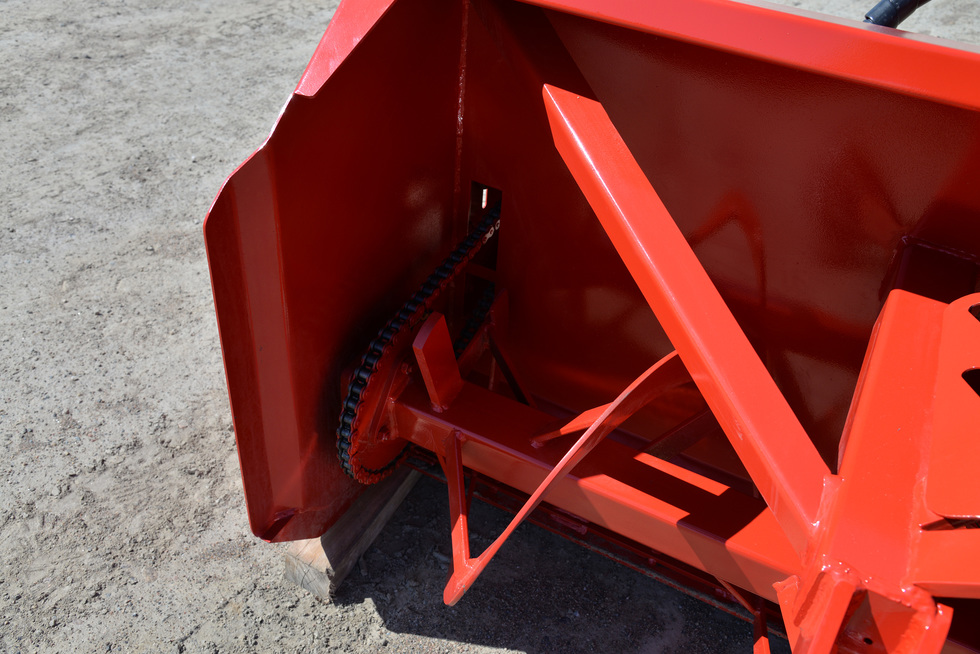

Model PUMA-80-IV
-
