PXPL-80
Working width |
80" / 2032 mm |
HP recommended |
40 to 55 HP PTO |
| Cutting height | 28" / 711 mm |
| Drum diameter | 26" / 660 mm |
| Weight | 1220 lbs / 553 kg |
Options
CHOICE OF CHUTE
PSIG-5472
PC3C-GR1
| Semi-industrial chute with greasable hinges and access panel (removable) | PSIG-5472 |
| 3-Deflector semi-industrial chute with greasable hinges and removable access panel. | PC3C-GR1 |
CHOICE OF ADJUSTMENT FOR CHUTE DEFLECTOR
| Hydraulic cylinder (included) | 25TR04 |
|
TSB-4864 |
| Manual telescopic tube | T-4864 |
HYDRAULIC MOTOR FOR CHUTE ROTATION
| Hydraulic motor (included) | MLH-250-R |
HOSE KITS
PKB-PXPL-80
| Hose kit for basic functions. Includes hydraulic hoses connecting the tractor oil outlets to the deflector adjustment cylinder and the chute rotation motor. Installation not included. | PKB-PXPL-80 |
SCRAPER BLADE
SIT1-XP80
TV-XP80
SST-XP80
| Semi-industrial scraper blade, carbon steel 450, reversible, 1/2" x 3", not sharpened | SIT1-XP80 |

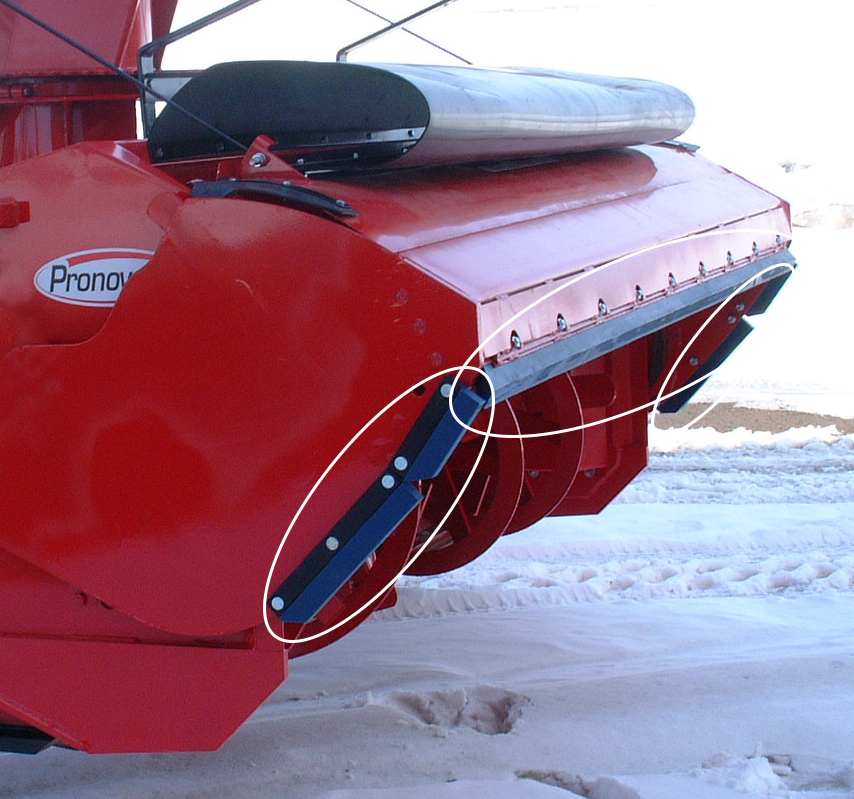

| Tivar scraper blade including mounting kit | TV-XP80 |
| Stainless Steel scraper blade | SST-XP80 |
SKID SHOES
PHD-4872
PST-4872
| Industrial skid shoes with Hardox 450 soles | PHD-4872 |
| Skid shoes with stainless steel soles | PST-4872 |

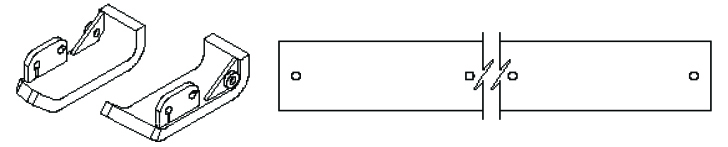

X-PRO BLADE OPTIONS
PXPLHD-80
PXPLTV-80
PXPLST-80
| Carbon Steel 450 scraper blade and skid shoes for PXPL Snowblower | PXPLHD-80 |
| Tivar scraper blade and skid shoes for PXPL Snowblower | PXPLTV-80 |
| Stainless Steel scraper blade and skid shoes for PXPL Snowblower | PXPLST-80 |
CHOICE OF COLORS
| Red PRONOVOST | |
| Blue | PX-02 |
| Orange | PX-04 |
| Yellow INDUSTRIAL | PX-06 |
| Green | PX-07 |
| Black | PX-10 |
Additional Information
HYDRAULIC DRIVEN
It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.
Contact your Pronovost dealer to obtain a quote for your specific requirements.
HYDRAULIC WHEELS
Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.
- Practical to avoid blowing gravel.
- Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.
Contact your Pronovost dealer to obtain a quote for your specific requirements.
*Available only on a new snowblower made in production.
Complete specifications
| HP recommended (min. - max.) | 40 to 55 HP PTO |
| Working width | 80" / 2032 mm |
| Working width with X-PRO blade | 82" / 2083 mm |
| Cutting height | 28" / 711 mm |
| Cutting height with X-PRO blade | 6" / 152 mm |
| Hitch category | 1 - 28 5/8" / 727 mm c/c |
| Impeller diameter | 26" / 660 mm |
| Depth of drum | 10 1/2" / 267 mm |
| Impeller housing contour : High quality steel | Included |
| Number of impeller blades | 4 |
| Impeller shaft diameter | 1 9/16" / 40 mm |
| Height of impeller center | 16 1/2" / 419 mm |
| Rotor RPM | 540 RPM |
| Required RPM for the tractor PTO | 540 RPM |
| Number of augers | 1 |
| Main auger diameter | 16" / 406 mm |
| Bearing / ductile iron housing | 1" / 25 mm |
| Drive chain - Main auger | 50 |
| Number of shear bolts | 1 for impeller + 1 for auger |
| Drive shaft included (optional) | T50 |
| Scraper blade - High quality steel | Included 1/2" x 4" not reversible, not sharpened |
| Scraper blade - Semi-industrial made of Hardox 450 | Opt. 3/8" x 2 1/2" not reversible, not sharpened |
| Scraper blade - Tivar | Opt. 1" thickness, not reversible, not sharpened |
| Scraper blade - Stainless steel | Opt. 1/2" x 2 1/2" not reversible, not sharpened |
| Adjustable skid shoes - Quick adjustment high quality steel | Included |
| Adjustable skid shoes - Quick adjustment Hardox 450 | Opt. |
| Adjustable skid shoes - Quick adjustment stainless steel | Opt. |
| Blade and skid shoes on X-PRO blade - High quality steel | Inclus |
| Blade and skid shoes on X-PRO blade - Hardox 450 | Opt. |
| Blade and skid shoes on X-PRO blade - Tivar | Opt. |
| Blade and skid shoes on X-PRO blade - Stainless steel | Opt. |
| Chute - Semi-industrial with greasable hinges and removable access panel | Opt. |
| Chute rotation system - Hydraulic motor kit (motor not included) | Inclus |
| Chute rotation maximum angle - Hydraulic motor rotation | 270° à 335° adjustable |
| Antifriction for chute | Included : ring |
| Deflector - Manual | Opt. |
| Deflector - Hydraulic cylinder | Opt. |
| Color | Included : Red Pronovost Opt. : Choice of 5 colors |

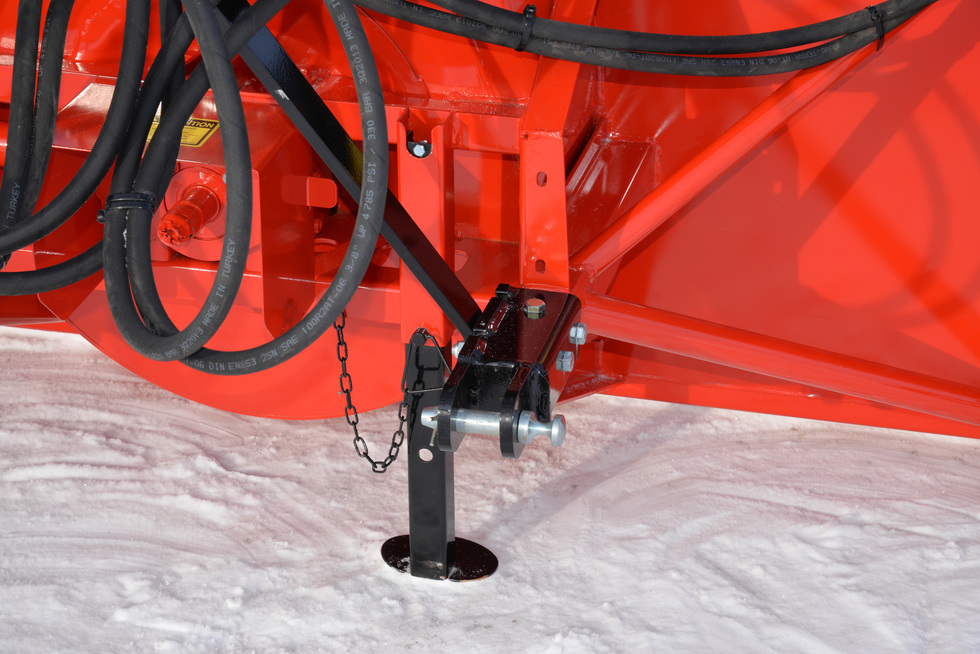

| Storage support | Included |
| Weight | 1220 lbs / 553 kg |
| Weight including chute | 1220 lbs / 553 kg |
Design and specifications subject to change without notice.
Videos
Photo gallery
-

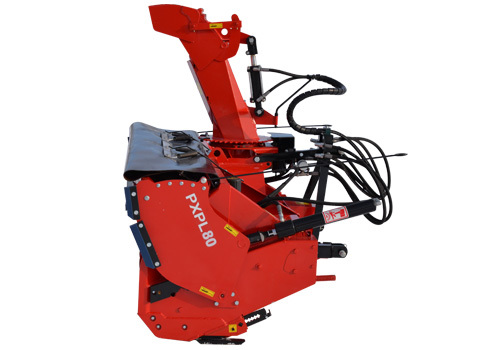

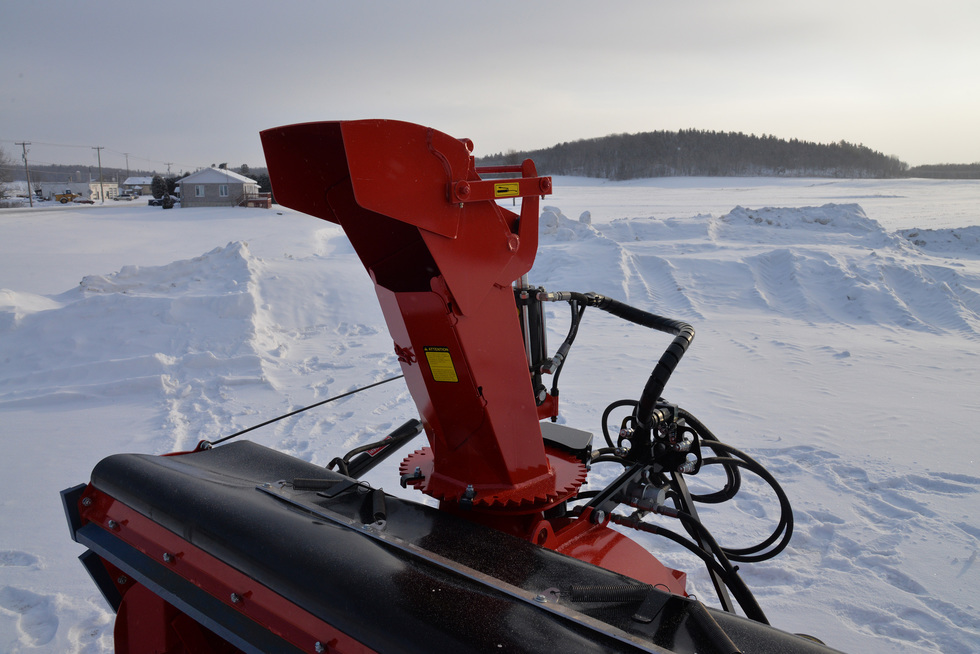

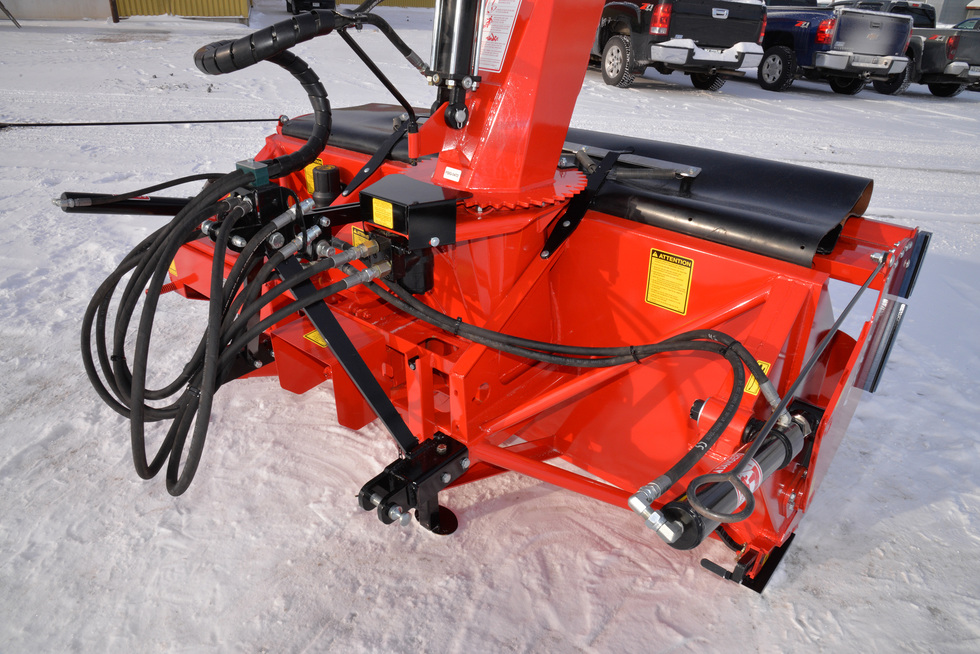

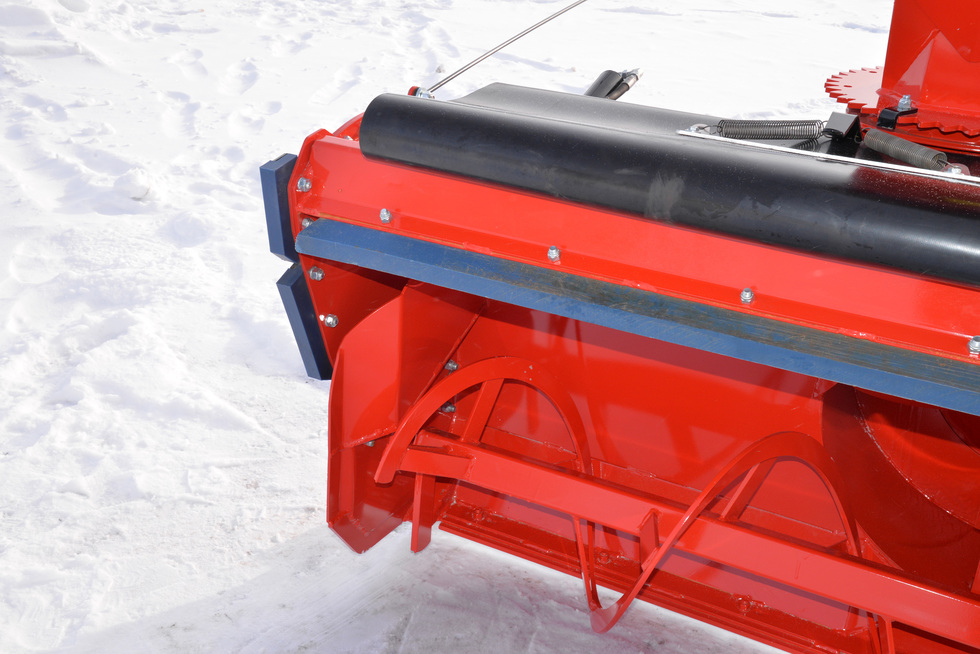

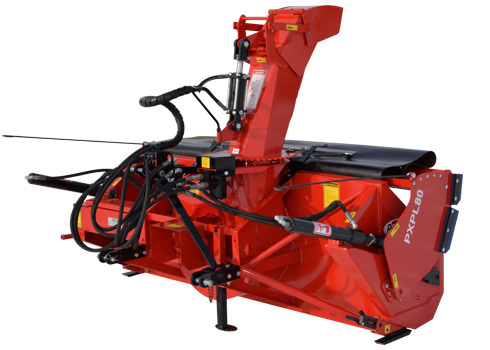

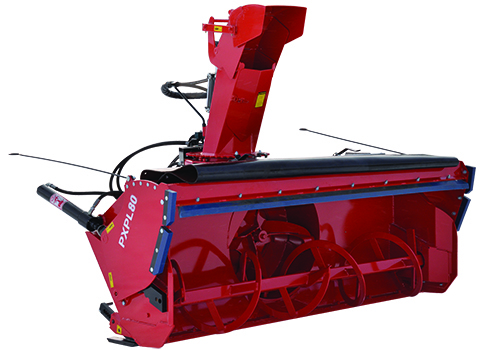

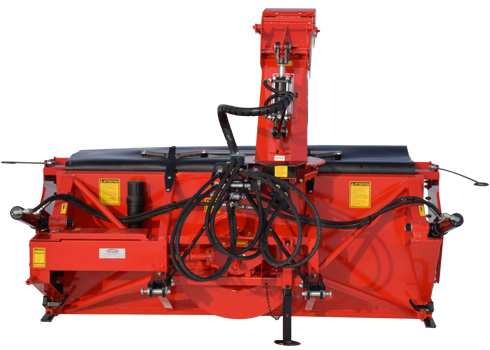

Model PXPL-80
-
Model PXPL-80
-
Model PXPL-80
-
Model PXPL-80
-

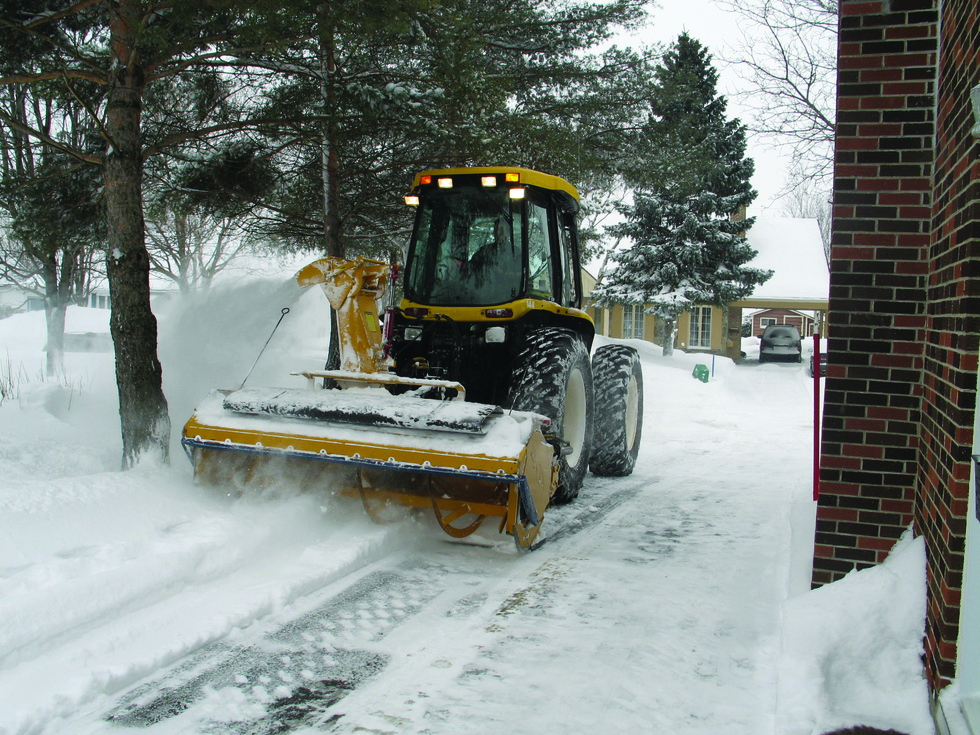

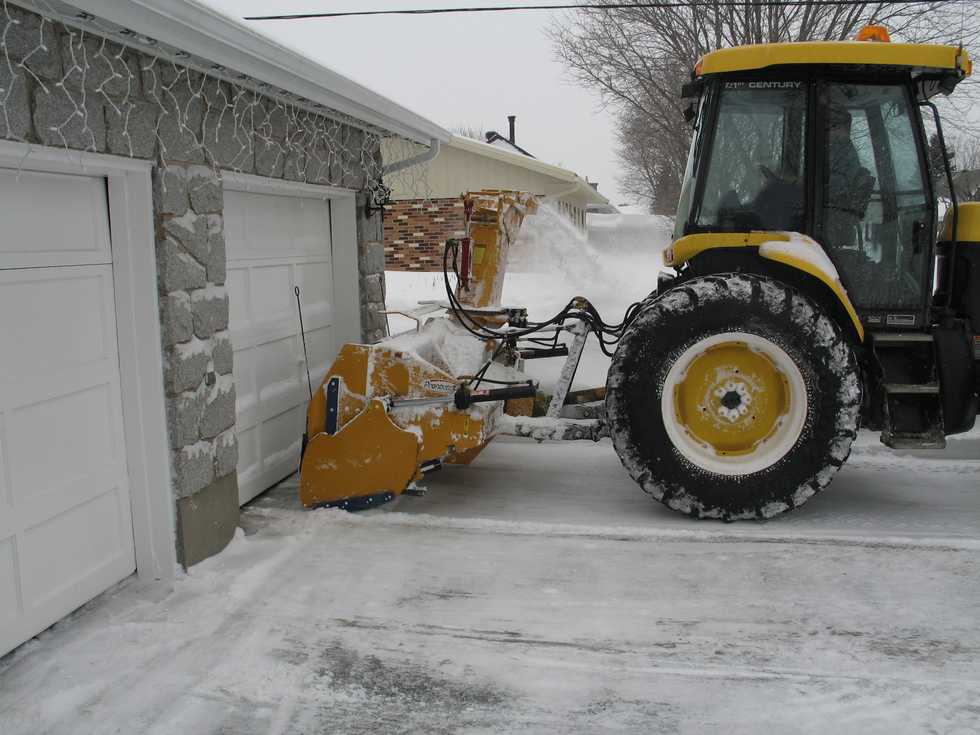

PXPL snowblower
-
PXPL snowblower
-

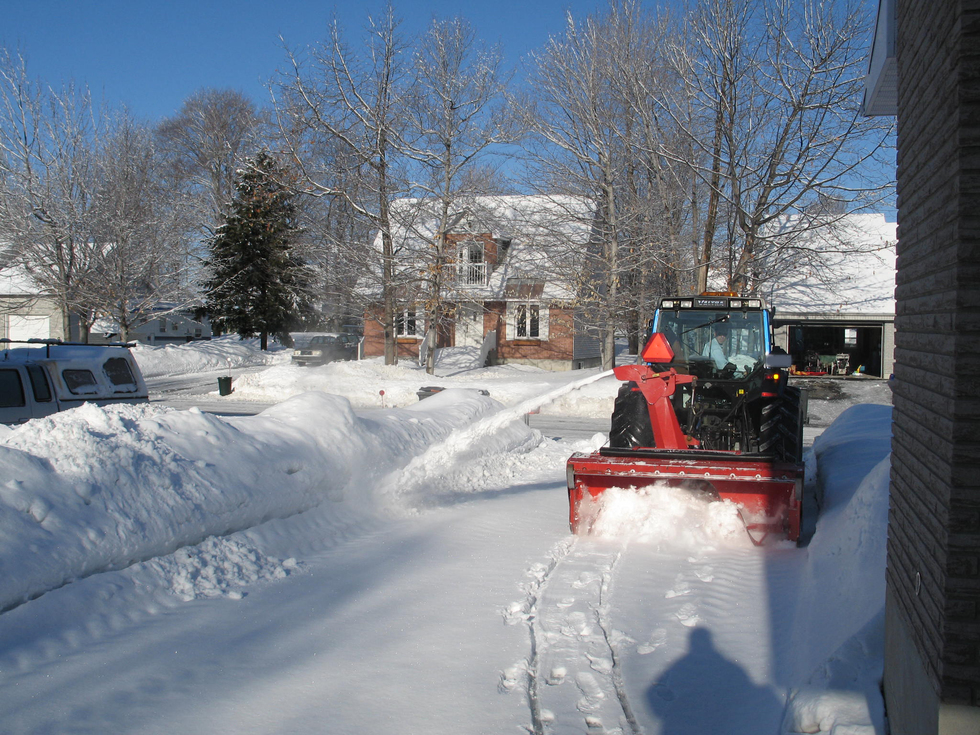

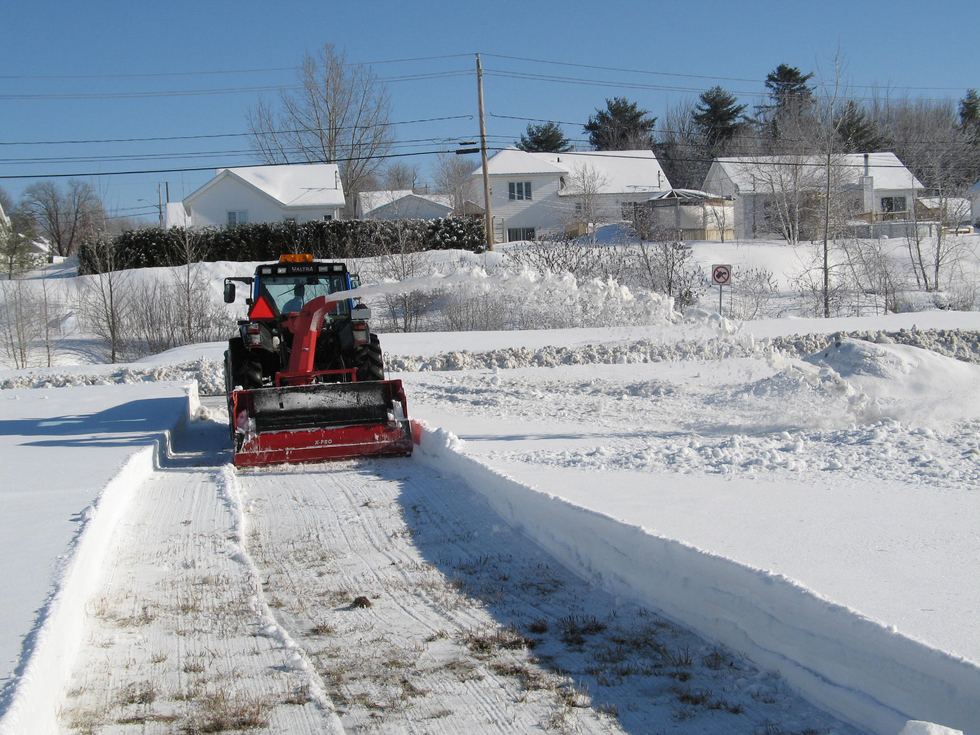

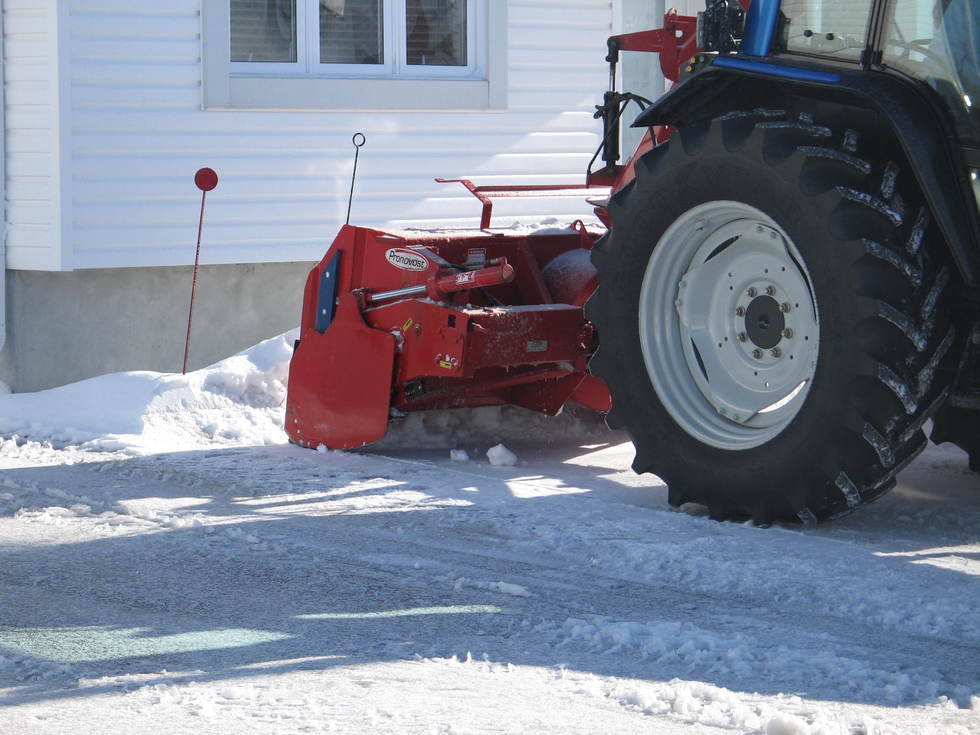

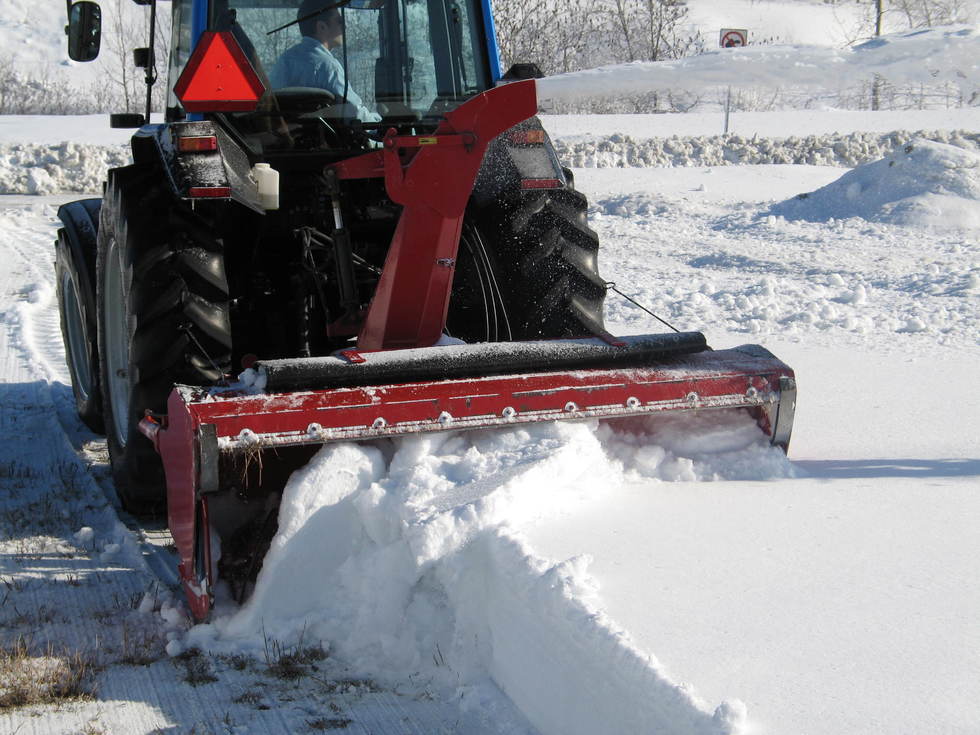

Model PXPL-86
-
Model PXPL-86
-
Model PXPL-86
-
Model PXPL-86
-

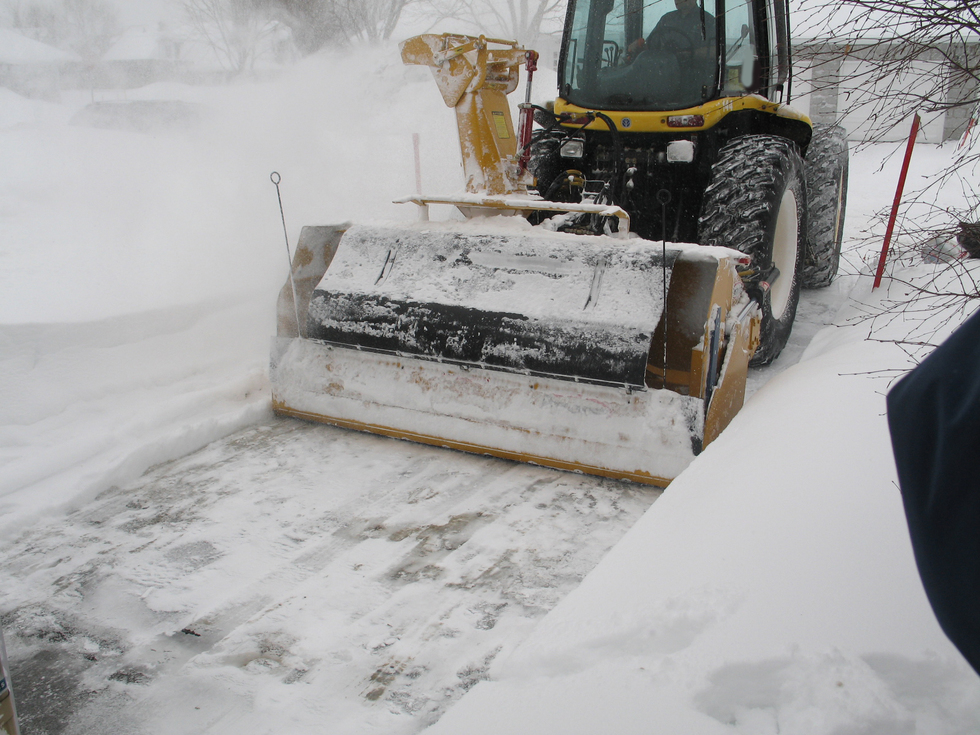

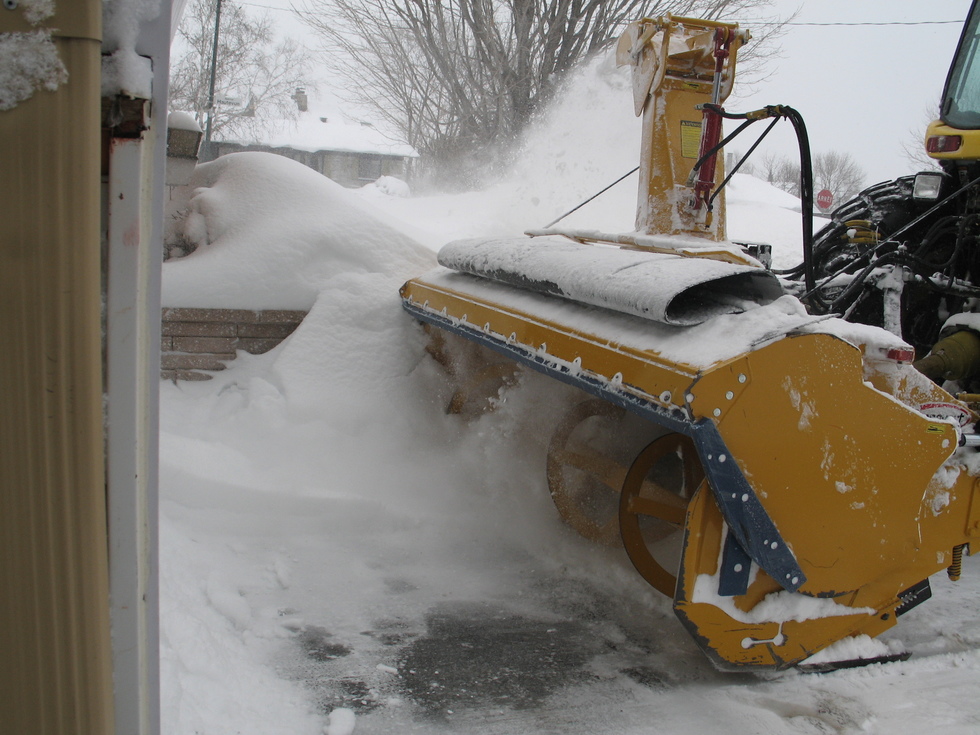

Model PXPL-86-92
-
Model PXPL-86-92
-
Model PXPL-86-92
-

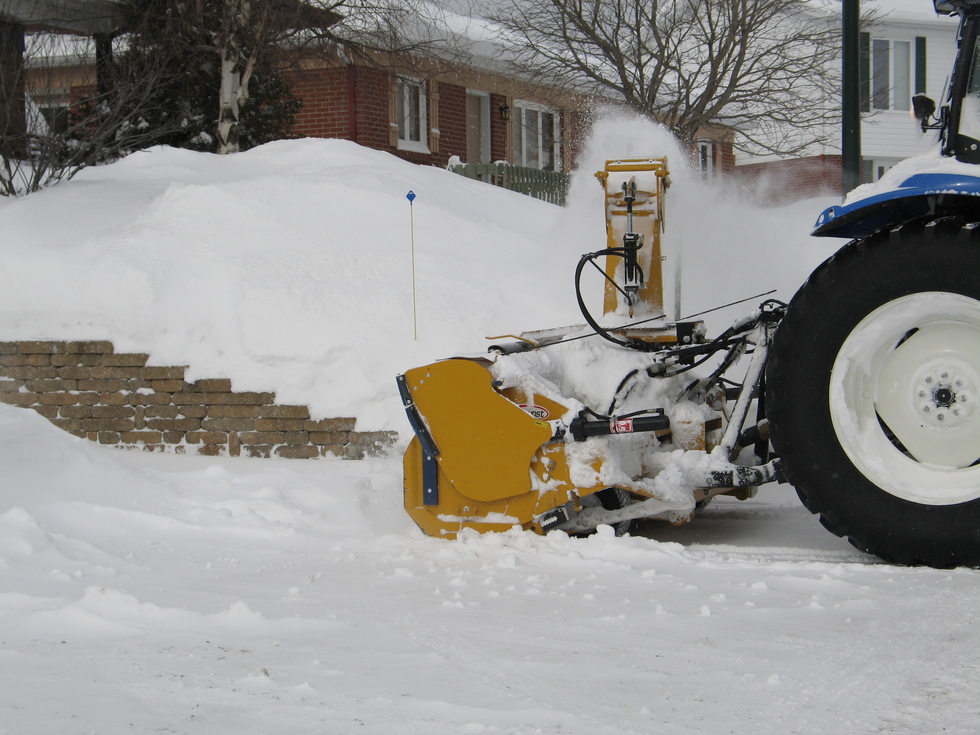

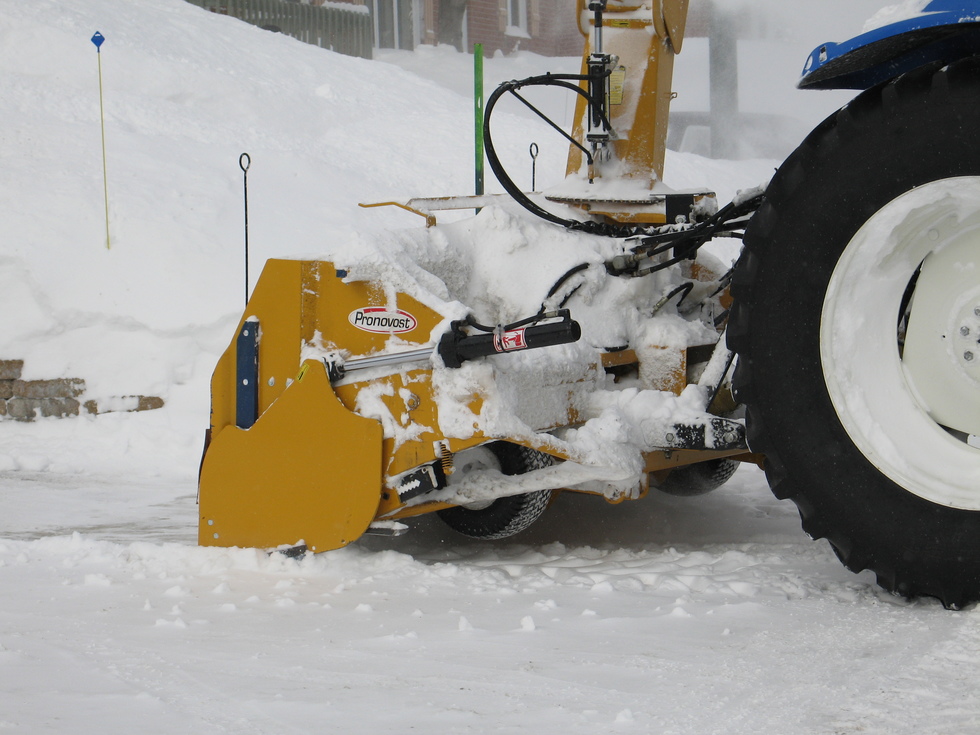

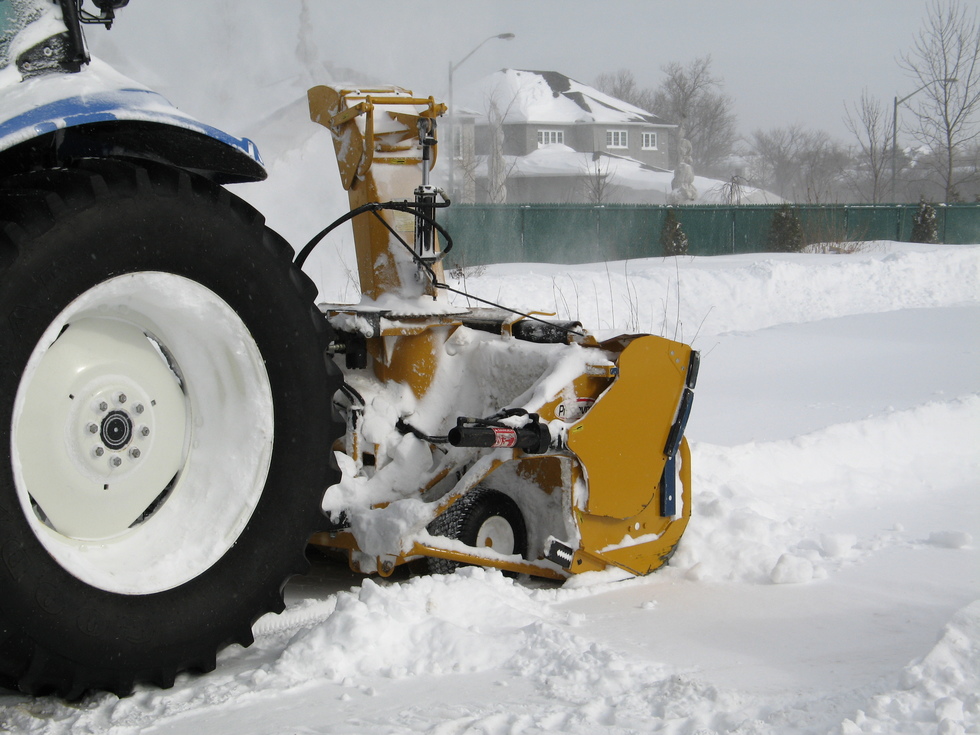

Model PXPL-92-98
-
Model PXPL-92-98
-

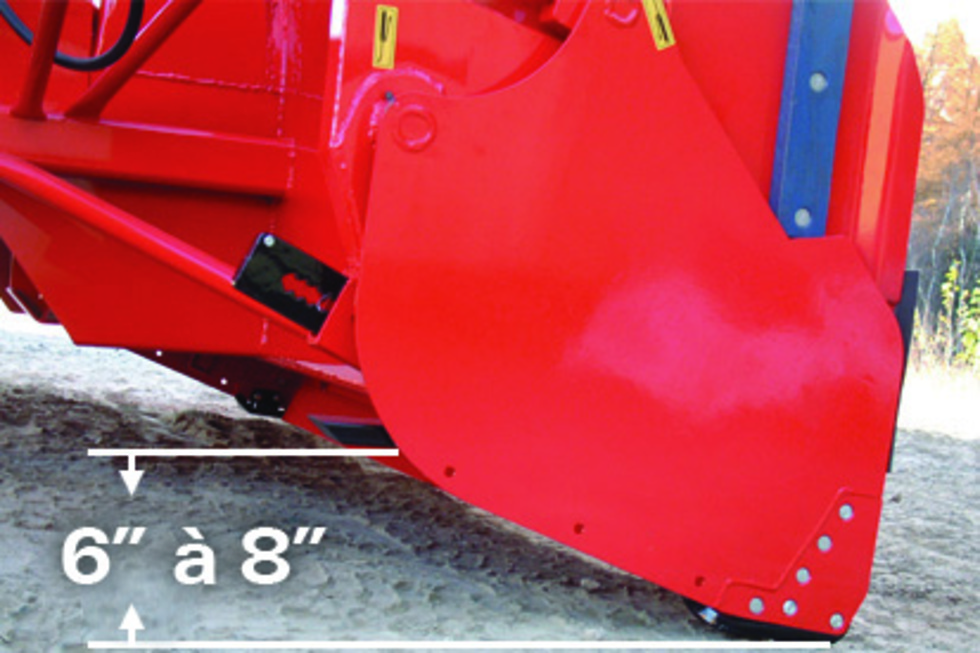

Clearance of 6" to 8" between ground and snowblower
