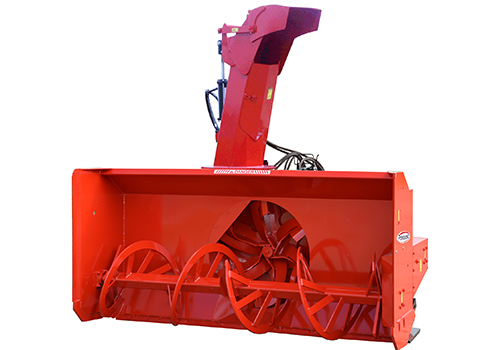

P-1020 / P-1020TRC
CHOICE OF CHUTE
|Semi-industrial chute with greasable hinges and removable access panel, including hose support for deflector cylinder||PSIG-92104|
|Quick attach industrial chute with greasable hinges and removable access panel, including hose support for deflector cylinder||PCG-92104|
|Hydraulic telescopic industrial chute, a versatile chute for general use, including chute extension cylinders and hose support + hose support for deflector cylinder. Kit of two unidirectional restrictors RSP-1/16x10 ORB included.||PCT-92104|
|Hydraulic telescopic industrial chute with rounded deflector designed for truck loading, greasable hinges and access panel, including 2 extension cylinders and hose support and 2 deflector cylinders and hose support. Kit of two unidirectional restrictors RSP-1/16x10 ORB included.||PCTC-INDR|
CHOICE OF ADJUSTMENT FOR CHUTE DEFLECTOR
HYDRAULIC MOTOR FOR CHUTE ROTATION
|Hydraulic motor (included)||MLH-315-R|
|Hose kit for basic functions. Includes hydraulic hoses connecting the tractor oil outlets to the deflector adjustment cylinder and the chute rotation motor. * Installation not included.||PKB-GR3|
|Kit for TRC models, also includes hoses for drum rotation motor. * Installation not included.||PKB-GR3TRC|
|Kit for models with telescopic chute PCT-92104, also includes hoses for chute lifting cylinders. * Installation not included.||PKB-GR3-T|
|Kit for TRC models with telescopic chute PCT-92104, also includes hoses for chute lifting cylinders. * Installation not included.||PKB-GR3TRC-T|
|Kit for models with telescopic chute with round deflector PCTC-INDR, also includes hoses for chute lift cylinders and cylinder for round deflector adjustment. * Installation not included.||PKB-GR3-TR|
|Kit for TRC models with telescopic chute with round deflector PCTC-INDR, also includes hoses for chute lift cylinders and cylinder for round deflector adjustment. * Installation not included.||PKB-GR3TRC-TR|
|Lateral blades, high quality steel 3/8" x 4" x 66"||CL-98104|
|Semi-industrial scraper blade, carbon steel 450, reversible 1/2" x 4" not sharpened||SIT1-102|
|Industrial scraper blade, carbon steel 450, reversible 1/2" x 4" not sharpened||T1-102|
|Stainless Steel scraper blade, reversible, 1/2" x 4" not sharpened||SST-102|
|Industrial skid shoes with Hardox 450 soles||PHD-92104|
|Skid shoes with ROCKTEC soles||PSHD-92104|
|Skid shoes with stainless steel soles||PST-92104|
FULL FLIGHT SPIKED MAIN AUGER
|Full flight spiked main auger||VIP3-1020|
UPPER AUGER 14" DIAMETER
|Upper auger 14" diameter, including accessories||VS3-1020|
|Speed reducer 1000/555 RPM - 220 HP at 1000 RPM - 3 gears - shafts 7 1/16" c/c||PRH-30M-2|
|Drop box 1000/540 RPM. Two choices of input shafts : Reducer inverter 225 HP at 1000 RPM 2/3 gears - shafts 6 3/4" c/c or reducer only 175 HP at 1000 RPM 3/3 gears - shafts 8" c/c||PRH-25M-2|
|Reducer 1000/555 (200 HP at 1000 RPM) 3 gears - 8" c/c||PR3G200-2|
CHOICE OF POWER TAKE-OFF (PTO)
|T80 PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM)||9225|
|T80 PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM)||9569|
|T80 PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM)||9569-1|
|V80 Multilobe PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM)||9225-V|
|V80 Multilobe PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM)||9569-V|
|T90 PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM)||9475|
|T90 PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM)||9475-1|
|T90 PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM)||9475-2|
|V90 Multilobe PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM)||9598|
|V90 Multilobe PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM)||9599|
|V90 Multilobe PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM)||9604|
HYDRAULIC MOTOR FOR ROTARY DRUM (TRC MODELS ONLY)
|Hydraulic motor (included on TRC model)||MLH-315-R|
|Impeller housing contour made from Hardox 450 steel in lieu of regular grade steel||TBHD-3415|
|Impeller housing contour made from Hardox 450 steel in lieu of regular grade steel (for TRC model)||TBHD-3415TRC|
RUBBER DEFLECTOR FLAP
|Rubber deflector flap located from the top of the frame to the auger. Reduces projections.||TL-98108|
CHOICE OF COLORS
Other recommended products
It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.
Contact your Pronovost dealer to obtain a quote for your specific requirements.
Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.
- Practical to avoid blowing gravel.
- Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.
Contact your Pronovost dealer to obtain a quote for your specific requirements.
*Available only on a new snowblower made in production.
Ice scraper blade for snowblowers
The ice scraper blade is installed under the snowblower, easily and requires no tool.
Scrape icy surfaces to create a grooved finich that increases grip.
Its design requires no additional oil outlet or any modification to the snowblower.
When required, the ice scraper blade must be assembled to the snowblower and then disassembled after use.
Hydraulic flotation ski for snowblowers
The hydraulic flotation ski allows you to use the snowblower at a constant height above the ground, without scraping it.
Allows you to compact a hard and uniform snow bottom in the gravel entrances while preventing gravel from entering the snowblower. Allows you to blow on a grassy surface while avoiding contact of the snowblower blade with the ground.
|HP recommended (min. - max.)||100 to 150 HP PTO|
|Working width||102" / 2591 mm|
|Cutting height||48" / 1219 mm|
|Hitch category||2 - 34 1/2" / 876 mm c/c|
|Cutting height of lateral blades||Opt. CL : 56 1/2" / 1435 mm|
|Height with telescopic chute||PCT-92104 : 116" / 2946 mm closed, 147" / 3734 mm extended PCTC-INDR : 120" / 3048 mm closed, 152" / 3861 mm extended|
|Height with telescopic chute (TRC model)||PCT-92104 : 118" / 2997 mm closed, 149" / 3785 mm extended PCTC-INDR : 122" / 3099 mm closed, 154" / 3912 mm extended|

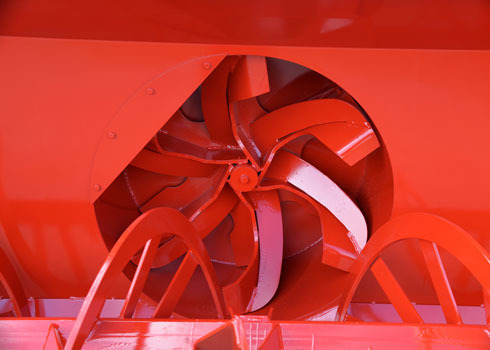

|Impeller diameter||34" / 864 mm|
|Depth of drum||15" / 381 mm|
|Impeller housing contour : High quality steel||Included|
|Impeller housing contour : Hardox 450||Opt.|
|Number of impeller blades||6|
|Impeller shaft diameter||2" / 51 mm|
|Height of impeller center||21 1/2" / 546 mm|
|Rotor RPM||540 RPM|
|Required RPM for the tractor PTO||540 RPM Opt. 1000 RPM|
|Number of augers||1 opt. 2|
|Main auger diameter||26" / 660 mm|
|Upper auger diameter||Opt. - 14" / 355 mm|
|Bearing / ductile iron housing||1 1/2" / 38 mm|
|Drive chain - Main auger||100|
|Number of shear bolts||1 for impeller + 1 for auger|
|Drum rotation for hydraulic motor (TRC only)||Std.|
|Reducer 1000/555 RPM - 220 HP at 1000 RPM - 3 gears - shafts 7 1/16" c/c||Opt.|
|1000/540 RPM drop box with two choices of input shafts||Opt.|
|Drive shaft included (optional)||T80 (V80, T90 &V90)|
|Lateral blades - High quality steel||Opt. CL : 3/8" x 4"|
|Scraper blade - High quality steel||Included 1/2" x 4" reversible, not sharpened|
|Scraper blade - Semi-industrial made of Hardox 450||Opt. 1/2" x 4" reversible, not sharpened|
|Scraper blade - Industrial made of Hardox 450||Opt. 1/2" x 6" not reversible, sharpened|
|Scraper blade - Stainless steel||Opt. 1/2" x 4" reversible, not sharpened|
|Adjustable skid shoes - Quick adjustment high quality steel||Included|
|Adjustable skid shoes - Quick adjustment Hardox 450||Opt.|
|Adjustable skid shoes - Quick adjustment Rocktec||Opt.|
|Adjustable skid shoes - Quick adjustment stainless steel||Opt.|
|Full flight main auger (industrial)||Opt.|
|Chute - Semi-industrial with greasable hinges and removable access panel||Opt.|
|Chute - Industrial quick attach||Opt.|
|Chute - 24" or 48" extension||Opt.|
|Chute - Telescopic including extension cylinders||Opt.|
|Chute - Telescopic with rounded deflector including extension and deflector cylinders||Opt.|
|Chute rotation system - Hydraulic motor kit (motor not included)||Inclus|
|Chute rotation maximum angle - Hydraulic motor rotation||305°|
|Antifriction for chute||Included : ring|
|Deflector - Hydraulic cylinder||Opt.|
|Color||Included : Red Pronovost Opt. : Choice of 5 colors|
|Weight||Reg. : 2485 lbs / 1127 kg TRC : 2785 lbs / 1263 kg|
|Weight including chute||2485 lbs / 1127 kg|
|Weight including chute (TRC model)||2785 lbs / 1263 kg|
Design and specifications subject to change without notice.
