P-860 / P-860TRC

P 860
  1. P 800 Trc A
  2. Rotor4 B
  3. P 860 C

Working width

86" / 2184 mm

HP recommended

50 to 80 HP PTO

Cutting height 36" / 914 mm
Impeller diameter 28" / 711 mm
Weight Reg. : 1333 lbs / 606 kg TRC : 1471 lbs / 669 kg
Add to compare
Download the flyer

Options

CHOICE OF CHUTE

Psig 7486

PSIG-7486

Pcg 7486

PCG-7486

Prp 92104 2

PRP-7486-2

Prp 92104

PRP-7486

Pct 7486 Hd

PCT-7486-HDB

Semi-industrial chute with greasable hinges and access panel (removable) PSIG-7486
Quick attach industrial chute with greasable hinges and access panel (removable) PCG-7486
  • 24" Extension for industrial chute
PRP-7486-2
  • 48" Extension for industrial chute
PRP-7486
Hydraulic telescopic industrial chute with greasable hinges and access panel, including extensions cylinders and hose support + hose support for deflector cylinder. Includes replacement of chute base for telescopic chute. PCT-7486-HDB

CHOICE OF ADJUSTMENT FOR CHUTE DEFLECTOR

Manual telescopic tube T-74104
Cylinder 25TR08
  • Hose support for deflector cylinder
TSB-74104

CHOICE OF HYDRAULIC MOTOR FOR CHUTE ROTATION

Hydraulic motor for pump with less than 12 GPM (with cushion valve and unidirectional restrictors) MLH-250-R
Hydraulic motor for pump with more than 12 GPM (with cushion valve and unidirectional restrictors) MLH-315-R

HYDRAULIC MOTOR FOR ROTARY DRUM (TRC MODELS ONLY)

Hydraulic motor for rotary drum
  • For pump with less than 12 GPM (with cushion valve and unidirectional restrictors)
MLH-250-R
  • For pump with more than 12 GPM (with cushion valve and unidirectional restrictors)
MLH-315-R

CHOICE OF COLORS

Red PRONOVOST
Blue PG2-02
Landi PG2-03
Orange PG2-04
Yellow INDUSTRIAL PG2-06
Green PG2-07

SCRAPER BLADE

Sit1gr2

SIT1-86

T1gr2

T1-86

T Vgr2

TV-86

Ss Tgr2

SST-86

Semi-industrial scraper blade, carbon steel 450, reversible 1/2" x 4" not sharpened SIT1-86
Industrial scraper blade, carbon steel 450, not reversible 1/2" x 6" sharpened T1-86
Tivar scraper blade, including mounting kit TV-86
Stainless Steel scraper blade, reversible, 1/2" x 4" not sharpened SST-86

SKID SHOES

Phd

PHD-7486

Pshd

PSHD-7486

Pst

PST-7486

Industrial skid shoes with Hardox 450 soles PHD-7486
Skid shoes with ROCKTEC soles PSHD-7486
Skid shoes with stainless steel soles PST-7486

IMPELLER HOUSING

Impeller housing contour made from Hardox 450 steel in lieu of regular grade steel TBHD-2812
Impeller housing contour made from Hardox 450 steel in lieu of regular grade steel (for TRC model) TBHD-2812TRC

LATERAL BLADES

Cl 7486

CL-7486

Lateral blades, high quality steel 3/8" x 4" x 53 1/2" CL-7486

FULL FLIGHT SPIKED MAIN AUGER

Vi Pnew2

VIP-860

Full flight serrated main auger VIP-860

POWER TAKE-OFF (PTO)

Pa

PA-08

Pav

PAV-08

Bigger PTO PA-08
Bigger PTO multilobe PAV-08

SPEED REDUCER

Pr 81054

PR-81054

Speed reducer 1000/540 RPM – 150 HP at 1000 RPM – triple chain RENOLD – shafts 8" c/c PR-81054

HOSE KITS

Hose kit for basic functions. Includes hydraulic hoses connecting the tractor oil outlets to the deflector adjustment cylinder and the chute rotation motor. * Installation not included. PKB-GR2
Kit for TRC models, also includes hoses for drum rotation motor. * Installation not included. PKB-GR2TRC
Kit for models with telescopic chute PCT-7486-HDB, also includes hoses for chute lifting cylinders. * Installation not included. PKB-GR2-T
Kit for TRC models with telescopic chute PCT-7486-HDB, also includes hoses for chute lifting cylinders. * Installation not included. PKB-GR2TRC-T

Other recommended products

Additional Information

HYDRAULIC DRIVEN

It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

Hyd22

HYDRAULIC WHEELS

Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.

  • Practical to avoid blowing gravel.
  • Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

Roues Wheels 1

Complete specifications

HP recommended (min. - max.) 50 to 80 HP PTO
Working width 86" / 2184 mm
Cutting height 36" / 914 mm
Hitch category 1 & 2
Cutting height of lateral blades Opt. CL : 53 1/2" / 1359 mm
Height with telescopic chute PCT-7486-HD : 108" / 2743 mm closed, 140" / 3556 mm extended
Height with telescopic chute (TRC model) PCT-7486-HD : 111" / 2819 mm closed, 143" / 3632 mm extended
Impeller diameter 28" / 711 mm
Depth of drum 12" / 305 mm
Impeller housing contour : High quality steel Included
Impeller housing contour : Hardox 450 Opt.
Number of impeller blades 4
Impeller shaft diameter 1 9/16" / 40 mm
Height of impeller center 17 1/2" / 444 mm
Rotor RPM 540 RPM
Required RPM for the tractor PTO 540 RPM Opt. 1000 RPM
Number of augers 1
Main auger diameter 23" / 584 mm
Bearing / ductile iron housing 1 1/4" / 32 mm
Drive chain - Main auger 80
Number of shear bolts 1 for impeller + 1 for auger
Drum rotation for hydraulic motor (TRC only) Std.
Reducer 1000/540 RPM - 150 HP at 1000 RPM - Renold triple chain - shafts 8" c/c Opt.
Drive shaft included (optional) T60 (T80 & V80)
Lateral blades - High quality steel Opt. CL : 3/8" x 4"
Scraper blade - High quality steel Included 1/2" x 4" reversible, not sharpened
Scraper blade - Semi-industrial made of Hardox 450 Opt. 1/2" x 4" reversible, not sharpened
Scraper blade - Industrial made of Hardox 450 Opt. 1/2" x 6" not reversible, sharpened
Scraper blade - Tivar Opt. 1" thickness, not reversible, not sharpened
Scraper blade - Stainless steel Opt. 1/2" x 4" reversible, not sharpened
Adjustable skid shoes - Quick adjustment high quality steel Included
Adjustable skid shoes - Quick adjustment Hardox 450 Opt.
Adjustable skid shoes - Quick adjustment Rocktec Opt.
Adjustable skid shoes - Quick adjustment stainless steel Opt.
Full flight main auger (industrial) Opt.
Chute - Semi-industrial with greasable hinges and removable access panel Opt.
Chute - Industrial quick attach Opt.
Chute - 24" or 48" extension Opt.
Chute - Telescopic including extension cylinders Opt.
Chute rotation system - Hydraulic motor kit (motor not included) Included
Chute rotation maximum angle - Hydraulic motor rotation 270° - 335°
Antifriction for chute Included : ring
Deflector - Manual Opt.
Deflector - Hydraulic cylinder Opt.
Color Included : Red Pronovost Opt. : Choice of 5 colors
Storage support Included
Weight Reg. : 1333 lbs / 606 kg TRC : 1471 lbs / 669 kg
Weight including chute 1333 lbs / 606 kg
Weight including chute (TRC model) 1471 lbs / 669 kg

Design and specifications subject to change without notice.

Videos

No video for this product

Photo gallery

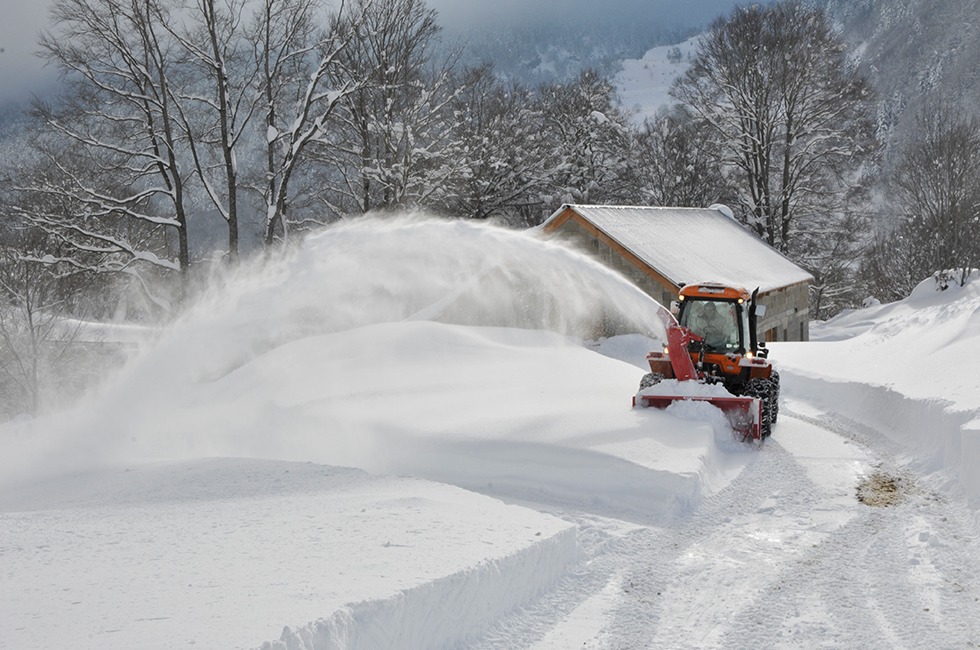

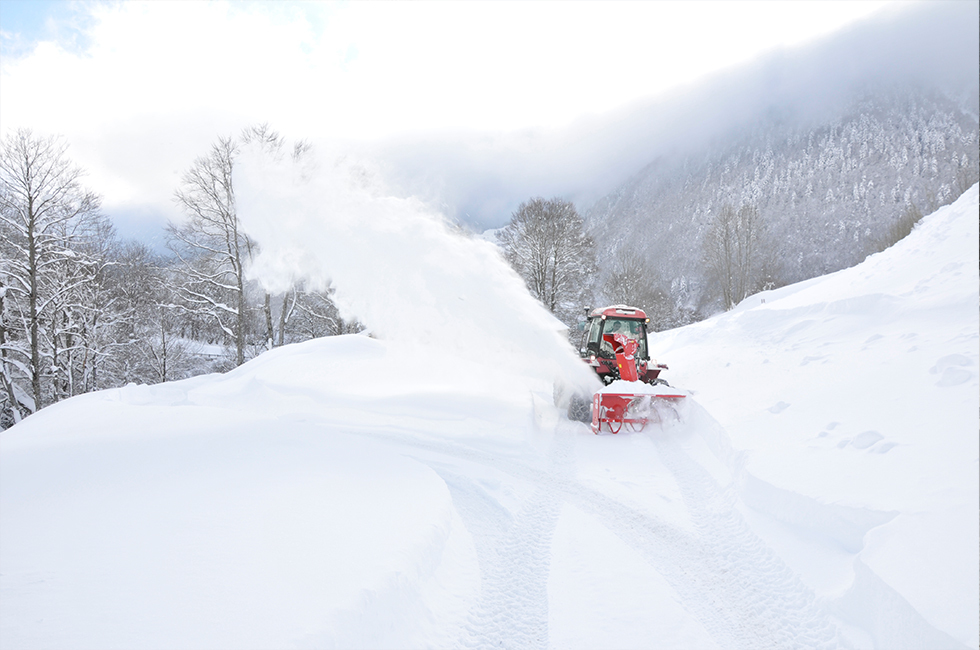

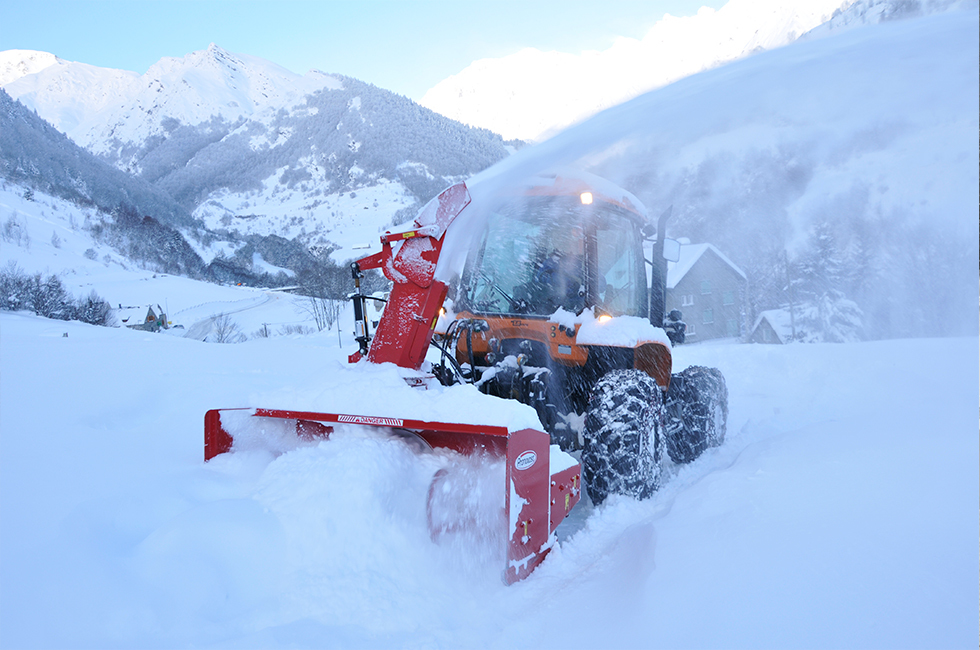

  • Dario   P 860 2

    P-860 en action

  • P 860 G01

    Model P-860 with chute PCG-7486, cylinder 25TR08 for deflector adjustment

  • P 800 Trc G03

    Model P-800 with option TRC, chute PSIG-7486, cylinder 25TR08 for deflector adjustment
