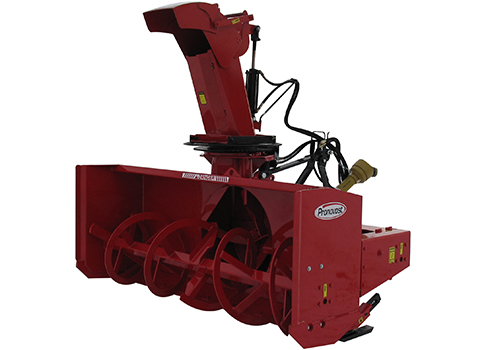

P-860 / P-860TRC
Working width |
86" / 2184 mm |
HP recommended |
50 to 80 HP PTO |
| Cutting height | 36" / 914 mm |
| Impeller diameter | 28" / 711 mm |
| Weight | Reg. : 1475 lbs / 669 kg TRC : 1645 lbs / 746 kg |
Options

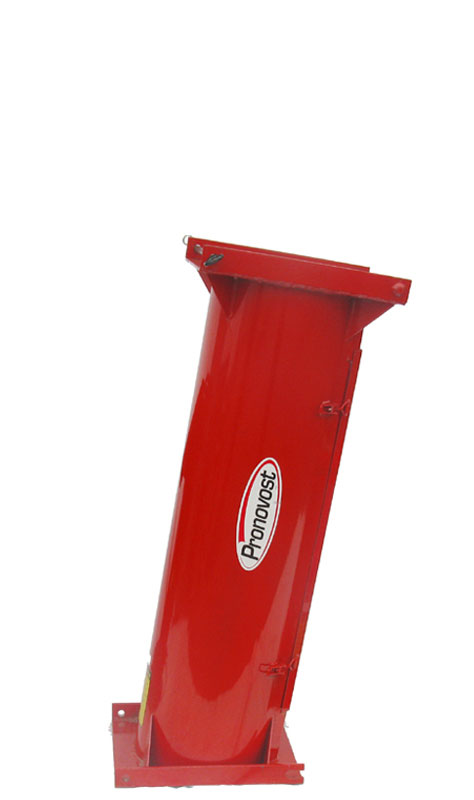

CHOICE OF CHUTE
PSIG-7486
PCG-7486
PRP-7486-2
PRP-7486
PCT-7486-HDB

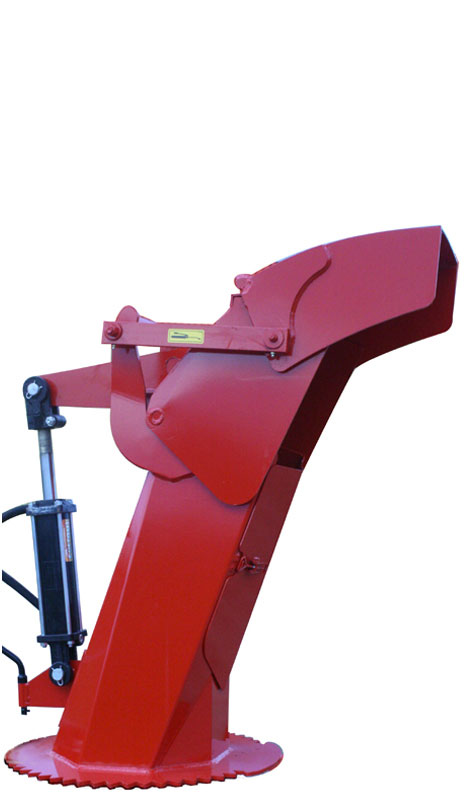

| Semi-industrial chute with greasable hinges and access panel (removable) | PSIG-7486 |
| Quick attach industrial chute with greasable hinges and access panel (removable) | PCG-7486 |
|

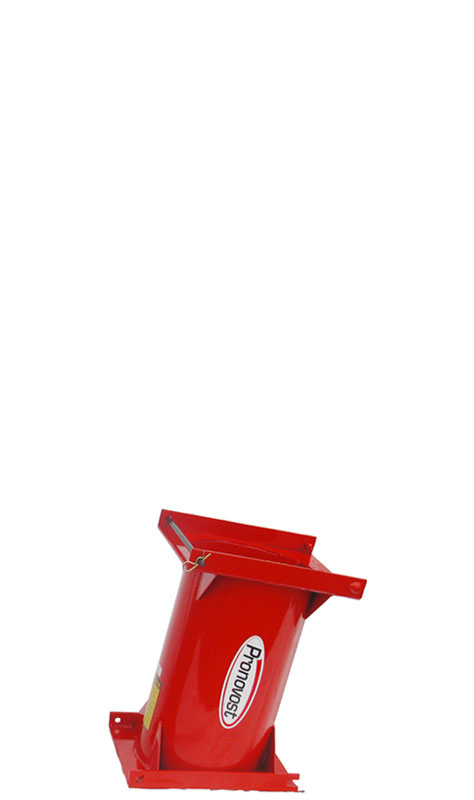

PRP-7486-2 |
|
PRP-7486 |

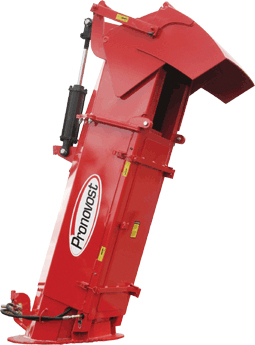

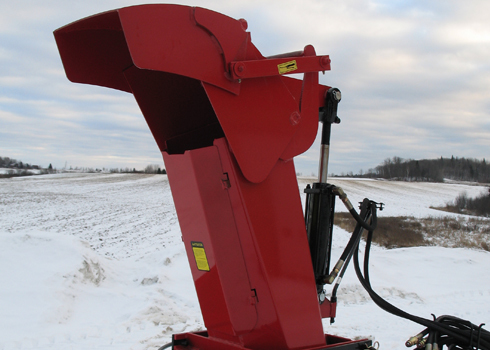

| Hydraulic telescopic industrial chute with greasable hinges and access panel, including extensions cylinders and hose support + hose support for deflector cylinder. Includes replacement of chute base for telescopic chute. | PCT-7486-HDB |
|
PKL-IND-7486 |
CHOICE OF ADJUSTMENT FOR CHUTE DEFLECTOR
| Hydraulic cylinder (included) | 25TR08 |
|
TSB-74104 |
| Manual telescopic tube | T-74104 |
HYDRAULIC MOTOR FOR CHUTE ROTATION
| Hydraulic motor (included) | MLH-250-R |

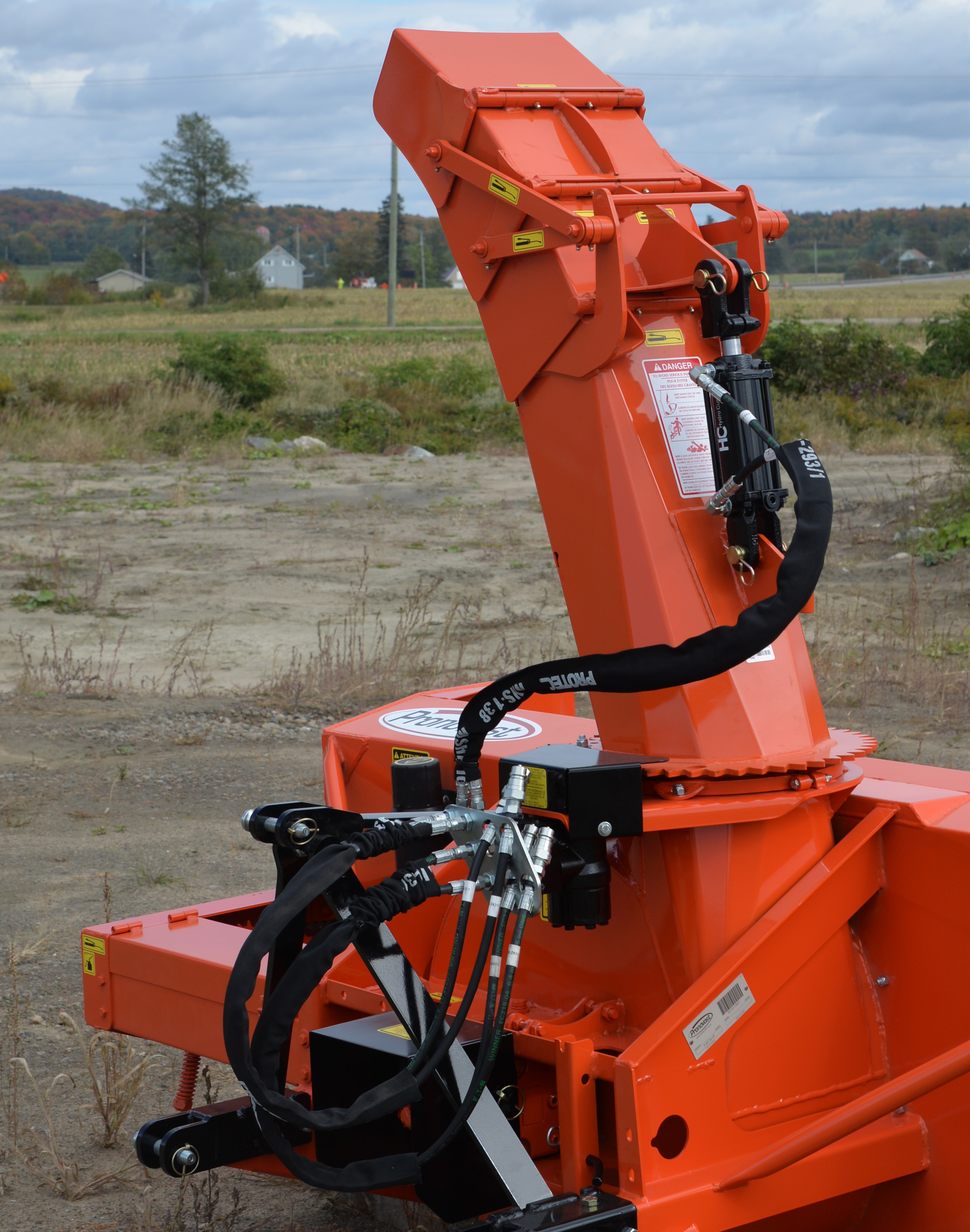

HOSE KITS
PKB-GR2
PKB-GR2TRC
| Hose kit for basic functions. Includes hydraulic hoses connecting the tractor oil outlets to the deflector adjustment cylinder and the chute rotation motor. * Installation not included. | PKB-GR2 |

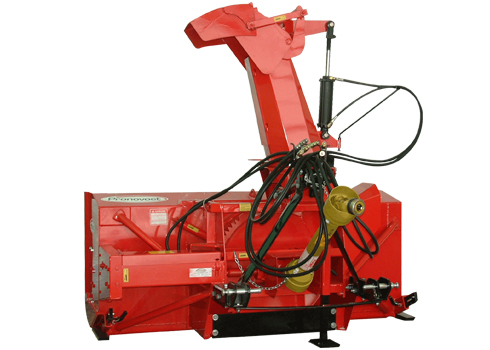

| Kit for TRC models, also includes hoses for drum rotation motor. * Installation not included. | PKB-GR2TRC |
| Kit for models with telescopic chute PCT-7486-HDB, also includes hoses for chute lifting cylinders. * Installation not included. | PKB-GR2-T |
| Kit for TRC models with telescopic chute PCT-7486-HDB, also includes hoses for chute lifting cylinders. * Installation not included. | PKB-GR2TRC-T |

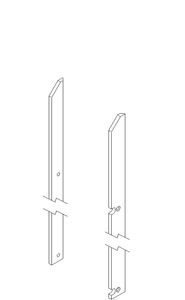

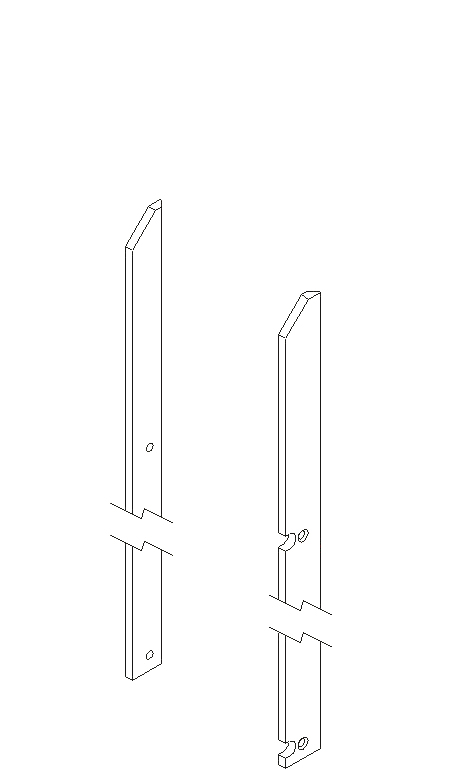

LATERAL BLADES
CL-7486
| Lateral blades, high quality steel 3/8" x 4" x 53 1/2" | CL-7486 |
SCRAPER BLADE
SIT1-86
T1-86
TV-86
SST-86

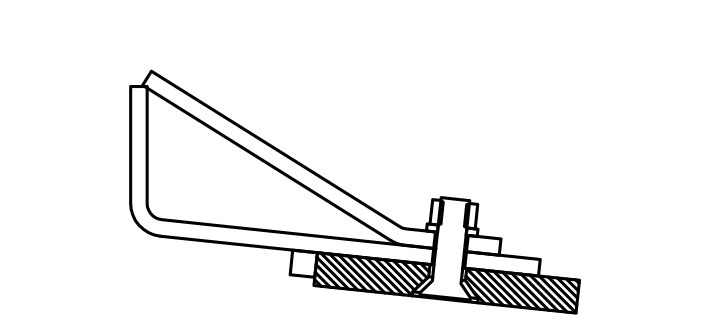

| Semi-industrial scraper blade, carbon steel 450, reversible 1/2" x 4" not sharpened | SIT1-86 |

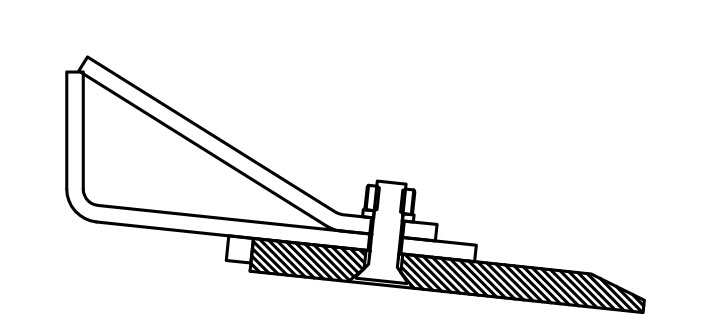

| Industrial scraper blade, carbon steel 450, not reversible 1/2" x 6" sharpened | T1-86 |

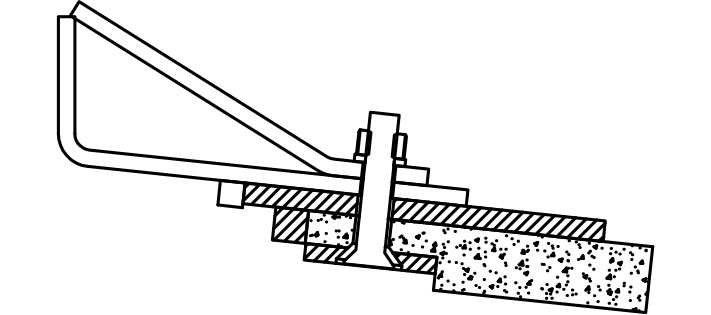

| Tivar scraper blade, including mounting kit | TV-86 |

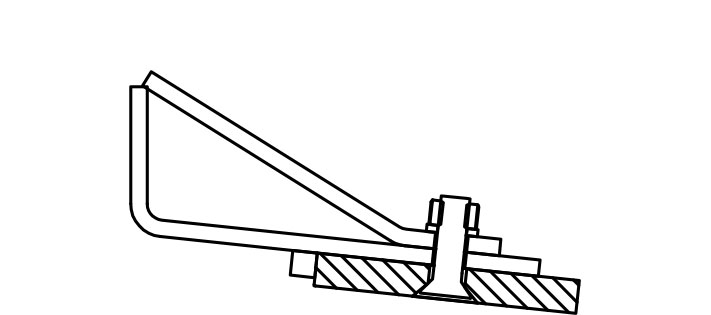

| Stainless Steel scraper blade, reversible, 1/2" x 4" not sharpened | SST-86 |
SKID SHOES
PHD-7486
PSHD-7486
PST-7486

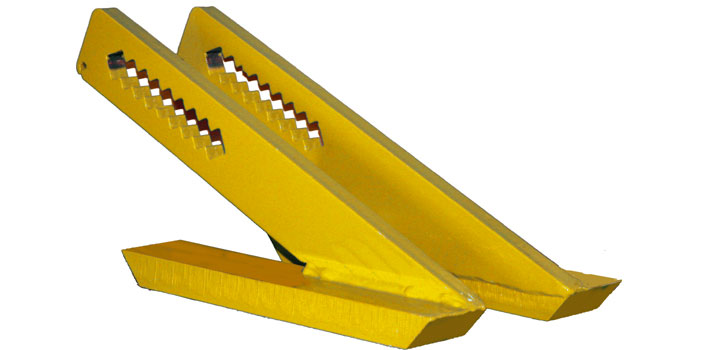

| Industrial skid shoes with Hardox 450 soles | PHD-7486 |

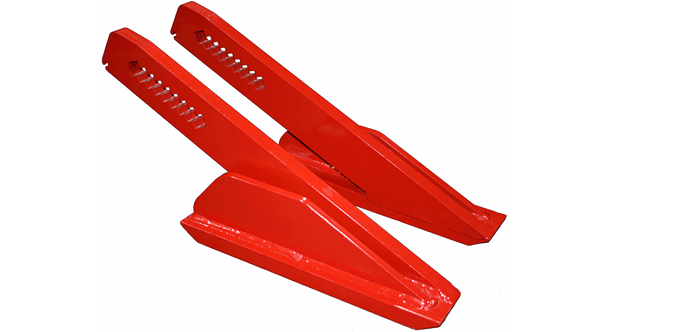

| Skid shoes with ROCKTEC soles | PSHD-7486 |

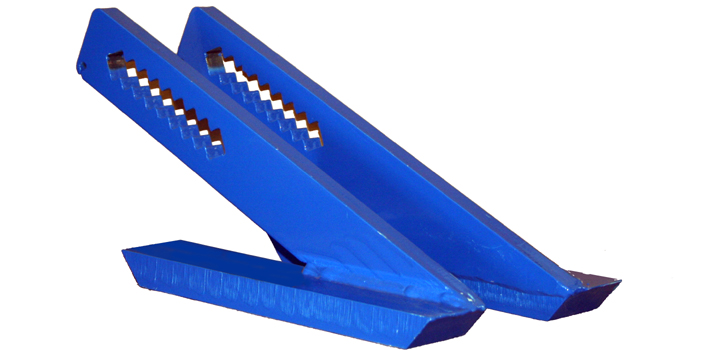

| Skid shoes with stainless steel soles | PST-7486 |

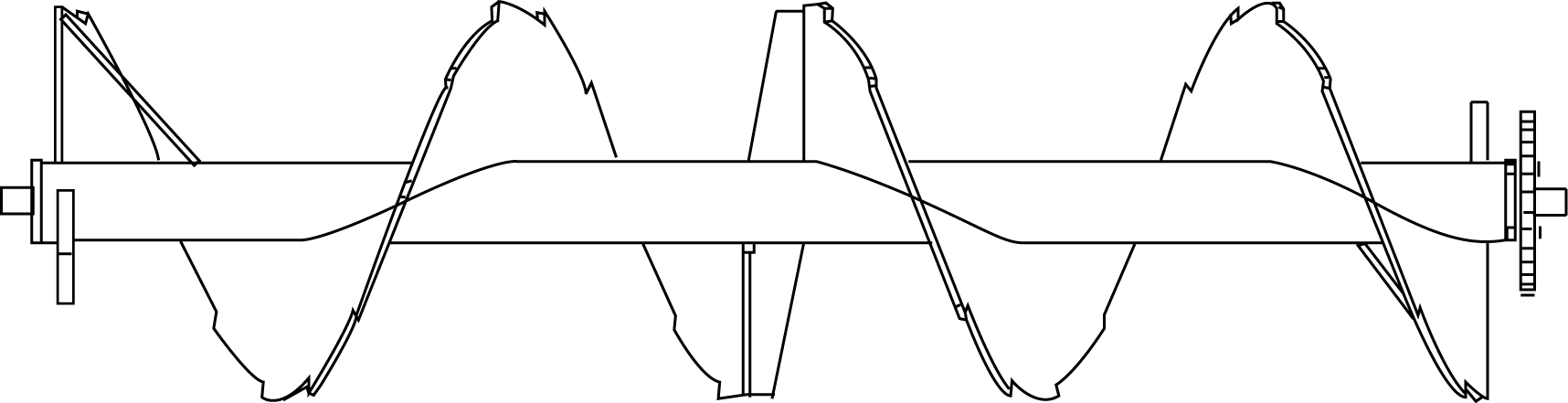

FULL FLIGHT SPIKED MAIN AUGER
VIP-860
| Full flight serrated main auger | VIP-860 |
SPEED REDUCER
PR-7502-1
PR-7202-2
PRH-25M-1
| Inverter 540/540 RPM (1:1) - 75 HP at 540 RPM - 2 gears - shafts 4.855" c/c | PR-7502-1 |
| Speed reducer inverter 1000/555 RPM (1.8:1) - 85 HP at 1000 RPM - 2 gears - shafts 4.855" c/c | PR-7202-2 |
| Drop box 1000/540 RPM. Two choices of input shafts : Reducer inverter 225 HP at 1000 RPM 2/3 gears - shafts 6 3/4" c/c or reducer only 175 HP at 1000 RPM 3/3 gears - shafts 8" c/c | PRH-25M-1 |
CHOICE OF POWER TAKE-OFF (PTO)
| T60 PTO 1 3/8"-6 & 1 3/8"-6 (540 RPM) | 8202 |
| T60 PTO 1 3/8"-21 & 1 3/8"-6 (1000 RPM) | 8202-1 |
| V60 Multilobe PTO 1 3/8"-6 & 1 3/8"-6 (540 RPM) | 8202-V |
| T80 PTO 1 3/8"-6 & 1 3/8"-6 (540 RPM) | 9225-1 |
| T80 PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) | 9569 |
| T80 PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) | 9569-1 |
| V80 Multilobe PTO 1 3/8"-6 & 1 3/8"-6 (540 RPM) | 9225-1-V |
| V80 Multilobe PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) | 9569-V |
HYDRAULIC MOTOR FOR ROTARY DRUM (TRC MODELS ONLY)
| Hydraulic motor (included on TRC model) | MLH-250 |

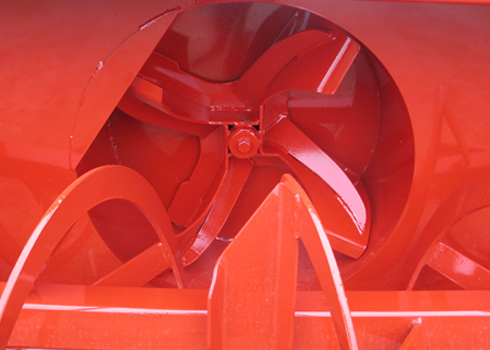

IMPELLER HOUSING
| Impeller housing contour made from Hardox 450 steel in lieu of regular grade steel | TBHD-2812 |
| Impeller housing contour made from Hardox 450 steel in lieu of regular grade steel (for TRC model) | TBHD-2812TRC |
RUBBER DEFLECTOR FLAP
| Rubber deflector flap located from the top of the frame to the auger. Reduces projections. | TL-8092 |
CHOICE OF COLORS
| Red PRONOVOST | |
| Blue | PG2-02 |
| Orange | PG2-04 |
| Yellow INDUSTRIAL | PG2-06 |
| Green | PG2-07 |
| Black | PG2-10 |
Additional Information
HYDRAULIC DRIVEN
It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.
Contact your Pronovost dealer to obtain a quote for your specific requirements.
HYDRAULIC WHEELS
Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.
- Practical to avoid blowing gravel.
- Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.
Contact your Pronovost dealer to obtain a quote for your specific requirements.
*Available only on a new snowblower made in production.
Ice scraper blade for snowblowers
The ice scraper blade is installed under the snowblower, easily and requires no tool.
Scrape icy surfaces to create a grooved finich that increases grip.
Its design requires no additional oil outlet or any modification to the snowblower.
When required, the ice scraper blade must be assembled to the snowblower and then disassembled after use.

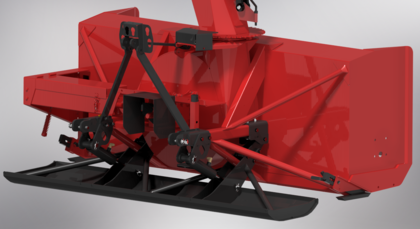

Hydraulic flotation ski for snowblowers
The hydraulic flotation ski allows you to use the snowblower at a constant height above the ground, without scraping it.
Allows you to compact a hard and uniform snow bottom in the gravel entrances while preventing gravel from entering the snowblower. Allows you to blow on a grassy surface while avoiding contact of the snowblower blade with the ground.
Complete specifications
| HP recommended (min. - max.) | 50 to 80 HP PTO |
| Working width | 86" / 2184 mm |
| Cutting height | 36" / 914 mm |
| Hitch category | 1 & 2 |
| Cutting height of lateral blades | Opt. CL : 53 1/2" / 1359 mm |
| Height with telescopic chute | PCT-7486-HD : 108" / 2743 mm closed, 140" / 3556 mm extended |
| Height with telescopic chute (TRC model) | PCT-7486-HD : 111" / 2819 mm closed, 143" / 3632 mm extended |
| Impeller diameter | 28" / 711 mm |
| Depth of drum | 12" / 305 mm |
| Impeller housing contour : High quality steel | Included |
| Impeller housing contour : Hardox 450 | Opt. |
| Number of impeller blades | 4 |
| Impeller shaft diameter | 1 9/16" / 40 mm |
| Height of impeller center | 17 1/2" / 444 mm |
| Rotor RPM | 540 RPM |
| Required RPM for the tractor PTO | 540 RPM Opt. 1000 RPM |
| Number of augers | 1 |
| Main auger diameter | 23" / 584 mm |
| Bearing / ductile iron housing | 1 1/4" / 32 mm |
| Drive chain - Main auger | 80 |
| Number of shear bolts | 1 for impeller + 1 for auger |
| Drum rotation for hydraulic motor (TRC only) | Std. |
| Reducer 1000/540 RPM - 150 HP at 1000 RPM - Renold triple chain - shafts 8" c/c | Opt. |
| Drive shaft included (optional) | T60 (T80 & V80) |
| Lateral blades - High quality steel | Opt. CL : 3/8" x 4" |
| Scraper blade - High quality steel | Included 1/2" x 4" reversible, not sharpened |
| Scraper blade - Semi-industrial made of Hardox 450 | Opt. 1/2" x 4" reversible, not sharpened |
| Scraper blade - Industrial made of Hardox 450 | Opt. 1/2" x 6" not reversible, sharpened |
| Scraper blade - Tivar | Opt. 1" thickness, not reversible, not sharpened |
| Scraper blade - Stainless steel | Opt. 1/2" x 4" reversible, not sharpened |
| Adjustable skid shoes - Quick adjustment high quality steel | Included |
| Adjustable skid shoes - Quick adjustment Hardox 450 | Opt. |
| Adjustable skid shoes - Quick adjustment Rocktec | Opt. |
| Adjustable skid shoes - Quick adjustment stainless steel | Opt. |
| Full flight main auger (industrial) | Opt. |
| Chute - Semi-industrial with greasable hinges and removable access panel | Opt. |
| Chute - Industrial quick attach | Opt. |
| Chute - 24" or 48" extension | Opt. |
| Chute - Telescopic including extension cylinders | Opt. |
| Chute rotation system - Hydraulic motor kit (motor not included) | Included |
| Chute rotation maximum angle - Hydraulic motor rotation | 270° - 335° |
| Antifriction for chute | Included : ring |
| Deflector - Manual | Opt. |
| Deflector - Hydraulic cylinder | Opt. |
| Color | Included : Red Pronovost Opt. : Choice of 5 colors |
| Storage support | Included |
| Weight including chute | 1475 lbs / 669 kg |
| Weight including chute (TRC model) | 1645 lbs / 746 kg |
Design and specifications subject to change without notice.
