P-82126-HP / P-82126TRC-HP

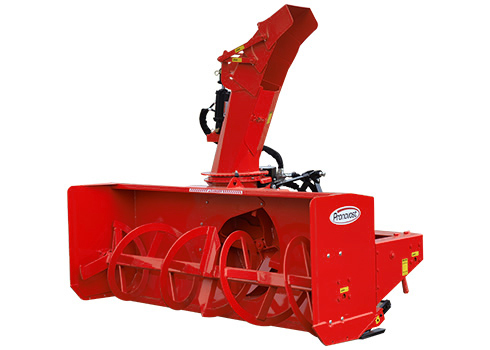

P 82126 Hp Avec Pc3 C A

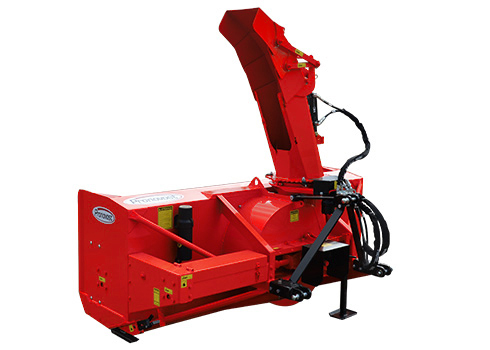

  1. P 82126 Hp Avec Pc3 C B
  2. Groupe1 B
  3. P 720 Trc 74 C

Working width

82" / 2083 mm

HP recommended

45 à 65 ch PdF

Cutting height 30" / 762 mm
Drum diameter 26" / 660 mm x 12" / 305 mm prof.
Weight Reg. : 1060 lbs / 481 kg TRC : 1195 lbs / 542 kg
Add to compare
Download the flyer

Options

CHOICE OF CHUTE

Pc3 C Gr1.5

PC3C-GR1.5

3-Deflector semi-industrial chute with greasable hinges and removable access panel. PC3C-GR1.5

CHOICE OF ADJUSTMENT FOR CHUTE DEFLECTOR

Manual telescopic tube T-4864
Hydraulic cylinder 25TR04

HYDRAULIC MOTOR FOR CHUTE ROTATION

Hydraulic motor for pump with less than 12 GPM (with cushion valve and unidirectional restrictors) MLH-250-R

HOSE KITS

Pkb

PKB-GR1

Pkb

PKB-GR1TRC

Hose kit for basic functions. Includes hydraulic hoses connecting the tractor oil outlets to the deflector adjustment cylinder and the chute rotation motor. * Installation not included. PKB-GR1
Kit for TRC models, also includes hoses for drum rotation motor. * Installation not included. PKB-GR1TRC

LATERAL BLADES

Cl 4872

CL-4872

Kit of 2 lateral blades, standard steel (3/8" x 2 1/2" x 39 1/2") CL-4872

SCRAPER BLADE

Sit1gr1

SIT1-182

T Vgr1

TV-182

Ss Tgr1

SST-182

Semi-industrial scraper blade, Hardox 450, reversible, 1/2" x 3 1/2", not sharpened SIT1-182
Tivar scraper blade, 1" thick, not reversible, including mounting kit TV-182
Stainless steel scraper blade, reversible, 1/2" x 3 1/2", not sharpened SST-182

SKID SHOES

Phd

PHD-4872

Pst

PST-4872

Industrial skid shoes with Hardox 450 soles PHD-4872
Skid shoes with stainless steel soles PST-4872

SPEED REDUCER

Pr 7502 1

PR-7502-1

Pr 7502 2

PR-7202-2

Prc 6502 1

PRC-6502-1

Inverter 540/540 RPM (1:1) - 75 HP at 540 RPM - 2 gears - shafts 4.855" c/c PR-7502-1
Speed reducer inverter 1000/555 RPM (1.8:1) - 85 HP at 1000 RPM - 2 gears - shafts 4.855" c/c PR-7202-2
Non-inverting PTO drop box 540/540 RPM (1:1) - 62 HP at 540 RPM - chain - shafts 6.5" c/c PRC-6502-1

CHOICE OF POWER TAKE-OFF (PTO)

T50 PTO 1 3/8"-6 & 1 3/8"-6 (540 RPM) 8114
T60 PTO 1 3/8"-6 & 1 3/8"-6 (540 RPM) 8202
T60 PTO 1 3/8"-21 & 1 3/8"-6 (1000 RPM) 8202-1

HYDRAULIC MOTOR FOR ROTARY DRUM (TRC MODELS ONLY)

Hydraulic motor (included on TRC model) MLH-250

RUBBER DEFLECTOR FLAP

Rubber deflector flap located from the top of the frame to the auger. Reduces projections. TL-5480

CHOICE OF COLORS

Red PRONOVOST
Blue PG1-02
Orange PG1-04
Yellow INDUSTRIAL PG1-06
Green PG1-07
Black PG1-10

Other recommended products

Additional Information

HYDRAULIC DRIVEN

It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

Hyd22

HYDRAULIC WHEELS

Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.

  • Practical to avoid blowing gravel.
  • Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

Roues Wheels 1

Ice scraper blade for snowblowers

The ice scraper blade is installed under the snowblower, easily and requires no tool.
Scrape icy surfaces to create a grooved finich that increases grip.

Its design requires no additional oil outlet or any modification to the snowblower.
When required, the ice scraper blade must be assembled to the snowblower and then disassembled after use.

Couteauglace 1

Hydraulic flotation ski for snowblowers

The hydraulic flotation ski allows you to use the snowblower at a constant height above the ground, without scraping it.

Allows you to compact a hard and uniform snow bottom in the gravel entrances while preventing gravel from entering the snowblower. Allows you to blow on a grassy surface while avoiding contact of the snowblower blade with the ground.

Skiflottaison 25

Complete specifications

HP recommended (min. - max.) 45 to 65 HP PTO
Working width 82" / 2083 mm
Cutting height 30" / 762 mm
Hitch category 1
Cutting height of lateral blades Opt. CL : 39 1/2" / 1003 mm
Impeller diameter 26" / 660 mm
Depth of drum 12" / 305 mm
Impeller housing contour : Hardox 450 Included
Number of impeller blades 4
Impeller shaft diameter 1 9/16" / 40 mm
Height of impeller center 16 1/2" / 419 mm
Rotor RPM 540 RPM
Required RPM for the tractor PTO 540 RPM / Opt. 1000 RPM
Number of augers 1
Main auger diameter 22" / 559 mm
Bearing / ductile iron housing 1 1/4" / 32 mm
Drive chain - Main auger 60
Number of shear bolts 1 for impeller and 1 for auger
Drum rotation for hydraulic motor (TRC only) Std.
Drive shaft included (optional) T50 (T60)
Adjustable skid shoes - Quick adjustment Hardox 450 Opt.
Adjustable skid shoes - Quick adjustment stainless steel Opt.
Chute rotation system - Hydraulic motor kit (motor not included) Inclus
Chute rotation maximum angle - Hydraulic motor rotation 270° à 345° adjustable
Antifriction for chute Included: ring
Deflector - Manual Opt.
Deflector - Hydraulic cylinder Opt.
Color Included : Red Pronovost Opt. : Choice of 5 colors
Weight Reg. : 1060 lbs / 481 kg TRC : 1195 lbs / 542 kg
Weight including chute 1060 lbs / 481 kg
Weight including chute (TRC model) 1195 lbs / 542 kg

Design and specifications subject to change without notice.
