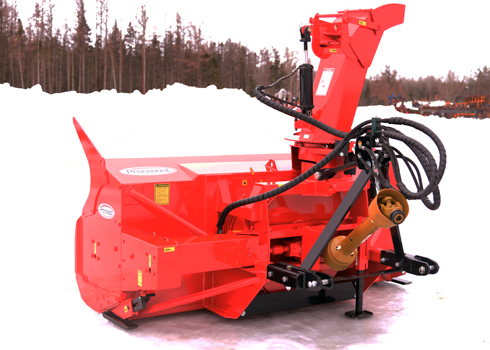

P-98134-GV / P-98134TRC-GV
Working width |
98" / 2489 mm |
HP recommended |
90 to 125 HP |
| Cutting height | 44" / 1118 mm |
| Drum diameter | 34" / 864 mm |
| Weight | Rég.: 2540 lbs / 1152 kg TRC: 2680 lbs / 1216 kg |
Options
CHOICE OF CHUTE
PSIG-7486
PCG-7486
PRP-7486-2
PRP-7486
PCT-7486-HDB
| Semi-industrial chute with greasable hinges and access panel (removable) | PSIG-7486 |
| Quick attach industrial chute with greasable hinges and access panel (removable) | PCG-7486 |
|
PRP-7486-2 |
|
PRP-7486 |
| Hydraulic telescopic industrial chute with greasable hinges and access panel, including extensions cylinders and hose support + hose support for deflector cylinder. Includes replacement of chute base for telescopic chute. | PCT-7486-HDB |
|
PKL-IND-7486 |
CHOICE OF ADJUSTMENT FOR CHUTE DEFLECTOR
25TR08
| Hydraulic cylinder | 25TR08 |
HYDRAULIC MOTOR FOR CHUTE ROTATION
| Hydraulic motor (included) | MLH-315-R |
HOSE KITS
PKB-GR3
PKB-GR2TRC-34
| Hose kit for basic functions. Includes hydraulic hoses connecting the tractor oil outlets to the deflector adjustment cylinder and the chute rotation motor. * Installation not included. | PKB-GR3 |
| Kit for models with telescopic chute PCT-7486-HDB, also includes hoses for chute lifting cylinders. * Installation not included. | PKB-GR3-T |
| Kit for TRC models, also includes hoses for drum rotation motor. *Installation not included. | PKB-GR2TRC-34 |
| Kit for TRC models with telescopic chute PCT-7486-HDB, also includes hoses for chute lifting cylinders. * Installation not included. | PKB-GR2TRC-34-T |
SCRAPER BLADE
SIT1-98
T1-98
TV-98
SST-98
| Semi-industrial scraper blade, carbon steel 450, reversible 1/2" x 4" not sharpened | SIT1-98 |
| Industrial scraper blade, carbon steel 450, not reversible 1/2" x 6" sharpened | T1-98 |
| TV-98 | |
| Stainless Steel scraper blade, reversible, 1/2" x 4" not sharpened | SST-98 |
SKID SHOES
PHD-92104
PSHD-92104
PST-92104
| Industrial skid shoes with Hardox 450 soles | PHD-92104 |
| Skid shoes with ROCKTEC soles | PSHD-92104 |
| Skid shoes with stainless steel soles | PST-92104 |
SPEED REDUCER
PRH-30M-2
PRH-25M-2
| Speed reducer 1000/555 RPM - 220 HP at 1000 RPM - 3 gears - shafts 7 1/16" c/c | PRH-30M-2 |
| Drop box 1000/540 RPM. Two choices of input shafts : Reducer inverter 225 HP at 1000 RPM 2/3 gears - shafts 6 3/4" c/c or reducer only 175 HP at 1000 RPM 3/3 gears - shafts 8" c/c | PRH-25M-2 |
CHOICE OF POWER TAKE-OFF (PTO)
| T80 PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) | 9225 |
| T80 PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) | 9569 |
| T80 PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) | 9569-1 |
| V80 Multilobe PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) | 9225-V |
| V80 Multilobe PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) | 9569-V |
| T90 PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) | 9475 |
| T90 PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) | 9475-1 |
| T90 PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) | 9475-2 |
| V90 Multilobe PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) | 9598 |
| V90 Multilobe PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) | 9599 |
| V90 Multilobe PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) | 9604 |
HYDRAULIC MOTOR FOR ROTARY DRUM (TRC MODELS ONLY)
| Hydraulic motor (included on TRC model) | MLH-315-R |
IMPELLER HOUSING
| Impeller housing contour made from Hardox 450 steel in lieu of regular grade steel | TBHD-3412 |
| Impeller housing contour made from Hardox 450 steel in lieu of regular grade steel (for TRC model) | TBHD-3412TRC |
RUBBER DEFLECTOR FLAP
| Rubber deflector flap located from the top of the frame to the auger. Reduces projections. | TL-98108 |
CHOICE OF COLORS
| Red PRONOVOST | |
| Blue | PG2-02 |
| Orange | PG2-04 |
| Yellow INDUSTRIAL | PG2-06 |
| Green | PG2-07 |
| Black | PG2-10 |
Other recommended products
Additional Information
HYDRAULIC DRIVEN
It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.
Contact your Pronovost dealer to obtain a quote for your specific requirements.
HYDRAULIC WHEELS
Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.
- Practical to avoid blowing gravel.
- Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.
Contact your Pronovost dealer to obtain a quote for your specific requirements.
*Available only on a new snowblower made in production.
Complete specifications
| HP recommended (min. - max.) | 90 TO 125 HP |
| Working width | 98" / 2489 mm |
| Cutting height | 44" / 1118 mm |
| Hitch category | 2 - 34 1/2" / 876 mm c/c |
| Cutting height of lateral blades | 55" /1397 |
| Impeller diameter | 34" / 864 mm |
| Depth of drum | 12" / 305 mm |
| Impeller housing contour : High quality steel | Included |
| Impeller housing contour : Hardox 450 | Option |
| Number of impeller blades | 6 |
| Impeller shaft diameter | 2" / 51 mm |
| Height of impeller center | 21" / 533 mm |
| Rotor RPM | 540 RPM |
| Required RPM for the tractor PTO | 540 RPM Opt. 1000 RPM |
| Number of augers | 1 |
| Main auger diameter | 32" / 813 mm Double ribonned, serrated |
| Bearing / ductile iron housing | 1 1/2" / 38 mm |
| Drive chain - Main auger | 80 protected by semi-sealed guard, removable access |
| Number of shear bolts | 1 for impeller, 1 for auger |
| Drum rotation for hydraulic motor (TRC only) | Std. |
| Reducer 1000/555 RPM - 220 HP at 1000 RPM - 3 gears - shafts 7 1/16" c/c | Opt. |
| 1000/540 RPM drop box with two choices of input shafts | Opt. |
| Drive shaft included (optional) | T80 (T90) |
| Scraper blade - High quality steel | Included |
| Scraper blade - Semi-industrial made of Hardox 450 | Option |
| Scraper blade - Industrial made of Hardox 450 | Option |
| Scraper blade - Tivar | Option |
| Scraper blade - Stainless steel | Option |
| Adjustable skid shoes - Quick adjustment high quality steel | Included |
| Adjustable skid shoes - Quick adjustment Hardox 450 | Option |
| Adjustable skid shoes - Quick adjustment Rocktec | Option |
| Adjustable skid shoes - Quick adjustment stainless steel | Option |
| Chute - Semi-industrial with greasable hinges and removable access panel | Included |
| Chute - Industrial quick attach | Option |
| Chute - 24" or 48" extension | Option |
| Chute - Telescopic including extension cylinders | Option |
| Chute rotation system - Hydraulic motor kit (motor not included) | Included + motor |
| Chute rotation maximum angle - Hydraulic motor rotation | 305 degrees |
| Antifriction for chute | Ring |
| Deflector - Hydraulic cylinder | Included |
| Color | Pronovost Red |
| Storage support | Included |
| Weight including chute | 2540 lbs / 1152 kg |
| Weight including chute (TRC model) | 2680 lbs / 1216 kg |
