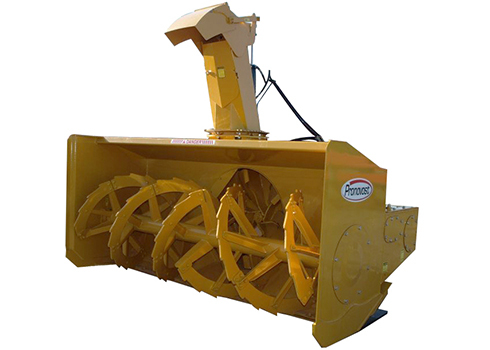

PGS-1020TRC

Pgs 1020 Trc

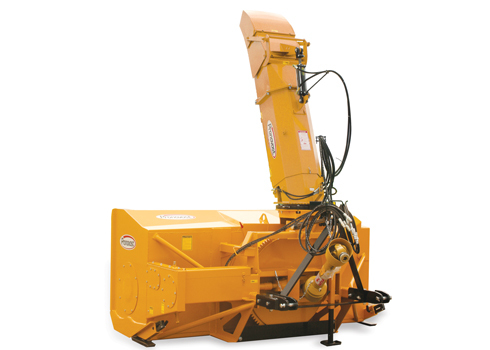

  1. Pgs 1020 Trc A

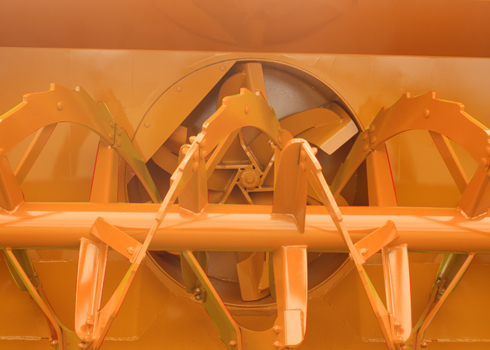

  2. Pgs 1020 Trc B

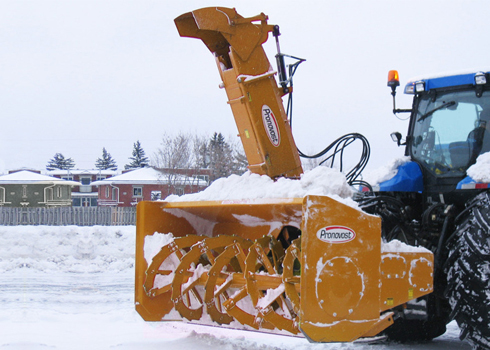

  3. Pgs 1020 Trc C

Working width

102" / 2591 mm

HP recommended

100 to 150 HP PTO

Cutting height 47 1/2" / 1207 mm
Approx. performance 1500 tons imp. / hour (tractor 150 HP)
Weight
Add to compare
Download the flyer

Options

CHOICE OF CHUTE

Psig 92104ind

PSIG-92104

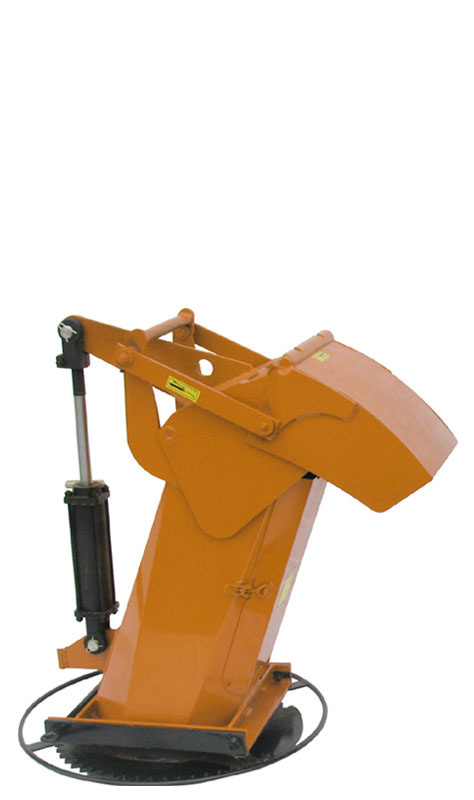

Pcg Ind

PCG-92104

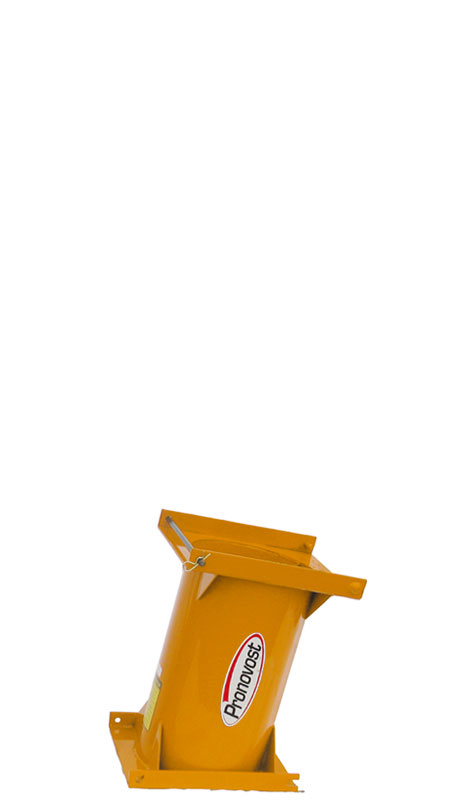

Prp 7486 2ind

PRP-92104-2

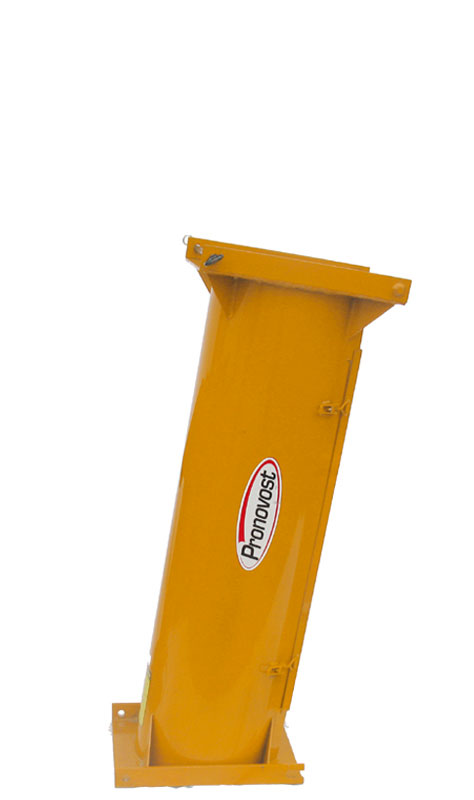

Prp Ind

PRP-92104

Pct 92104

PCT-92104

Pctc Indr

PCTC-INDR

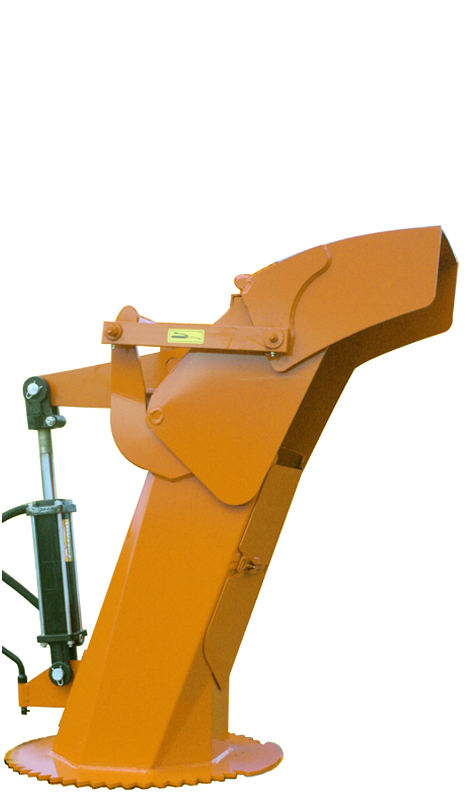

Semi-industrial chute with greasable hinges and removable access panel, including hose support for deflector cylinder PSIG-92104
Quick attach industrial chute with greasable hinges and removable access panel, including hose support for deflector cylinder. Kit of two unidirectional restrictors RSP-1/16x10 ORB included. PCG-92104
  • 24" Extension for industrial chute
PRP-92104-2
  • 48" Extension for industrial chute
PRP-92104

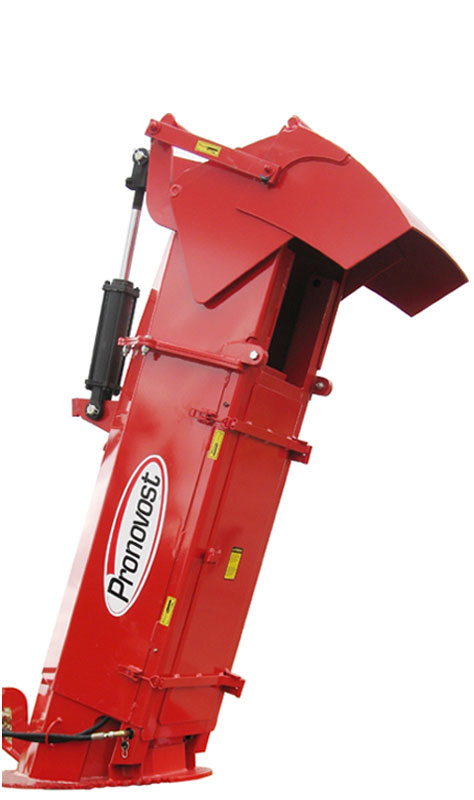

Hydraulic telescopic industrial chute, a versatile chute for general use, including chute extension cylinders and hose support + hose support for deflector cylinder. Kit of two unidirectional restrictors RSP-1/16x10 ORB included. PCT-92104
  • Mounting kit for working light on telescopic chute.
PKL-IND92104

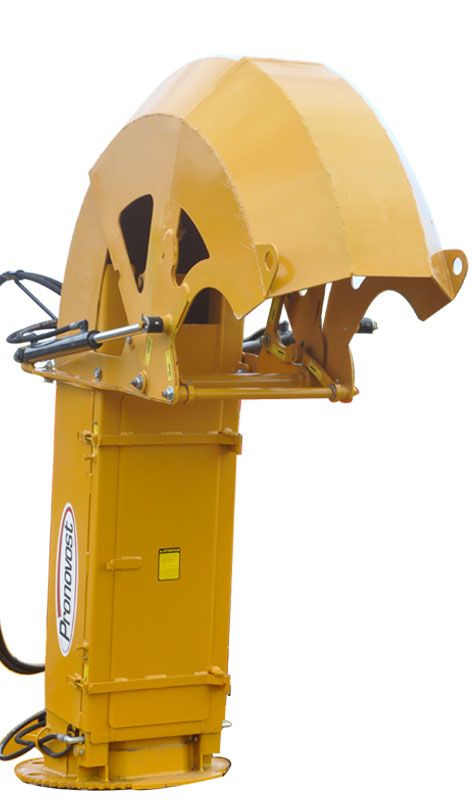

Hydraulic telescopic industrial chute with rounded deflector designed for truck loading, greasable hinges and access panel, including 2 extension cylinders and hose support and 2 deflector cylinders and hose support. Kit of two unidirectional restrictors RSP-1/16x10 ORB included. PCTC-INDR
  • Mounting kit for working light on telescopic chute.
PKL-INDR

CHOICE OF ADJUSTMENT FOR CHUTE DEFLECTOR

Hydraulic cylinder (included) 25TR08
  • Hose support for deflector cylinder
TSB-74104

HYDRAULIC MOTOR FOR CHUTE ROTATION

Hydraulic motor (included) MLH-315-R

HOSE KITS

Pkb

PKB-GR3TRC

Kit for TRC models, also includes hoses for drum rotation motor. * Installation not included. PKB-GR3TRC
Kit for TRC models with telescopic chute PCT-92104, also includes hoses for chute lifting cylinders. * Installation not included. PKB-GR3TRC-T
Kit for TRC models with telescopic chute with round deflector PCTC-INDR, also includes hoses for chute lift cylinders and cylinder for round deflector adjustment. * Installation not included. PKB-GR3TRC-TR

LATERAL BLADES

Cl 98104

CL-98104

Cl 1020 Pgs

CL-1020PGS

Lateral blades, high quality steel 3/8" x 4" x 66" CL-98104

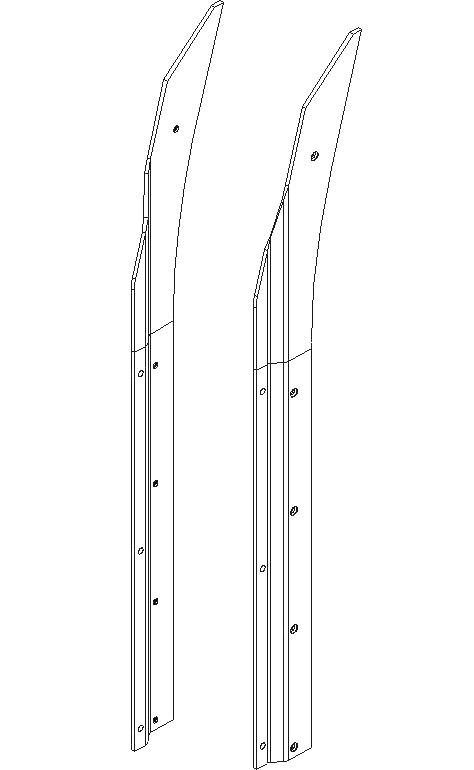

Lateral blades, standard steel 3/8" x 5 1/2" x 78" with brace CL-1020PGS

SCRAPER BLADE

Sit1gr2

SIT1-102

T1gr2

T1-102

Ss Tgr2

SST-102

Semi-industrial scraper blade, carbon steel 450, reversible 1/2" x 4" not sharpened SIT1-102

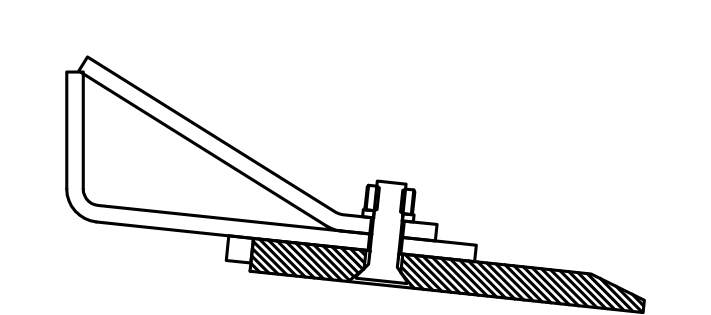

Industrial scraper blade, carbon steel 450, reversible 1/2" x 4" not sharpened T1-102

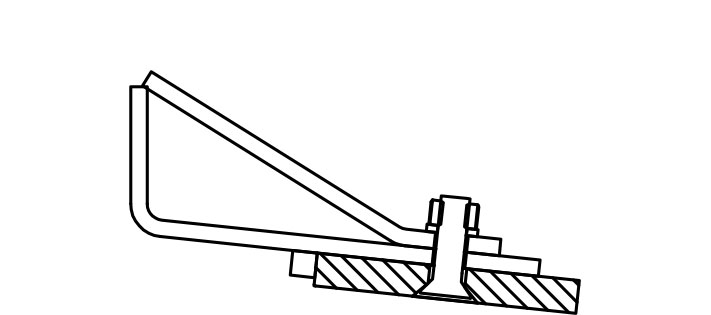

Stainless Steel scraper blade, reversible, 1/2" x 4" not sharpened SST-102

SKID SHOES

Phd

PHD-PGS

Pshd

PSHD-PGS

Pst

PST-PGS

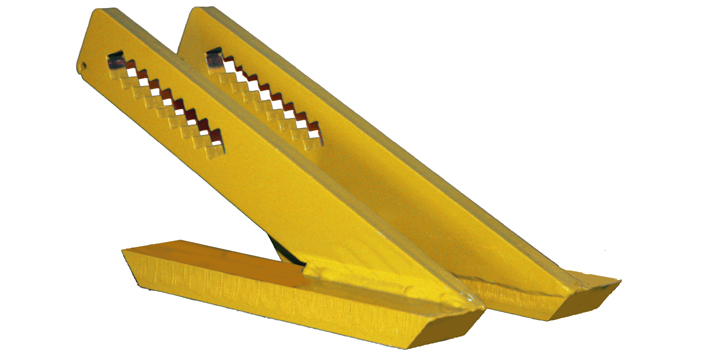

Industrial skid shoes with Hardox 450 soles PHD-PGS
Skid shoes with ROCKTEC soles PSHD-PGS
Skid shoes with stainless steel soles PST-PGS

SPEED REDUCER

Prh 30 M 2

PRH-30M-2

Prh 25 M 2

PRH-25M-2

Pr3 G200 2

PR3G200-2

Speed reducer 1000/555 RPM - 220 HP at 1000 RPM - 3 gears - shafts 7 1/16" c/c PRH-30M-2
Drop box 1000/540 RPM. Two choices of input shafts : Reducer inverter 225 HP at 1000 RPM 2/3 gears - shafts 6 3/4" c/c or reducer only 175 HP at 1000 RPM 3/3 gears - shafts 8" c/c PRH-25M-2
Reducer 1000/555 (200 HP at 1000 RPM) 3 gears - 8" c/c PR3G200-2

CHOICE OF POWER TAKE-OFF (PTO)

T90 PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) 9475
T90 PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) 9475-1
T90 PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) 9475-2
V90 Multilobe PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) 9598
V90 Multilobe PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) 9599
V90 Multilobe PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) 9604

KIT OF 3 OR 4 DIVERTERS WITH JOYSTICK

Kit of 3 electric directionnal control valves to control 4 hydraulic functions (chute deflector, chute rotation, telescopic chute and TRC drum) including universal mounting bracket, hoses and fittings. KVD-3IND
Kit of 4 electric directionnal control valves to control 5 hydraulic functions (chute deflector, chute rotation, telescopic chute, TRC drum and hydraulic lateral blades) including universal mounting bracket, hoses and fittings. KVD-4IND
Kit of joystick controller 4 buttons with cables and connector. Installs on a hydraulic lever or tractor. Compatible for KVD-3IND + KVD-4IND. KVD-IND-M4
Wiring harness and connector 20. KVD-IND-H20

Other recommended products

Additional Information

HYDRAULIC DRIVEN

It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

Hyd22

HYDRAULIC WHEELS

Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.

  • Practical to avoid blowing gravel.
  • Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

Roues Wheels 1

Complete specifications

HP recommended (min. - max.) 100 to 150 HP PTO
Approximate performance 1500 tons imp. / hour (tractor 150 HP)
Working width 102" / 2591 mm
Cutting height 47 1/2" / 1207 mm
Hitch category 2 - 38 1/2" / 978 mm
Cutting height of lateral blades Opt. CL : 66" / 1676 mm or 78" / 1981 mm
Height of chute base (TRC model) 49 1/2" / 1257 mm
Height with telescopic chute (TRC model) PCT-92104 : 119" / 3022 mm closed, 149" / 3785 mm extended - PCTC-INDR : 124" / 3150 mm closed, 156" / 3962 mm extended
Impeller diameter 34" / 864 mm
Depth of drum 15" / 381 mm
Impeller housing contour : Hardox 450 Included 1/4"
Number of impeller blades 6 - 1/2" thickness, welded high quality steel
Impeller shaft diameter 2" / 51 mm
Height of impeller center 22" / 559 mm
Rotor RPM 540 RPM
Required RPM for the tractor PTO 540 RPM Opt. 1000 RPM
Number of augers 1
Main auger diameter 34" / 864 mm - dual band, bolted, serrated
Bearing / ductile iron housing 2 1/2" / 64 mm
Drive chain - Main auger Renold No. 100HV in oil bath
Frame - Sides Plate 1/4"
Frame - Back Plate 10 Gauge
Number of shear bolts 1 for impeller + 1 for auger
Drum rotation for hydraulic motor (TRC only) Std.
Reducer 1000/555 RPM - 220 HP at 1000 RPM - 3 gears - shafts 7 1/16" c/c Opt.
1000/540 RPM drop box with two choices of input shafts Opt.
Height of speed reducer shaft 14" or 30" (with reducer 150 HP)
Drive shaft included (optional) T90, choice of yoke depending on the tractor and RPM - (V90 multilobe, choice of yoke depending on tractor and RPM)
Lateral blades - High quality steel Opt. CL : 3/8" x 4" (increases the width by 3/4") or 3/8" x 5 1/2" with brace (increases the width by 3/4")
Scraper blade - High quality steel Included 1/2" x 4" reversible, not sharpened
Scraper blade - Semi-industrial made of Hardox 450 Opt. 1/2" x 4" reversible, not sharpened
Scraper blade - Industrial made of Hardox 450 Opt. 1/2" x 6" not reversible, sharpened
Scraper blade - Stainless steel Opt. 1/2" x 4" reversible, not sharpened
Adjustable skid shoes - Quick adjustment high quality steel Included (2 skid shoes)
Adjustable skid shoes - Quick adjustment Hardox 450 Opt. (2 skid shoes)
Adjustable skid shoes - Quick adjustment Rocktec Opt. (2 skid shoes)
Adjustable skid shoes - Quick adjustment stainless steel Opt. (2 skid shoes)
Chute - Semi-industrial with greasable hinges and removable access panel Opt.
Chute - Industrial quick attach Opt.
Chute - 24" or 48" extension Opt.
Chute - Telescopic including extension cylinders Opt.
Chute - Telescopic with rounded deflector including extension and deflector cylinders Opt.
Chute rotation system - Hydraulic motor kit (motor not included) Included
Chute rotation maximum angle - Hydraulic motor rotation 305°
Antifriction for chute Included : ring
Deflector - Hydraulic cylinder Opt.
Color Included : Industrial Yellow
Storage support Included
Center of gravity from 3 point hitch at its shortest 44" / 1118 mm
Rotational force (reference) 169 180 lbs-po
Weight including chute (TRC model) 3845 lbs / 1744 kg

Design and specifications subject to change without notice.

Videos

No video for this product

Photo gallery

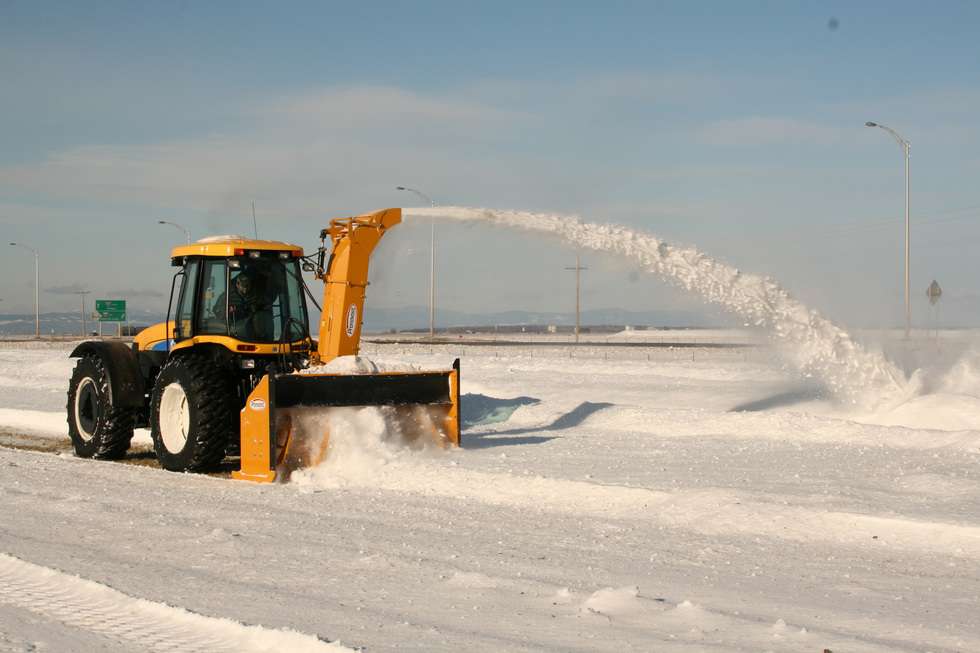

  • Pgv 1021 Trc G10

    Industrial snowblower model PGV-1021TRC

  • Pgv 1021 Trc G08

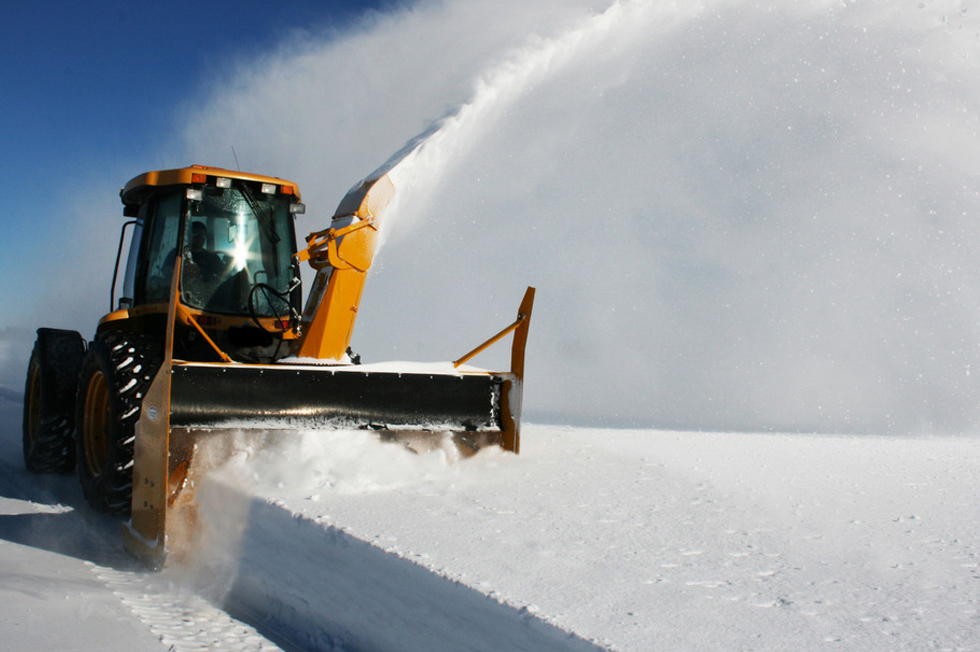

    Industrial snowblower model PGV-1021TRC

  • Pgv 1021 Trc G09

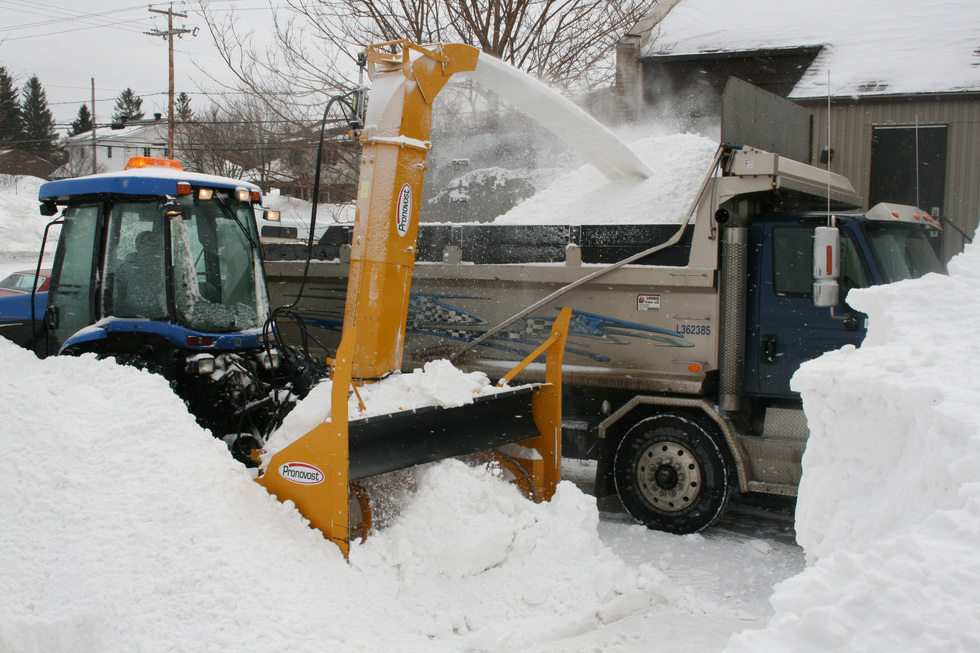

    Industrial snowblower model PGV-1021TRC

  • Pgv 1021 Trc G07

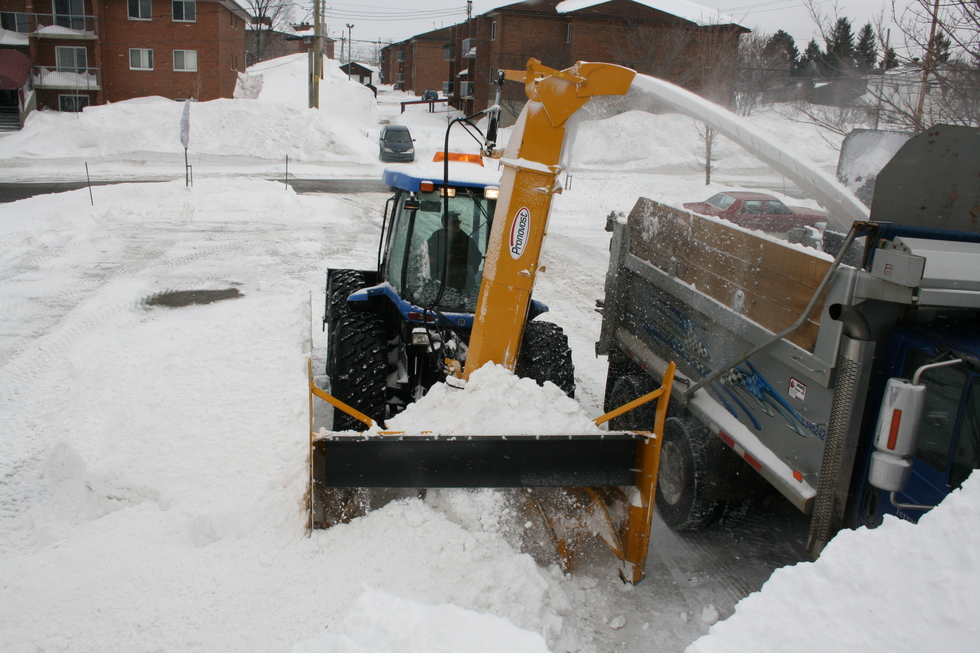

    Industrial snowblower model PGV-1021TRC

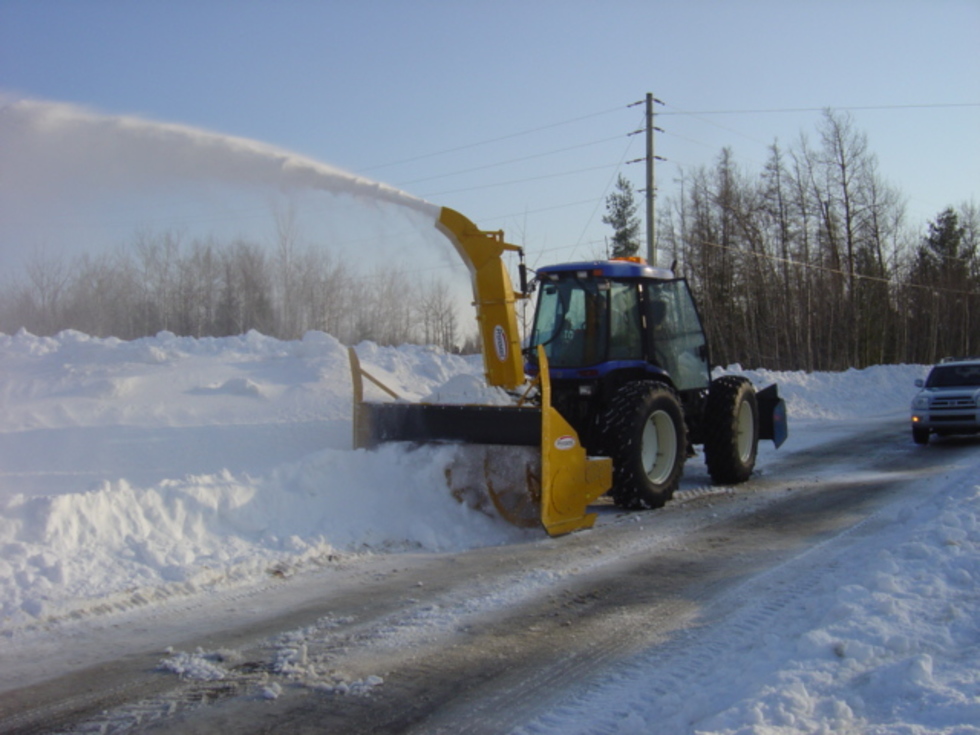

  • Pgv 1021 Trc G06

    Industrial snowblower model PGV-1021TRC

  • Pgv 1021 Trc G05

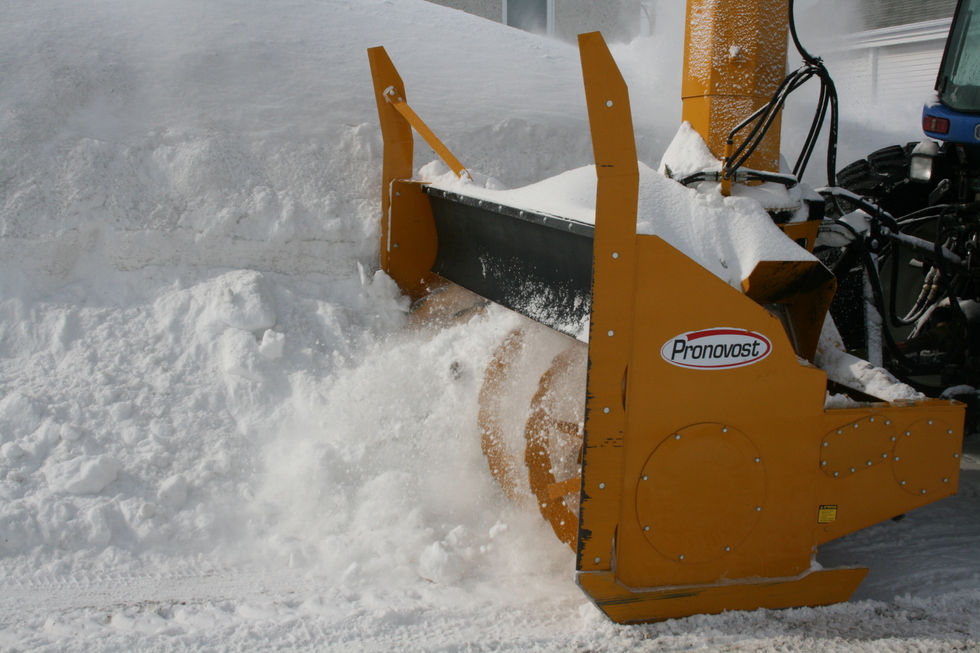

    Industrial snowblower model PGV-1021TRC

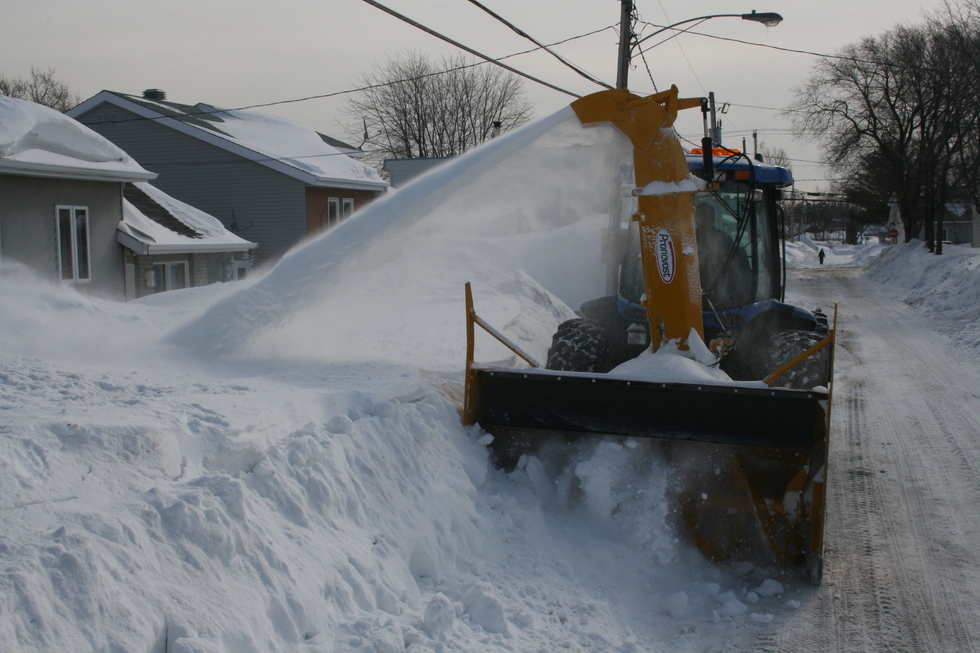

  • Pgv 1021 Trc G04

    Industrial snowblower model PGV-1021TRC

  • Pgv 1021 Trc G03

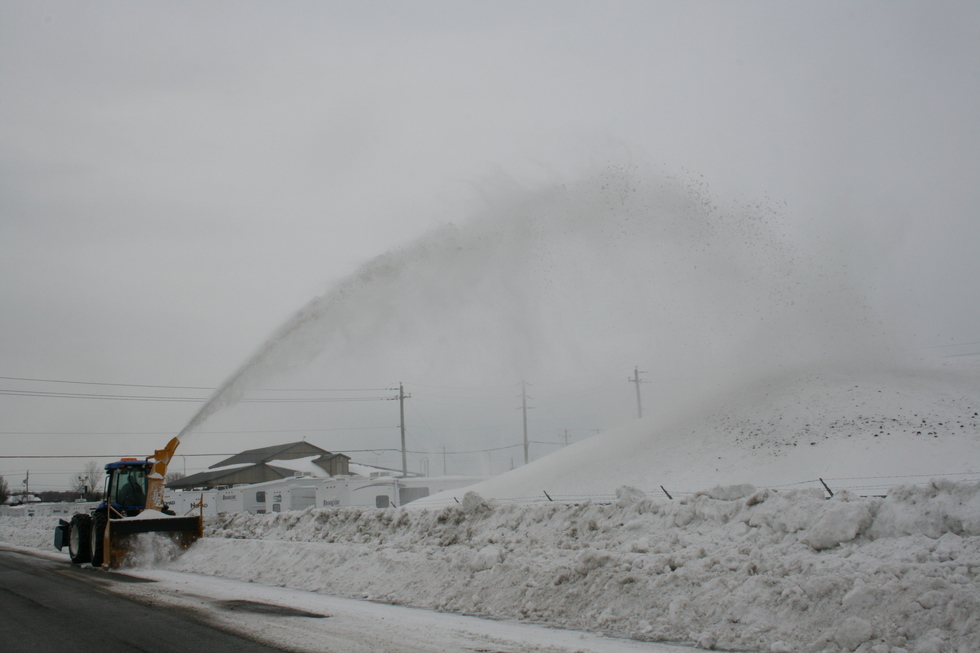

    Industrial snowblower model PGV-1021TRC

  • Pgv 1021 Trc G02

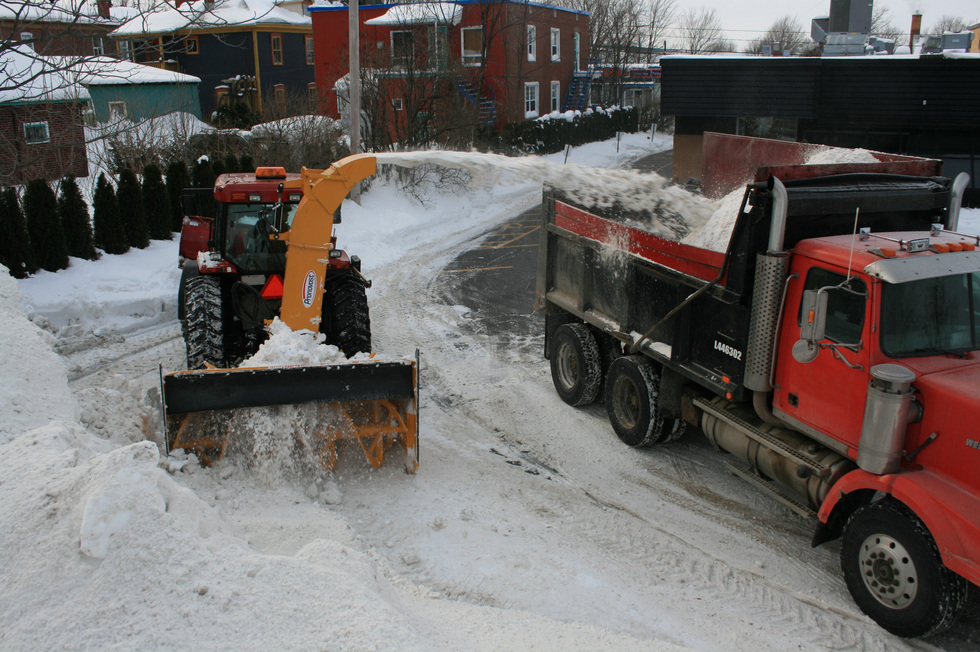

    Industrial snowblower model PGV-1021TRC

  • Pgv 1021 Trc G01

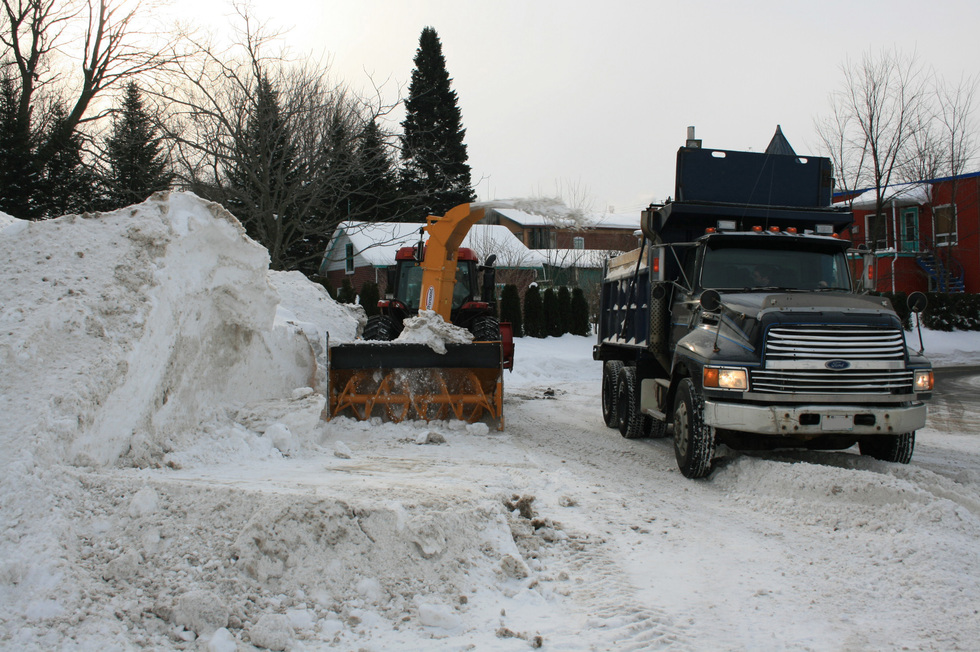

    Industrial snowblower model PGV-1021TRC

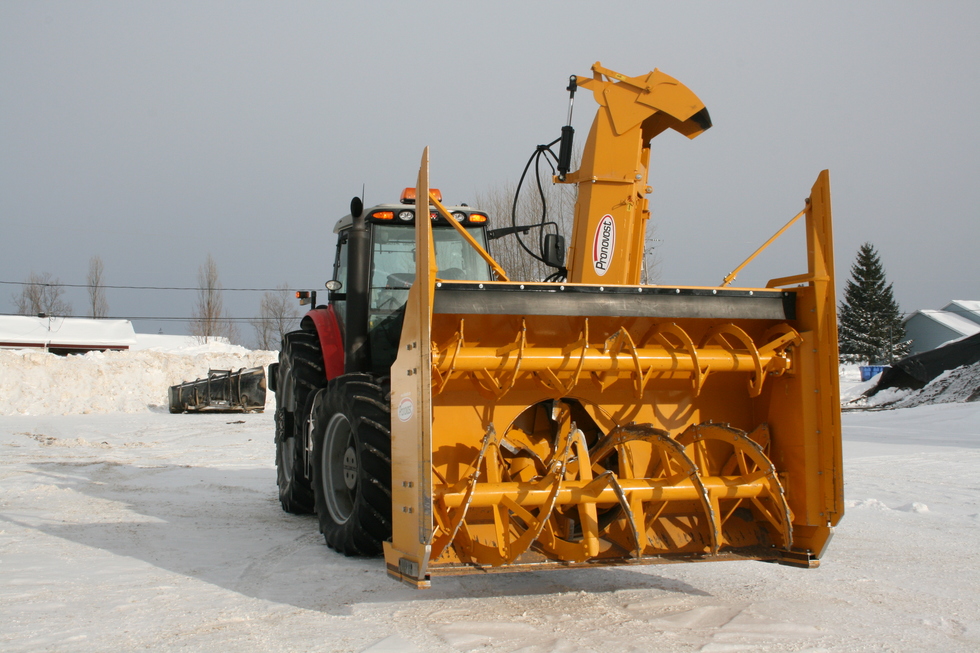

  • Pgv 1022 Trc G01

    Industrial snowblower model PGV-1022TRC

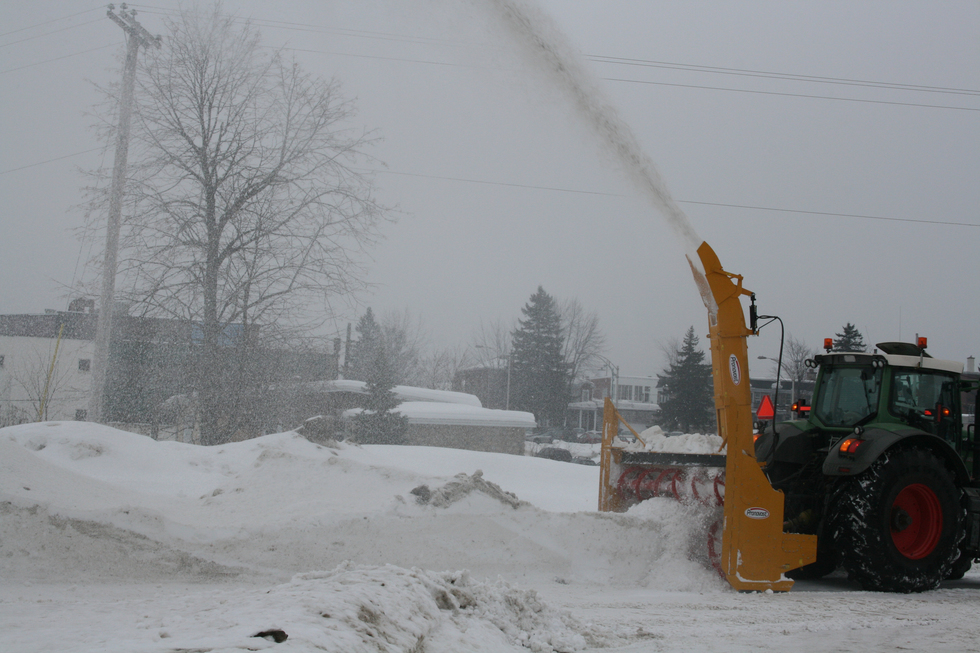

  • Pgv 1022 Trc G10

    Industrial snowblower model PGV-1022TRC

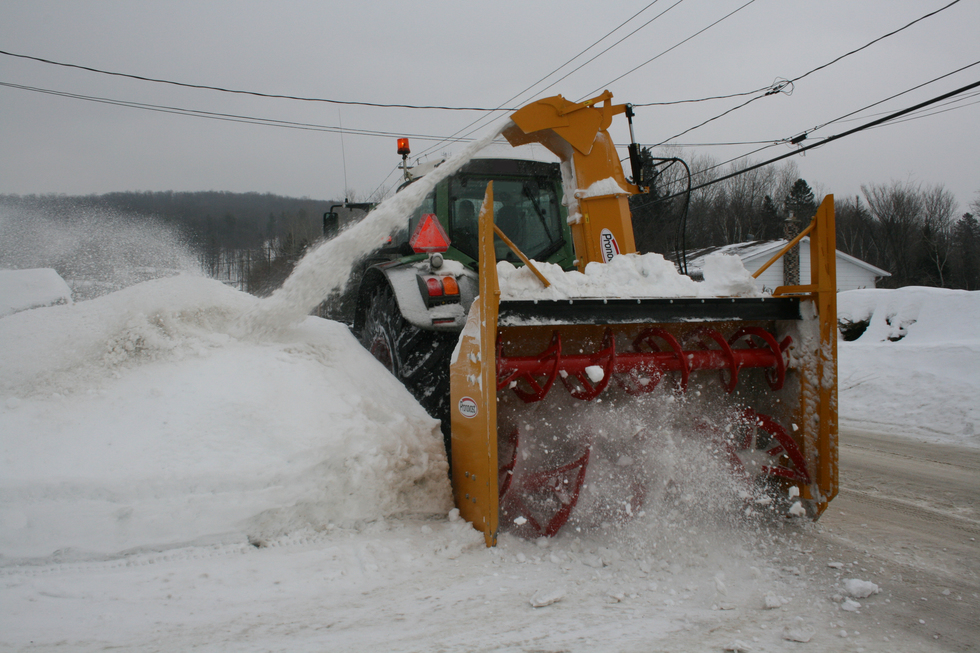

  • Pgv 1022 Trc G09

    Industrial snowblower model PGV-1022TRC

  • Pgv 1022 Trc G08

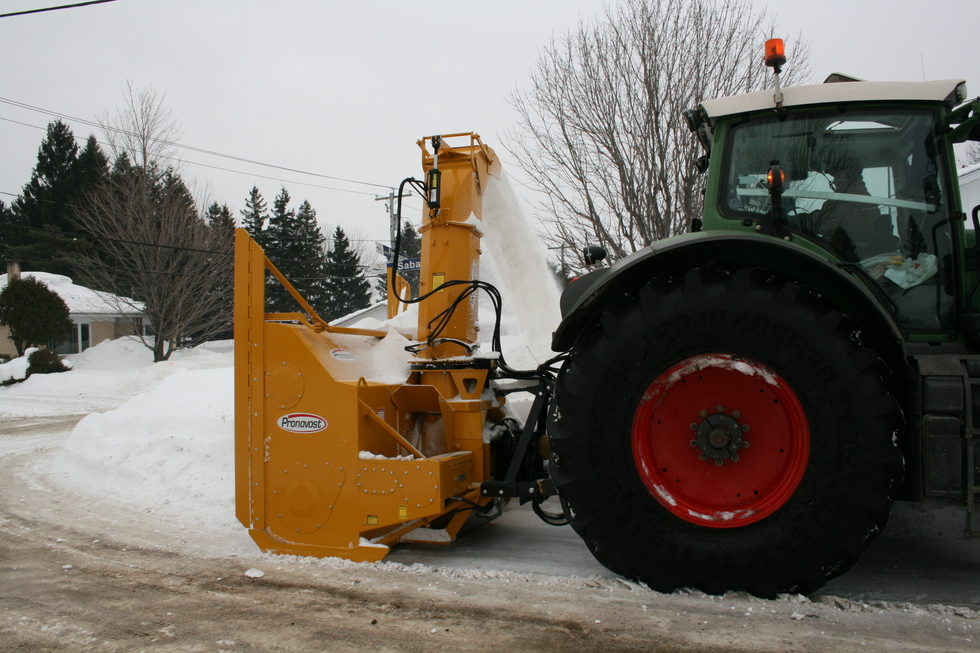

    Industrial snowblower model PGV-1022TRC

  • Pgv 1022 Trc G07

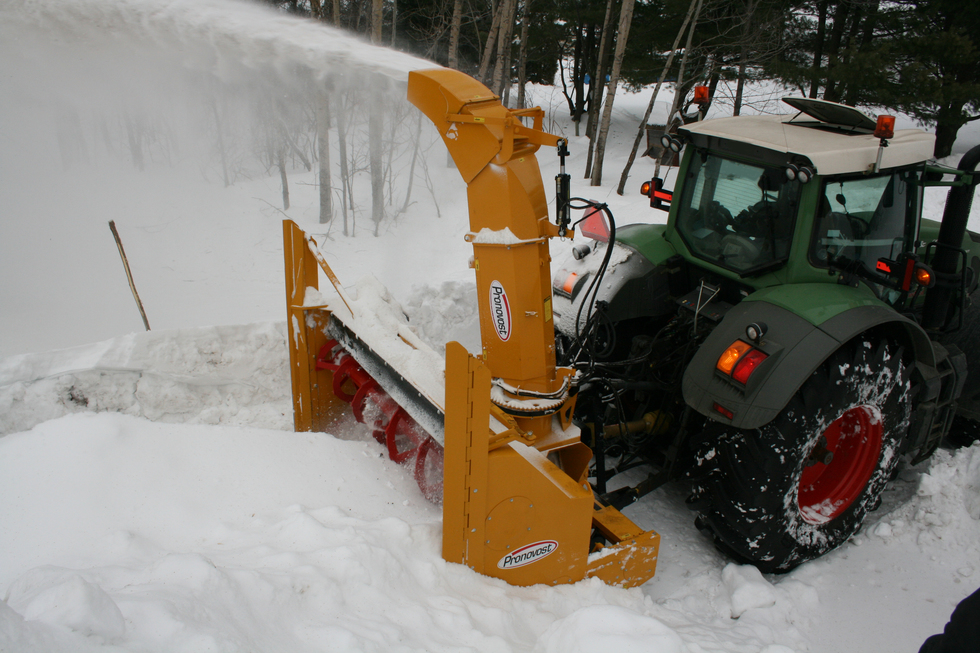

    Industrial snowblower model PGV-1022TRC

  • Pgv 1022 Trc G06

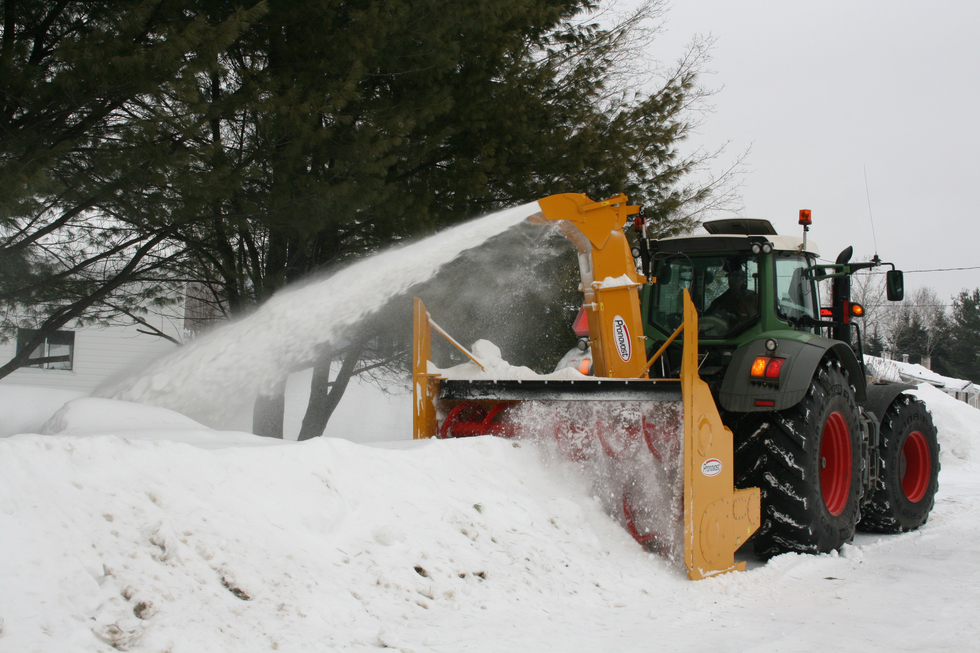

    Industrial snowblower model PGV-1022TRC

  • Pgv 1022 Trc G05

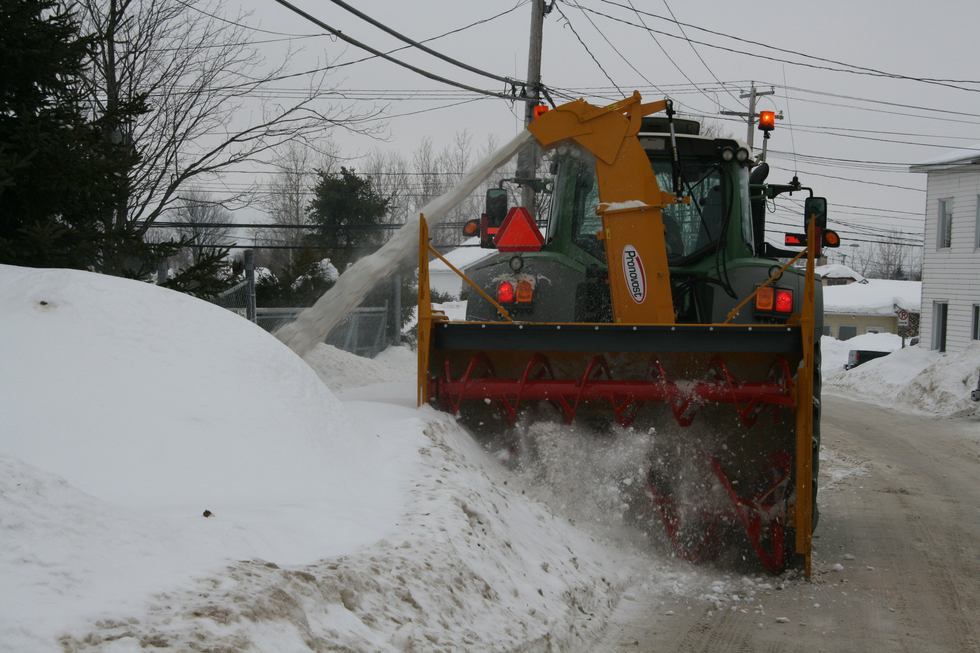

    Industrial snowblower model PGV-1022TRC

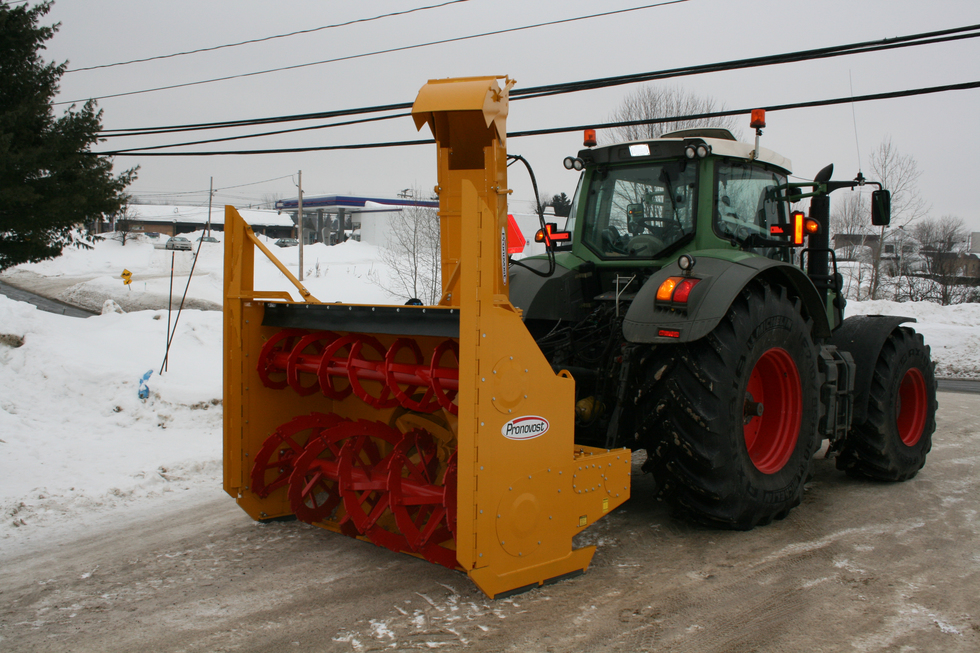

  • Pgv 1022 Trc G04

    Industrial snowblower model PGV-1022TRC

  • Pgv 1022 Trc G03

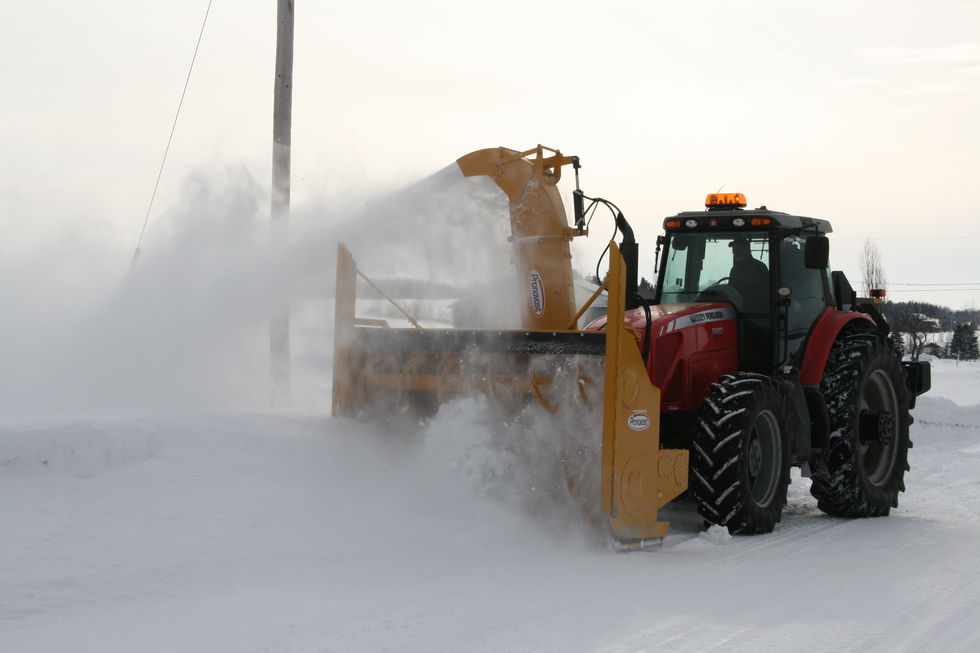

    Industrial snowblower model PGV-1022TRC

  • Pgv 1022 Trc G02

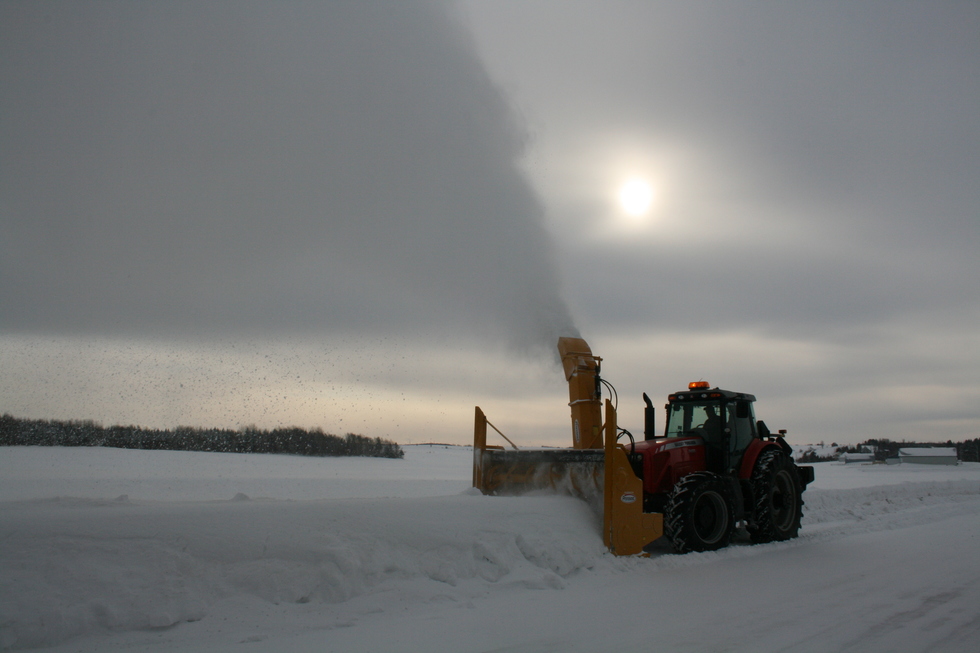

    Industrial snowblower model PGV-1022TRC

  • Pgv 1202 Trc G01

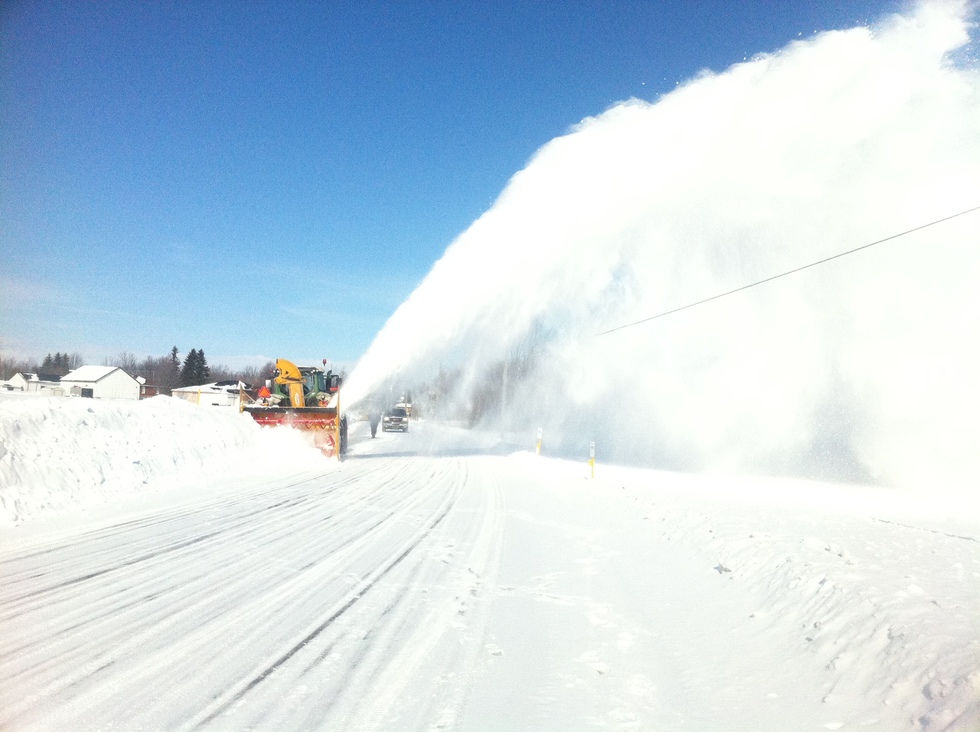

    Industrial snowblower model PGV-1202TRC

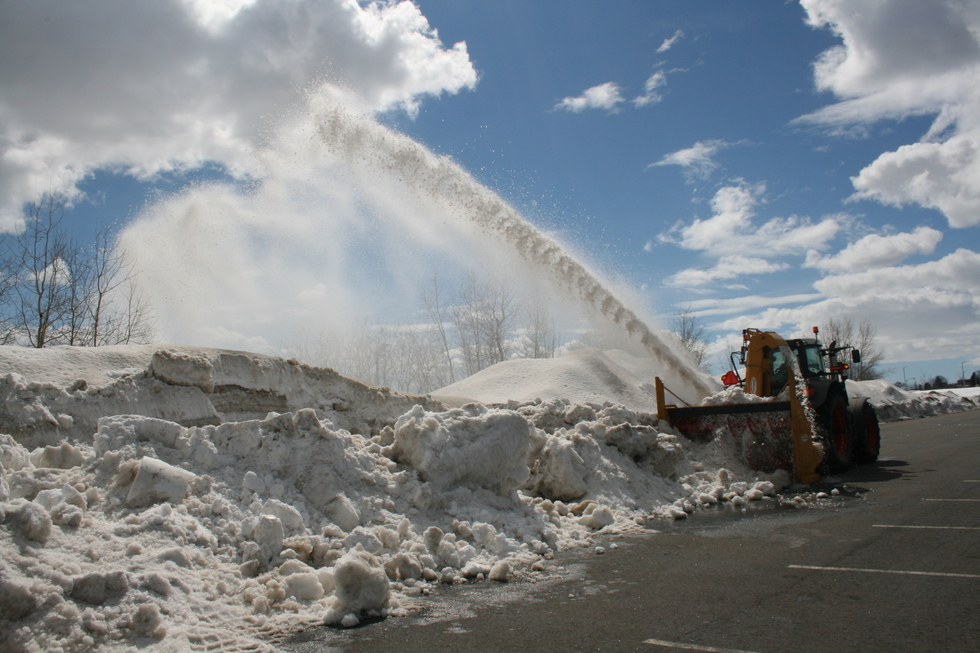

  • Pgv 1202 Trc G07

    Industrial snowblower model PGV-1202TRC

  • Pgv 1202 Trc G06

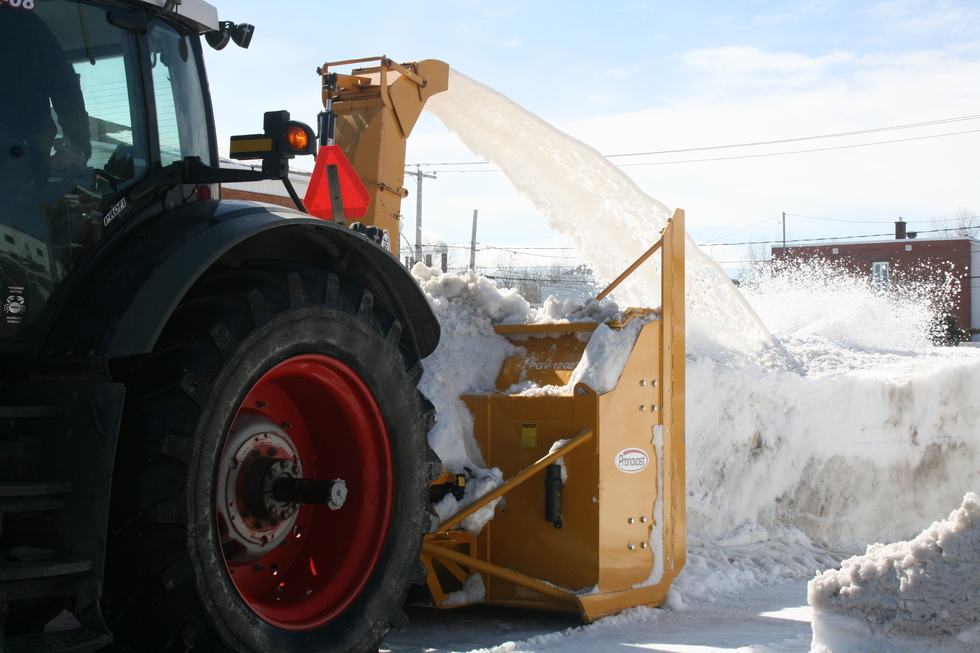

    Industrial snowblower model PGV-1202TRC

  • Pgv 1202 Trc G05

    Industrial snowblower model PGV-1202TRC

  • Pgv 1202 Trc G03

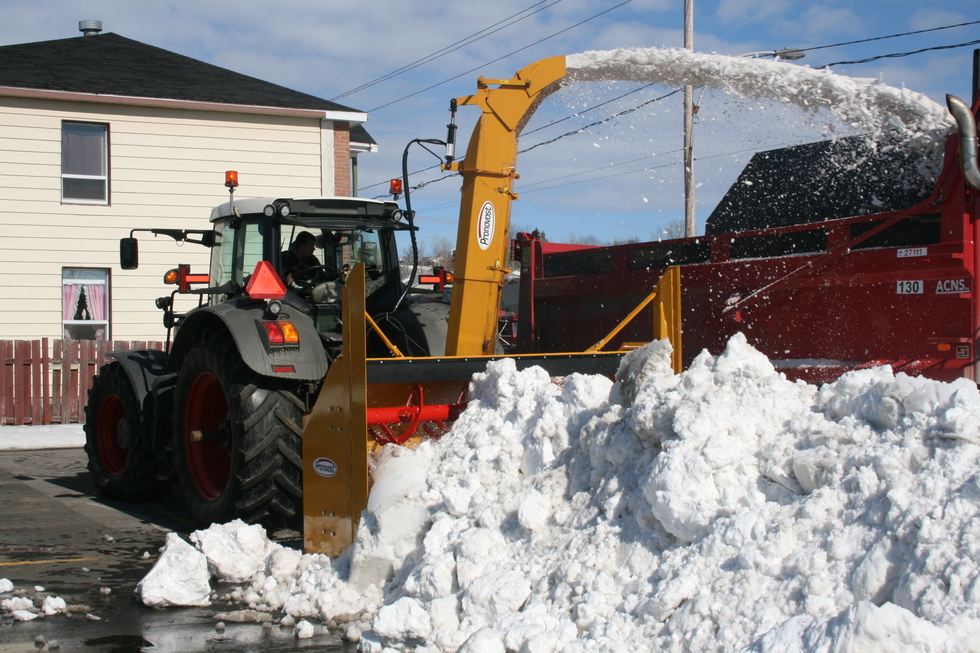

    Industrial snowblower model PGV-1202TRC

  • Pgv 1202 Trc G02

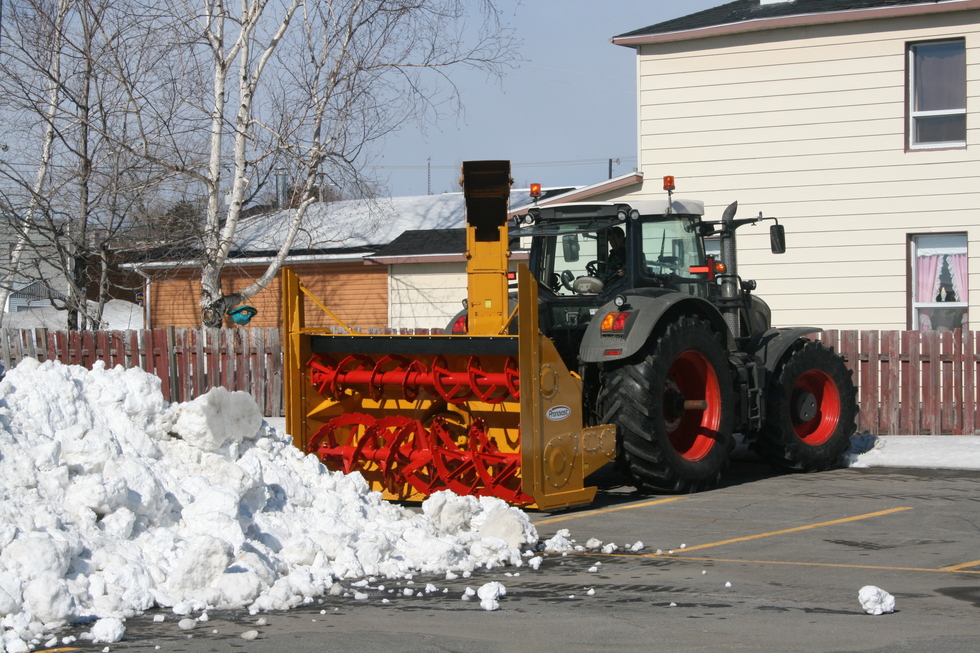

    Industrial snowblower model PGV-1202TRC

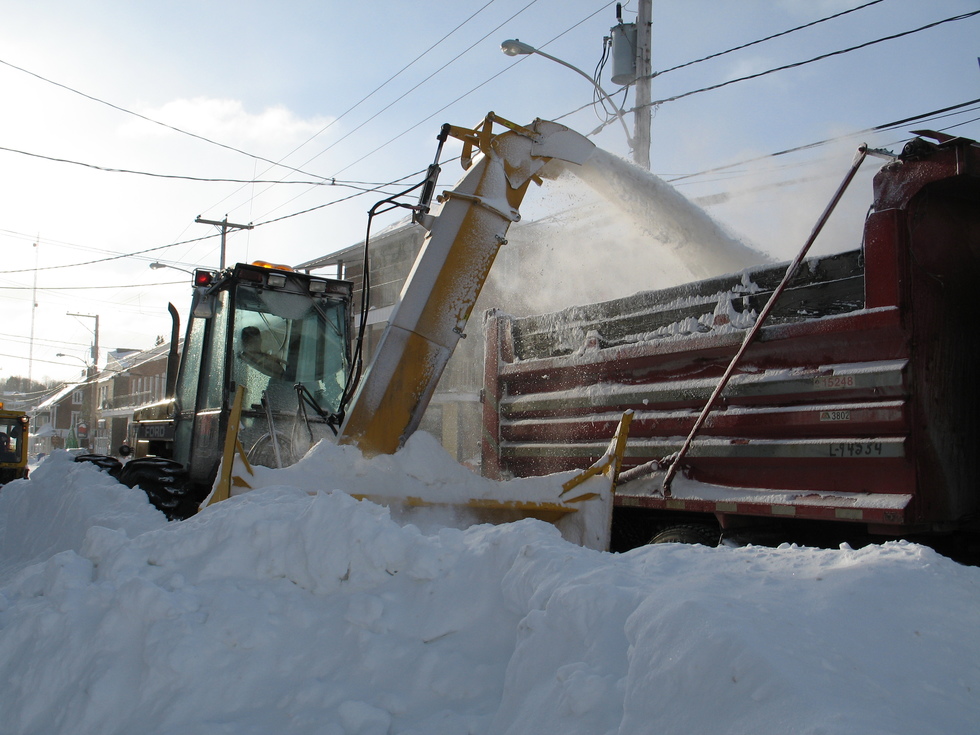

  • P 982 Trc G02

    Full flight auger industrial snowblower model P-982TRC

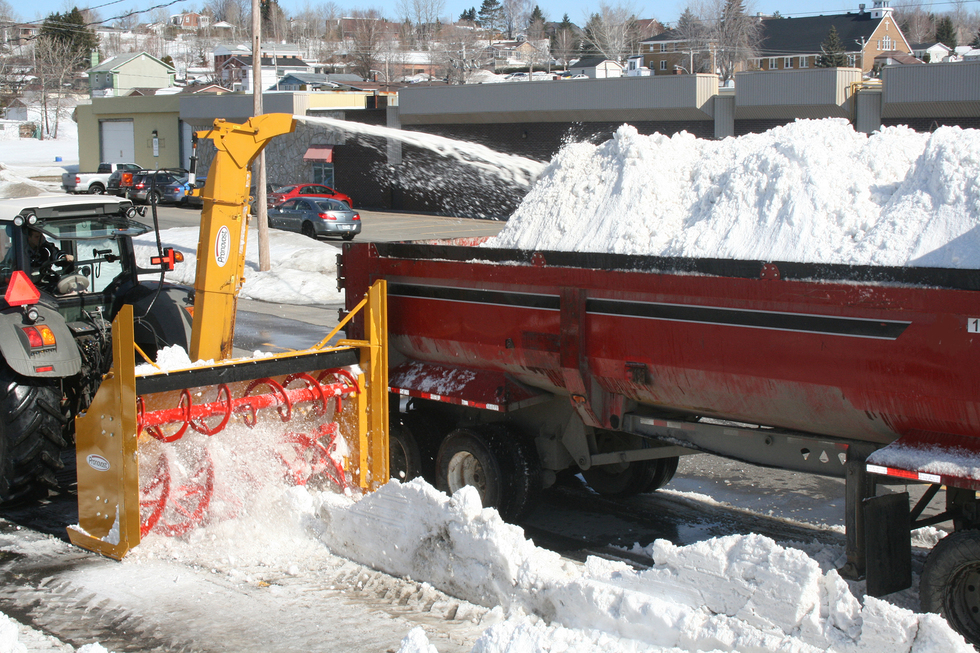

  • Pgv 1202 Trc G04

    Industrial snowblower model PGV-1202TRC

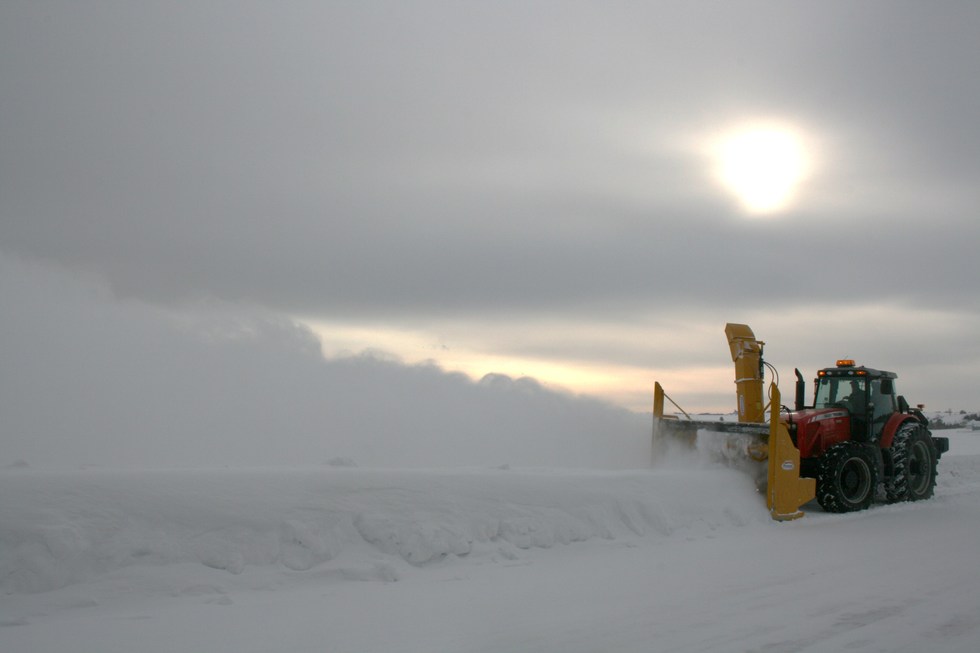

  • Pgv 1022 Trc G11

    Industrial snowblower model PGV-1022TRC

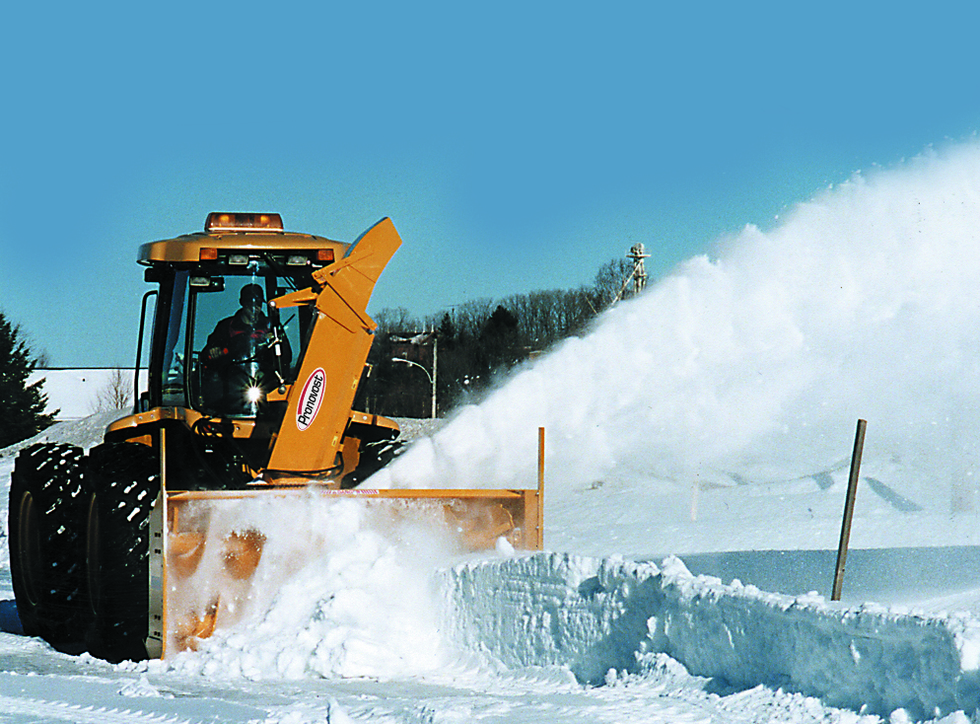

  • P 982 Trc G010

    Full flight auger industrial snowblower model P-982TRC

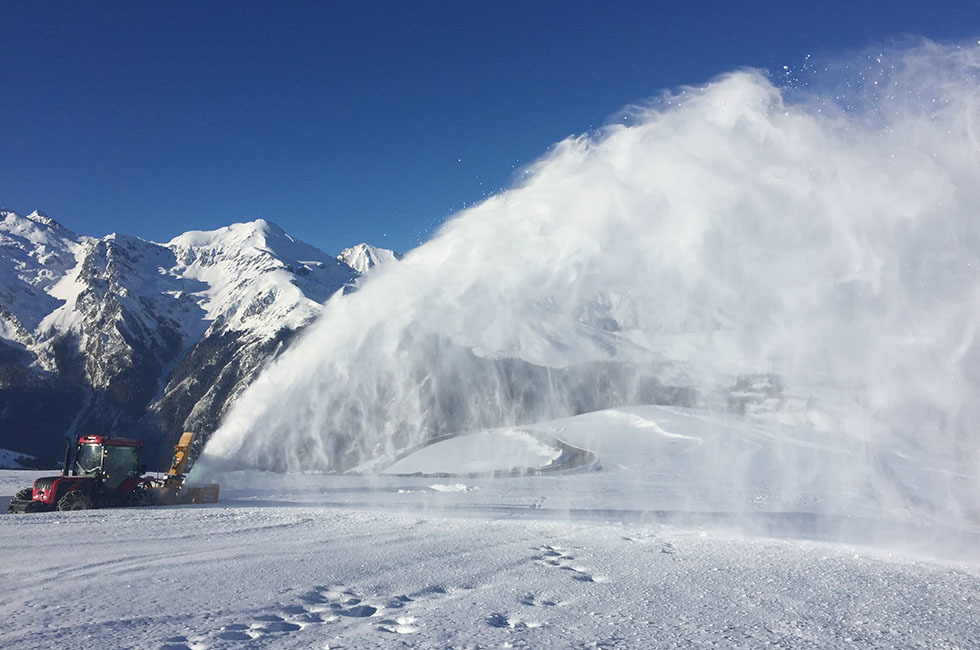

  • Img 3838

    Model PGS-1020TRC

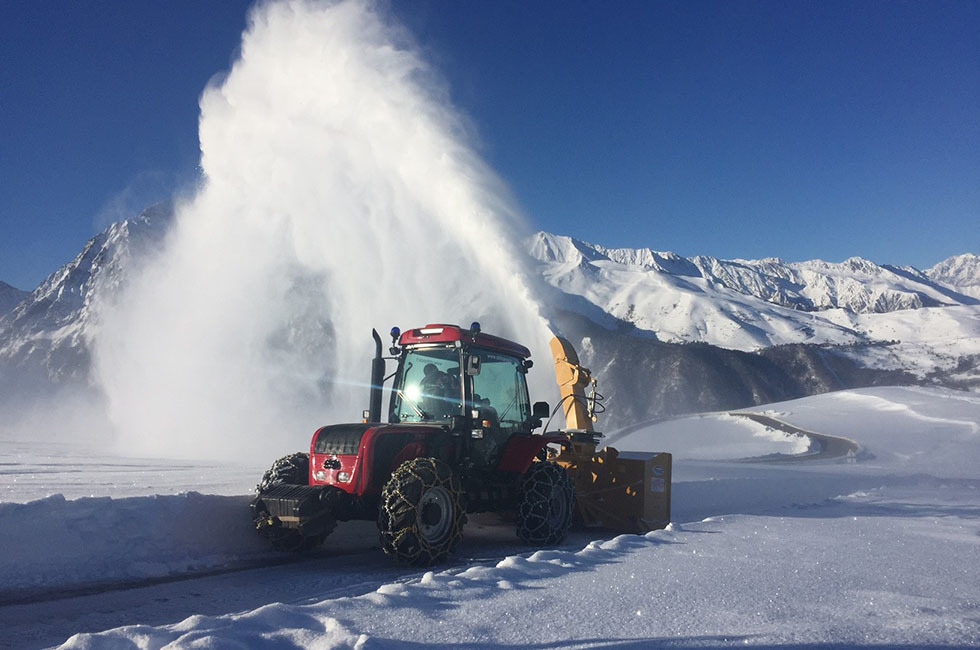

  • Img 3825

    Model PGS-1020TRC

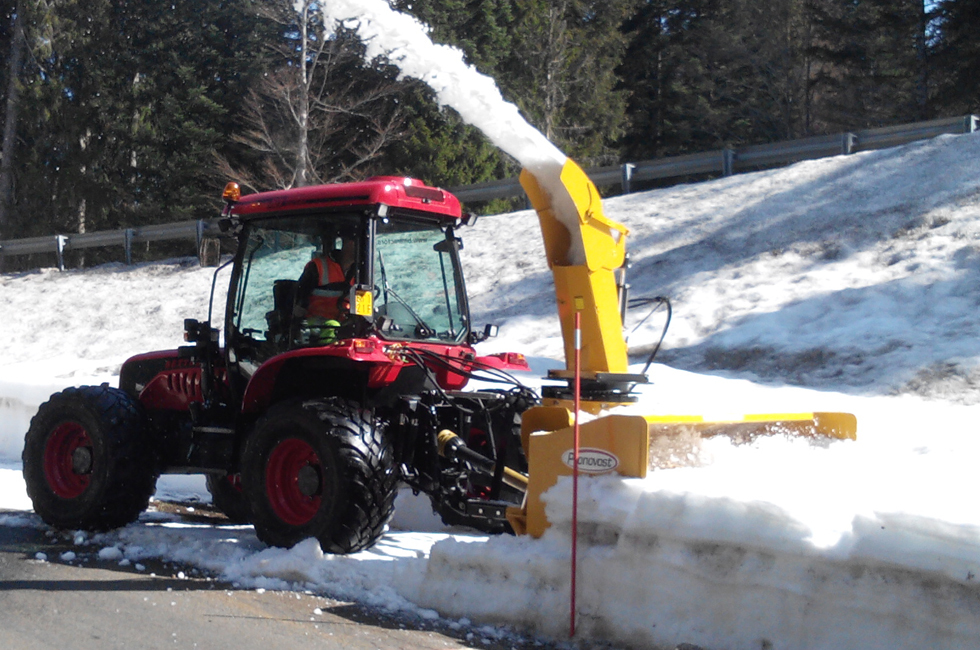

  • Pgs 1020 Trc G2

    PGS-1020TRC

  • Pgs 1020 Trc G1

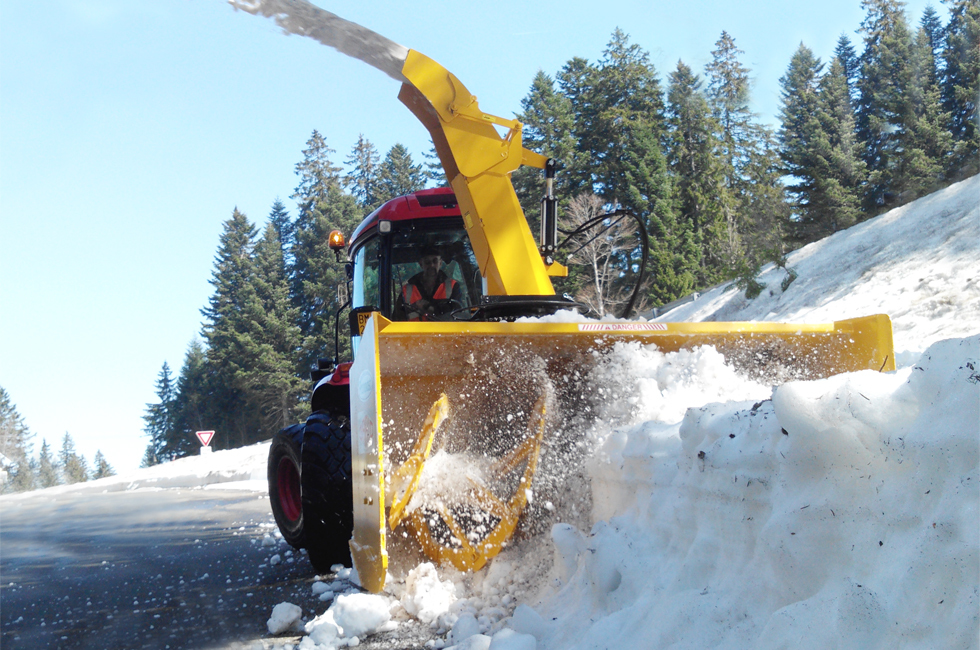

    PGS-1020TRC
