C8226

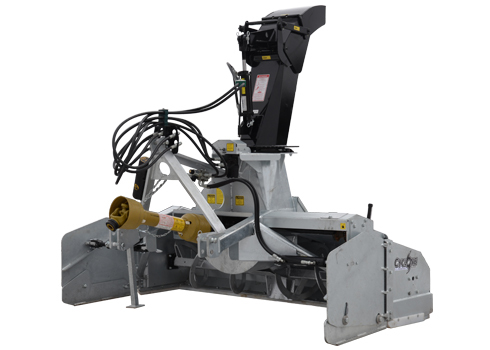

Cyclone Face

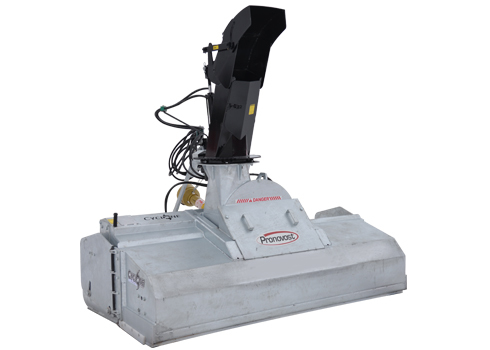

  1. Cyclone A
  2. Cyclone B
  3. Cyclone D

Working width

82" / 2083 mm

HP recommended

40 to 60 HP PTO

Cutting height 26" / 660 mm
Drum diameter 26" / 660 mm
Weight 1252 lbs / 558 kg
Add to compare
Download the flyer

Options

CHOICE OF CHUTE

Psig 5472

PSIG-5472

Pc3 C Gr1.5

PC3C-GR1

Semi-industrial chute with greasable hinges and access panel (removable) PSIG-5472
3-Deflector semi-industrial chute with greasable hinges and removable access panel. PC3C-GR1

HOSE KITS

Pkb

PKB-GR1

Hose kit for basic functions. Includes hydraulic hoses connecting the tractor oil outlets to the deflector adjustment cylinder and the chute rotation motor. * Installation not included. PKB-GR1
PKB-CO-82-2
PKB-CO-82-DV
PKB-CO-82-DV2

SCRAPER BLADE

Sit1gr2

SIT1-86

Ss Tgr2

SST-86

Semi-industrial scraper blade, carbon steel 450, reversible 1/2" x 4" not sharpened SIT1-86
Stainless Steel scraper blade, reversible, 1/2" x 4" not sharpened SST-86
TV-C82

WINGS

Cyclone D

CO-82HYD

Cyclone Noire

CO-82HYD-P

Fixed, hot dip galvanized wings with floating skid shoes CO-82F
Fixed, black color wings with floating skid shoes. CO-82F-P
Hydraulic, hot dip galvanized wings with floating skid shoes (up to 9'1") and cylinder. CO-82HYD
Hydraulic, black color wings with floating skid shoes (up to 9'1") and cylinder. CO-82HYD-P

SKID SHOES

Frame side skid shoes, Tivar, reversible, 1 1/4" thick x 15 3/4" long, kit of 2. TVP-C92

IMPELLER HOUSING

Impeller housing contour made from Hardox 450 steel in lieu of regular grade steel TBHD-2610.5

CHOICE OF COLORS

Blue C80-02
Orange C80-04
INDUSTRIAL yellow C80-06
Green C80-07
PRONOVOST Red C80-08
Black C80-10

Other recommended products

Additional Information

Hot dip galvanizing

What is Hot Dip Galvanizing?
Hot dip galvanizing is a metallurgical bonding of zinc to steel performed in controlled conditions in a factory setting. This simple process is characterized by exceptional corrosion resistance thanks to the molecular adhesion of the two metals, as well as cathodic protection.

The image below shows the difference between painting and galvanizing when the coating is damaged.

Galvanize Vs Paint(Petit)

It is readily apparent that while rust quickly spreads below the paint, zinc covers the damaged area.

17 Kit(Petite)
