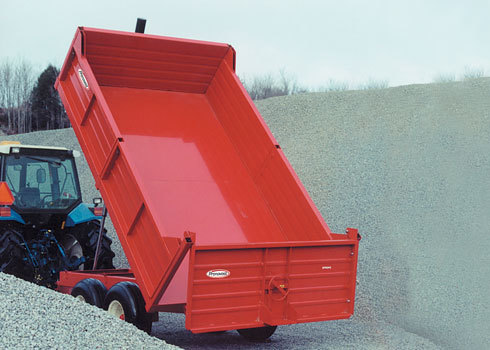

P-524
|
Capacity |
12 tons |
|
Interior dimensions |
84" x 138" |
| Dumps | Rear |
| Axle | Tandem |
| Grain door | Included |
Options
Tires
| Charge for 12.5L15 tires instead of 11L15 tires. | XT4-12.5L15 |
Additional Information
Complete specifications
| Gross vehicle weight rating | 12 tons² |
| Interior box dimensions | 84" x 138" |
| Bed thickness | 3/16" |
| Side panels | 24" x 12G |
| Front / back panel | 32" x 12G |
| Removable panels | 4 |
| Rear panel opening | Automatic |
| Platform height | 39" |
| Overall length | 200 1/2" |
| Overall width | 91" |
| Overall height | 72" |
| Free height at maximum tilt | 20" |
| Total height at maximum tilt | 154" |
| Tread width c/c | 72 1/2" |
| Dumping angle (back) | 47° |

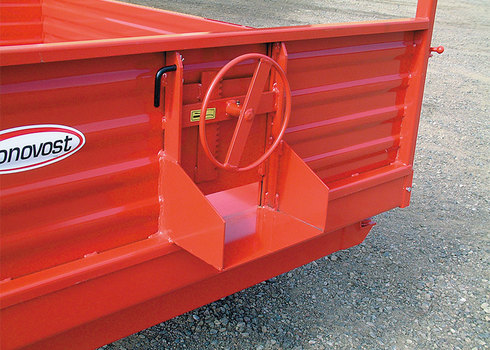

| Grain door | Included |
| Axles | Tandem |
| Hubs | 8 bolts |
| Hub capacity | 5000 lbs |
| Spindles | 2 1/4" |
| Wheels | 4 |
| Wheels dimensions | 15" x 10" |
| Included tires | 12.5L15 (10 ply) |
| Optional tires | 12.5L15F1 (F) |

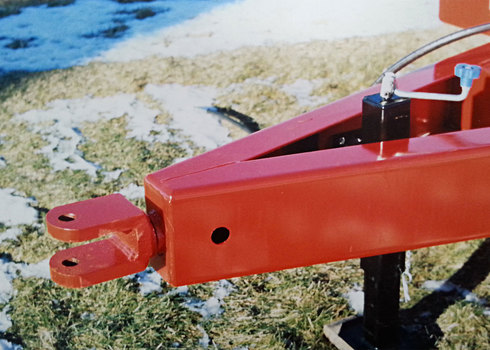

| Hitch : clevis/swivel | Inclus |
| Jack | Inclus |
| Oil volume required | 11 l |
| Cylinder(s) | 1 single acting |
| Total weight (approx.) | 4195 lbs / 1903 kg |
² Capacity with 12.5L15F1 (F) tires at a speed of 25 MPH.
Design and specifications subject to change without notice.
