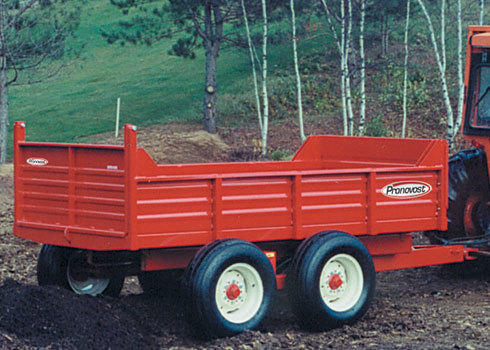

P-516
|
Capacity |
8 tons |
|
Interior dimensions |
55 ⅝" x 117 ½" |
| Dumps | Rear |
| Axle | Tandem |
Options
Hydraulic pump
P-516-PHEP
| Electric hydraulic pump (12V). Battery and battery holder not included. | P-516-PHEP |
Battery holder
| Battery holder (battery not included) | P-500-SB |
Tires
| Charge for 11L15FI (D) tires instead of 11L15 tires. F1 tire is made for agricultural and road use. Increases the maximum recommended speed from 25 MPH to 60 MPH. | XT4-11L15FI |
| Charge for 12.5L15 tires instead of 11L15 tires. | XT4-12.5L15 |
Central unloading hatch
P-516G
| Central unloading hatch | P-516G |
Additional Information
Complete specifications
| Gross vehicle weight rating | 8 tons¹ |
| Interior box dimensions | 55 5/8" x 117 1/2" |
| Bed thickness | 3/16" |
| Side panels | 16" x 12G |
| Front / back panel | 24" x 12G |
| Removable panels | 4 |
| Rear panel opening | Automatic |
| Platform height | 32" |
| Overall length | 166" |
| Overall width | 86" |
| Overall height | 62" |
| Free height at maximum tilt | 15" |
| Total height at maximum tilt | 122" |
| Tread width c/c | 75 1/2" |

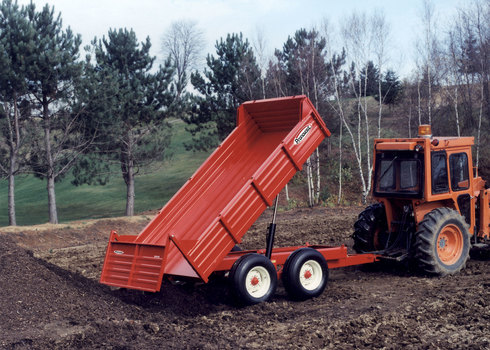

| Dumping angle (back) | 47° |
| Grain door | Option |
| Axles | Tandem |
| Hubs | 6 bolts |
| Hub capacity | 5000 lbs |
| Spindles | 2 1/4" |
| Wheels | 4 |
| Wheels dimensions | 15" x 8" |
| Included tires | 11L15 (8 plis) |
| Optional tires | 11L15F1 (D) |
| Optional tires | 12.5L15 (10 ply) |
| Hitch : clevis/swivel | Included |
| Jack | Included |
| Cylinder(s) | 2 double acting |
| Total weight (approx.) | 2245 lbs / 1018 kg |
¹ Capacity with 11L15F1 (D) tires at a speed of 25 MPH.
Design and specifications subject to change without notice.
