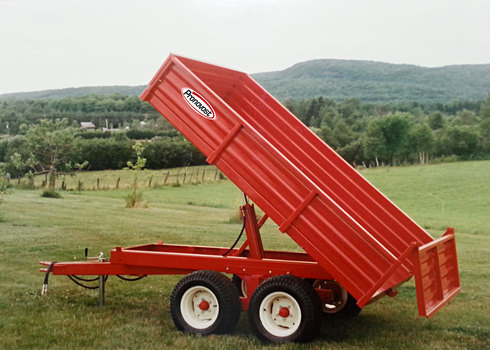

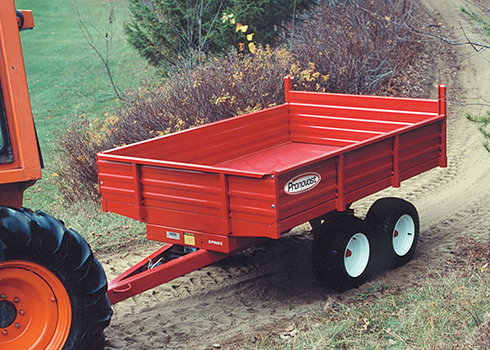

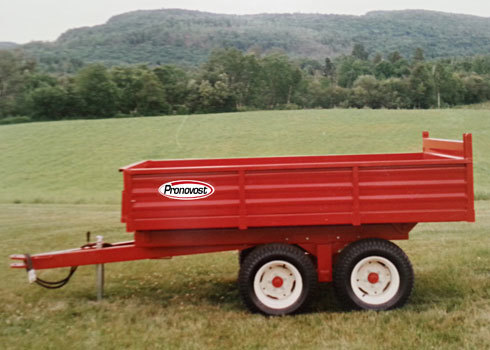

P-505
|
Capacity |
2.5 tons |
|
Interior dimensions |
60" x 94" |
| Dumps | Rear |
| Axle | Tandem |
Options
Hydraulic pump
P-505-PHEP

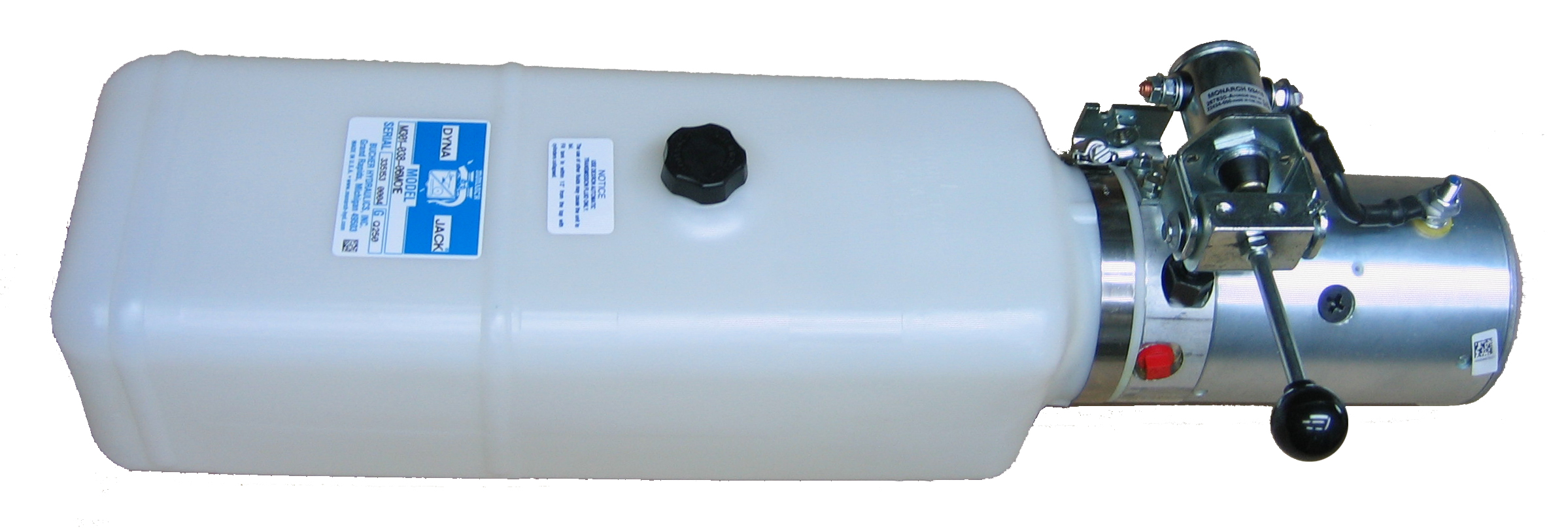

| Electric hydraulic pump (12V). Battery and battery holder not included. | P-505-PHEP |
Battery holder
| Battery holder (battery not included) | P-500-SB |
Choice of tires
P-505T
P-505M
| Trailer with 4 Turf-Trac 4 ply tires 23" x 10.5" x 12" (tires for turf application only) | P-505T |

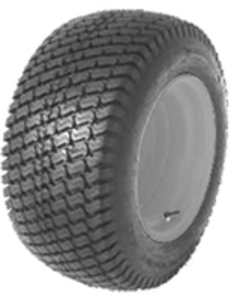

| Trailer with 4 Multi Trac 6 ply tires 23" x 10.5" x 12" | P-505M |
Additional Information
Complete specifications
| Gross vehicle weight rating | 2.5 tons |
| Interior box dimensions | 60" x 94" |
| Bed thickness | 3/16" |
| Side panels | 14" x 12G |
| Front / back panel | 19" x 12G |
| Removable panels | 4 |
| Rear panel opening | Automatic |
| Platform height | 29 1/2" |
| Overall length | 139" |
| Overall width | 64" |
| Overall height | 52 1/2" |
| Free height at maximum tilt | 15" |
| Total height at maximum tilt | 103" |
| Tread width c/c | 53 1/4" |
| Dumping angle (back) | 47° |
| Axles | Tandem |
| Hubs | 5 bolts |
| Hub capacity | 2500 lbs |
| Spindles | 2" |
| Wheels | 4 |
| Wheels dimensions | 12" x 8.5" |

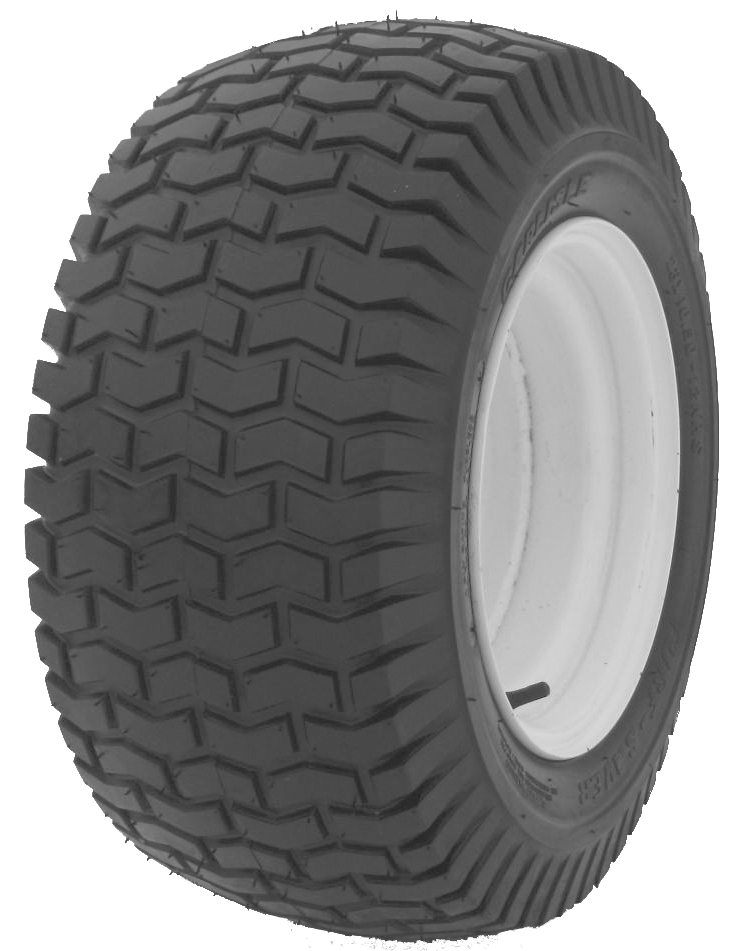

| Included tires | Turf-Saver 23 x 10.5 x 12" |
| Optional tires | Multi Trac 23 x 10.5 x 12" |
| Hitch : clevis/swivel | Inclus |
| Jack | Included |
| Cylinder(s) | 1 double acting |
| Total weight (approx.) | 1560 lbs / 708 kg |
Design and specifications subject to change without notice.
