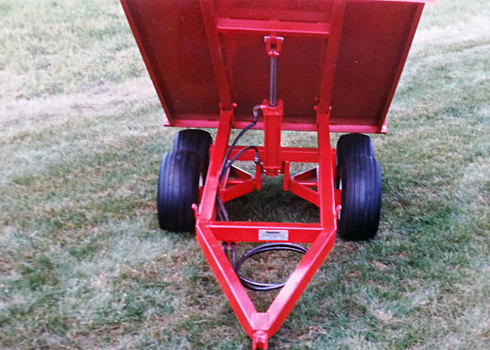

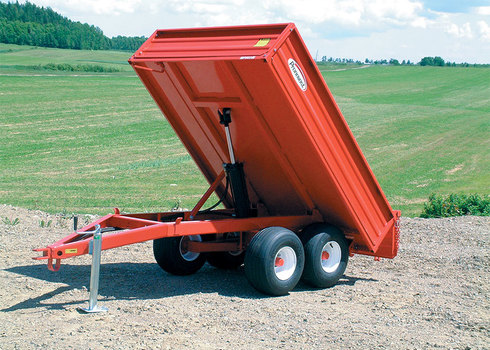

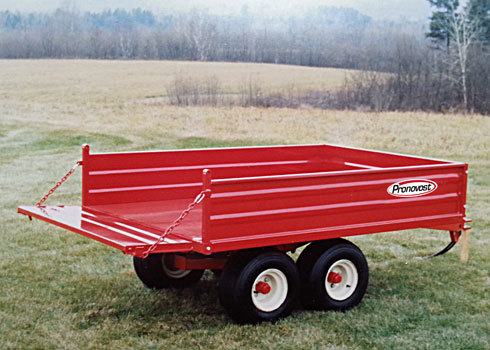

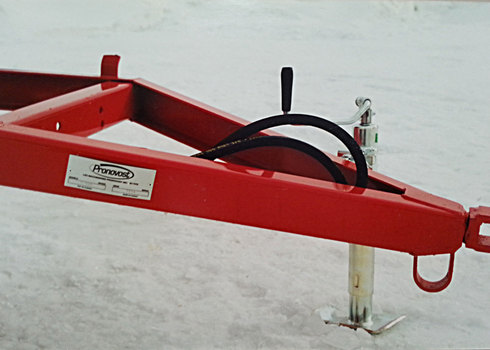

P-503
|
Capacity |
1.5 tons |
|
Interior dimensions |
50 ½" x 69 ½" |
| Dumps | Rear |
| Axle | Tandem |
Options
Hydraulic pump
PHM-3003
P-503-PHEP

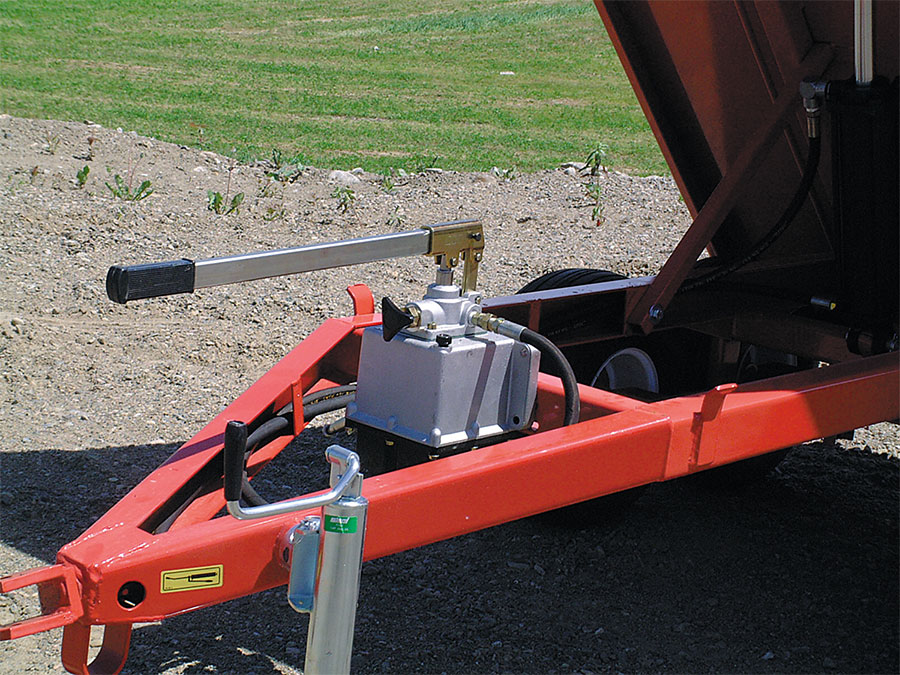

| Manual hydraulic pump for P-503, high volume. Quick lift. | PHM-3003 |

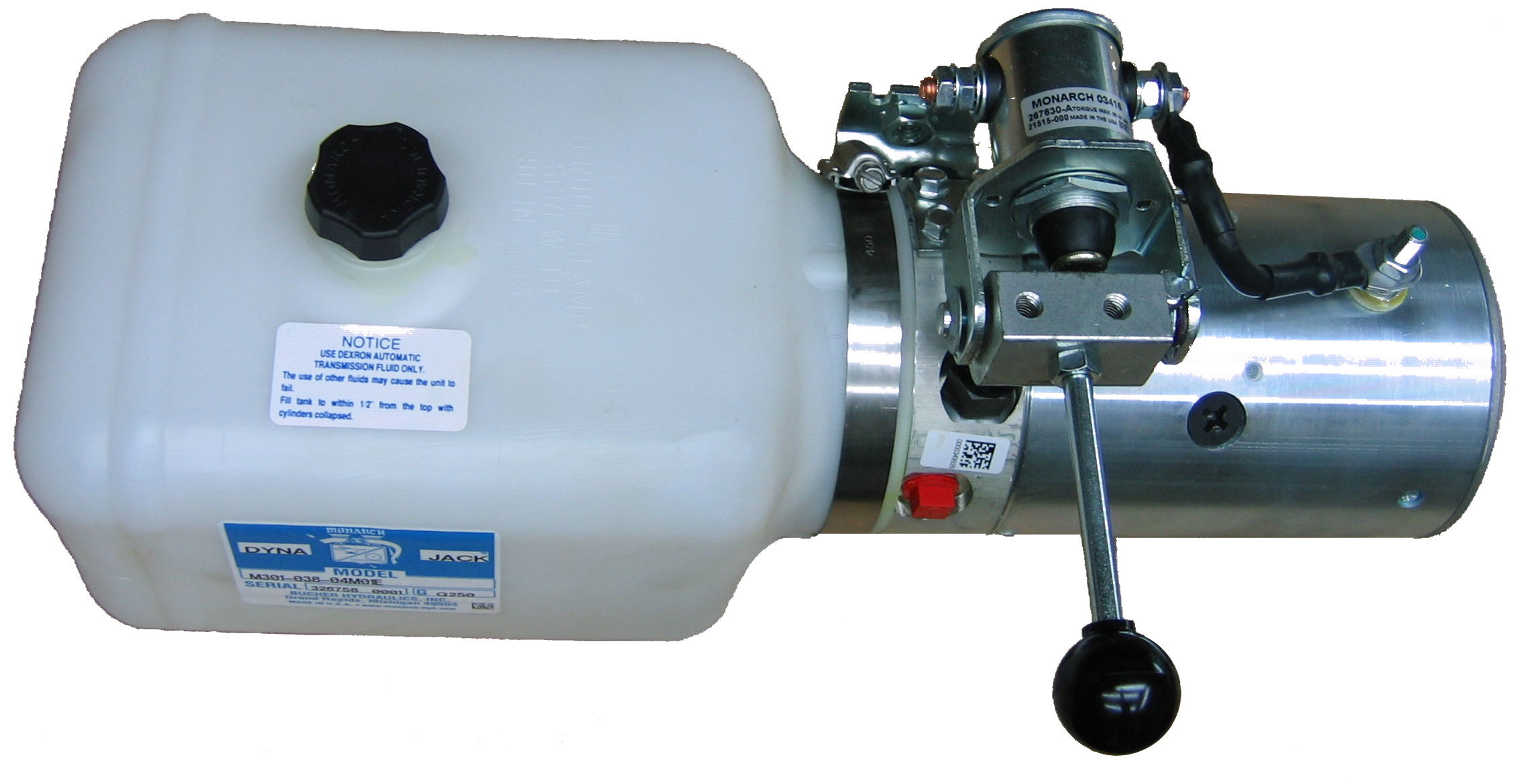

| Electric hydraulic pump (12V). Battery and battery holder not included. | P-503-PHEP |
Battery holder
| Battery holder (battery not included) | P-500-SB |
Other recommended products
Additional Information
Complete specifications
| Gross vehicle weight rating | 1.5 tons |
| Interior box dimensions | 50 1/2" x 69 1/2" |
| Bed thickness | 12G |
| Side panels | 12" x 12G |
| Front / back panel | 12 1/4" x 12G |
| Removable panels | 4 |
| Rear panel opening | From top or bottom |
| Platform height | 22" |
| Overall length | 106" |
| Overall width | 54" |
| Overall height | 36" |
| Free height at maximum tilt | 10" |
| Total height at maximum tilt | 72" |
| Tread width c/c | 36 1/4" |
| Dumping angle (back) | 47° |
| Axles | Tandem |
| Hubs | 4 bolts |
| Hub capacity | 1000 lbs |
| Spindles | 1 1/4" |
| Wheels | 4 |
| Wheels dimensions | 8.5" x 8" |
| Included tires | 12 x 14 x 8" |
| Hitch : clevis/swivel | Included |
| Jack | Included |
| Cylinder(s) | 1 double acting |
| Total weight (approx.) | 640 lbs / 290 kg |
Design and specifications subject to change without notice.
