P-6812 / P-6812M
|
Number of bales |
12 X 4' - 10 x 5' |
|
Bale diameter |
48" to 66" |
| Third row loader option | Add 5 bales 4' - Add 4 bales 5' |
| Overall length | 31' 10" / 9700 mm |
Options

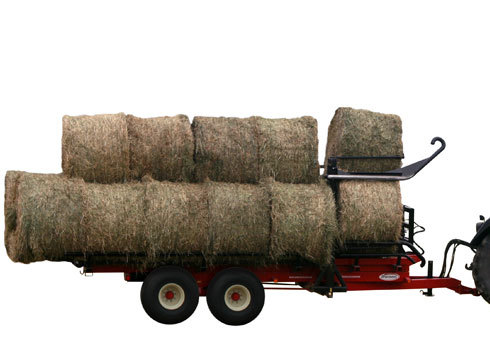

THIRD ROW
P-6891TR
| For automatic model. Third row loader option, 4' or 5' diameter bales. The bales must not exceed 1500 lbs. For safety purpose, the third bale must not be loaded at the last rear bales group. Adapt to the electric control standard on automatic models. Fourth electro-hydraulic valve included. This option is available only when ordered at the same time as the Auto-Load Round Bale Handler (before the production). | P-6891TR |
| For manual model. Third row loader option, 4' or 5' diameter bales. The bales must not exceed 1500 lbs. For safety purpose, the third bale must not be loaded at the last rear bales group. Manually actuatedfrom the tractor's controls. Supplied by a fourth hydraulic double action outlet (floting required). This option is available only when ordered at the same time as the Auto-Load Round Bale Handler (before the production). | P-6891TRM |
TIRES
XT4-21.5L16.1

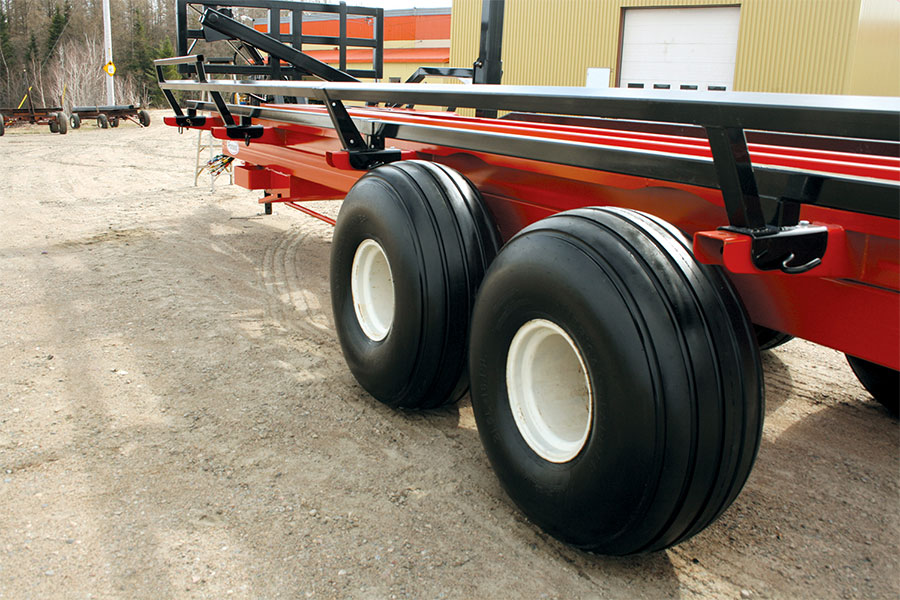

| Optional tires 21.5 L16,1, 10 plys , in lieu of 16.5L16.1 tires. This option increases the flotation by 50% and increases the capacity to 16 tons. | XT4-21.5L16.1 |
| GVWR 12 tons (24 000 lbs), 10 plys, in lieu of tires 16.5L16.1 | XT4-400/55-22.5-BKT HIGH FLOTATION |
| GVWR 12 tons (24 000 lbs), 16 plys, in lieu of tires 16.5L16.1 | XT4-500/45-22.5-2BKT HIGH FLOTATION |
| GVWR 12 tons (24 000 lbs) 16 plys, in lieu of tires 16.5L16.1 OVERWIDTH | XT4-550/45-22.5-2BKT HIGH FLOTATION |
HYDRAULIC BRAKE KIT
| Optional hydraulic brake kit. Including: Change of tandems, disc brakes, hydraulic lines and hoses for connection to the outlet «Hydraulic trailer brakes» of the tractor | FRA12-32-16.1 |
SUPPLEMENTARY OIL OUTLET
| For manual models, electric valve kit to add a supplementary oil outlet (the kit is installed on the Auto-Loader). It is also possible to sell the valve alone, not installed. | P-6892VE |
Electrical conversion kit for tractors with closed hydraulic circuit
| For automatic model. Electrical conversion kit for tractors with closed hydraulic circuit. Note: If the tractor's hydraulic are load sensing, this option is not required. | P-6890CF |
OPTION TO HANDLE 6' DIAMETER BALES
| Option to handle 6' diameter bales | P-6890XL |
Hydraulic jack
| Hydraulic jack option, in place of manual jack. | XXXX |
Other recommended products
Additional Information
PRONOVOST INGENUITY

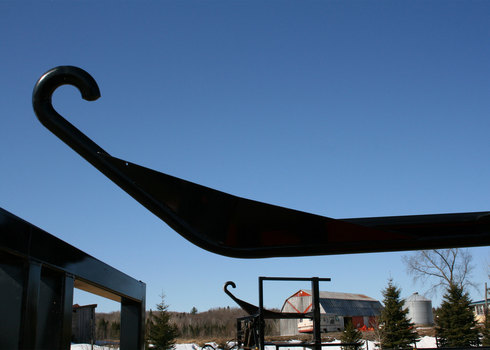

Loading arm designed to turn and load bale very quickly.
- Handles compact and heavy silage bales as well as dry straw bales.

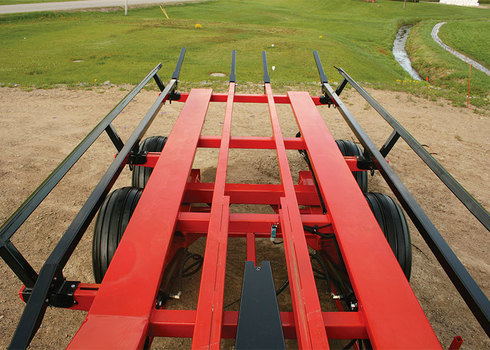

- Smoother contact surface to allow the bales to slide easier, with or without a net.

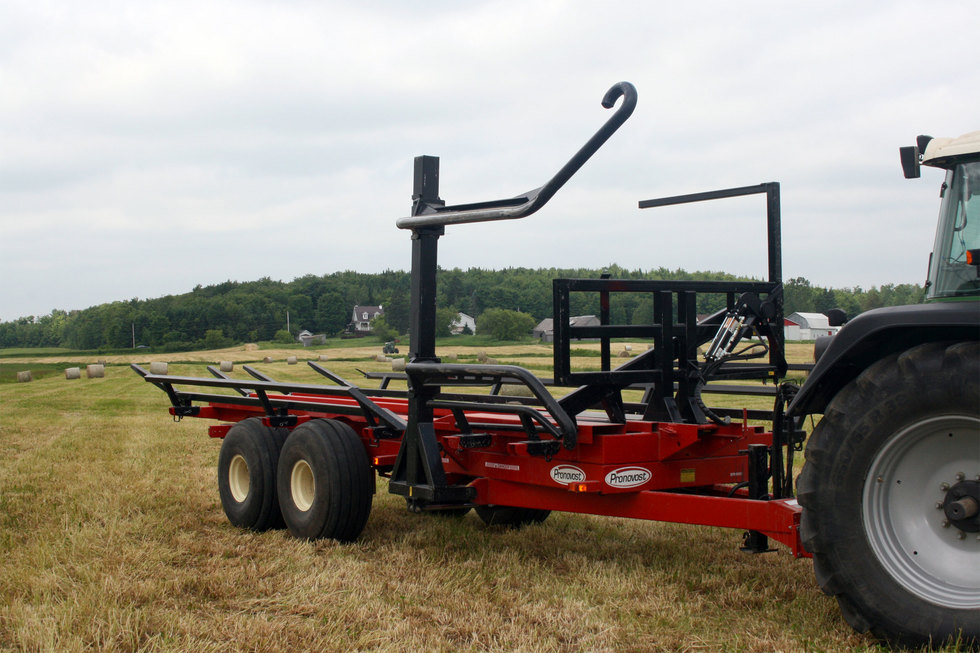

Heavy-duty loading arm
- Reinforced base and a safety pin for storage.
Manual models
- A stop valve is installed to prevent contact between the bale pusher and the loading arm.
Automatic models
- Two limit switches allow preventing contact between the bale pusher and the loading arm.
Extra-robust loading fork
- Do not break the bale by picking it. Practical for the bales coated with net !

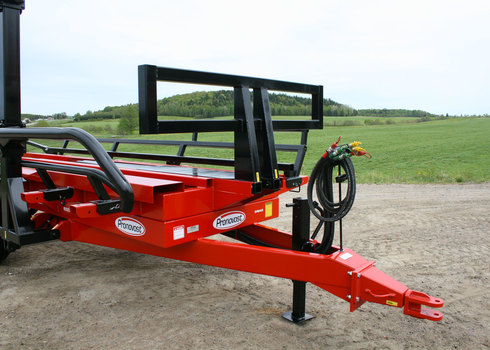

Hitch block adjustable on height
- Equipped with a unique swivel hitch for the most robust assembly of the industry.
Load capacity
| LOAD CAPACITY | |||
| P-6810M and P-6810 | P-6812M and P-6812 | P-6816M and P-6816 | |
| BALES 4' | 10 (2 rows of 5 bales) ------------- 14 with 3rd row (Add 1 row of 4 bales) |
12 (2 rows of 6 bales) ------------- 17 with 3rd row (Add 1 row of 5 bales) |
16 (2 rows of 8 bales) ------------- 23 with 3rd row (Add 1 row of 7 bales) |
| BALES 5' | 8
(2 rows of 4 bales) ------------- 11 with 3rd row (Add 1 row of 3 bales) |
10
(2 rows of 5 bales) ------------- 14 with 3rd row (Add 1 row of 4 bales) |
12
(2 rows of 6 bales) ------------- 17 with 3rd row (Add 1 row of 5 bales) |
IMPORTANT:
The loading arm is designed to load bales up to 2500 lbs (1134 kg).
The third row loader P‑6891TR(M) is designed to load bales up to 1500 lbs (680 kg).
Depending on the chosen bale handler model and the selected tires, do the calculation and make sure you do not exceed the GVWR.
Complete specifications
| Total capacity 12 tons (GVWR) | Standard tires 16.5L16.1 with wheels W14C16.1 (280 x 404 mm) |
| Total capacity 16 tons (GVWR) | Optional tires 21.5L16.1 with wheels W16C16.1 (403 x 404 mm) |
| Sides adjustable to bale diameter | 4' to 5 1/2' std. (6' opt.) / 1.2 to 1.7 m std. (1.8 m opt.) |
| Bale length | 4' to 5 1/2' std. / 1.2 to 1.7 m |
| Number of bolts (wheels) | 8 bolts |
| Number of bales 4' long | Std. 12 (2 rows of 6 bales) 17 with 3rd row (add 1 row of 5 bales) |
| Number of bales 5' long | Std. 10 (2 rows of 5 bales) 14 with 3rd row (add 1 row of 4 bales) |
| Overall length | 31'10" / 9.70 m |
| Overall width | 8'6" to 10'0" / 2.59 to 3.05 m |
| Platform height | 45 1/2" / 1156 mm (std tires) 47 1/4" / 1200 mm (opt. tires) |
| Dumping angle | 35 degrees |
| Tread width center/center | 80" / 2032 mm |
| Hitch weight (empty) | 1800 lbs / 818 kg approx. |
| Swivel hitch | Standard |
| Automatic return of bale ram | Standard |
| Remote control | Standard |
| Axle | Tandem |
| Hub capacity | 10 000 lbs / 4545 kg |
| Spindle diameter | 3 1/4" / 83 mm |
| Road lights | Included |
| Hydraulic brakes | Option |
| Recommended tractor horse power | 100 HP PTO + |
| Total weight | 7300 lbs / 3311 kg |
Design and specifications subject to change without notice.
Videos
Photo gallery
-

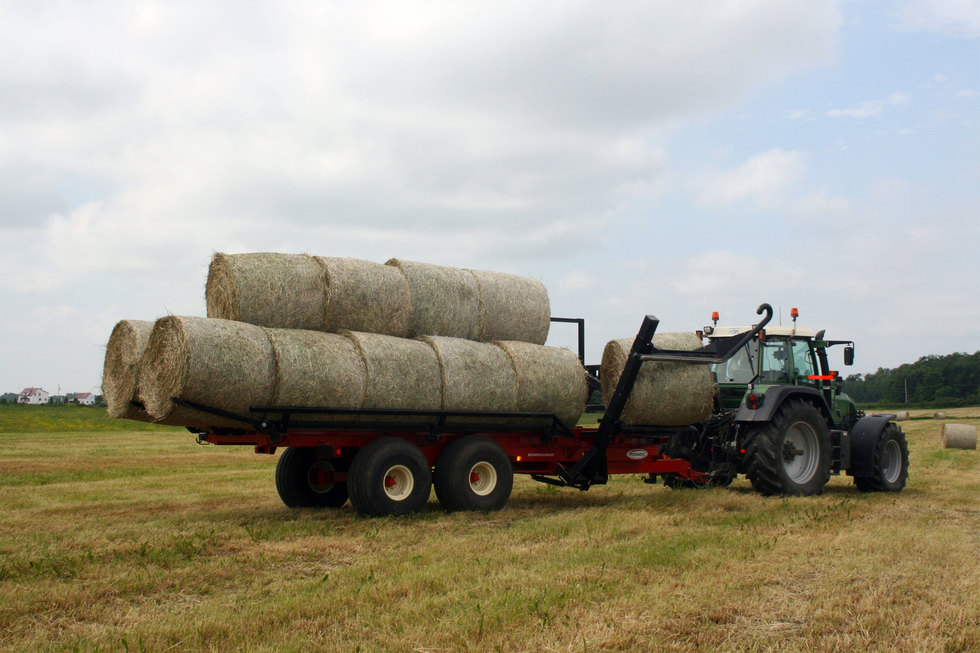

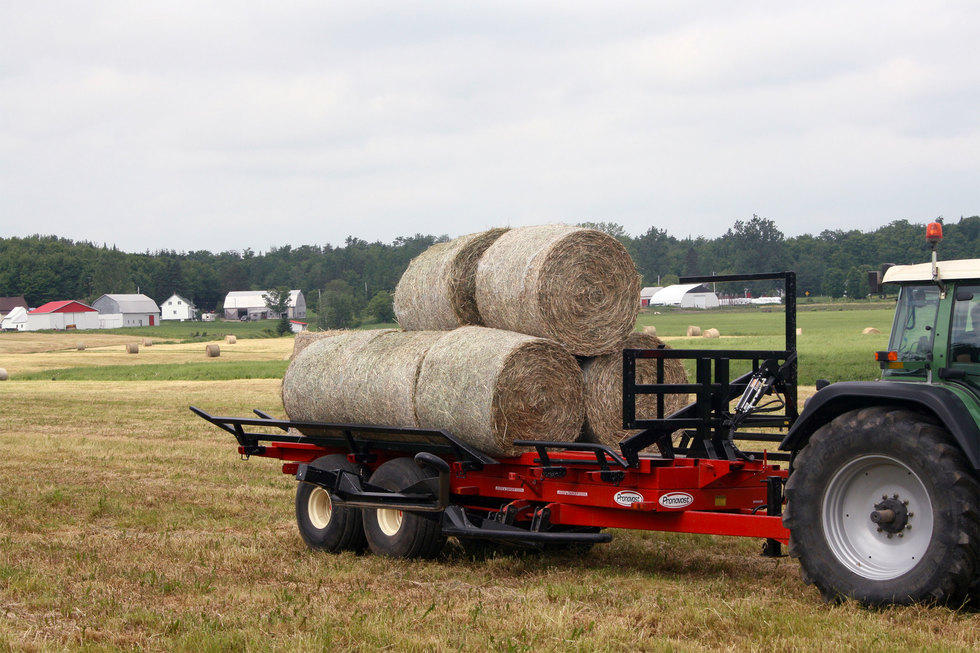

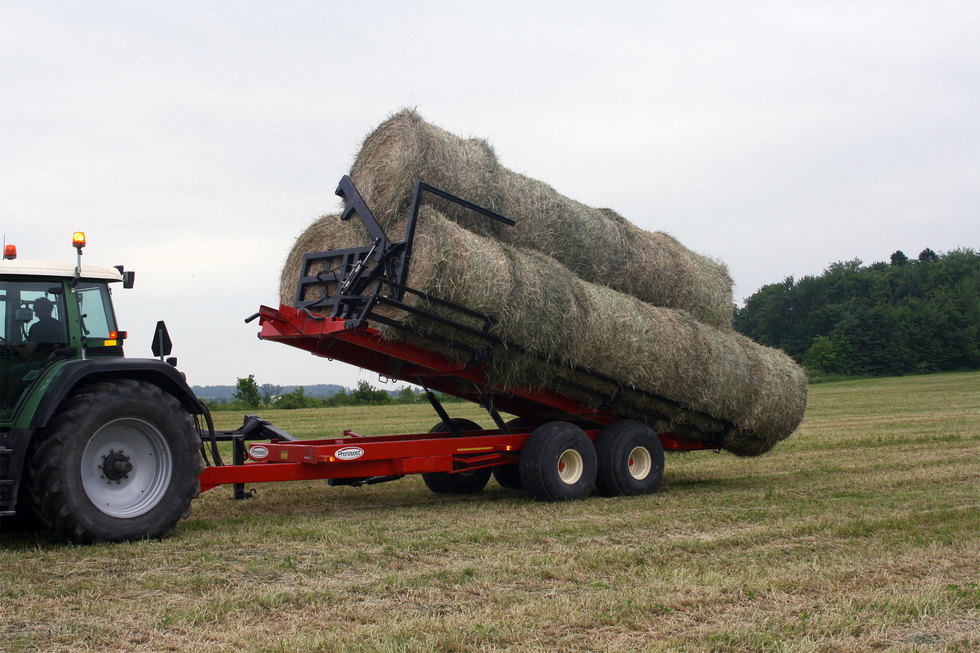

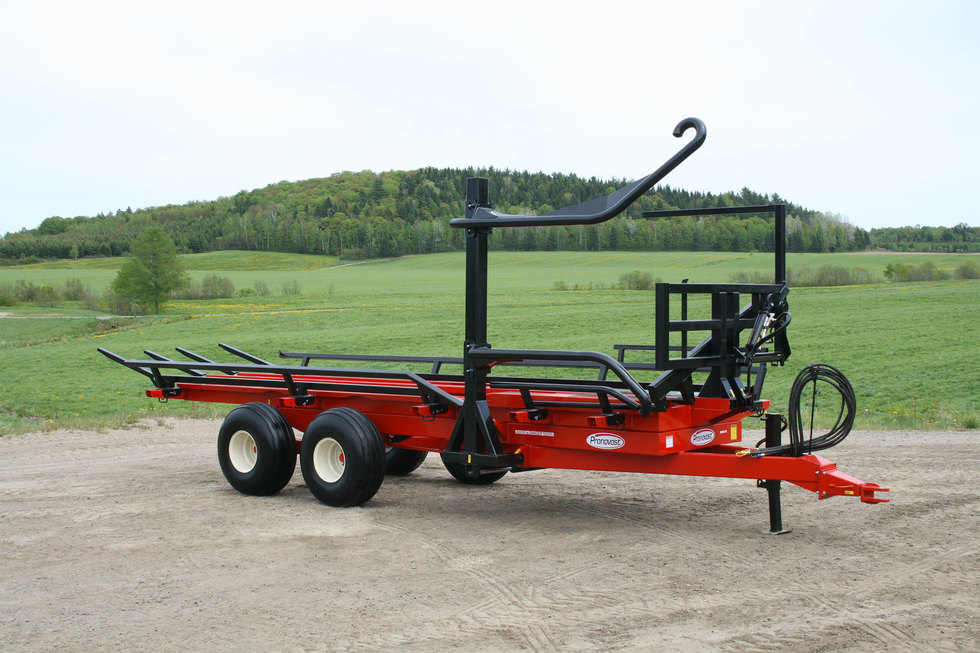

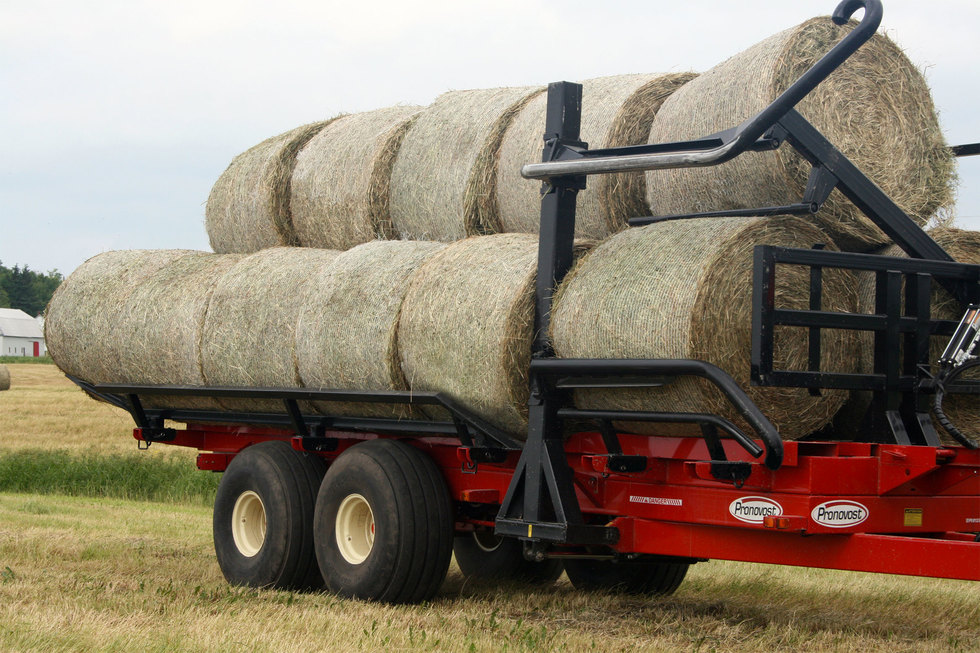

Model P-6812
-
Model P-6812
-
Model P-6812
-
Model P-6812
-
Model P-6812
-

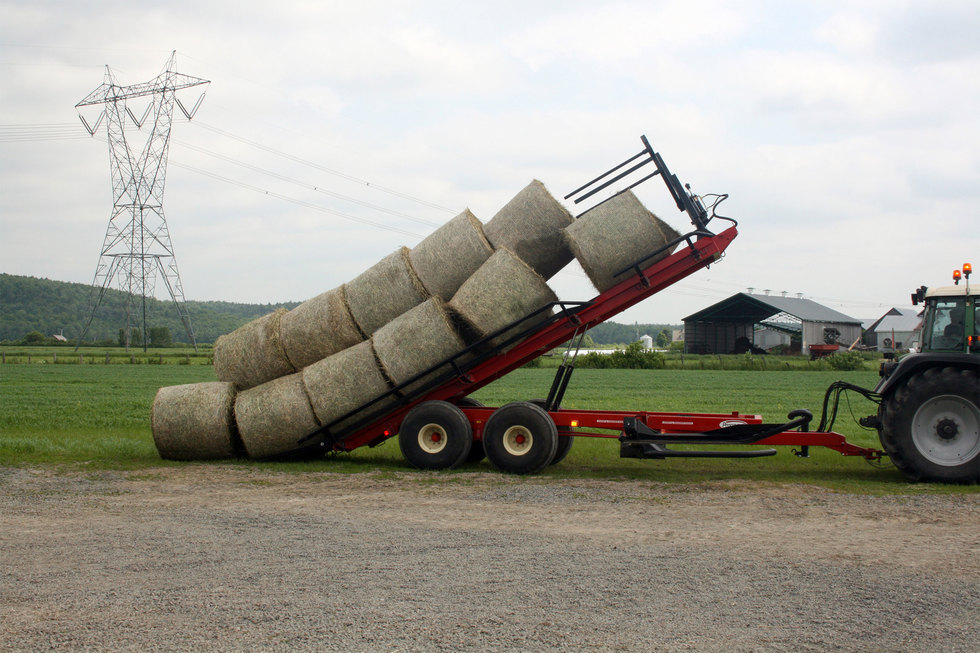

Model P-6812 unloading
-
