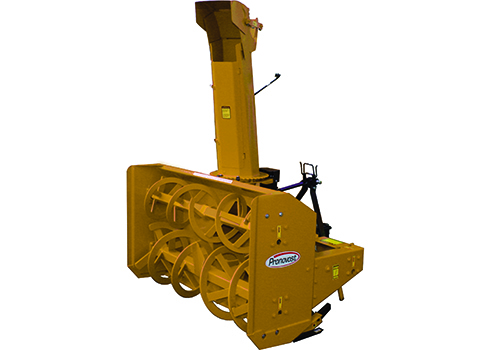

P-542
Working width |
55 3/8" / 1406 mm |
HP recommended |
30 to 55 HP PTO |
| Cutting height | 37" / 940 mm |
| Drum diameter | 26" / 660 mm |
| Weight | 1100 lbs / 499 kg |
Options
CHOICE OF CHUTE
PSIG-5472
| Semi-industrial chute with greasable hinges and access panel (removable) | PSIG-5472 |
CHOICE OF ADJUSTMENT FOR CHUTE DEFLECTOR
| Hydraulic cylinder (included) | 25TR04 |
|
TSB-4864 |
| Manual telescopic tube | T-4864 |
HYDRAULIC MOTOR FOR CHUTE ROTATION
| Hydraulic motor (included) | MLH-250-R |
HOSE KITS
PKB-GR1
| Hose kit for basic functions. Includes hydraulic hoses connecting the tractor oil outlets to the deflector adjustment cylinder and the chute rotation motor. * Installation not included. | PKB-GR1 |

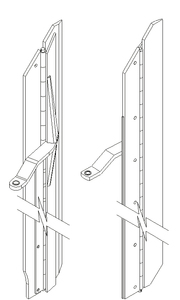

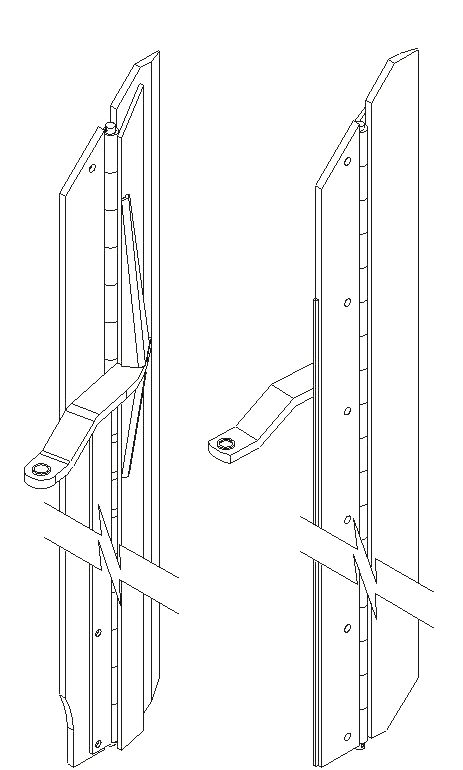

LATERAL BLADES
CLH-542
| Kit of 2 hydraulic lateral blades, standard steel (3/8" x 2 1/2" x 39 1/2") | CLH-542 |
| Lateral blades 50" high. | CL-542 |
SCRAPER BLADE
TV-542
SST-542
| Tivar scraper blade for P-542, including mounting kit | TV-542 |
| Stainless Steel scraper blade, not reversible, 1/2" x 3" not sharpened | SST-542 |
SKID SHOES
PHD-4872
PST-4872
| Industrial skid shoes with Hardox 450 soles | PHD-4872 |
| Skid shoes with stainless steel soles | PST-4872 |
CHOICE OF POWER TAKE-OFF (PTO)
| T50 PTO 1 3/8"-6 & 1 3/8"-6 (540 RPM) | 8114 |
| T60 PTO 1 3/8"-6 & 1 3/8"-6 (540 RPM) | 8202 |
Other recommended products
Additional Information
HYDRAULIC DRIVEN
It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.
Contact your Pronovost dealer to obtain a quote for your specific requirements.
HYDRAULIC WHEELS
Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.
- Practical to avoid blowing gravel.
- Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.
Contact your Pronovost dealer to obtain a quote for your specific requirements.
*Available only on a new snowblower made in production.
Complete specifications
| HP recommended (min. - max.) | 30 to 55 HP PTO |
| Approximate performance | 550 tons imp. / hour |
| Working width | 55 3/8" / 1406 mm |
| Cutting height | 37" / 940 mm |
| Hitch category | 2 - 29" / 737 mm |
| Cutting height of lateral blades | Opt. CLH : 47" / 1194 mm |
| Impeller diameter | 26" / 660 mm |
| Depth of drum | 10 1/2" / 267 mm |
| Impeller housing contour : High quality steel | Inclus |
| Number of impeller blades | 4 |
| Impeller shaft diameter | 1 9/16" / 40 mm |
| Height of impeller center | 16 1/2" / 419 mm |
| Rotor RPM | 540 RPM |
| Required RPM for the tractor PTO | 540 RPM |
| Number of augers | 2 |
| Main auger diameter | 18 1/2" / 470 mm - ribonned, serrated |
| Upper auger diameter | 14" / 355 mm - ribonned, serrated |
| Bearing / ductile iron housing | 1 1/4" / 32 mm |
| Drive chain - Main auger | 60 |
| Number of shear bolts | 1 for impeller + 1 for auger |
| Drive shaft included (optional) | T50 |
| Lateral blades - Hydraulic blades | Opt. CLH : 3/8" x 2 1/2" |
| Scraper blade - Semi-industrial made of Hardox 450 | Included 1/2" x 3" reversible, not sharpened |
| Scraper blade - Tivar | Opt. 1" thickness, not reversible, not sharpened |
| Scraper blade - Stainless steel | Opt. 1/2" x 3" not reversible, not sharpened |
| Adjustable skid shoes - Quick adjustment Hardox 450 | Included |
| Adjustable skid shoes - Quick adjustment Rocktec | Opt. |
| Adjustable skid shoes - Quick adjustment stainless steel | Opt. |
| Chute - Semi-industrial with greasable hinges and removable access panel | Opt. |
| Chute rotation system - Hydraulic motor kit (motor not included) | Opt. |
| Chute rotation maximum angle - Hydraulic motor rotation | 195° to 335° adjustable |
| Antifriction for chute | Included : ring |
| Deflector - Manual | Opt. |
| Deflector - Hydraulic cylinder | Opt. |
| Color | Included : Industrial yellow |
| Storage support | Included |
| Weight including chute | 1100 lbs / 499 kg |
Design and specifications subject to change without notice.
