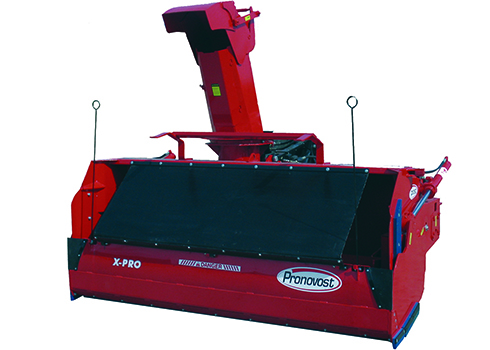

PXPL-92

Pxpl

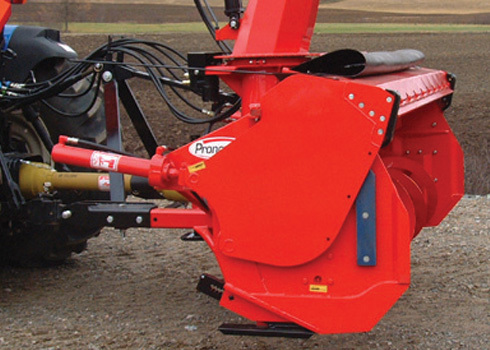

  1. Pxpl A

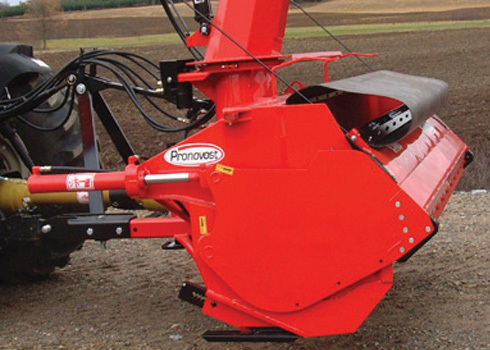

  2. Pxpl B

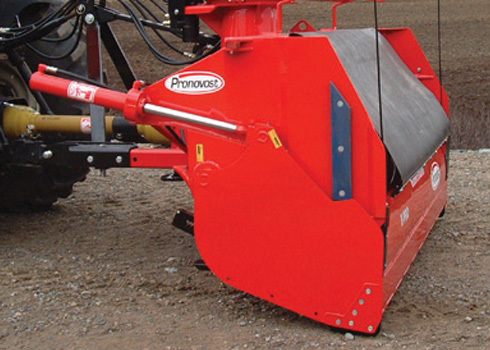

  3. Pxpl C

Working width

92" / 2336 mm

HP recommended

75 to 125 HP PTO

Cutting height 34" / 864 mm
Drum diameter 32" / 813 mm
Weight 2151 lbs / 976 kg
Add to compare
Download the flyer

Options

CHOICE OF CHUTE

Psig 7486

PSIG-7486

Semi-industrial chute with greasable hinges and access panel (removable) PSIG-7486

CHOICE OF ADJUSTMENT FOR CHUTE DEFLECTOR

Manual telescopic tube T-74104
Cylinder 25TR08
  • Hose support for deflector cylinder
TSB-74104

CHOICE OF HYDRAULIC MOTOR FOR CHUTE ROTATION

Hydraulic motor for pump with less than 10 GPM (with cushion valve) MLH-125
  • Kit of two unidirectional restrictors
RSP-1/16x10 ORB
Hydraulic motor for pump with less than 12 GPM (with cushion valve and unidirectional restrictors) MLH-250-R
Hydraulic motor for pump with more than 12 GPM (with cushion valve and unidirectional restrictors) MLH-315-R

CHOICE OF COLORS

Red PRONOVOST
Blue PX-02
Landi PX-03
Orange PX-04
Yellow INDUSTRIAL PX-06
Green PX-07

SCRAPER BLADE

Sit1gr2

SIT1-92

T1gr2

T1-92

T Vgr2

TV-92

Ss Tgr2

SST-92

Semi-industrial scraper blade, carbon steel 450, reversible 1/2" x 4" not sharpened SIT1-92
Industrial scraper blade, carbon steel 450, not reversible 1/2" x 6" sharpened T1-92
Tivar scraper blade including mounting kit TV-92
Stainless Steel scraper blade, reversible, 1/2" x 4" not sharpened SST-92

SKID SHOES

Phd

PHD-92104

Pshd

PSHD-92104

Pst

PST-92104

Industrial skid shoes with Hardox 450 soles PHD-92104
Skid shoes with ROCKTEC soles PSHD-92104
Skid shoes with stainless steel soles PST-92104

POWER TAKE-OFF (PTO)

Pv

PV-08

Pa

PA-09

Pav

PAV-09

PTO multilobe PV-08
Bigger PTO PA-09
Bigger PTO multilobe PAV-09

SPEED REDUCER

Prh 30 M 2

PRH-30M-2

Speed reducer 1000/555 RPM – 220 HP at 1000 RPM – 3 gears – shafts 7 1/16" c/c PRH-30M-2

X-PRO BLADE OPTIONS

Pxplhdst

PXPLHD-92

Tivar Pxpl

PXPLTV-92

Pxplhdst

PXPLST-92

Carbon steel 450 scraper blade and skid shoes PXPLHD-92
Tivar scraper blade and skid shoes for PXPL Snowblower PXPLTV-92
Stainless Steel scraper blade and skid shoes for PXPL Snowblower PXPLST-92

Other recommended products

Additional Information

Front Mounted System

ALL TRACTOR FROM 30 TO 150 HP

We can supply the components required to carry out your project.

170 04981web

ROTATION INVERTER FOR TRACTOR 30 HP TO 75 HP maximum

1 Rotation inverter (2 gear boxes + 2 lateral plates):
- Available ratios 1 : 1 │ 1 : 1.12 │ 1 : 1.25
- Shaft center to center: adjustable from 10" to 13"
- Female input 1 3/8"-6
- Male input 1 3/8"-6

ROTATION INVERTER FOR TRACTOR 75 HP TO 150 HP maximum

1 Rotation inverter (2 gear boxes + 2 lateral plates):
- Ratio 1 : 1
- Shaft center to center: minimum 11"
- Male input 1 3/4"-20
- Male input 1 3/4"-20

OTHER COMPONENTS FOR TRACTOR 30 HP TO 150 HP

2 & 3 Drive assemblies as required.
4 Drive shaft with key way.
5 Spacer (shim for bearing).
6 Adaptor.
7 & 8 Bearing with pillow block.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

HYDRAULIC DRIVEN

It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

Hyd22

HYDRAULIC WHEELS

Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.

  • Practical to avoid blowing gravel.
  • Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

Roues Wheels 2

Complete specifications

HP recommended (min. - max.) 75 to 125 HP PTO
Working width 92" / 2336 mm
Working width with X-PRO blade 93 3/4" / 2378 mm
Cutting height 34" / 864 mm
Cutting height with X-PRO blade 8" / 203 mm
Hitch category 2 - 35" / 889 mm c/c
Impeller diameter 32" / 813 mm
Depth of drum 12" / 305 mm
Impeller housing contour : High quality steel Included
Number of impeller blades 5
Impeller shaft diameter 2" / 51 mm
Height of impeller center 18 1/4" / 464 mm
Rotor RPM 540 RPM
Required RPM for the tractor PTO 540 RPM Opt. 1000 RPM
Number of augers 1
Main auger diameter 19 1/2" / 495 mm
Bearing / ductile iron housing 1 1/2" / 38 mm
Drive chain - Main auger 80
Number of shear bolts 1 for impeller + 1 for auger
Reducer 1000/555 RPM - 220 HP at 1000 RPM - 3 gears - shafts 7 1/16" c/c Opt.
Drive shaft included (optional) T80 (T90)
Scraper blade - High quality steel Included 1/2" x 4" reversible, not sharpened
Scraper blade - Semi-industrial made of Hardox 450 Opt. 1/2" x 4" reversible, not sharpened
Scraper blade - Industrial made of Hardox 450 Opt. 1/2" x 6" not reversible, sharpened
Scraper blade - Tivar Opt. 1" thickness, not reversible, not sharpened
Scraper blade - Stainless steel Opt. 1/2" x 4" reversible, not sharpened
Adjustable skid shoes - Quick adjustment high quality steel Included
Adjustable skid shoes - Quick adjustment Hardox 450 Opt.
Adjustable skid shoes - Quick adjustment Rocktec Opt.
Adjustable skid shoes - Quick adjustment stainless steel Opt.
Blade and skid shoes on X-PRO blade - High quality steel Included
Blade and skid shoes on X-PRO blade - Hardox 450 Opt.
Blade and skid shoes on X-PRO blade - Tivar Opt.
Blade and skid shoes on X-PRO blade - Stainless steel Opt.
Full flight main auger (industrial) Opt.
Chute - Semi-industrial with greasable hinges and removable access panel Opt.
Chute rotation system - Hydraulic motor kit (motor not included) Included
Chute rotation maximum angle - Hydraulic motor rotation 335°
Antifriction for chute Included : ring
Deflector - Manual Opt.
Deflector - Hydraulic cylinder Opt.
Color Included : Red Pronovost Opt. : Choice of 5 colors
Storage support Included
Weight 2151 lbs / 976 kg
Weight including chute 2151 lbs / 976 kg

Design and specifications subject to change without notice.
