P-INV-92-102
Working width |
102" / 2591 mm |
HP recommended |
75 to 100 HP PTO |
| Cutting height | 34" / 864 mm |
| Drum diameter | 30" / 762 mm |
| Weight | 1845 lbs / 837 kg |
Options
HOSE KITS
PKB-INV-92102
| Hose kit for basic functions. Includes hydraulic hoses connecting the tractor oil outlets to the deflector adjustment cylinder and the chute rotation motor. * Installation not included. | PKB-INV-92102 |
| Hose kit for rear mount scraper blade option. Includes hydraulic hoses connecting the tractor oil outlets to the rear mount scraper blade cylinders. * Installation not included. | PKB-INVL-92102 |
SCRAPER BLADE
INV-TV-92-102
INV-SST-92-102
INV-SIT1-92-102
| Tivar scraper blade for P-INV-92-102 | INV-TV-92-102 |

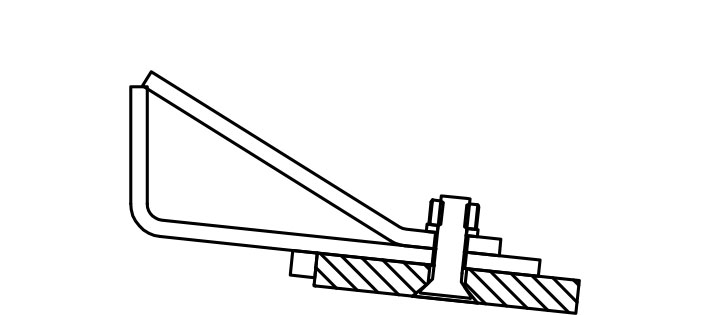

| Stainless Steel scraper blade for P-INV-92-102 | INV-SST-92-102 |

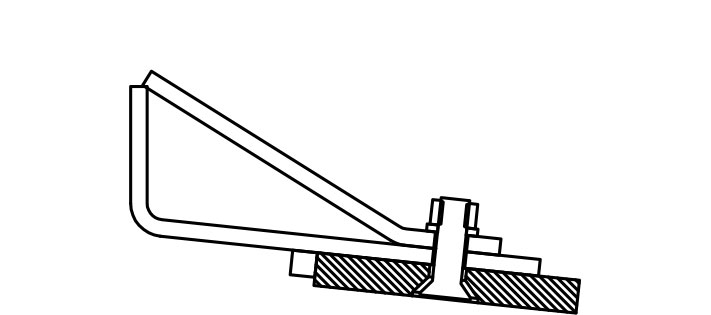

| Semi-industrial scraper blade, carbon steel 450, 1/2" x 4", for P-INV-92-102 | INV-SIT1-92-102 |
SKID SHOES
PHD-7486
PSHD-7486
PST-7486
| Industrial skid shoes with Hardox 450 soles | PHD-7486 |
| Skid shoes with ROCKTEC soles | PSHD-7486 |
| Skid shoes with stainless steel soles | PST-7486 |
CHOICE OF POWER TAKE-OFF (PTO)
| T60 PTO 1 3/8"-6 & 1 3/8"-6 (540 RPM) | 8202 |
| V60 Multilobe PTO 1 3/8"-6 & 1 3/8"-6 (540 RPM) | 8202-V |
| T80 PTO 1 3/8"-6 & 1 3/8"-6 (540 RPM) | 9225-1 |
REAR MOUNT SCRAPER BLADE AND OPTIONS
| Rear mount scraper (scraper not included) | P-INVL-92-102 |
| Mounting assembly for rear mount scraper cylinder | INVL-HYD-92102 |
| Kit of 2 cylinders for rear mount scraper | 2 X 25TR04 |
| Kit of chains for rear mount scraper. | INVL-CH-92102 |
| Standard steel plow blade for rear mount scraper. | INVL-ST-92-102 |
| Tivar plow blade for rear mount scraper. | INVL-TV-92-102 |
| Stainless steel plow blade for rear mount scraper. | INVL-SST-92-102 |
CHOICE OF COLORS
| Red PRONOVOST | |
| Blue | PG2-02 |
| Orange | PG2-04 |
| Yellow INDUSTRIAL | PG2-06 |
| Green | PG2-07 |
| Black | PG2-10 |
Additional Information
HYDRAULIC WHEELS
Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.
- Practical to avoid blowing gravel.
- Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.
Contact your Pronovost dealer to obtain a quote for your specific requirements.
*Available only on a new snowblower made in production.
Complete specifications
| HP recommended (min. - max.) | 75 to 100 HP PTO |
| Working width | 102" / 2591 mm |
| Cutting height | 34" / 864 mm |
| Hitch category | 2 - 34 1/4" / 876 mm c/c |
| Impeller diameter | 30" / 762 mm |
| Depth of drum | 12" / 305 mm |
| Impeller housing contour : High quality steel | Included |
| Number of impeller blades | 4 |
| Impeller shaft diameter | 1 9/16" / 40 mm |
| Height of impeller center | 18 1/2" / 470 mm |
| Rotor RPM | 540 RPM |
| Required RPM for the tractor PTO | 540 RPM |
| Number of augers | 1 |
| Main auger diameter | 21 1/4" / 540 mm |
| Bearing / ductile iron housing | 1 1/2" / 38 mm |
| Drive chain - Main auger | 80 |
| Number of shear bolts | 1 for impeller + 1 for auger |
| Drive shaft included (optional) | T60 |
| Scraper blade - High quality steel | Included 1/2" x 4" reversible, not sharpened |
| Scraper blade - Semi-industrial made of Hardox 450 | Opt. 1/2" x 4" reversible, not sharpened |
| Scraper blade - Industrial made of Hardox 450 | Opt. 1/2" x 6" not reversible, sharpened |
| Scraper blade - Tivar | Opt. 1" thickness, not reversible, not sharpened |
| Scraper blade - Stainless steel | Opt. 1/2" x 4" reversible, not sharpened |
| Adjustable skid shoes - Quick adjustment high quality steel | Included |
| Adjustable skid shoes - Quick adjustment Hardox 450 | Opt. |
| Adjustable skid shoes - Quick adjustment Rocktec | Opt. |
| Adjustable skid shoes - Quick adjustment stainless steel | Opt. |
| Chute - Semi-industrial with greasable hinges and removable access panel | Included |
| Chute rotation system - Hydraulic motor kit (motor not included) | Included with MLH-315 and cushion valve |
| Chute rotation maximum angle - Hydraulic motor rotation | 335° |
| Antifriction for chute | Included : ring |
| Deflector - Hydraulic cylinder | Included |
| Color | Included : Red Pronovost Opt. : Choice of 5 colors |
| Weight approx. blade and cylinder | 162 lbs / 73 kg |
| Weight including chute | 1845 lbs / 837 kg |
Design and specifications subject to change without notice.
