PGV-120137TRC

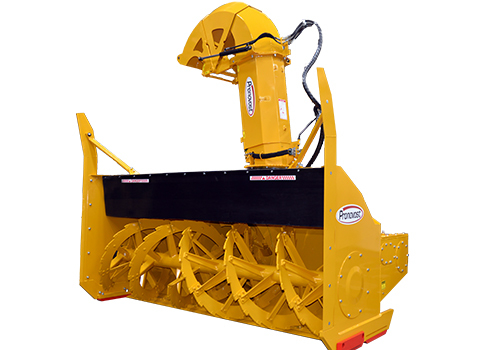

Pgv 120137 Trc Face

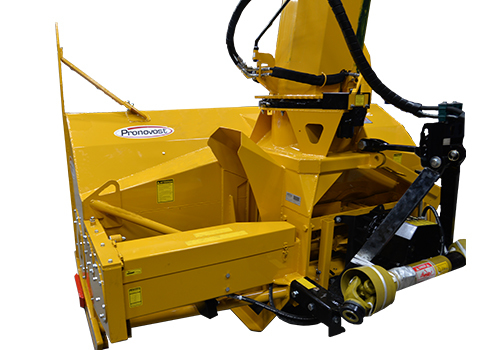

  1. Pgv 120137 Trc Arriere

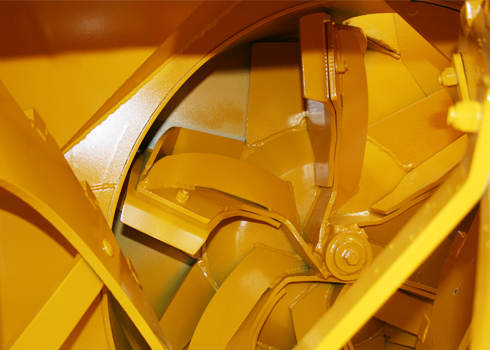

  2. Pgv 1021 Trc B

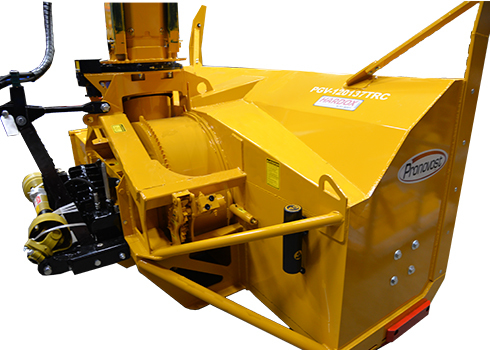

  3. Pgv 120137 Trc Cote

WORKING WIDTH

118" / 2997 mm

HP RECOMMENDED

225 à 350 ch PdF

Cutting height 53" / 1346 mm
Approx. performance 2500 tons imp. / hour (tractor 225 HP)
Weight 5231 lbs / 2373 kg
Add to compare
Download the flyer

Options

CHOICE OF CHUTE

Pct 7486ind

PCTC-IND

Pctc Indr

PCTC-INDR

Hydraulic telescopic industrial chute, a versatile chute for general use, including deflector cylinder, chute extension cylinders and 2 hose supports, Carbon steel chute and deflector backs, greasable hinges. Kit of two unidirectional restrictors RSP-1/16x10 ORB included. PCTC-IND
  • Mounting kit for working light on telescopic chute.
PKL-IND92104
Hydraulic telescopic industrial chute with rounded deflector designed for truck loading, greasable hinges and access panel, including 2 extension cylinders and hose support and 2 deflector cylinders and hose support. Kit of two unidirectional restrictors RSP-1/16x10 ORB included. PCTC-INDR
  • Mounting kit for working light on telescopic chute.
PKL-INDR

HYDRAULIC MOTOR FOR CHUTE ROTATION

Hydraulic motor (included) MLH-315-R

HOSE KITS

Pkb

PKB-GR3TRC

Kit for TRC models, also includes hoses for drum rotation motor. * Installation not included. PKB-GR3TRC
Kit for TRC models with telescopic chute PCT-92104, also includes hoses for chute lifting cylinders. * Installation not included. PKB-GR3TRC-T
Kit for TRC models with telescopic chute with round deflector PCTC-INDR, also includes hoses for chute lift cylinders and cylinder for round deflector adjustment. * Installation not included. PKB-GR3TRC-TR
Hose kit for hydraulic lateral blades option. Includes hydraulic hoses connecting the tractor oil outlets to the lateral blades cylinder. * Installation not included. PKB-IND-CLH

LATERAL BLADES

Cl 4872

Inclus

Cl 1021 Pgv

CL-1021PGV

Clh 1021 Pgv

CLH-120137PGV

Lateral blades, standard steel 1/2" x 5 3/4" x 59" Inclus

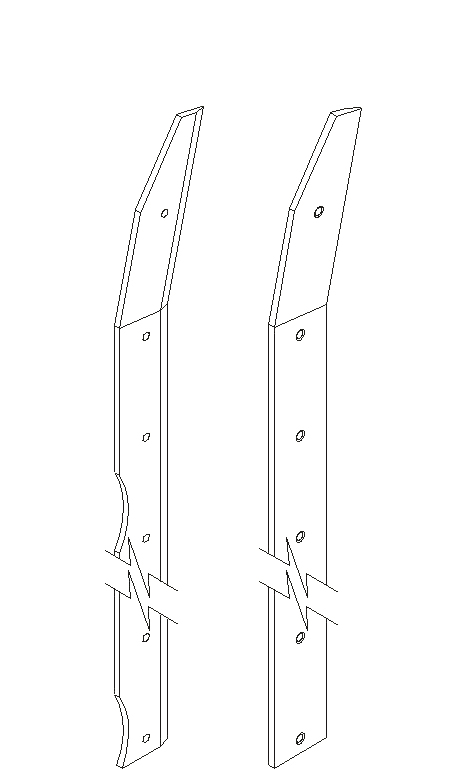

Lateral blades, Hardox 450 5/8" x 5 3/4" x 78" CL-1021PGV

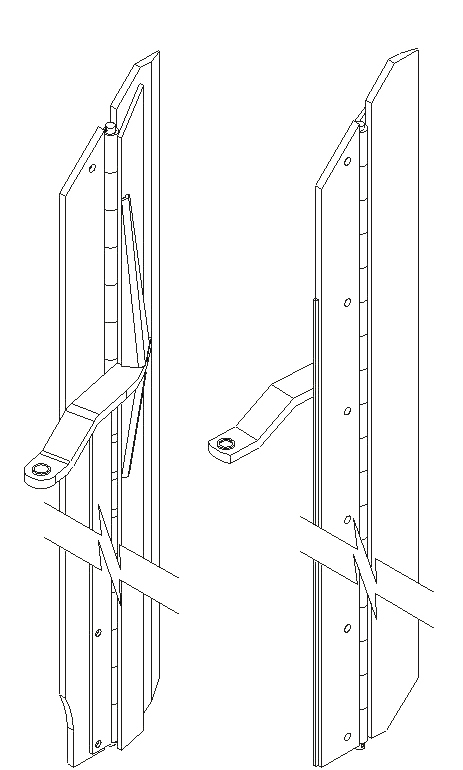

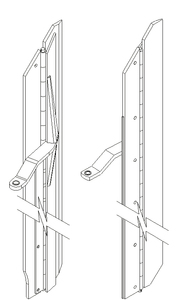

Hydraulic lateral blades (cylinder TR08 included) CLH-120137PGV

SKID SHOES

Phct Pgv

PHCT-PGV

Lateral skid shoe with extra long life sole for sidewalk (right side or left side) PHCT-PGV

SPEED REDUCER

Pr3 G250 2.5

PR3G250-2.5

Pr26 250 2.5

PR26-250-2.5

Reducer 1000/562 (300 HP at 1000 RPM) 3 gears - 10" c/c (350 HP at 1000 RPM with oil cooler RH250-PGV-1022) PR3G250-2.5
Speed reducer and inverter (300 HP at 1000 RPM) - 2 gears - 100/562 – shafts 6 3/4" c/c (casing ready for connecting the oil cooler RH250-PGV-1022) (350 HP at 1000 RPM with oil cooler RH250-PGV-1022) PR26-250-2.5

CHOICE OF POWER TAKE-OFF (PTO)

V90 Multilobe PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) 9599
V90 Multilobe PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) 9604
V12 Multilobe PTO 1 3/4"-20 X 1 3/4"-20 (1000 RPM) 400-00601

OIL COOLER

Oil cooler (pump and tank) recommended for 300 HP and over. RH250-PGV-1022

LATERAL PROTECTOR

Lateral protector in Tivar for protection of snow loading equipment. PL-IND

KIT OF 3 OR 4 DIVERTERS WITH JOYSTICK

Kit of 3 electric directionnal control valves to control 4 hydraulic functions (chute deflector, chute rotation, telescopic chute and TRC drum) including universal mounting bracket, hoses and fittings. KVD-3IND
Kit of 4 electric directionnal control valves to control 5 hydraulic functions (chute deflector, chute rotation, telescopic chute, TRC drum and hydraulic lateral blades) including universal mounting bracket, hoses and fittings. KVD-4IND
Kit of joystick controller 4 buttons with cables and connector. Installs on a hydraulic lever or tractor. Compatible for KVD-3IND + KVD-4IND. KVD-IND-M4
Wiring harness and connector 20. KVD-IND-H20

Other recommended products

Additional Information

HYDRAULIC DRIVEN

It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

Hyd22

HYDRAULIC WHEELS

Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.

  • Practical to avoid blowing gravel.
  • Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

*Available only on a new snowblower made in production.

Roues Wheels 1

Complete specifications

HP recommended (min. - max.) 225 to 350 HP PTO
Approximate performance 2500 tons imp. / hour (tractor 225 HP)
Working width 118" / 2997 mm
Cutting height 53" / 1346 mm
Hitch category 2 & 3 - 38 3/8" / 975 mm
Cutting height of lateral blades Included : 59" / 1499 mm Opt. CL : 78" / 1981 mm Opt. CLH : 78" / 1981 mm
Height of chute base (TRC model) 54 1/2" / 1384 mm
Height with telescopic chute (TRC model) PCTC-IND : 131" / 3327 mm closed, 162 1/2" / 4128 mm extended PCTC-INDR : 129" / 3277 mm Closed, 161" / 4089 mm extended
Impeller diameter 37" / 940 mm
Depth of drum 15" / 381 mm
Drum position Offset of 5" right
Impeller housing contour : Hardox 450 Included 3/8"
Number of impeller blades 6 - 3/8" thickness, replaceable, Hardox 450
Impeller shaft diameter 2 1/2" / 64 mm
Height of impeller center 24" / 610 mm
Rotor RPM 540 inverted
Required RPM for the tractor PTO 1000 RPM
Number of augers 1
Main auger diameter 34" / 864 mm - removable hub, dual band, bolted, carbon steel teeth
Bearing / ductile iron housing 2 1/2" / 64 mm
Drive chain - Main auger Renold No. 100HV in oil bath
Frame - Sides Plate 5/16"
Frame - Back Plate 3/16"
Number of shear bolts 1 for impeller + 1 for auger
Drum rotation for hydraulic motor (TRC only) Std.
Drum rotation with rotation system On antifriction with hydraulic motor, cushion valve included
Reducer and inverter 1000/562 RPM - 250 HP at 1000 RPM - 2 gears - shafts 6 3/4" Included
Height of speed reducer shaft Adjustable from 29 7/8" to 18"
Drive shaft included (optional) V90 multilobe, choice of yoke depending of tractor
Oil cooler Opt. (increases capacity to more than 300 HP)
Lateral blades - High quality steel Included : 1/2" x 5 3/4"
Lateral blades - Hardox 450 Opt. CL : 5/8" x 5 3/4"
Lateral blades - Hydraulic blades Opt. CLH : 5/8" x 7 1/2" Hardox 450 sharpened (cylinder 25TR08 included)
Scraper blade - Industrial made of Hardox 450 Included 5/8" x 6" not reversible, sharpened, assembled to 6 degrees
Adjustable skid shoes - Rocktec Included 4 skid shoes, adjustement with spacers
Rocktec lateral skid shoe for sidewalks Opt. (right or left side)
Chute - Telescopic including extension cylinders Opt.
Chute - Telescopic with rounded deflector including extension and deflector cylinders Opt.
Chute rotation system - Hydraulic motor kit (motor not included) Included with MLH-315 and cushion valve
Chute rotation maximum angle - Hydraulic motor rotation 305°
Antifriction for chute Included : ring
Deflector - Hydraulic cylinder Included with chute
Color Included : Industrial yellow
Storage support Included
Center of gravity from 3 point hitch at its shortest 39" / 992 mm
Rotational force (reference) 204 448 lbs-po
Weight 5231 lbs / 2373 kg
Weight including chute (TRC model) 5231 lbs / 2373 kg including chute PCTC-IND and reducer
