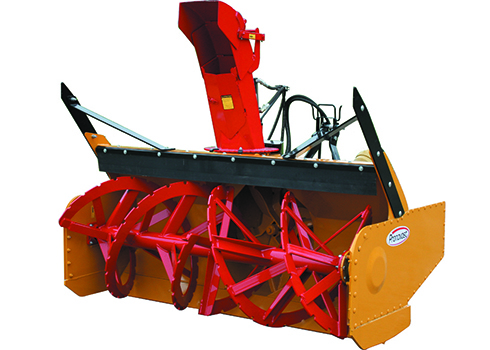

PGS-740

Pgs 740

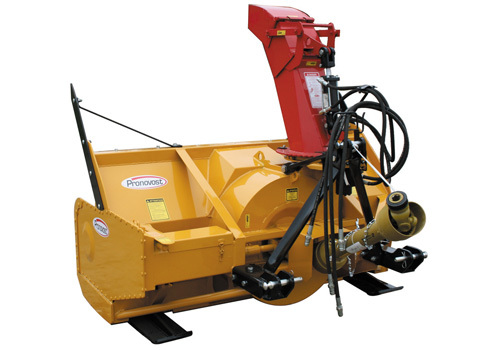

  1. Pgs 740 A

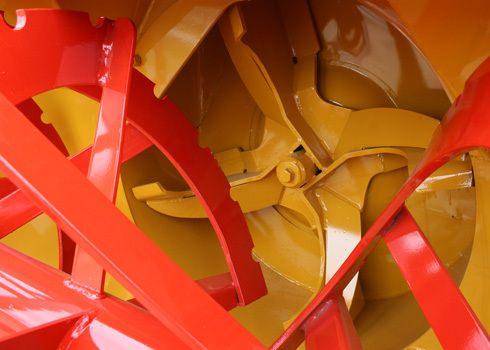

  2. Pgs 740 B

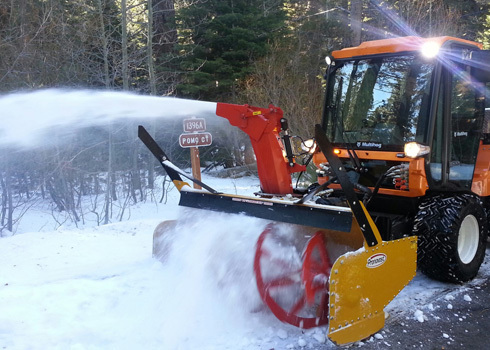

  3. Pgs 740 C

Working width

74" / 1880 mm

HP recommended

45 to 75 HP PTO

Cutting height 36 3/4" / 933 mm
Approx. performance 650 tons imp. / hour
Weight 1514 lbs / 687 kg
Add to compare
Download the flyer

Options

HOSE KITS

Pkb

PKB-GR1

Hose kit for basic functions. Includes hydraulic hoses connecting the tractor oil outlets to the deflector adjustment cylinder and the chute rotation motor. * Installation not included. PKB-GR1

Other recommended products

Additional Information

HYDRAULIC DRIVEN

It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

Hyd22

HYDRAULIC WHEELS

Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.

  • Practical to avoid blowing gravel.
  • Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

Roues Wheels 1

Complete specifications

HP recommended (min. - max.) 45 to 75 HP PTO
Approximate performance 650 tons imp. / hour
Working width 74" / 1880 mm
Cutting height 36 3/4" / 933 mm
Hitch category 2 - 30 1/2" / 775 mm
Cutting height of lateral blades Included : 58 1/2" / 1486 mm
Height of chute base 35" / 889 mm
Impeller diameter 28" / 711 mm
Depth of drum 10 1/2" / 267 mm
Impeller housing contour : Hardox 450 Included 3/16"
Number of impeller blades 4 - 3/8" thickness - welded high quality style
Impeller shaft diameter 1 9/16" / 40 mm
Height of impeller center 18" / 457 mm
Rotor RPM 540 RPM
Required RPM for the tractor PTO 540 RPM
Number of augers 1
Main auger diameter 28" / 711 mm - double ribonned, welded, toothed
Bearing / ductile iron housing Right : 1 1/2" / 38 mm - left : 2" / 51 mm
Drive chain - Main auger Renold No. 80HV in oil bath
Number of shear bolts 1 for impeller + 1 for auger
Drive shaft included (optional) T60
Lateral blades - High quality steel Included : 5/16" x 3 1/2"
Scraper blade - Semi-industrial made of Hardox 450 Inclus 3/8" x 7" non réversible, non affûté
Scraper blade - Stainless steel Opt. 3/8" x 7" not reversible, not sharpened
Adjustable skid shoes - Quick adjustment high quality steel Included (2 skid shoes)
Adjustable skid shoes - Quick adjustment Rocktec Opt. (2 skid shoes)
Adjustable skid shoes - Quick adjustment stainless steel Opt. (2 skid shoes)
Chute - Semi-industrial with greasable hinges and removable access panel Included
Chute rotation system - Hydraulic motor kit (motor not included) Included with MLH-250 and cushion valve
Chute rotation maximum angle - Hydraulic motor rotation 270° to 345° adjustable
Antifriction for chute Included : ring
Deflector - Hydraulic cylinder Included
Color Included Frame : Industrial yellow. Auger and chute : Red Pronovost
Center of gravity from 3 point hitch at its shortest 30 1/2" / 775 mm
Rotational force (reference) 46 177 lbs-po
Weight 1514 lbs / 687 kg
Weight including chute 1514 lbs / 687 kg

Design and specifications subject to change without notice.

Videos

No video for this product

Photo gallery

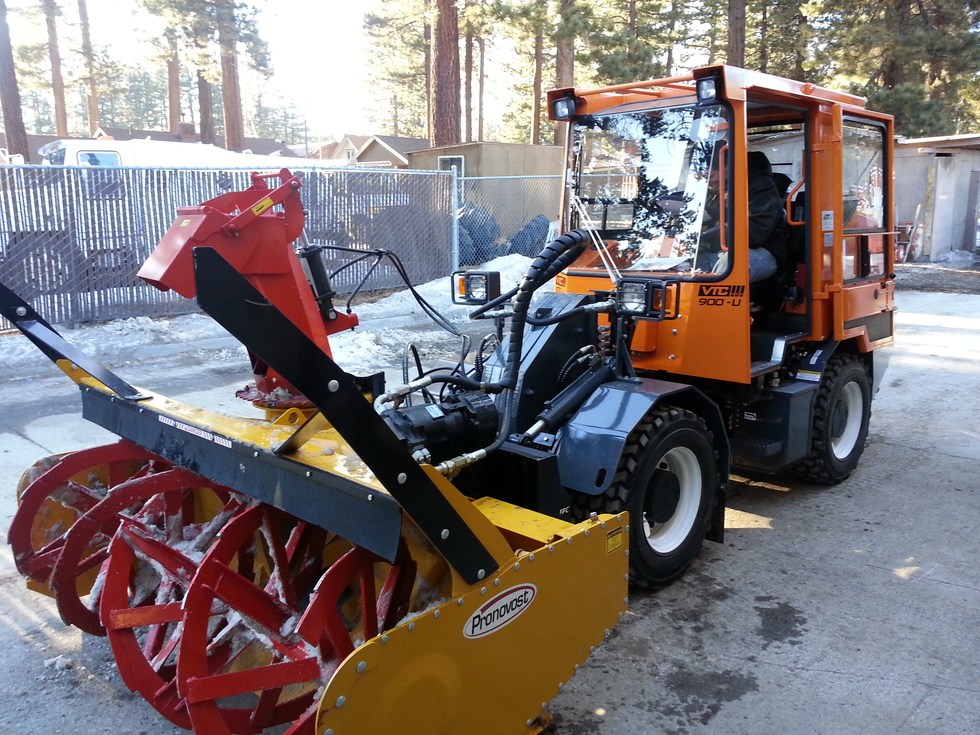

  • Pgs 740 G01

    Model PGS-740

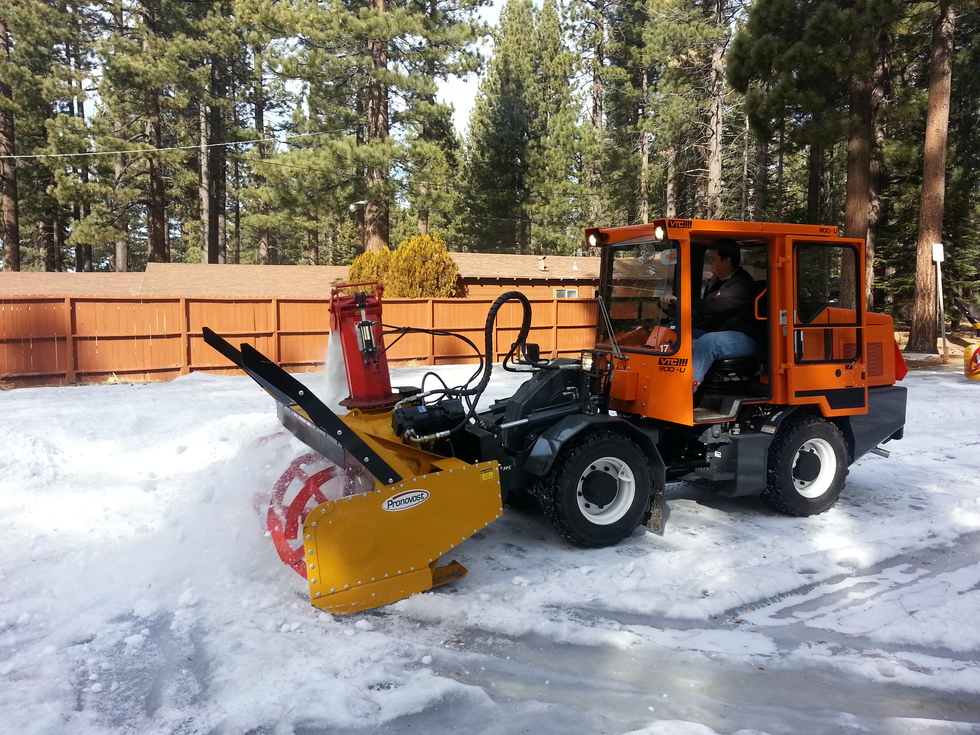

  • Pgs 740 G02

    Model PGS-740

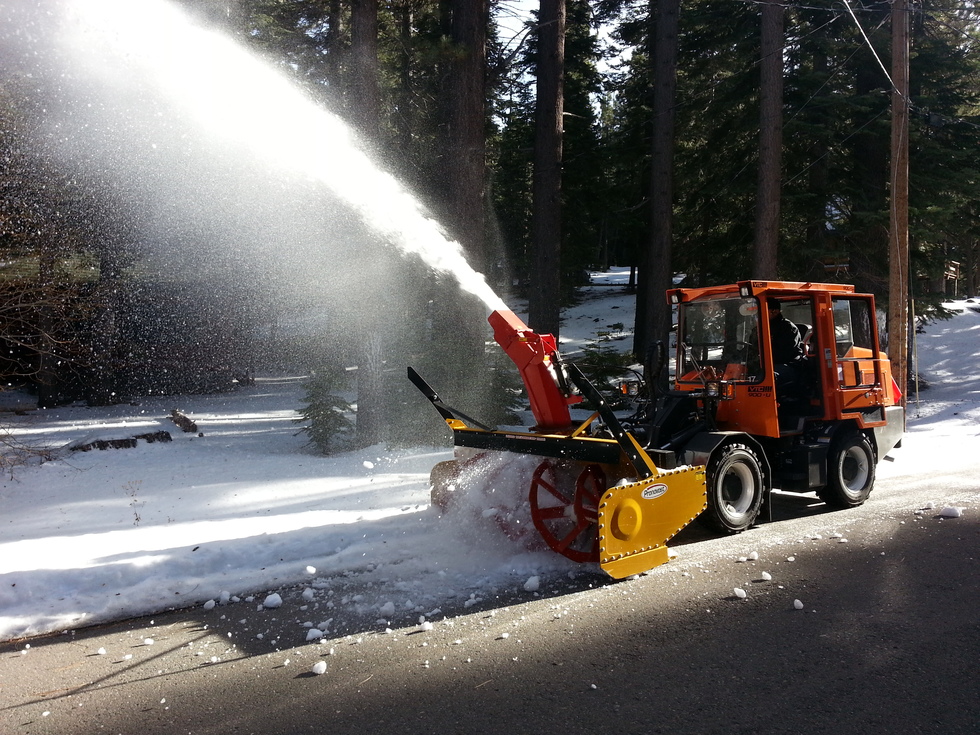

  • Pgs 740 G03

    Model PGS-740

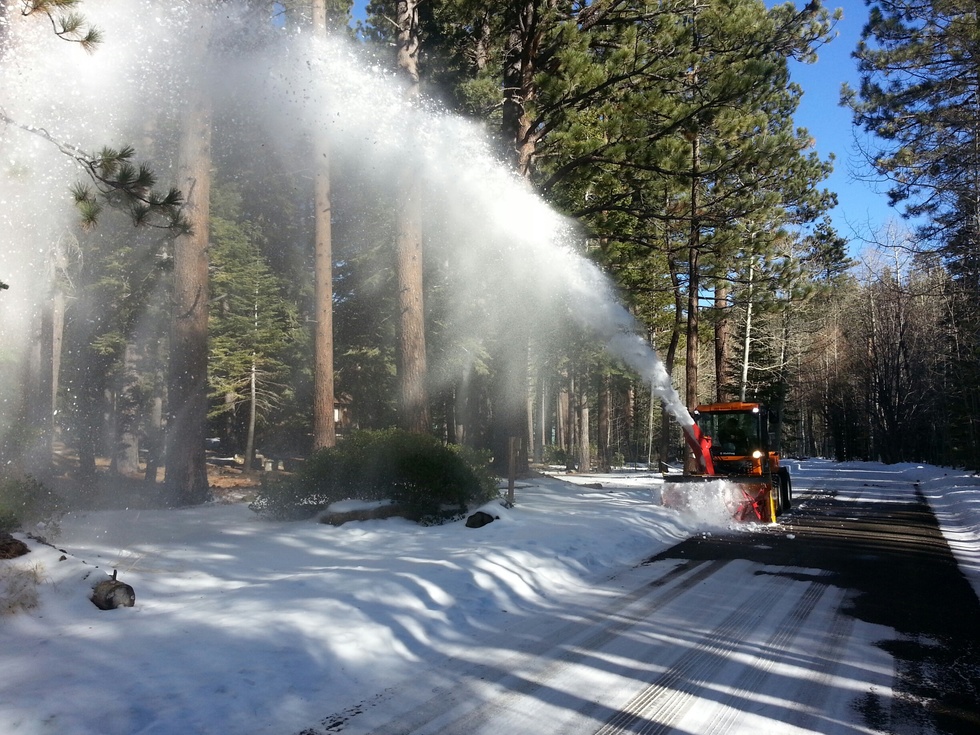

  • Pgs 740 G04

    Model PGS-740

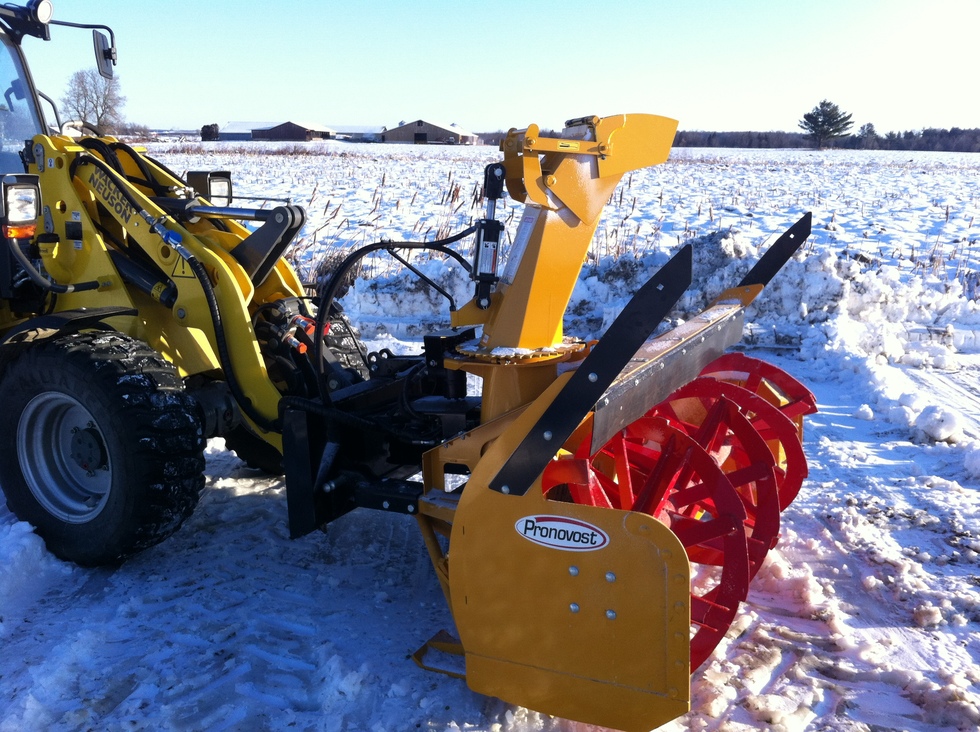

  • Pgs 740 G05

    Model PGS-740

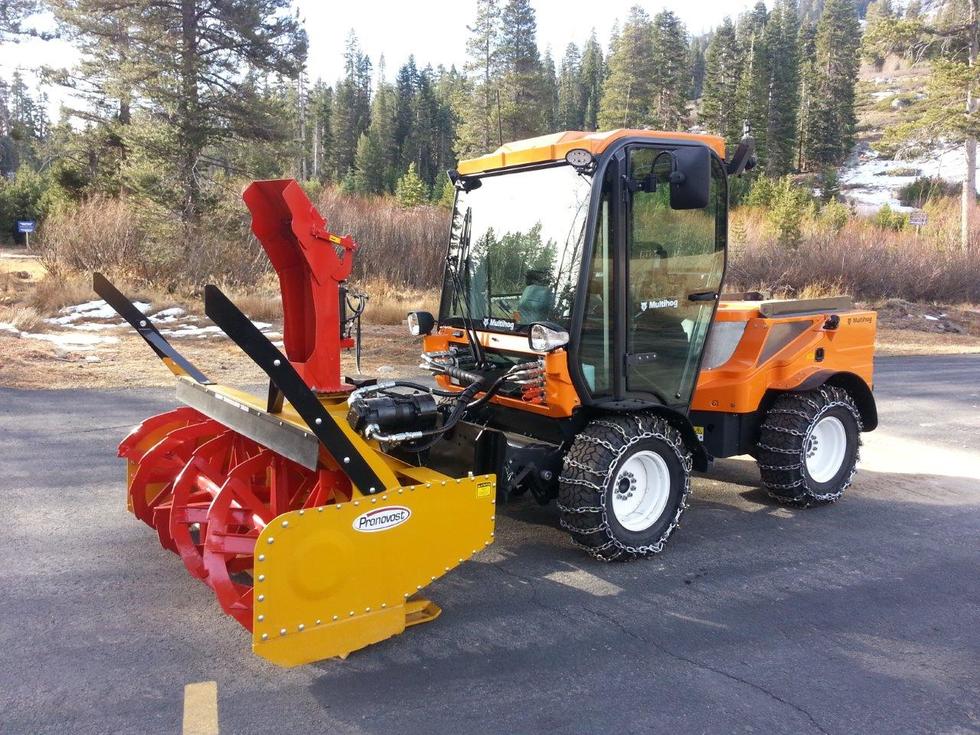

  • Pgs 740 G06

    Model PGS-740

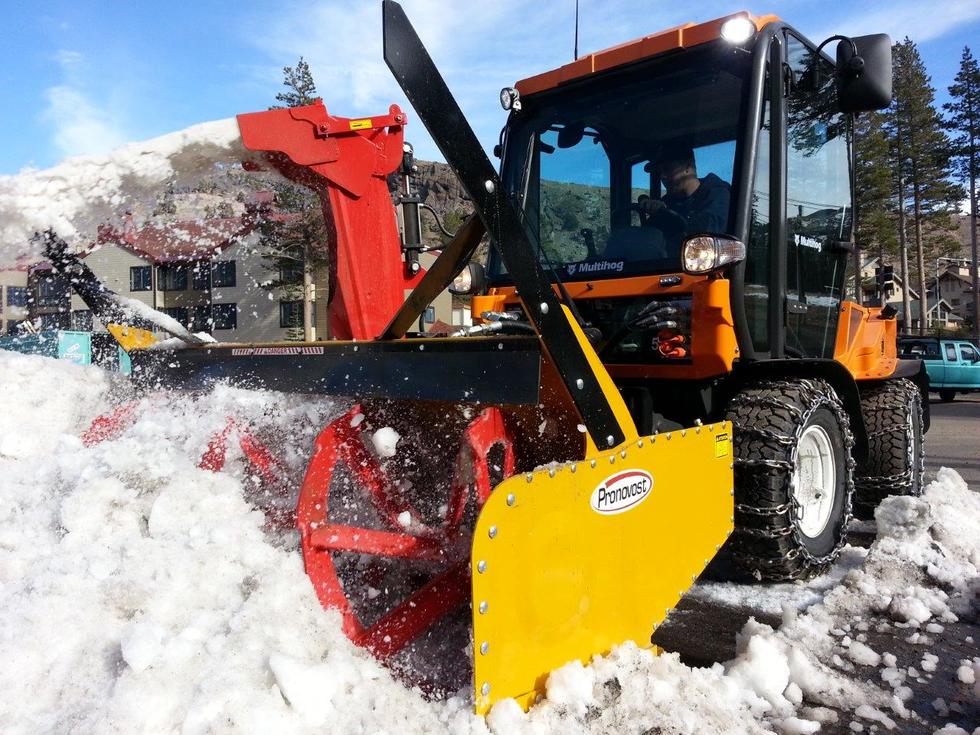

  • Pgs 740 G07

    Model PGS-740

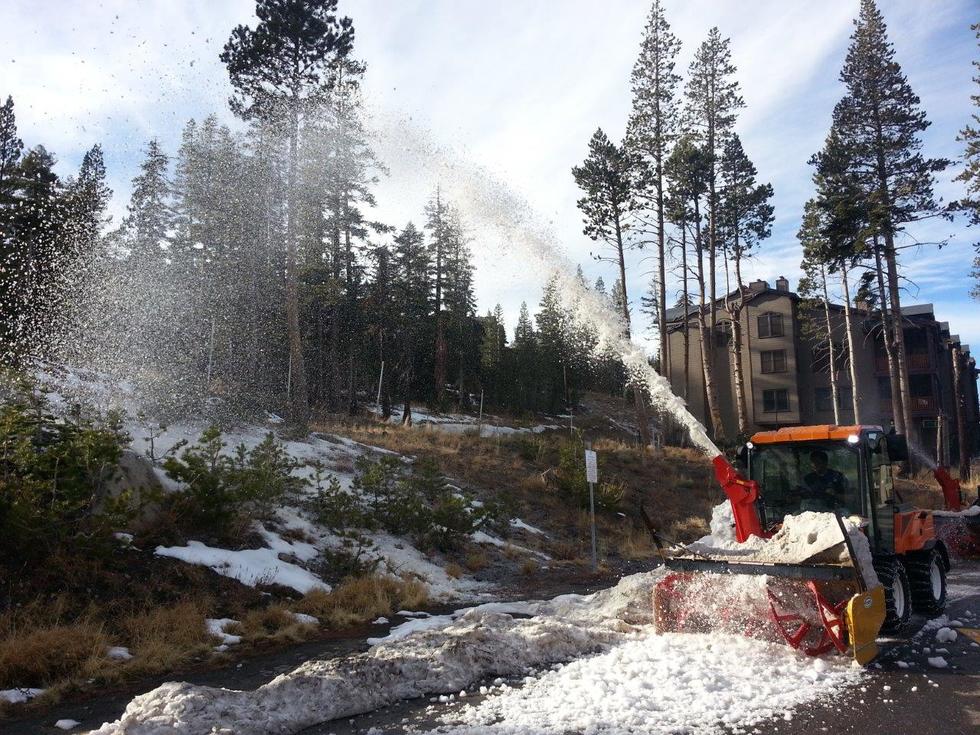

  • Pgs 740 G08

    Model PGS-740

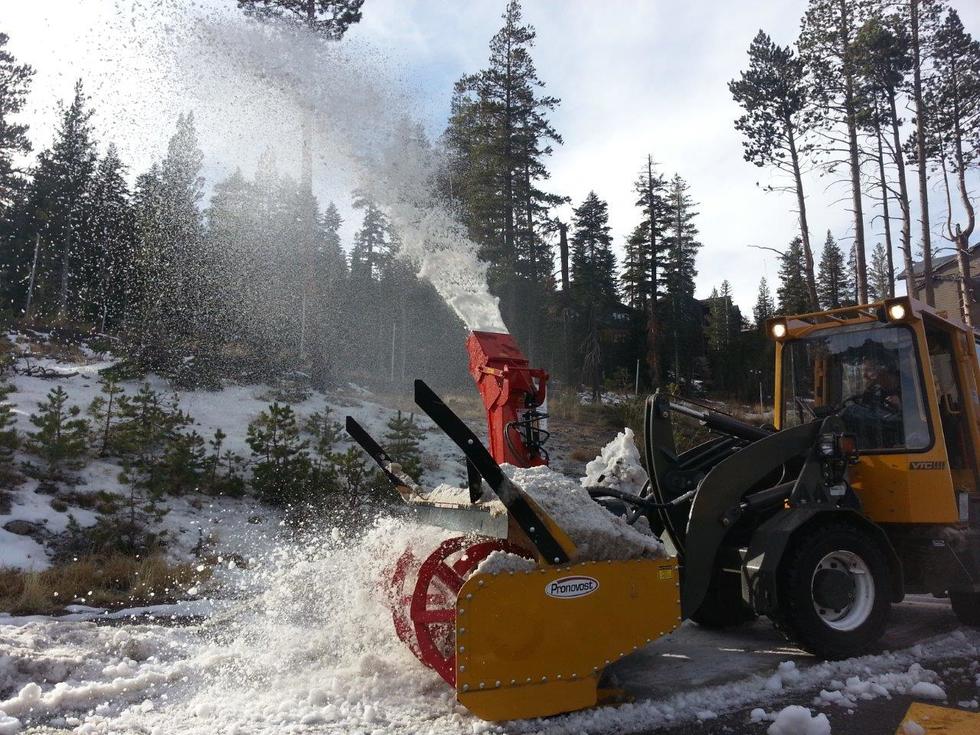

  • Pgs 740 G09

    Model PGS-740

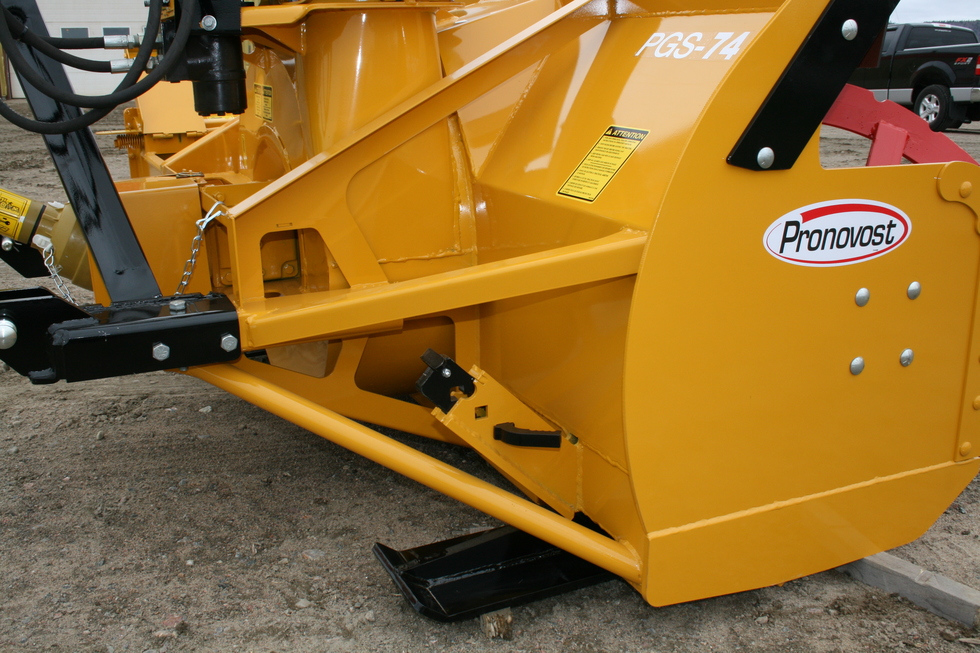

  • Pgs 740 G10
