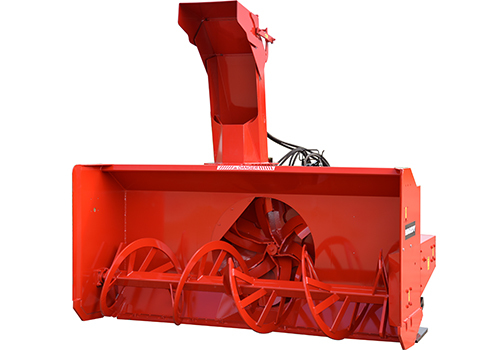

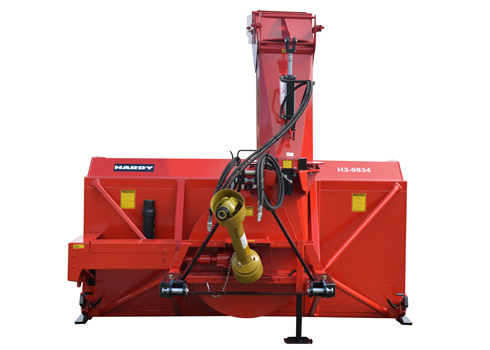

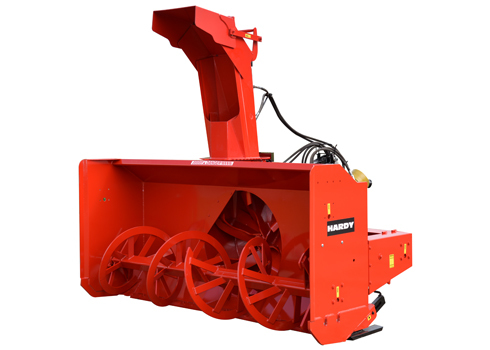

H3-9834 / H3-9834TRC
Working width |
98" / 2489 mm |
HP recommended |
100 to 150 HP PTO |
| Cutting height | 48" / 1219 mm |
| Drum diameter | 34" / 864 mm |
| Weight | Reg. : 2249 lbs / 1020 kg TRC : 2461 lbs / 1116 kg |
Options
CHOICE OF CHUTE
| Semi-industrial chute with greasable hinges, no access panel. | HSI-92104 |
CHOICE OF ADJUSTMENT FOR CHUTE DEFLECTOR
| Hydraulic cylinder (included) | 25TR08 |
|
TSB-74104 |
HYDRAULIC MOTOR FOR CHUTE ROTATION
| Hydraulic motor (included) | MLH-315-R |
HOSE KITS
PKB-GR3
PKB-GR3TRC
| Hose kit for basic functions. Includes hydraulic hoses connecting the tractor oil outlets to the deflector adjustment cylinder and the chute rotation motor. * Installation not included. | PKB-GR3 |
| Kit for TRC models, also includes hoses for drum rotation motor. * Installation not included. | PKB-GR3TRC |
UPPER AUGER 14" DIAMETER
| Upper auger 14" diameter, including accessories | VS2-980 |
SPEED REDUCER
PRH-30M-2
PRH-25M-2
PR3G200-2
| Speed reducer 1000/555 RPM - 220 HP at 1000 RPM - 3 gears - shafts 7 1/16" c/c | PRH-30M-2 |
| Drop box 1000/540 RPM. Two choices of input shafts : Reducer inverter 225 HP at 1000 RPM 2/3 gears - shafts 6 3/4" c/c or reducer only 175 HP at 1000 RPM 3/3 gears - shafts 8" c/c | PRH-25M-2 |
| Reducer 1000/555 (200 HP at 1000 RPM) 3 gears - 8" c/c | PR3G200-2 |
CHOICE OF POWER TAKE-OFF (PTO)
| T80 PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) | 9225 |
| T80 PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) | 9569 |
| T80 PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) | 9569-1 |
| V80 Multilobe PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) | 9225-V |
| V80 Multilobe PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) | 9569-V |
| T90 PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) | 9475 |
| T90 PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) | 9475-1 |
| T90 PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) | 9475-2 |
| V90 Multilobe PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) | 9598 |
| V90 Multilobe PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) | 9599 |
| V90 Multilobe PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) | 9604 |
HYDRAULIC MOTOR FOR ROTARY DRUM (TRC MODELS ONLY)
| Hydraulic motor (included on TRC model) | MLH-315-R |
Additional Information
HYDRAULIC DRIVEN
It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.
Contact your Pronovost dealer to obtain for your specific requirements.
HYDRAULIC WHEELS
Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.
- Practical to avoid blowing gravel.
- Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.
Contact your Pronovost dealer to obtain a quote for your specific requirements.
*Available only on a new snowblower made in production.
Complete specifications
| HP recommended (min. - max.) | 100 to 150 HP PTO |
| Working width | 98" / 2489 mm |
| Cutting height | 48" / 1219 mm |
| Hitch category | 2 - 34 1/2" / 876 mm c/c |

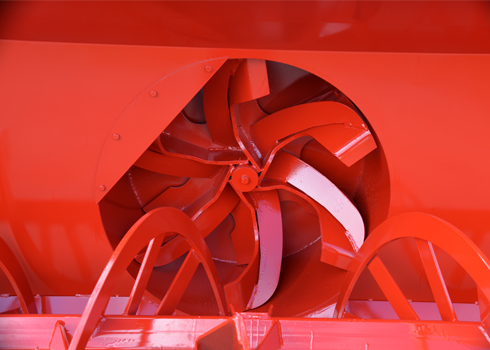

| Impeller diameter | 34" / 864 mm |
| Depth of drum | 15" / 381 mm |
| Impeller housing contour : High quality steel | Included |
| Number of impeller blades | 6 |
| Impeller shaft diameter | 2" / 51 mm |
| Height of impeller center | 21 1/2" / 546 mm |
| Rotor RPM | 540 RPM |
| Required RPM for the tractor PTO | 540 RPM Opt. 1000 RPM |
| Number of augers | 1 opt. 2 |
| Main auger diameter | 26" / 660 mm |
| Upper auger diameter | Opt. - 14" / 355 mm |
| Bearing / ductile iron housing | 1 1/2" / 38 mm |
| Drive chain - Main auger | 100 |
| Number of shear bolts | 1 for impeller + 1 for auger |
| Drum rotation for hydraulic motor (TRC only) | Std. |
| Reducer 1000/555 RPM - 220 HP at 1000 RPM - 3 gears - shafts 7 1/16" c/c | Opt. |
| Reducer 1000/555 RPM - 200 HP at 1000 RPM - 3 gears - shafts 8" c/c | Opt. |
| 1000/540 RPM drop box with two choices of input shafts | Opt. |
| Drive shaft included (optional) | T80 (V80 & T90 & V90) |
| Scraper blade - High quality steel | Included 1/2" x 4" reversible, not sharpened |
| Adjustable skid shoes - Quick adjustment high quality steel | Included |
| Chute - Semi-industrial with greasable hinges, no door | Included |
| Chute rotation system - Hydraulic motor kit (motor not included) | Included |
| Chute rotation maximum angle - Hydraulic motor rotation | 305° |
| Antifriction for chute | Included : ring |
| Deflector - Hydraulic cylinder | Included |
| Color | Included : Red |
| Storage support | Included |
| Weight including chute | 2249 lbs / 1020 kg |
| Weight including chute (TRC model) | 2461 lbs / 1116 kg |
Design and specifications subject to change without notice.
