H2-9228 / H2-9228TRC

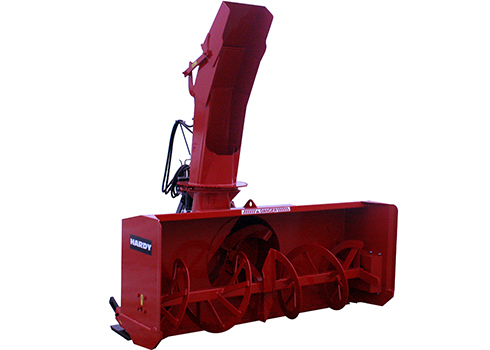

H2 8628

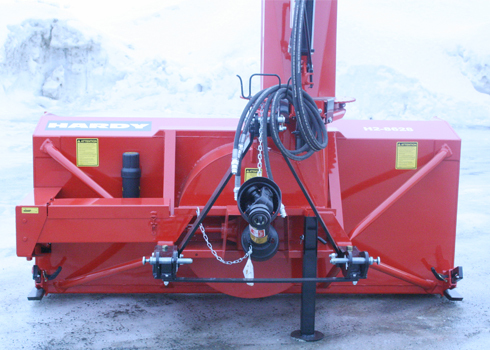

  1. H2 8628 A

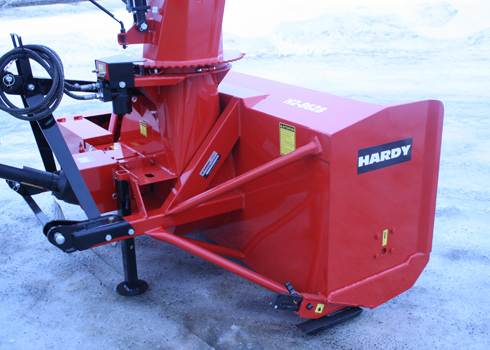

  2. H2 8628 B

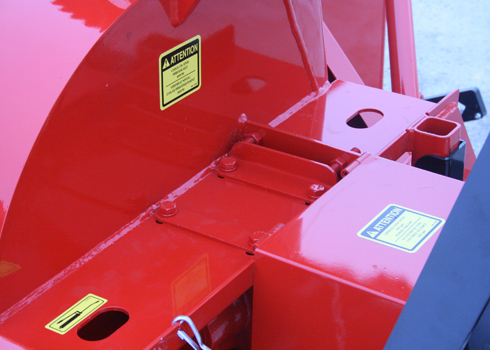

  3. H2 8628 C

Working width

92" / 2337 mm

HP recommended

50 to 80 HP PTO

Cutting height 36" / 914 mm
Drum diameter 28" / 711 mm
Weight Reg. : 1546 lbs / 701 kg TRC : 1684 lbs / 764 kg
Add to compare
Download the flyer

Options

CHOICE OF HYDRAULIC MOTOR FOR CHUTE ROTATION

Hydraulic motor for pump with less than 12 GPM (with cushion valve and unidirectional restrictors) MLH-250-R
Hydraulic motor for pump with more than 12 GPM (with cushion valve and unidirectional restrictors) MLH-315-R

POWER TAKE-OFF (PTO)

Pa

PA-08

Pav

PAV-08

Bigger PTO PA-08
Bigger PTO multilobe PAV-08

Other recommended products

Additional Information

HYDRAULIC DRIVEN

It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.

Contact your Pronovost dealer to obtain for your specific requirements.

Hyd2 Har

HYDRAULIC WHEELS

Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.

  • Practical to avoid blowing gravel.
  • Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

Roues Wheels 1 Har

Complete specifications

HP recommended (min. - max.) 50 to 80 HP PTO
Working width 92" / 2336 mm
Cutting height 36" / 914 mm
Hitch category 1 & 2
Impeller diameter 28" / 711 mm
Depth of drum 12" / 305 mm
Impeller housing contour : High quality steel Included
Number of impeller blades 4
Impeller shaft diameter 1 9/16" / 40 mm
Height of impeller center 17 1/2" / 444 mm
Rotor RPM 540 RPM
Required RPM for the tractor PTO 540 RPM Opt. 1000 RPM
Number of augers 1
Main auger diameter 23" / 584 mm
Bearing / ductile iron housing 1 1/4" / 32 mm
Drive chain - Main auger 80
Number of shear bolts 1 for impeller + 1 for auger
Drum rotation for hydraulic motor (TRC only) Std.
Reducer 1000/540 RPM - 150 HP at 1000 RPM - Renold triple chain - shafts 8" c/c Opt.
Drive shaft included (optional) T60 (T80 & V80)
Scraper blade - High quality steel Included 1/2" x 4" reversible, not sharpened
Adjustable skid shoes - Quick adjustment high quality steel Included
Chute - Semi-industrial with greasable hinges, no door Included
Chute rotation system - Hydraulic motor kit (motor not included) Included
Chute rotation maximum angle - Hydraulic motor rotation 305°
Antifriction for chute Included : ring
Deflector - Hydraulic cylinder Included
Color Included : Red
Storage support Included
Weight Reg. : 1546 lbs / 701 kg TRC : 1684 lbs / 764 kg
Weight including chute 1546 lbs / 701 kg
Weight including chute (TRC model) 1684 lbs / 764 kg

Design and specifications subject to change without notice.

Videos

No video for this product

Photo gallery

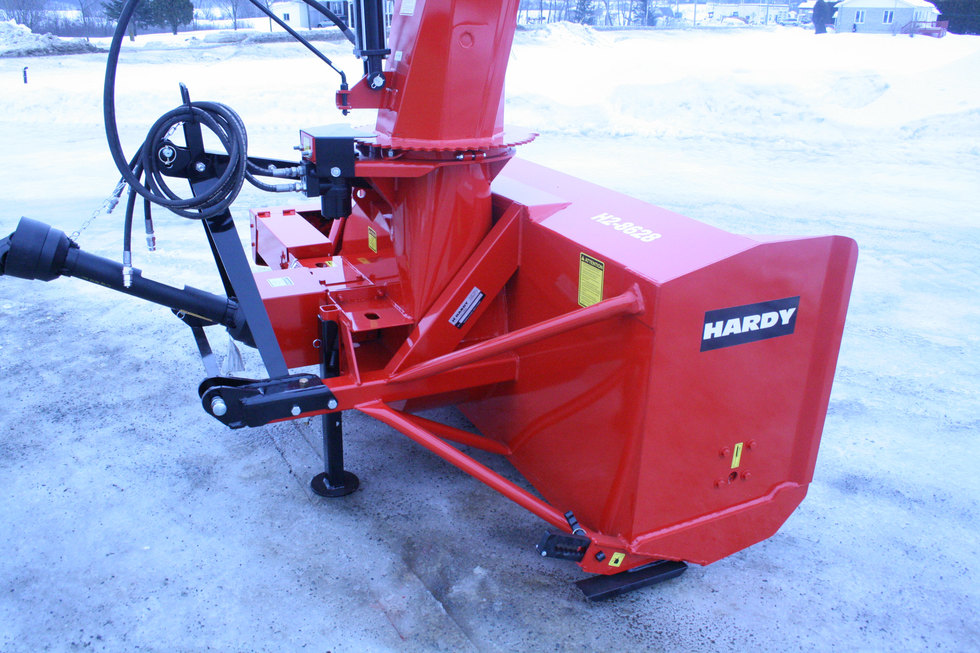

  • H2 8628 G01

    Model H2-8628

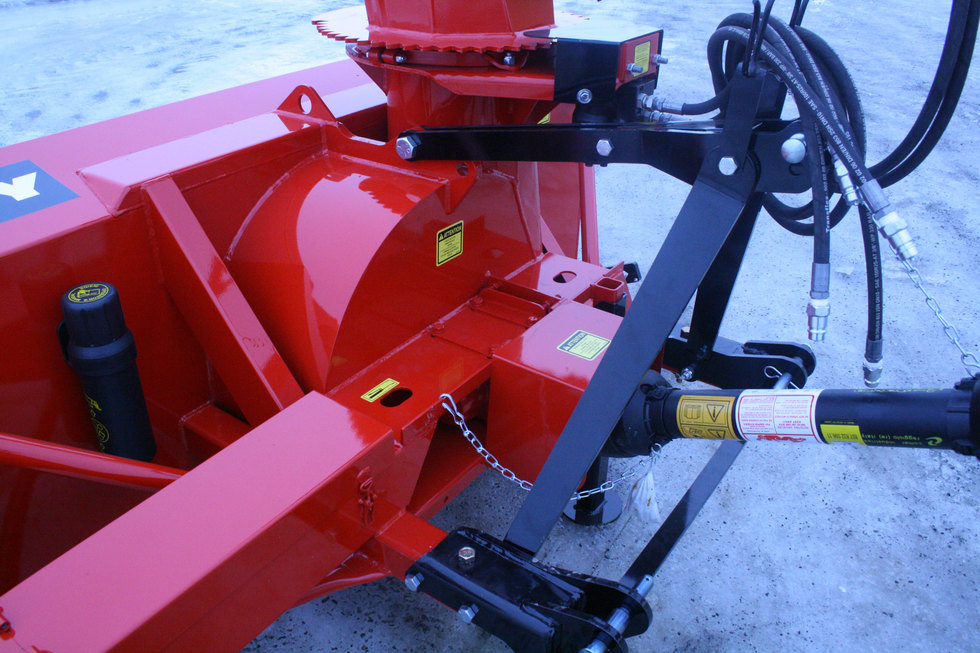

  • H2 8628 G02

    Model H2-8628

  • H2 8628 G01
  • H2 8628 G02
