H1-5422
Working width |
54" / 1371 mm |
HP recommended |
18 to 25 HP PTO |
| Cutting height | 28" / 711 mm |
| Drum diameter | 22" / 559 mm |
| Weight | 635 lbs / 288 kg |
Options
CHOICE OF CHUTE
| Semi-industrial chute with greasable hinges, no access panel. | HSI-5472 |
CHOICE OF ADJUSTMENT FOR CHUTE DEFLECTOR
| Hydraulic cylinder (included) | 25TR04 |
|
TSB-4864 |
| Manual telescopic tube | T-4864 |
HOSE KITS
PKB-GR1
| Hose kit for basic functions. Includes hydraulic hoses connecting the tractor oil outlets to the deflector adjustment cylinder and the chute rotation motor. * Installation not included. | PKB-GR1 |
SPEED ACCELERATOR
PACC-5462
| Accelerator 540/756 (45 HP) | PACC-5462 |
Additional Information
HYDRAULIC DRIVEN
It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.
Contact your Pronovost dealer to obtain for your specific requirements.
HYDRAULIC WHEELS
Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.
- Practical to avoid blowing gravel.
- Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.
Contact your Pronovost dealer to obtain a quote for your specific requirements.
*Available only on a new snowblower made in production.
Complete specifications
| HP recommended (min. - max.) | 18 to 25 HP PTO |
| Working width | 54" / 1372 mm |
| Cutting height | 28" / 711 mm |
| Hitch category | 1 |
| Impeller diameter | 22" / 559 mm |
| Depth of drum | 9" / 229 mm |
| Impeller housing contour : High quality steel | Included |
| Number of impeller blades | 4 |
| Impeller shaft diameter | 1 1/4" / 32 mm |
| Height of impeller center | 14" / 356 mm |
| Rotor RPM | 540 RPM |
| Required RPM for the tractor PTO | 540 RPM |
| Number of augers | 1 |
| Main auger diameter | 16" / 406 mm |
| Bearing / ductile iron housing | 1" / 25 mm |
| Drive chain - Main auger | 50 |
| Number of shear bolts | 1 for impeller + 1 for auger |
| Accelerator | Opt. 540/756 RPM 25 HP |
| Drive shaft included (optional) | T20 |
| Scraper blade - High quality steel | Included 3/8" x 3" not reversible, not sharpened |
| Adjustable skid shoes - Quick adjustment high quality steel | Included |
| Chute - Semi-industrial with greasable hinges, no door | Included |
| Chute rotation system - Hydraulic motor kit (motor not included) | Inclus |
| Chute rotation maximum angle - Hydraulic motor rotation | 195° to 335° adjustable |
| Antifriction for chute | Included : ring |
| Deflector - Hydraulic cylinder | Included |
| Color | Included : Red |
| Storage support | Included |
| Weight including chute | 635 lbs / 288 kg |
Design and specification subject to change without notice.
Videos
No video for this product
Photo gallery
-

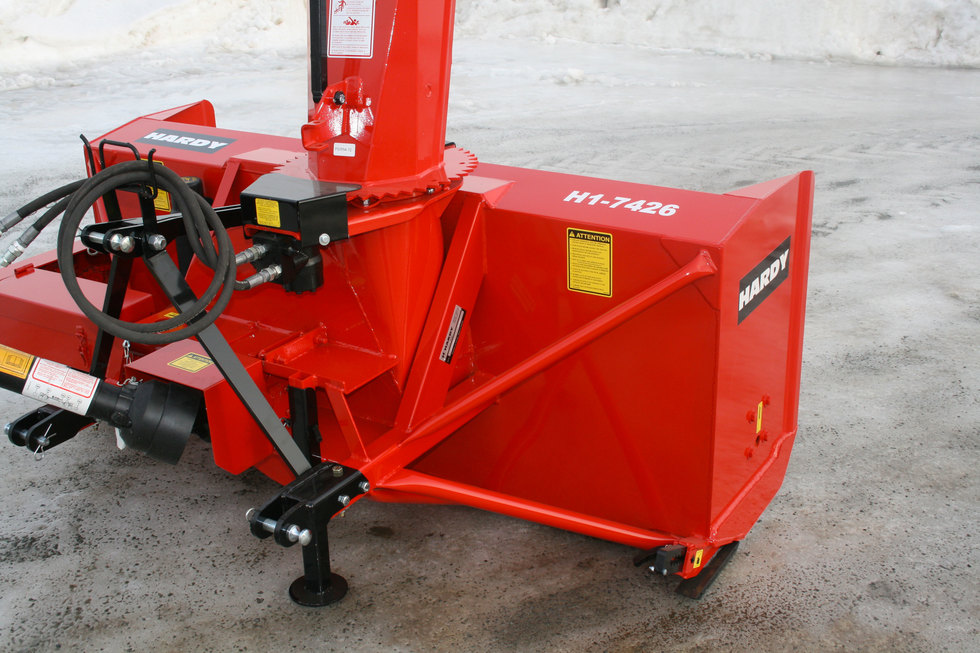

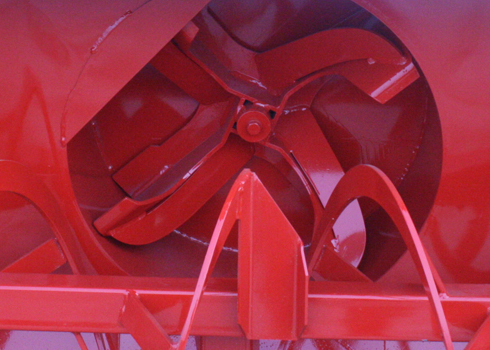

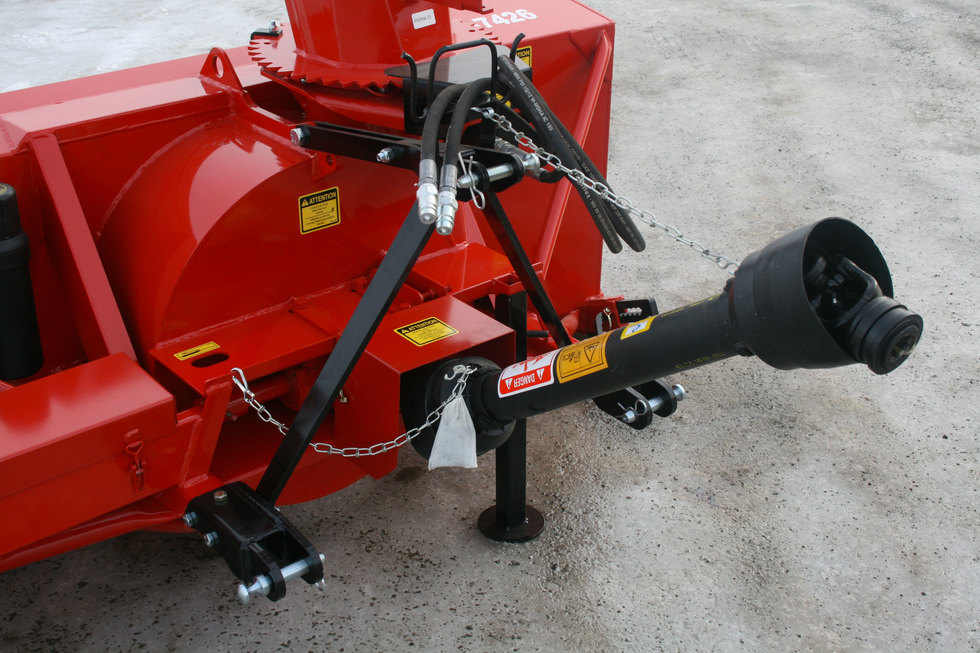

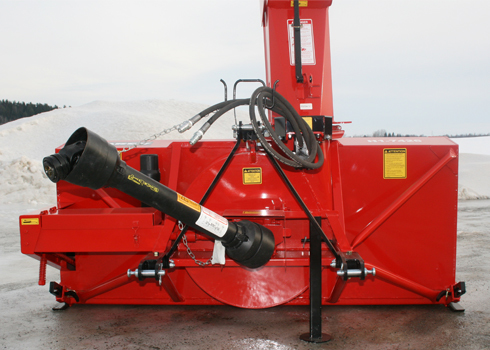

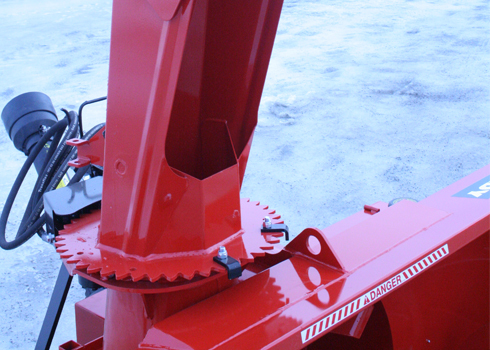

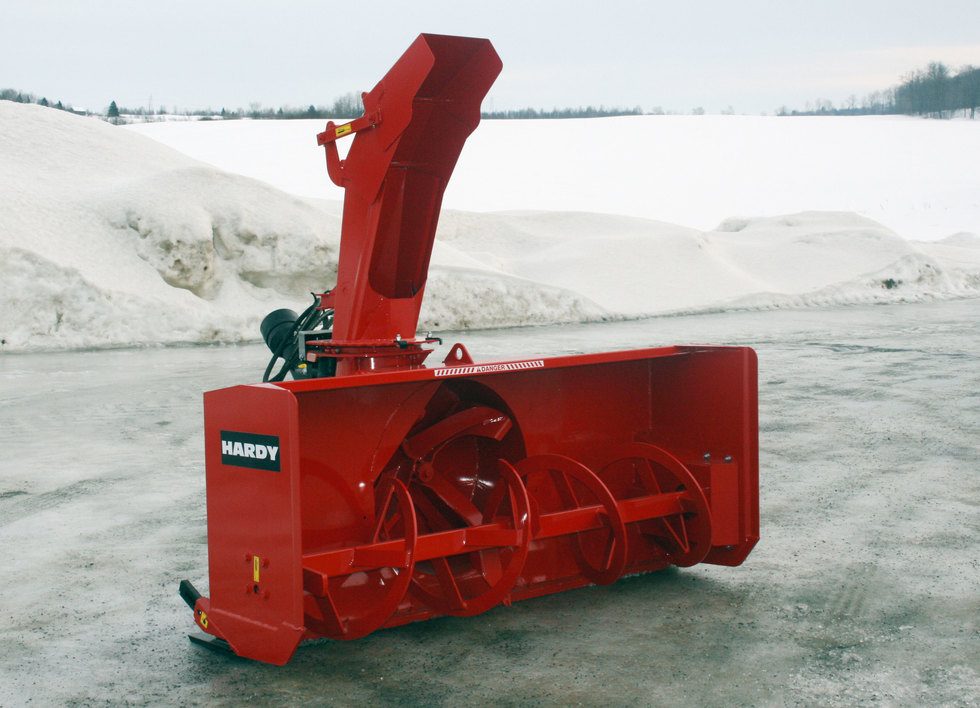

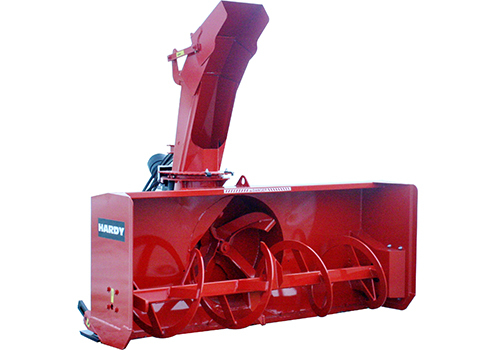

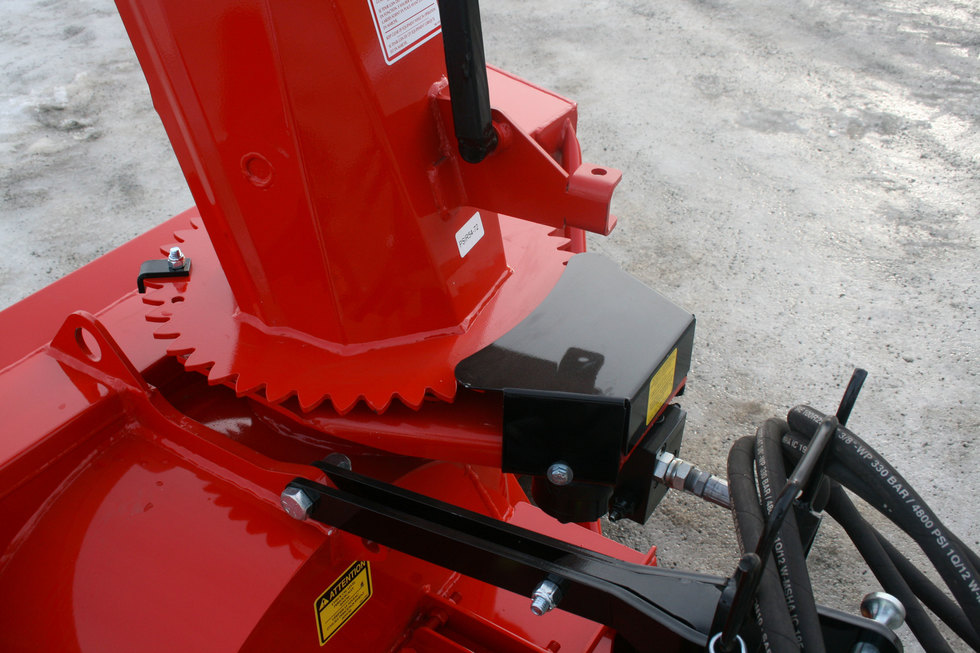

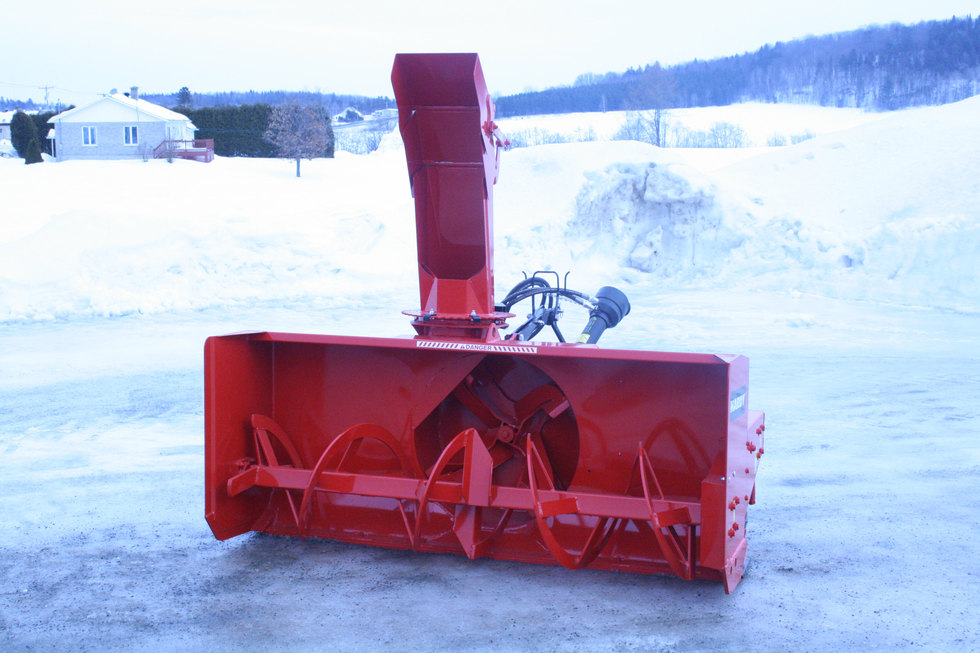

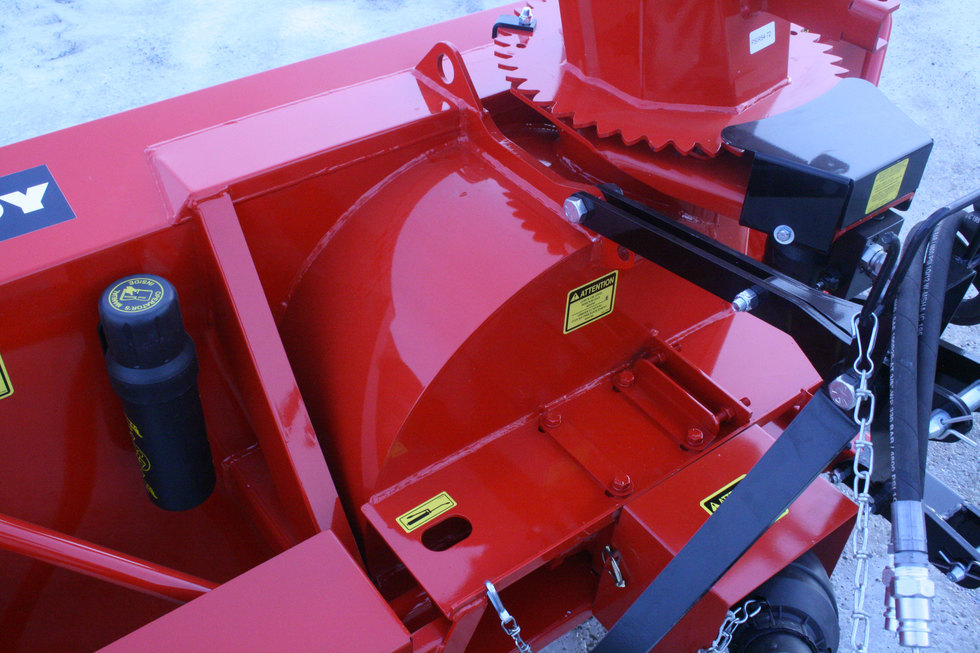

Model H1-7426
-
Model H1-7426
-
Model H1-7426
-
Model H1-7426
-
Model H1-7426
-
Model H1-7426
