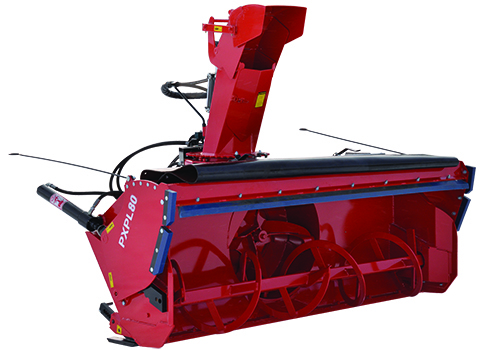

PXPL-80

Pxpl 80

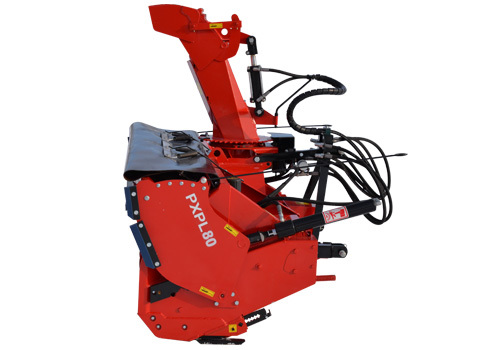

  1. Pxpl 80 A

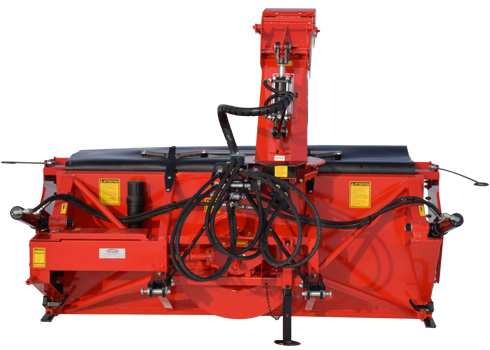

  2. Pxpl 80 B

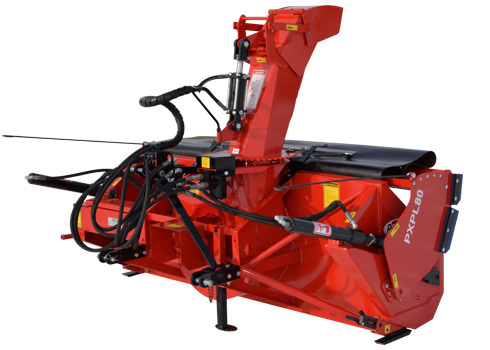

  3. Pxpl 80 C

Working width

80" / 2032 mm

HP recommended

40 to 55 HP PTO

Cutting height 28" / 711 mm
Drum diameter 26" / 660 mm
Weight 1220 lbs / 553 kg
Add to compare
Download the flyer

Options

CHOICE OF CHUTE

Psig 5472

PSIG-5472

Pc3 C Gr1.5

PC3C-GR1

Semi-industrial chute with greasable hinges and access panel (removable) PSIG-5472
3-Deflector semi-industrial chute with greasable hinges and removable access panel. PC3C-GR1

CHOICE OF ADJUSTMENT FOR CHUTE DEFLECTOR

Hydraulic cylinder (included) 25TR04
  • Hose support for deflector cylinder
TSB-4864
Manual telescopic tube T-4864

HYDRAULIC MOTOR FOR CHUTE ROTATION

Hydraulic motor (included) MLH-250-R

HOSE KITS

Pkb

PKB-PXPL-80

Hose kit for basic functions. Includes hydraulic hoses connecting the tractor oil outlets to the deflector adjustment cylinder, the hydraulic system controlling the blade and the chute rotation motor. Installation not included. PKB-PXPL-80

SCRAPER BLADE

Sit1gr2

SIT1-XP80

T Vgr2

TV-XP80

Ss Tgr2

SST-XP80

Semi-industrial scraper blade, carbon steel 450, reversible, 1/2" x 3", not sharpened SIT1-XP80
Tivar scraper blade including mounting kit TV-XP80
Stainless Steel scraper blade SST-XP80

SKID SHOES

Phd

PHD-4872

Pst

PST-4872

Industrial skid shoes with Hardox 450 soles PHD-4872
Skid shoes with stainless steel soles PST-4872

X-PRO BLADE OPTIONS

Pxplhdst

PXPLHD-80

Tivar Pxpl

PXPLTV-80

Pxplhdst

PXPLST-80

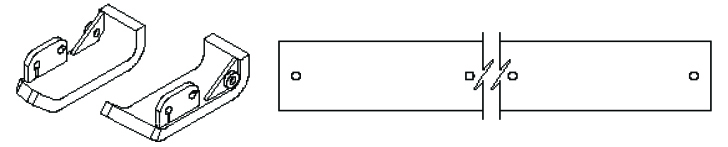

Carbon Steel 450 scraper blade and skid shoes for PXPL Snowblower PXPLHD-80

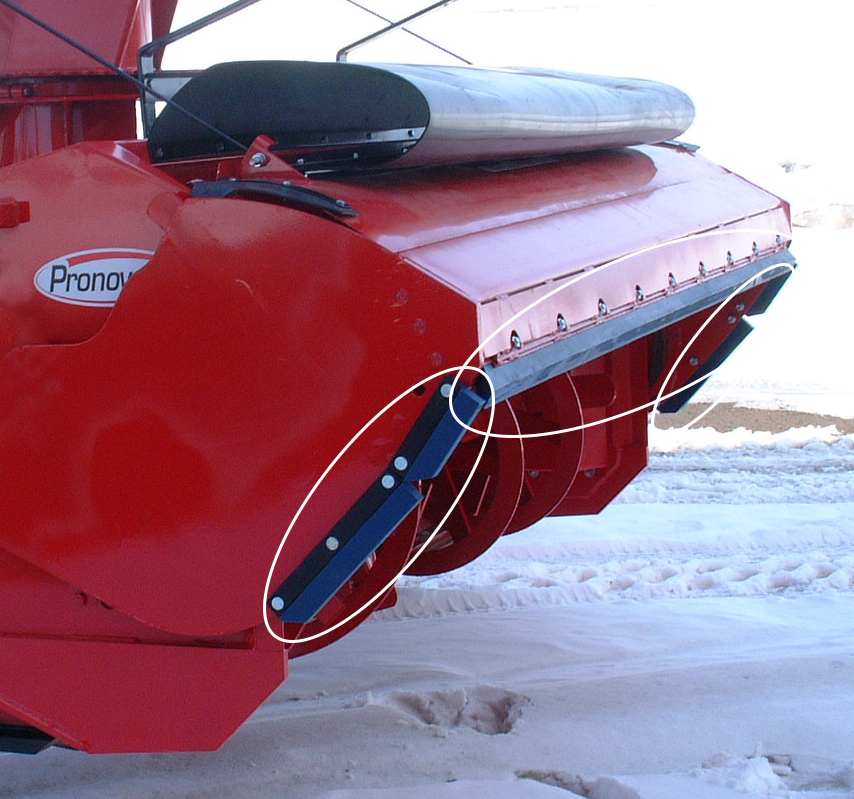

Tivar scraper blade and skid shoes for PXPL Snowblower PXPLTV-80
Stainless Steel scraper blade and skid shoes for PXPL Snowblower PXPLST-80

CHOICE OF COLORS

Red PRONOVOST
Blue PX-02
Orange PX-04
Yellow INDUSTRIAL PX-06
Green PX-07
Black PX-10

Other recommended products

Additional Information

HYDRAULIC DRIVEN

It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

Hyd22

HYDRAULIC WHEELS

Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.

  • Practical to avoid blowing gravel.
  • Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

*Available only on a new snowblower made in production.

Roues Wheels 2

Complete specifications

HP recommended (min. - max.) 40 to 55 HP PTO
Working width 80" / 2032 mm
Working width with X-PRO blade 82" / 2083 mm
Cutting height 28" / 711 mm
Cutting height with X-PRO blade 6" / 152 mm
Hitch category 1 - 28 5/8" / 727 mm c/c
Impeller diameter 26" / 660 mm
Depth of drum 10 1/2" / 267 mm
Impeller housing contour : High quality steel Included
Number of impeller blades 4
Impeller shaft diameter 1 9/16" / 40 mm
Height of impeller center 16 1/2" / 419 mm
Rotor RPM 540 RPM
Required RPM for the tractor PTO 540 RPM
Number of augers 1
Main auger diameter 16" / 406 mm
Bearing / ductile iron housing 1" / 25 mm
Drive chain - Main auger 50
Number of shear bolts 1 for impeller + 1 for auger
Drive shaft included (optional) T50
Scraper blade - High quality steel Included 1/2" x 4" not reversible, not sharpened
Scraper blade - Semi-industrial made of Hardox 450 Opt. 3/8" x 2 1/2" not reversible, not sharpened
Scraper blade - Tivar Opt. 1" thickness, not reversible, not sharpened
Scraper blade - Stainless steel Opt. 1/2" x 2 1/2" not reversible, not sharpened
Adjustable skid shoes - Quick adjustment high quality steel Included
Adjustable skid shoes - Quick adjustment Hardox 450 Opt.
Adjustable skid shoes - Quick adjustment stainless steel Opt.
Blade and skid shoes on X-PRO blade - High quality steel Inclus
Blade and skid shoes on X-PRO blade - Hardox 450 Opt.
Blade and skid shoes on X-PRO blade - Tivar Opt.
Blade and skid shoes on X-PRO blade - Stainless steel Opt.
Chute - Semi-industrial with greasable hinges and removable access panel Opt.
Chute rotation system - Hydraulic motor kit (motor not included) Inclus
Chute rotation maximum angle - Hydraulic motor rotation 270° à 335° adjustable
Antifriction for chute Included : ring
Deflector - Manual Opt.
Deflector - Hydraulic cylinder Opt.
Color Included : Red Pronovost Opt. : Choice of 5 colors
Storage support Included
Weight including chute 1220 lbs / 553 kg

Design and specifications subject to change without notice.

Videos

Photo gallery

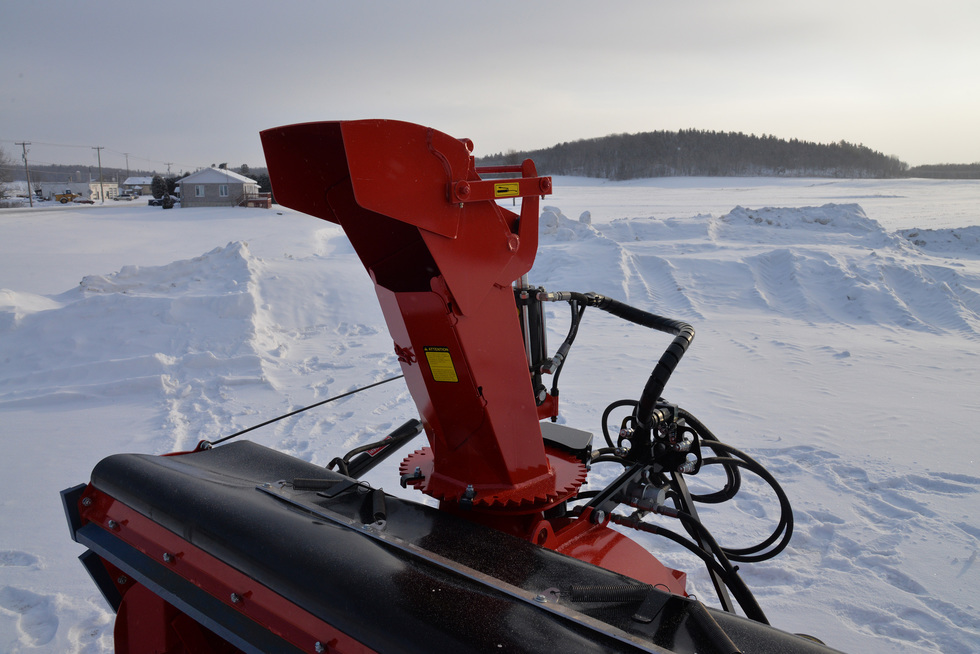

  • Pxpl 80 G4

    Model PXPL-80

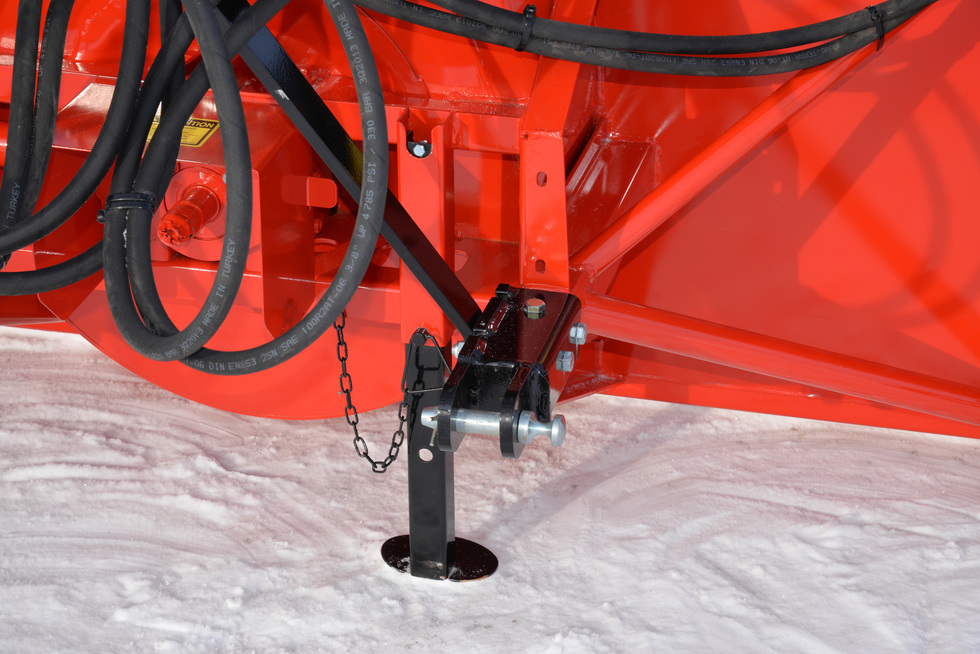

  • Pxpl 80 G3

    Model PXPL-80

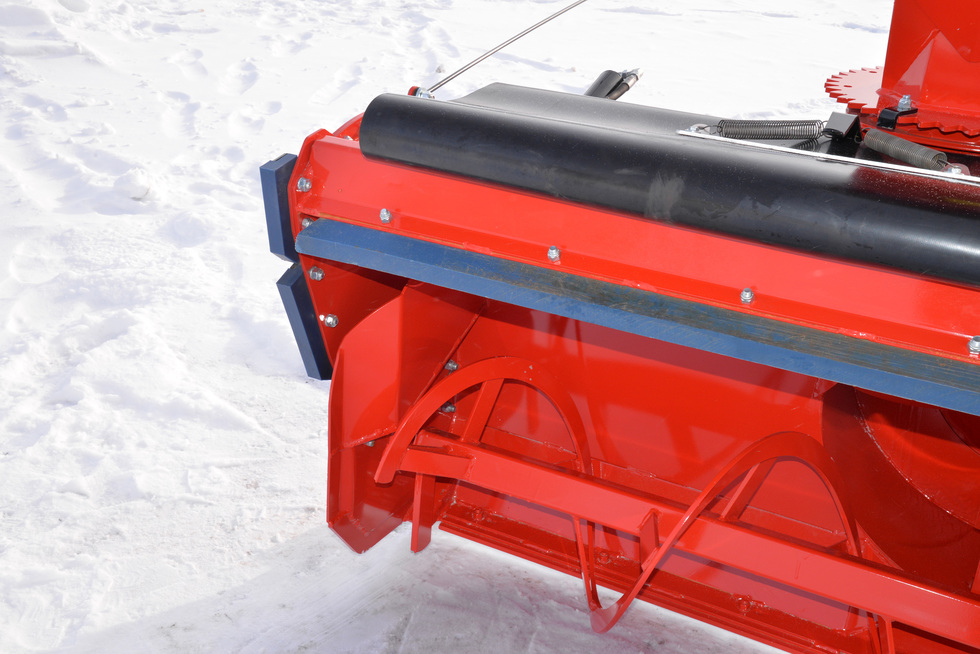

  • Pxpl 80 G2

    Model PXPL-80

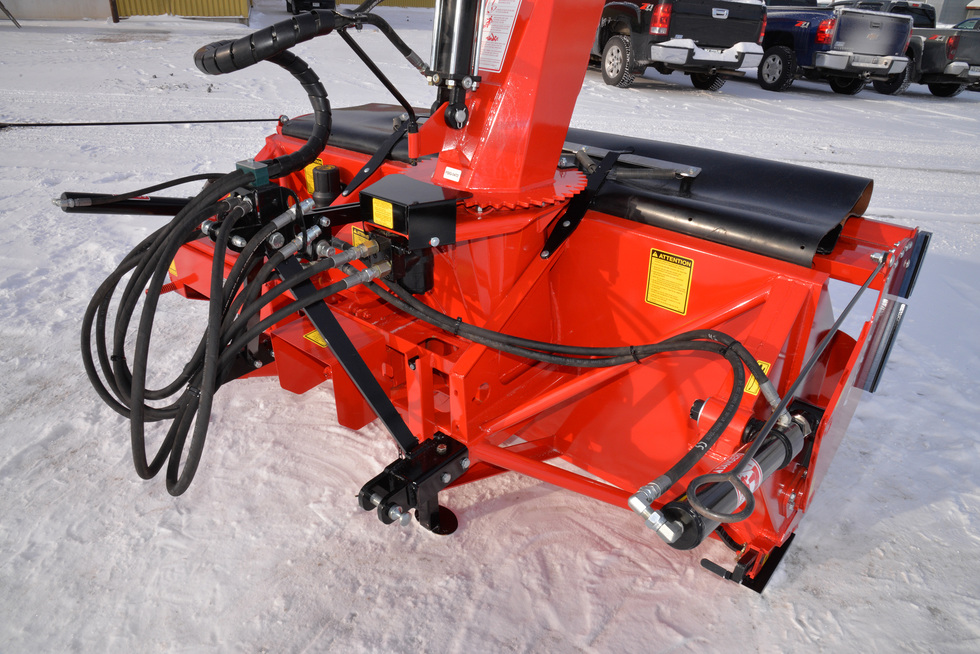

  • Pxpl 80 G1

    Model PXPL-80

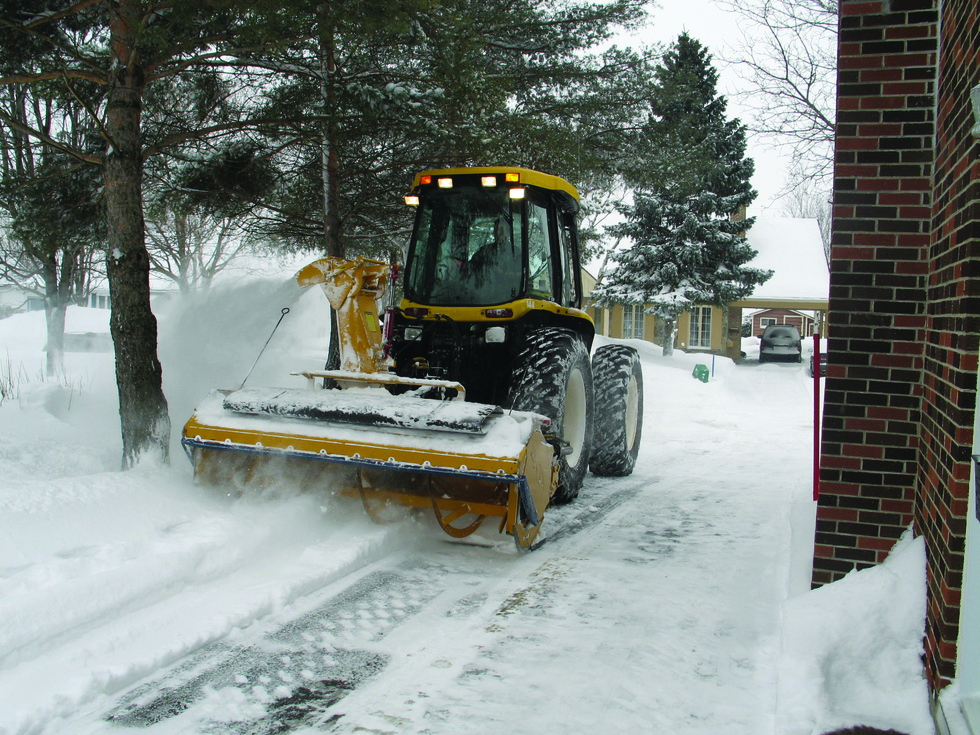

  • Pxpl G02

    PXPL snowblower

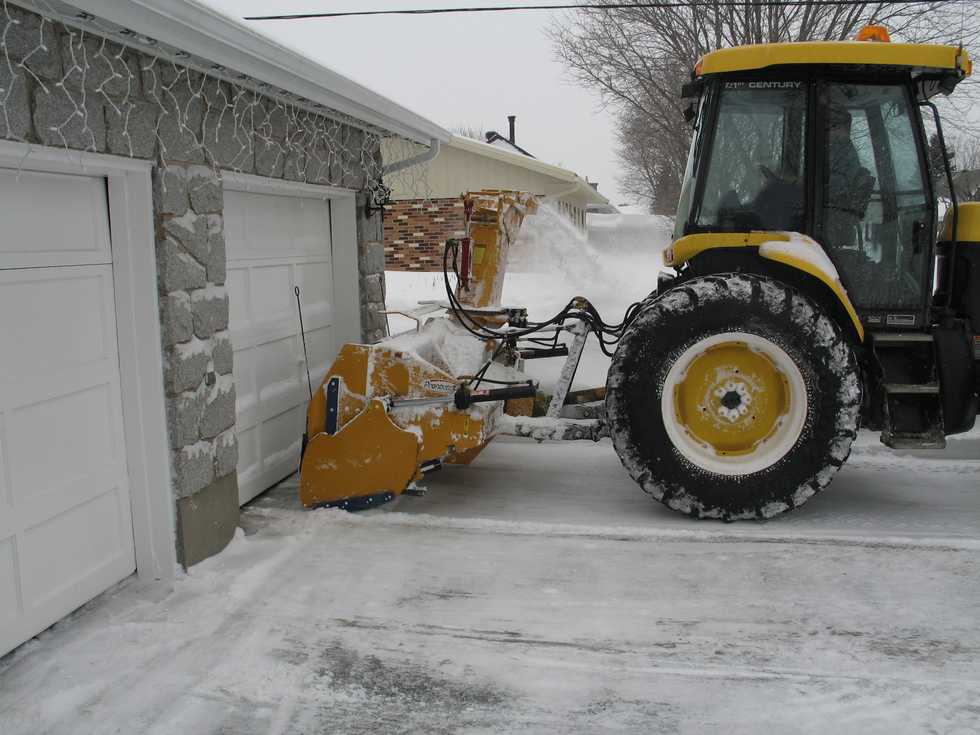

  • Pxpl G10

    PXPL snowblower

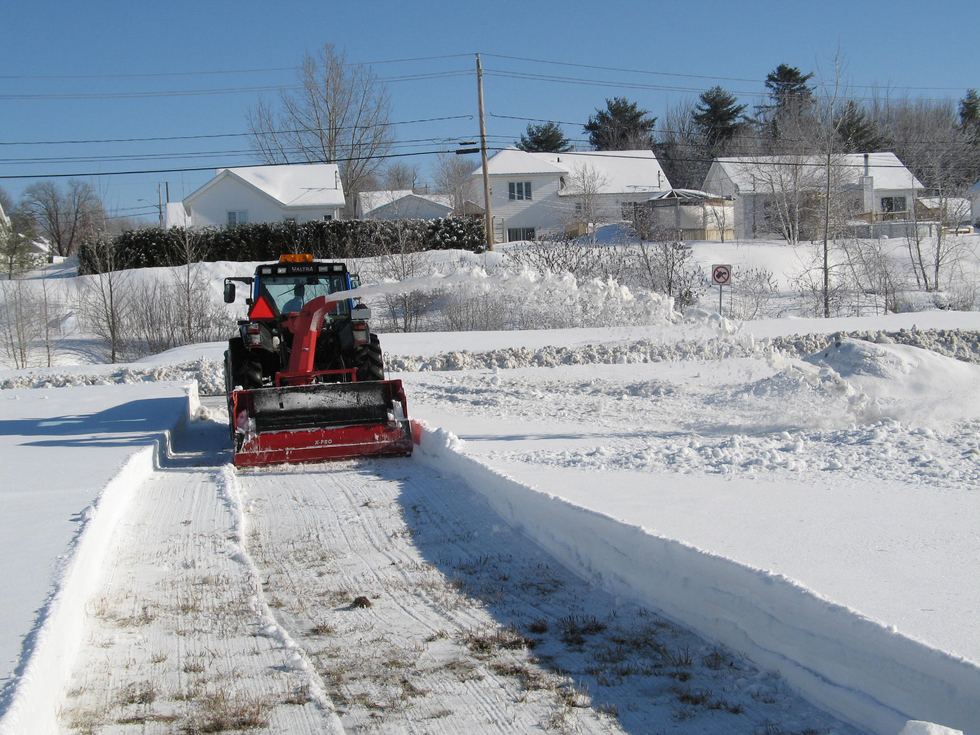

  • Pxpl 86 G06

    Model PXPL-86

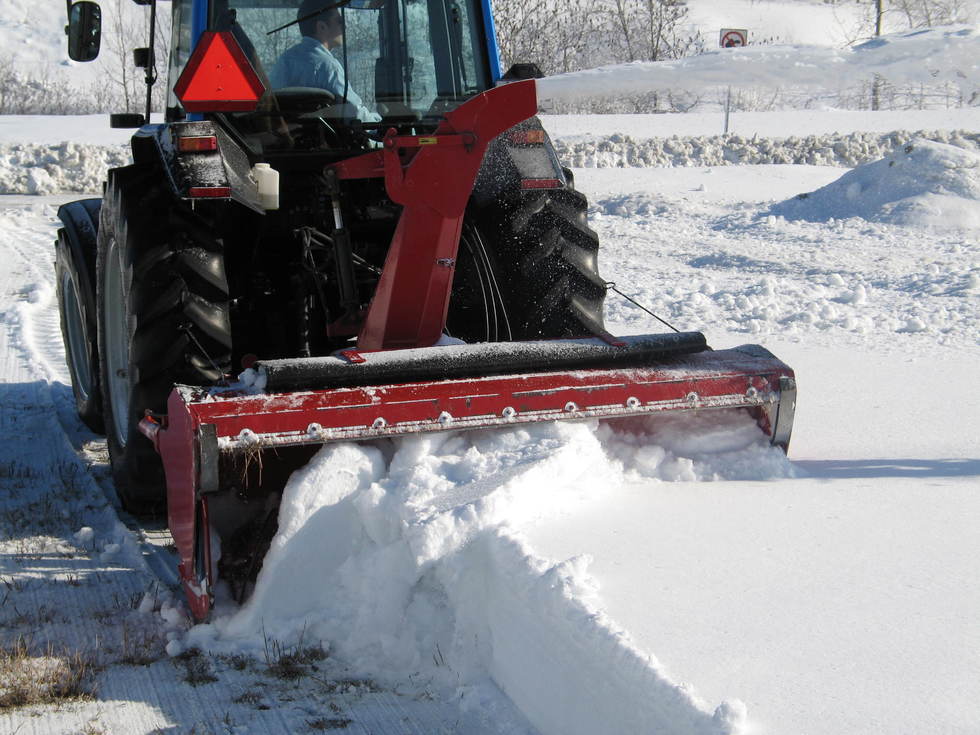

  • Pxpl 86 G09

    Model PXPL-86

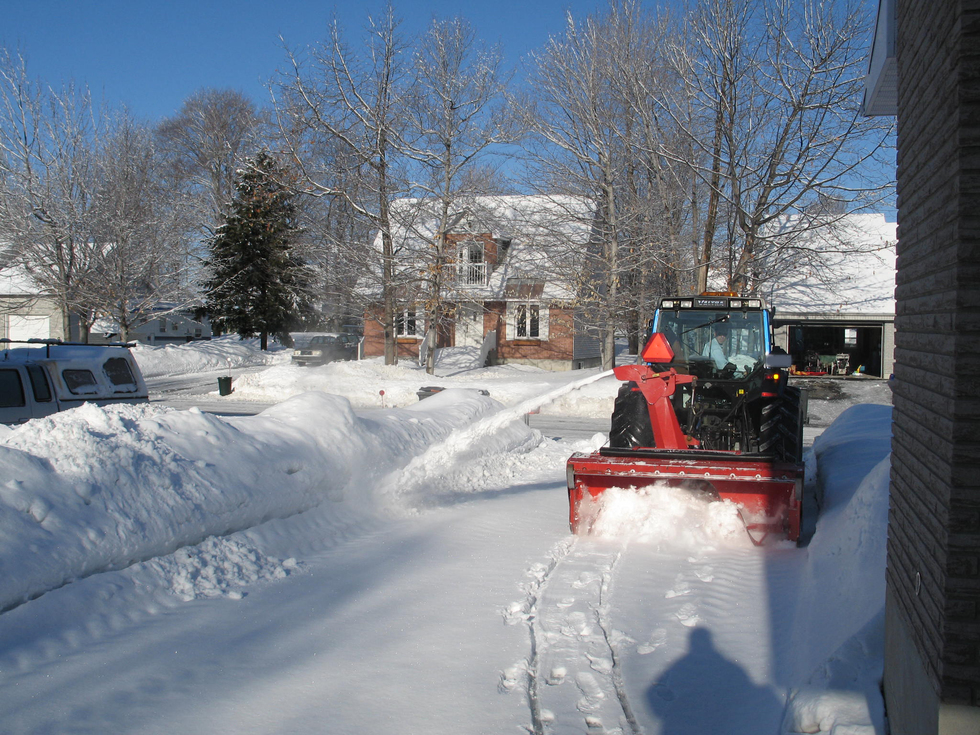

  • Pxpl 86 G11

    Model PXPL-86

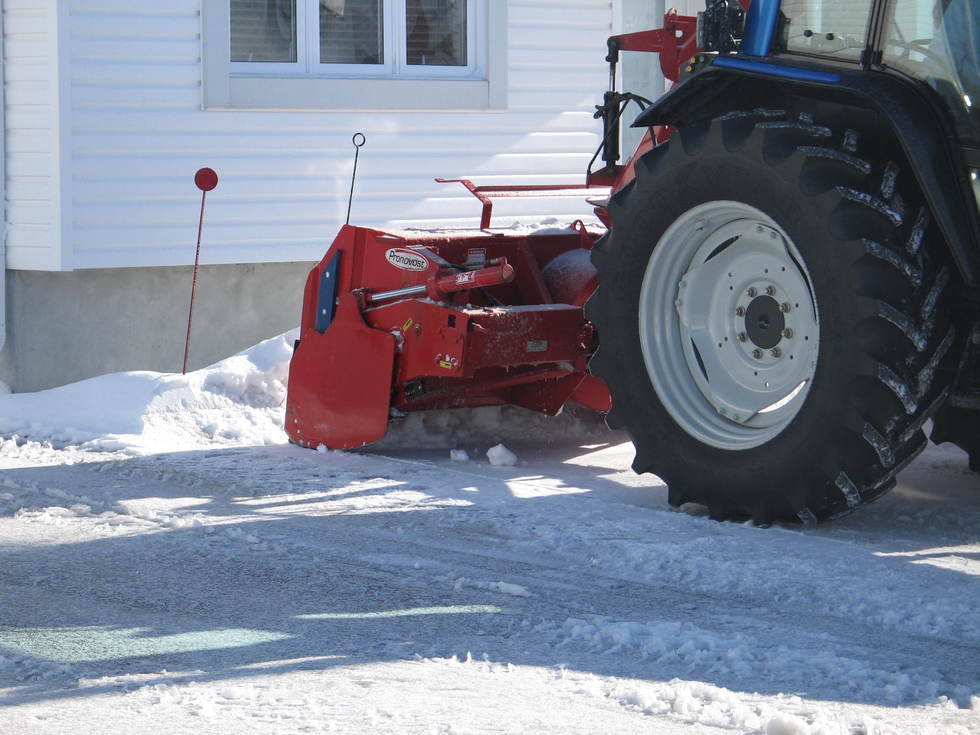

  • Pxpl 86 G12

    Model PXPL-86

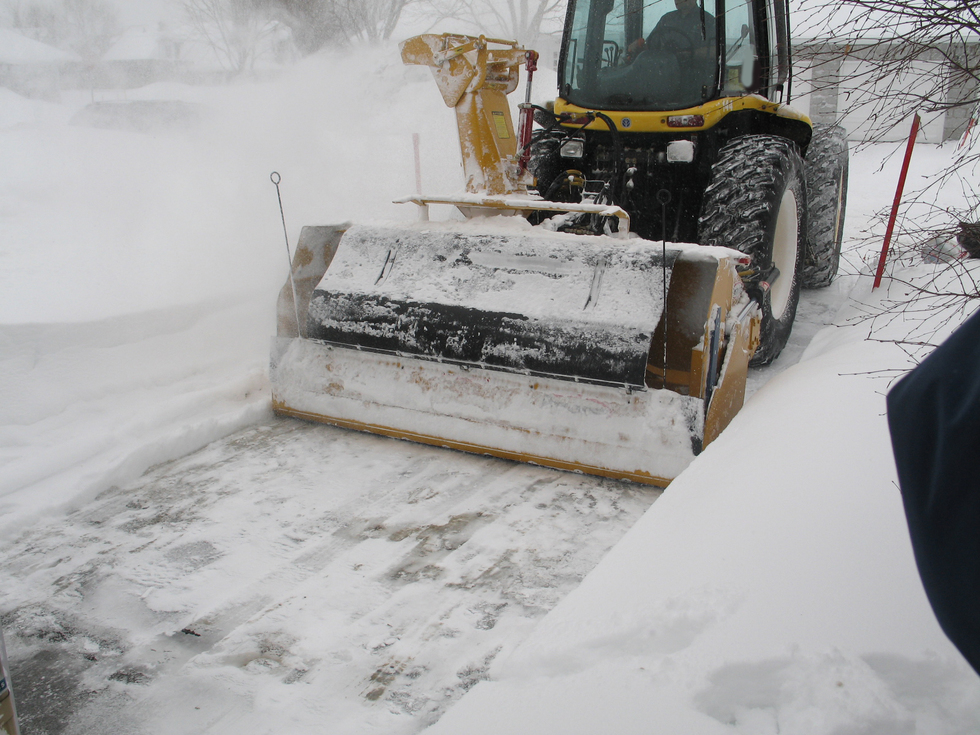

  • Pxpl 86 92 G07

    Model PXPL-86-92

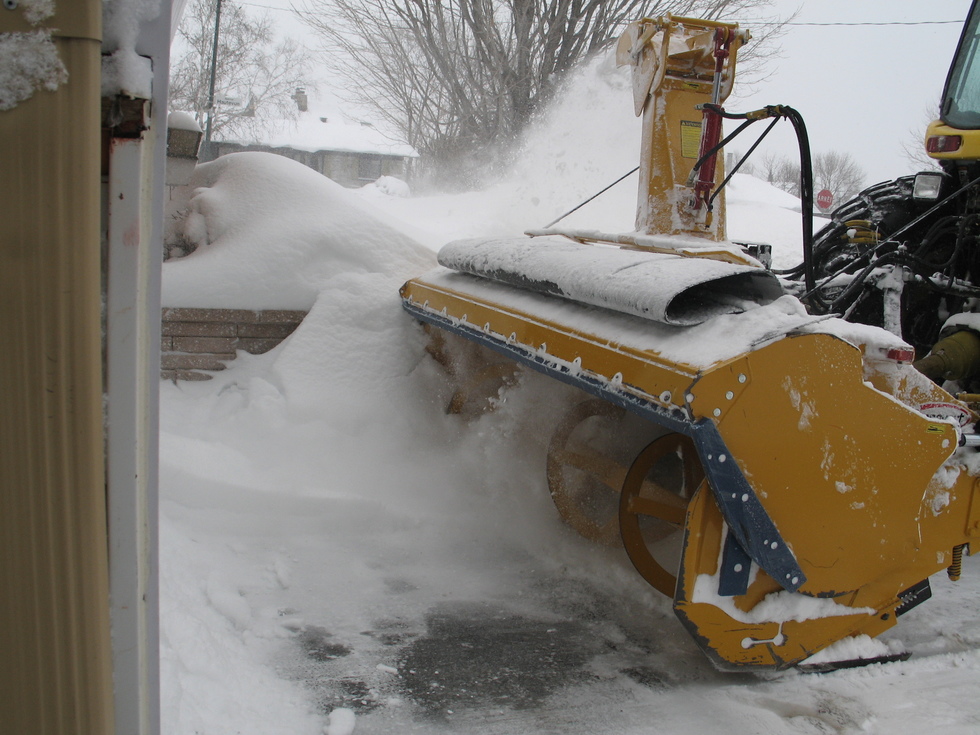

  • Pxpl 86 92 G08

    Model PXPL-86-92

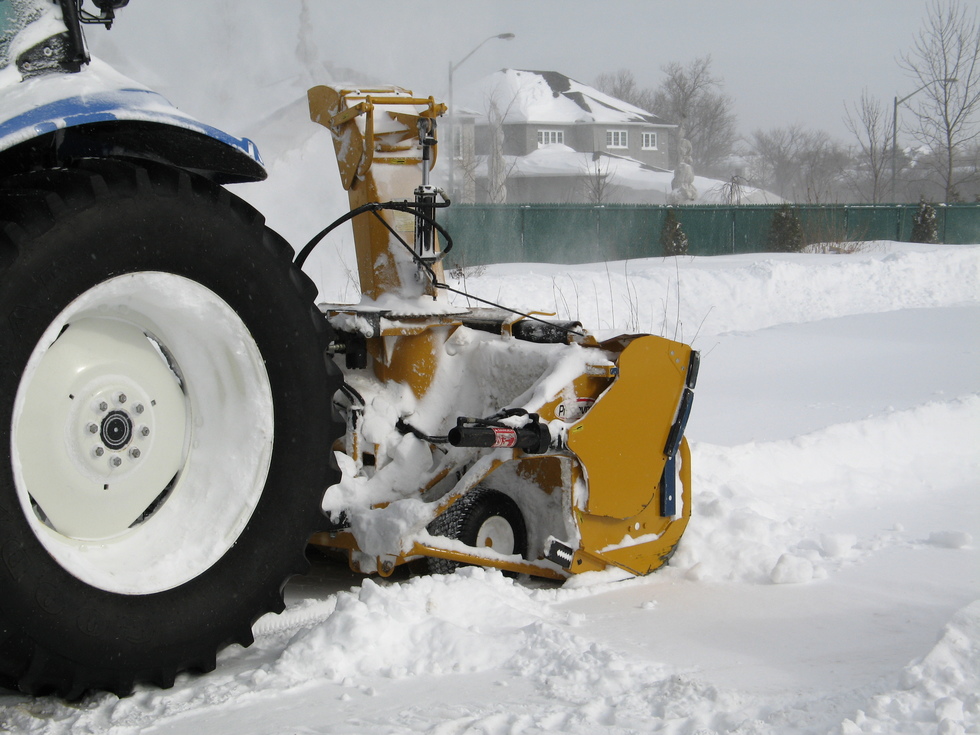

  • Pxpl 92 98 G03

    Model PXPL-86-92

  • Pxpl 92 98 G04

    Model PXPL-92-98

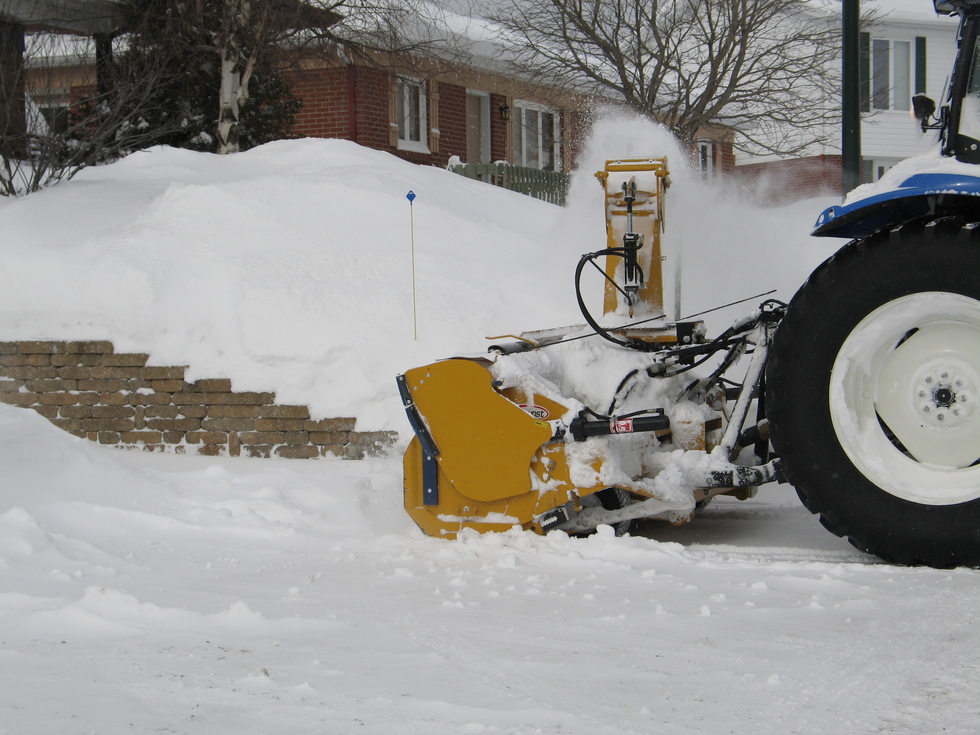

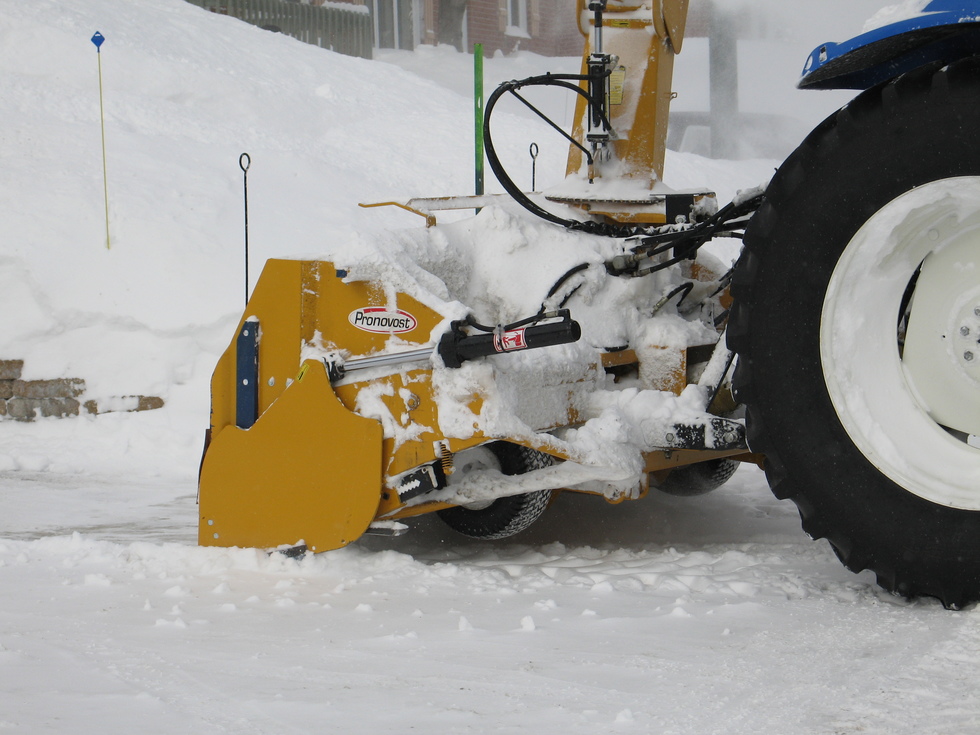

  • Pxpl 92 98 G05

    Model PXPL-92-98

  • Pxpl G012f

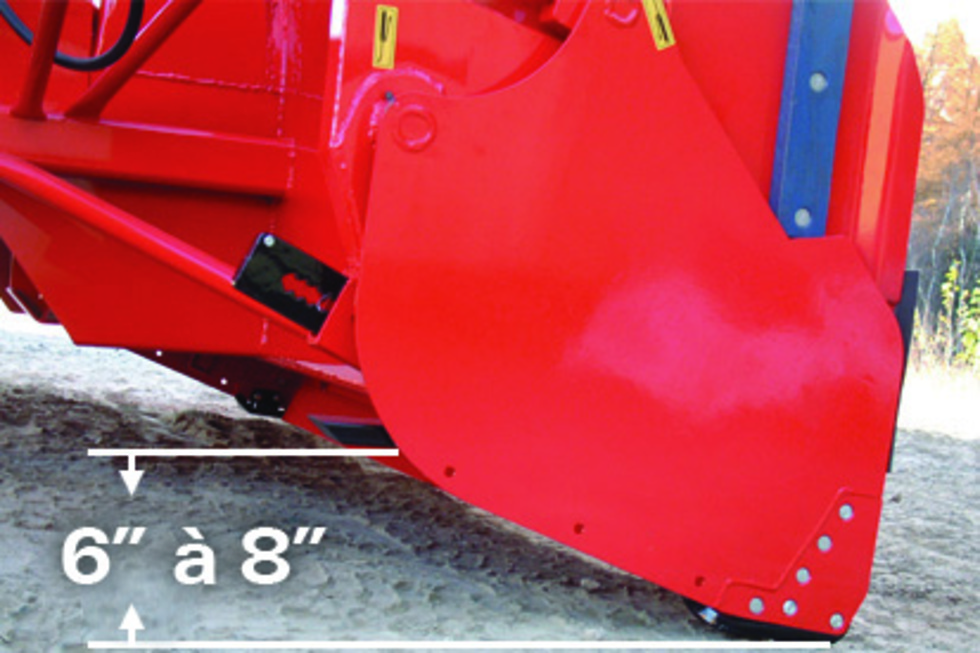

    Clearance of 6" to 8" between ground and snowblower
